Kaydon 16380001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16380001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16380001 reference belongs to the Tr Series and uses a three-row roller, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16380001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16380001.
- Overall OD (Do)
- 108.189 in
- Overall ID (di)
- 85.433 in
- Overall height
- 8.504 in
- Gear arrangement
- Internal gear
- Mounting holes
- 80 / 80 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 108.189 inapproximately 2,748 mm
- Overall inside diameter (di)
- 85.433 inapproximately 2,170 mm
- Outer ring inner diameter (Di)
- 97.126 inapproximately 2,467 mm
- Inner ring outer diameter (do)
- 96.339 inapproximately 2,447.01 mm
- Inner ring body ID (dr)
- 88.150 inapproximately 2,239 mm
- Overall height (H)
- 8.504 inapproximately 216 mm
- Assembly weight (G)
- 6000 lbapproximately 2,721.554 kg
- Inner ring height (Hi)
- 6.850 inapproximately 174 mm
- Outer ring height (Ho)
- 8.150 inapproximately 207 mm
Mounting
- Outer ring bolt circle (Lo)
- 104.646 inapproximately 2,658.01 mm
- Inner ring bolt circle (Li)
- 91.890 inapproximately 2,334 mm
Gear
- Gear pitch diameter (D2)
- 85.984 inapproximately 2,183.99 mm
- Gear tooth count (z2)
- 156
- Catalogue gear face width (b2)
- 4.724 inapproximately 119.99 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16380001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16380001 |
| Certified interchangeable with | Kaydon 16380001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Tr Series |
| Reference model | 16380001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 108.189 inapproximately 2,748 mm |
| Overall inside diameter (di) | 85.433 inapproximately 2,170 mm |
| Overall height (H) | 8.504 inapproximately 216 mm |
| Inner ring height (Hi) | 6.850 inapproximately 174 mm |
| Outer ring height (Ho) | 8.150 inapproximately 207 mm |
| Outer ring inner diameter (Di) | 97.126 inapproximately 2,467 mm |
| Inner ring outer diameter (do) | 96.339 inapproximately 2,447.01 mm |
| Inner ring body ID (dr) | 88.150 inapproximately 2,239 mm |
| Outer ring bolt circle (Lo) | 104.646 inapproximately 2,658.01 mm |
| Inner ring bolt circle (Li) | 91.890 inapproximately 2,334 mm |
| Gear pitch diameter (D2) | 85.984 inapproximately 2,183.99 mm |
| Assembly weight (G) | 6000 lbapproximately 2,721.554 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 57210 lbfapproximately 254.48 kN |
| Moment load rating (Crm) | 9038400 ft·lbfapproximately 12,254.42 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 80 holes · 1.772 |
| Inner ring bolt holes (ni) | 80 holes · 1.772 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 14 (source (14)) |
| Number of teeth (z2) | 156 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

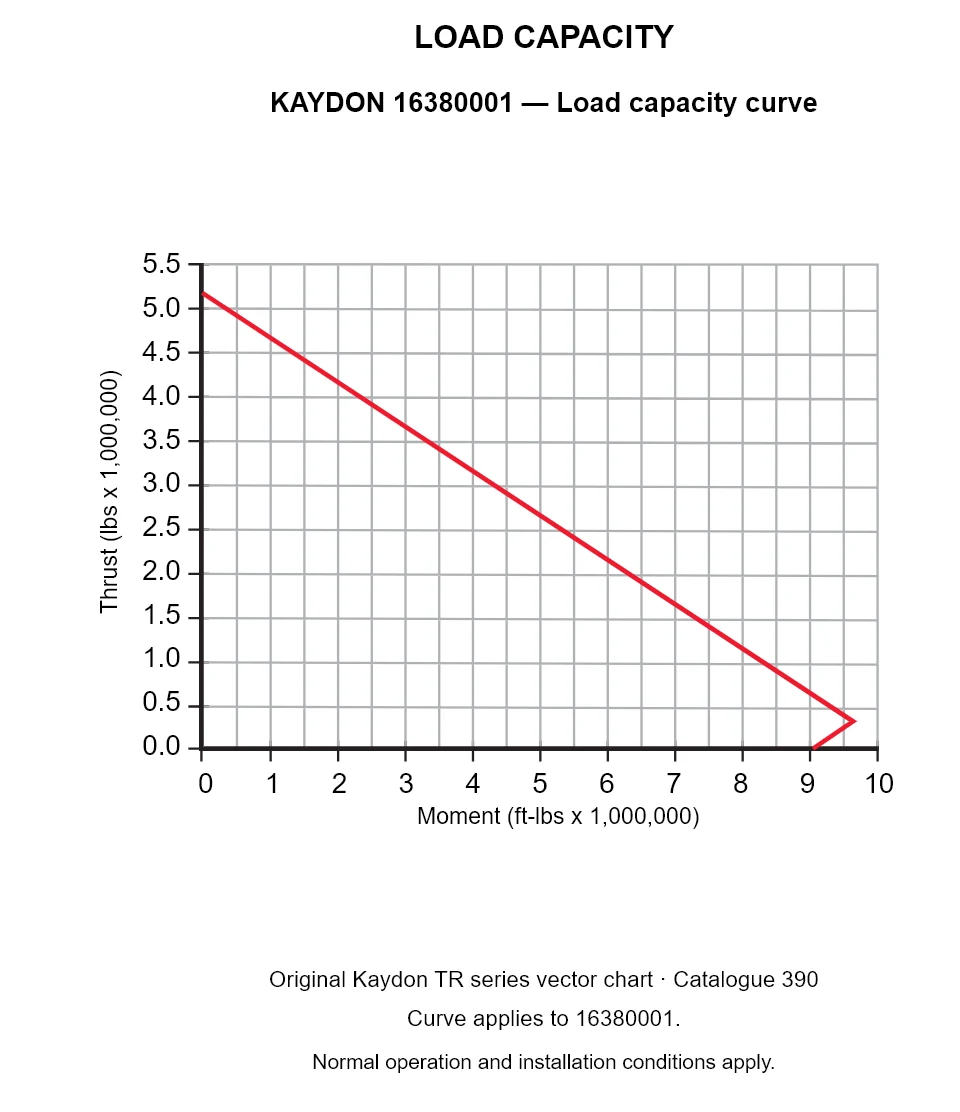

KAYDON 16380001 — Load capacity curve
