MERYDOM · Factory-certified replacement

Kaydon 16338001 Slewing Bearing Replacement

Level 3 Verified

MERYDOM manufactures an engineering-verified replacement for the Kaydon 16338001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

The Kaydon 16338001 reference belongs to the Xr Series and uses a cross roller, external gear slewing bearing configuration.

Request price & deliveryBack to replacement catalog
Back to replacement catalog

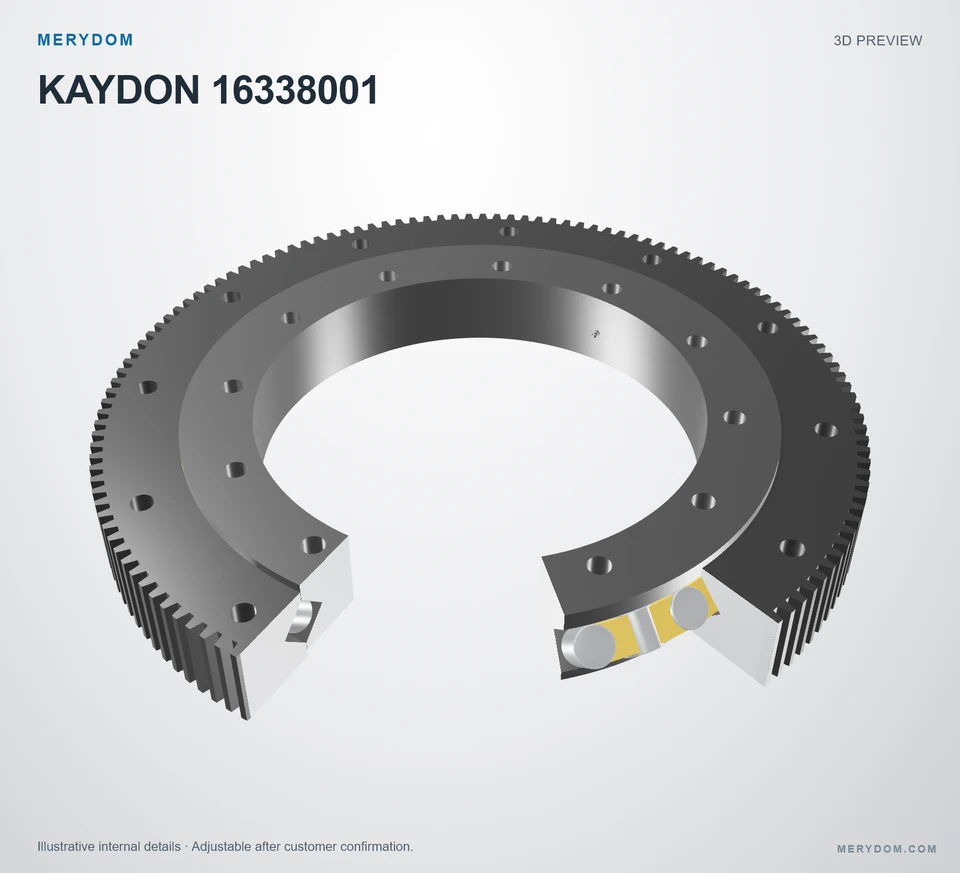

KAYDON 16338001 — 3D model preview
MERYDOM BRAND · CERTIFIED REPLACEMENT

16338001

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16338001.

Certified product dataView complete specifications ↓
Overall OD (Do)
23.333 in
Overall ID (di)
13.750 in
Overall height
2.750 in
Gear arrangement
External gear
Mounting holes
12 / 12 outer / inner
Bearing design
Cross roller
Factory assurance
  • Certified dimensional interchange
  • MERYDOM controlled materials
  • Factory documentation available

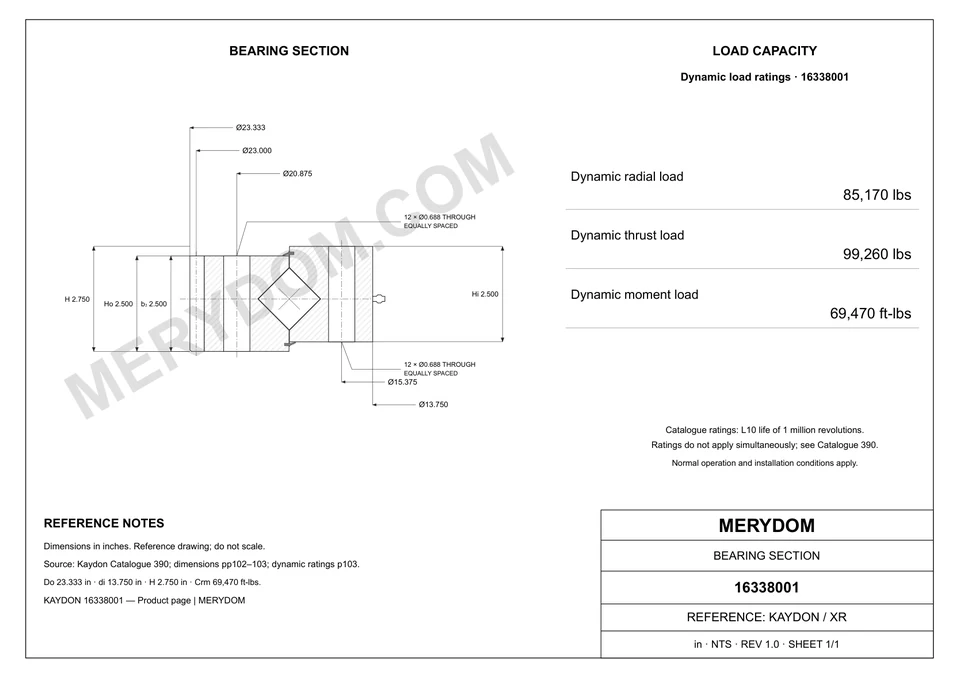

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Overall outside diameter (Do)
23.333 inapproximately 592.66 mm
Overall inside diameter (di)
13.750 inapproximately 349.3 mm
Overall height (H)
2.750 inapproximately 69.9 mm
Assembly weight (G)
175 lbapproximately 79.379 kg
Inner ring height (Hi)
2.500 inapproximately 64 mm
Outer ring height (Ho)
2.500 inapproximately 64 mm

Mounting

Outer ring bolt circle (Lo)
20.875 inapproximately 530.23 mm
Inner ring bolt circle (Li)
15.375 inapproximately 390.53 mm

Gear

Gear pitch diameter (D2)
23.000 inapproximately 584 mm
Diametral pitch (Pd)
6
Gear tooth count (z2)
138
Catalogue gear face width (b2)
2.500 inapproximately 64 mm
MERYDOM CERTIFIED SPECIFICATION

Kaydon 16338001 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record
Technical parameterMERYDOM certified product value
MERYDOM Certified Product
Product brandMERYDOM
MERYDOM model16338001
Certified interchangeable withKaydon 16338001
Factory verificationLevel 3 · Engineering Verified
Reviewed byMERYDOM Engineering Department
Verification metadataControlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options42CrMo / 50Mn
Seal materialNBR · Nitrile rubber
Configurable spacer material optionsEngineering nylon / Brass
Identification
Reference brandKaydon
SeriesXr Series
Reference model16338001
System of measurementInchMetric reference shown alongside
Bearing structureCross roller
Gear arrangementExternal gear
Dimensions
Overall outside diameter (Do)23.333 inapproximately 592.66 mm
Overall inside diameter (di)13.750 inapproximately 349.3 mm
Overall height (H)2.750 inapproximately 69.9 mm
Inner ring height (Hi)2.500 inapproximately 64 mm
Outer ring height (Ho)2.500 inapproximately 64 mm
Outer ring bolt circle (Lo)20.875 inapproximately 530.23 mm
Inner ring bolt circle (Li)15.375 inapproximately 390.53 mm
Gear pitch diameter (D2)23.000 inapproximately 584 mm
Assembly weight (G)175 lbapproximately 79.379 kg
Ratings
Maximum gear tooth load (Fz)7430 lbfapproximately 33.05 kN
Dynamic radial load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings85170.0000000000 lbfapproximately 378.86 kN
Dynamic thrust load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings99260.0000000000 lbfapproximately 441.53 kN
Dynamic moment load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings69470.0000000000 ft·lbfapproximately 94.19 kN·m
Mounting
Outer ring bolt holes (no)12 holes · 0.688
Inner ring bolt holes (ni)12 holes · 0.688
Gear
Pitch systemDP
Source diametral pitch (Pd)6 DP
Equivalent module (derived reference only) (m)4.233333 mm
Number of teeth (z2)138
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
MERYDOM ENGINEERING

MERYDOM Replacement for Kaydon 16338001

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

  • Matching model designation and installation envelope
  • Reviewed mounting-hole and bolt-circle interfaces
  • Gear arrangement matched to the referenced configuration

MERYDOM construction

  • Configurable 42CrMo or 50Mn ring material options
  • NBR nitrile-rubber sealing system
  • Configurable engineering nylon or brass spacer options

Factory documentation

  • Engineering verification by MERYDOM Engineering Department
  • Verification evidence is maintained in the controlled internal record
  • Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

  • Confirm support flatness, bolt grade and preload
  • Verify applied loads, duty cycle and lubrication
  • Confirm temperature, environment and installation conditions
MERYDOM REPLACEMENT SUPPORT

Ready for price, delivery and application confirmation?

Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 16338001.
