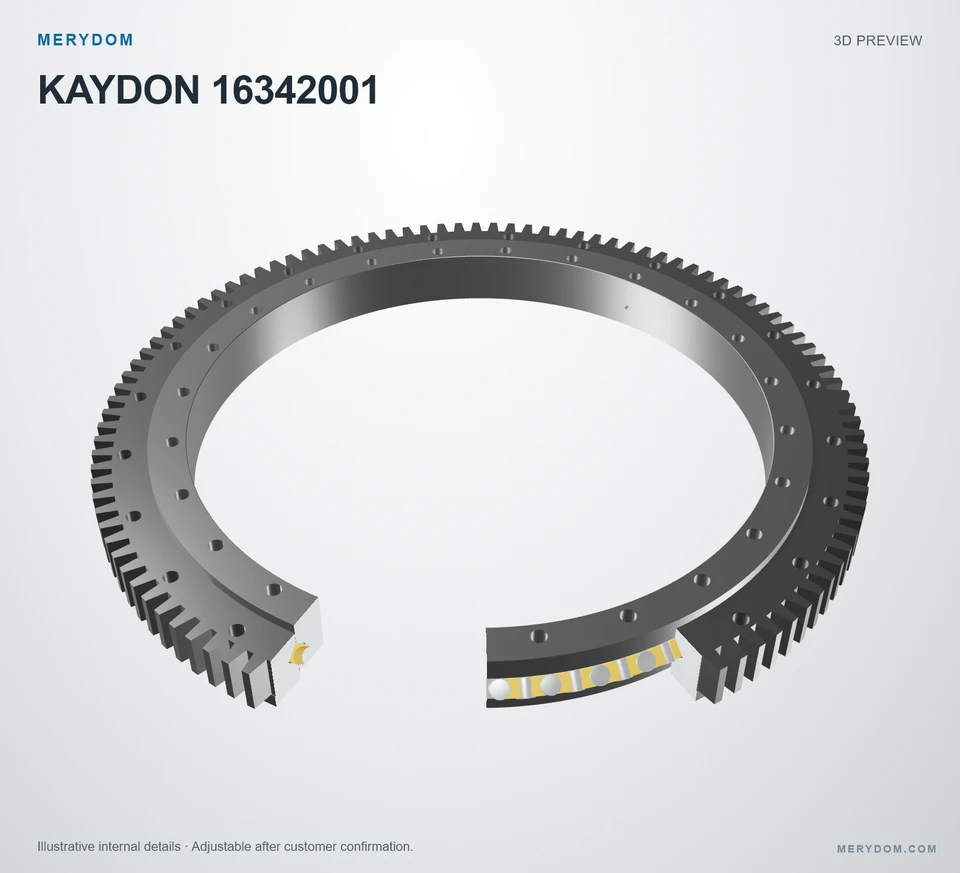

Kaydon 16342001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16342001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16342001 reference belongs to the Xr Series and uses a cross roller, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16342001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16342001.
- Overall OD (Do)
- 45.050 in
- Overall ID (di)
- 34.180 in
- Overall height
- 3.930 in
- Gear arrangement
- External gear
- Mounting holes
- 24 / 24 outer / inner
- Bearing design
- Cross roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

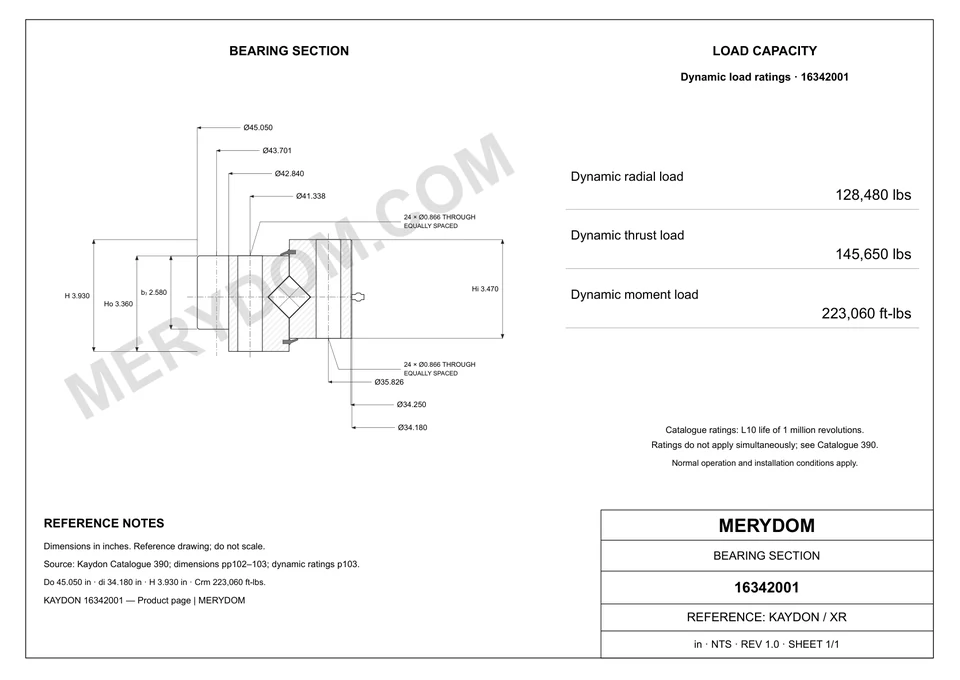

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 45.050 inapproximately 1,144.3 mm
- Overall inside diameter (di)
- 34.180 inapproximately 868.2 mm
- Outer ring body OD (Dr)
- 42.840 inapproximately 1,088.1 mm
- Inner ring body ID (dr)
- 34.250 inapproximately 870 mm
- Overall height (H)
- 3.930 inapproximately 99.8 mm
- Assembly weight (G)
- 470 lbapproximately 213.188 kg
- Inner ring height (Hi)
- 3.470 inapproximately 88.1 mm
- Outer ring height (Ho)
- 3.360 inapproximately 85.3 mm
Mounting
- Outer ring bolt circle (Lo)
- 41.338 inapproximately 1,049.99 mm
- Inner ring bolt circle (Li)
- 35.826 inapproximately 909.98 mm
Gear
- Gear pitch diameter (D2)
- 43.701 inapproximately 1,110.01 mm
- Gear tooth count (z2)
- 111
- Catalogue gear face width (b2)
- 2.580 inapproximately 65.5 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16342001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16342001 |
| Certified interchangeable with | Kaydon 16342001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xr Series |
| Reference model | 16342001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Cross roller |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 45.050 inapproximately 1,144.3 mm |
| Overall inside diameter (di) | 34.180 inapproximately 868.2 mm |
| Overall height (H) | 3.930 inapproximately 99.8 mm |
| Inner ring height (Hi) | 3.470 inapproximately 88.1 mm |
| Outer ring height (Ho) | 3.360 inapproximately 85.3 mm |
| Outer ring body OD (Dr) | 42.840 inapproximately 1,088.1 mm |
| Inner ring body ID (dr) | 34.250 inapproximately 870 mm |
| Outer ring bolt circle (Lo) | 41.338 inapproximately 1,049.99 mm |
| Inner ring bolt circle (Li) | 35.826 inapproximately 909.98 mm |
| Gear pitch diameter (D2) | 43.701 inapproximately 1,110.01 mm |
| Assembly weight (G) | 470 lbapproximately 213.188 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 15490 lbfapproximately 68.9 kN |
| Dynamic radial load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 128480.0000000000 lbfapproximately 571.51 kN |
| Dynamic thrust load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 145650.0000000000 lbfapproximately 647.88 kN |
| Dynamic moment load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings | 223060.0000000000 ft·lbfapproximately 302.43 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 24 holes · 0.866 |
| Inner ring bolt holes (ni) | 24 holes · 0.866 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 10 (source (10)) |
| Number of teeth (z2) | 111 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16342001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
