STANDARD SERIES

013/014 Series Internal Gear Slewing Bearings

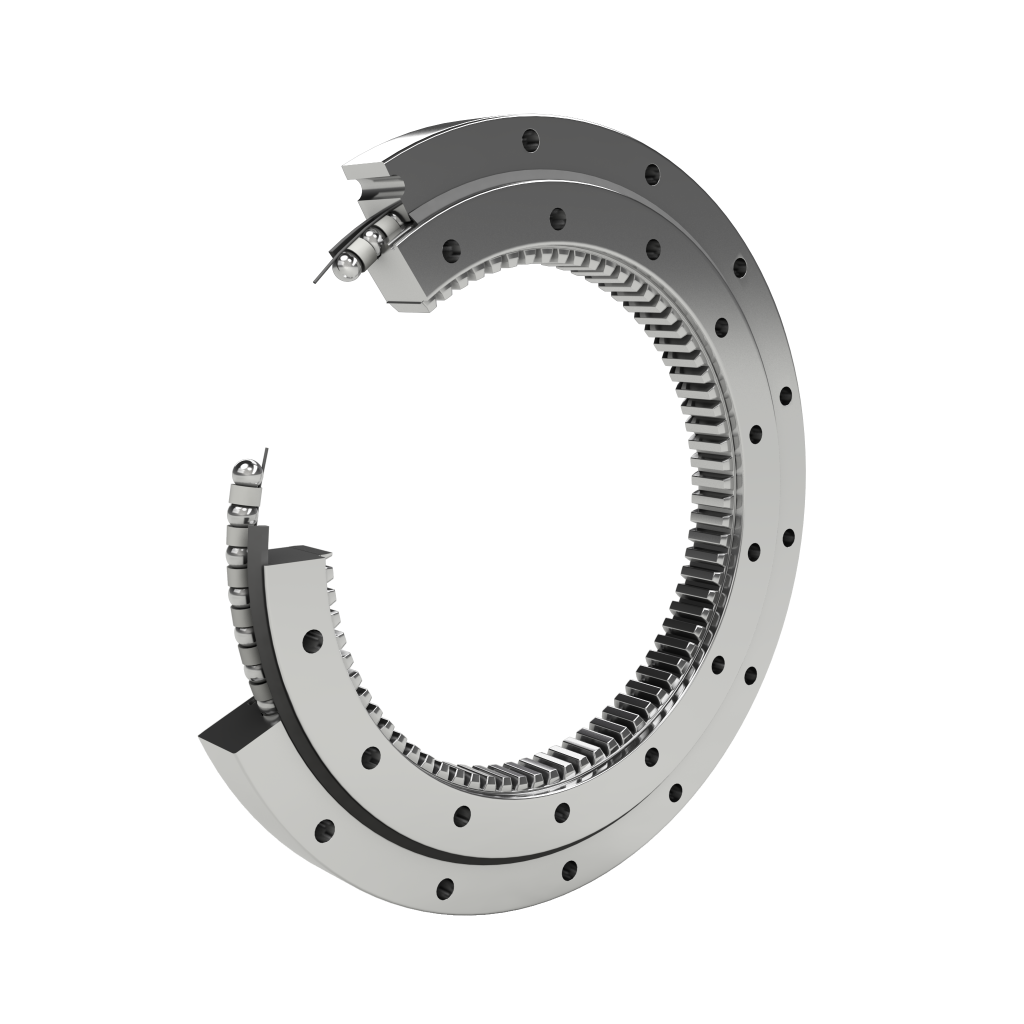

Single row four-point contact ball slewing bearings with internal gear teeth for designs requiring a protected drive position or compact external envelope.

Compact drive layoutInternal gearCustomizable

ENGINEERING OVERVIEW

013/014 Internal Gear

Single row four-point contact ball slewing bearings with internal gear teeth for designs requiring a protected drive position or compact external envelope.

StructureSingle row four-point contact ball

Gear typeInternal gear

Models in this series84 verified rows

MODEL TABLE

013/014 series catalogue parameters

Default columns show ring-body D/d/H plus the critical envelope dimension used for installation clearance. Click a model number to open its generated detail page.

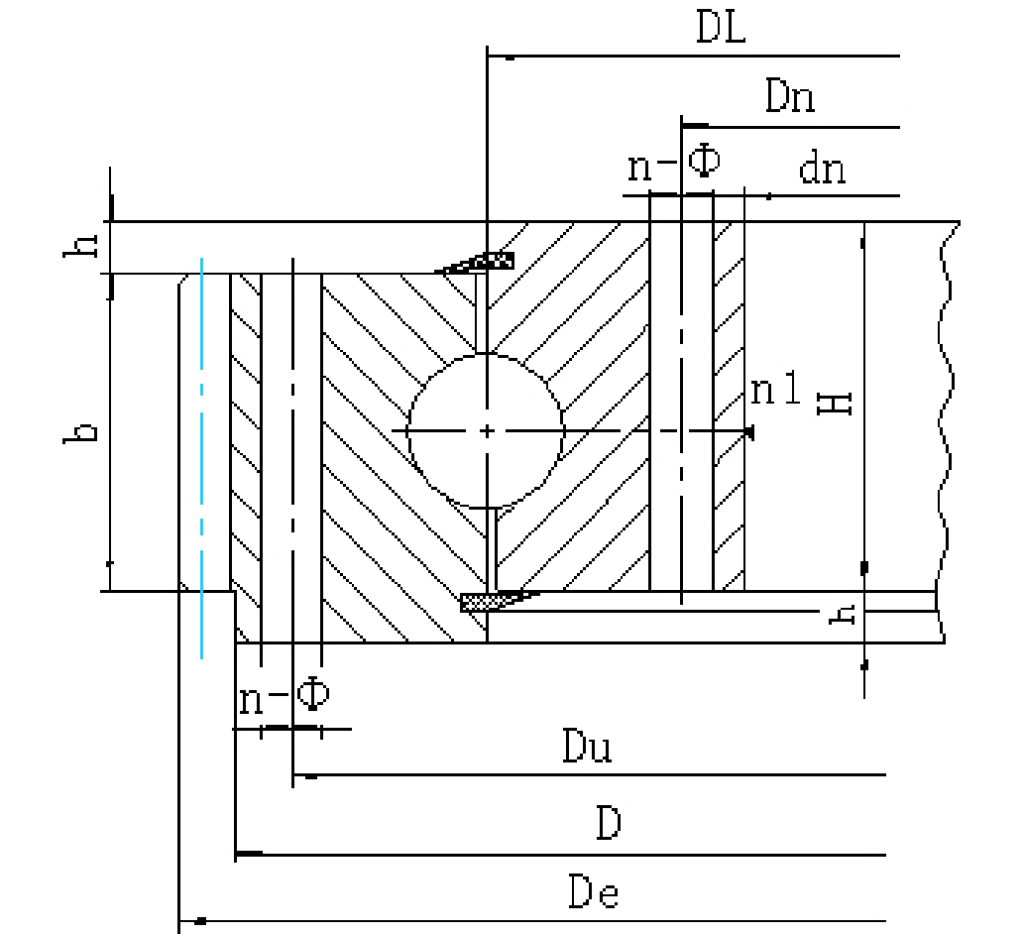

Diameter definition: D is the ring-body outside diameter and d is the ring-body inside diameter. For internal gear models, the gear is inside the bore, so the largest object that can pass through the center may be De, not d. Use Min bore = min(d, De).

Click a model number to open its detail page.

MODEL	D	d	MIN BORE	H	MOUNTING HOLES	GEAR m	De / z	WEIGHT	RFQ
013.25.315Internal gear Envelope dimensions Envelope OD 408 mm Envelope bore 190 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	408	222	190	70	20 x phi 18 / M16	5	190 / 40	49	Quote
013.25.355Internal gear Envelope dimensions Envelope OD 448 mm Envelope bore 235 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	448	262	235	70	20 x phi 18 / M16	5	235 / 49	54	Quote
013.25.400Internal gear Envelope dimensions Envelope OD 493 mm Envelope bore 276 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	493	307	276	70	20 x phi 18 / M16	6	276 / 48	62	Quote
013.25.450Internal gear Envelope dimensions Envelope OD 543 mm Envelope bore 324 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	543	357	324	70	20 x phi 18 / M16	6	324 / 56	71	Quote
013.25.500Internal gear Envelope dimensions Envelope OD 602 mm Envelope bore 367 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	367	80	20 x phi 18 / M16	5	367 / 74	85	Quote
013.30.500Internal gear Envelope dimensions Envelope OD 602 mm Envelope bore 367 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	367	80	20 x phi 18 / M16	5	367 / 74	85	Quote
014.25.500Internal gear Envelope dimensions Envelope OD 602 mm Envelope bore 368.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	368.4	80	20 x phi 18 / M16	6	368.4 / 62	85	Quote
014.30.500Internal gear Envelope dimensions Envelope OD 602 mm Envelope bore 368.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	368.4	80	20 x phi 18 / M16	6	368.4 / 62	85	Quote
013.25.560Internal gear Envelope dimensions Envelope OD 662 mm Envelope bore 427 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	427	80	20 x phi 18 / M16	5	427 / 86	95	Quote
013.30.560Internal gear Envelope dimensions Envelope OD 662 mm Envelope bore 427 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	427	80	20 x phi 18 / M16	5	427 / 86	95	Quote
014.25.560Internal gear Envelope dimensions Envelope OD 662 mm Envelope bore 428.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	428.4	80	20 x phi 18 / M16	6	428.4 / 72	95	Quote
014.30.560Internal gear Envelope dimensions Envelope OD 662 mm Envelope bore 428.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	428.4	80	20 x phi 18 / M16	6	428.4 / 72	95	Quote
013.25.630Internal gear Envelope dimensions Envelope OD 732 mm Envelope bore 494.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	494.4	80	24 x phi 18 / M16	6	494.4 / 83	110	Quote
013.30.630Internal gear Envelope dimensions Envelope OD 732 mm Envelope bore 494.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	494.4	80	24 x phi 18 / M16	6	494.4 / 83	110	Quote
014.25.630Internal gear Envelope dimensions Envelope OD 732 mm Envelope bore 491.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	491.2	80	24 x phi 18 / M16	8	491.2 / 62	110	Quote
014.30.630Internal gear Envelope dimensions Envelope OD 732 mm Envelope bore 491.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	491.2	80	24 x phi 18 / M16	8	491.2 / 62	110	Quote
013.25.710Internal gear Envelope dimensions Envelope OD 812 mm Envelope bore 572.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	572.4	80	24 x phi 18 / M16	6	572.4 / 96	120	Quote
013.30.710Internal gear Envelope dimensions Envelope OD 812 mm Envelope bore 572.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	572.4	80	24 x phi 18 / M16	6	572.4 / 96	120	Quote
014.25.710Internal gear Envelope dimensions Envelope OD 812 mm Envelope bore 571.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	571.2	80	24 x phi 18 / M16	8	571.2 / 72	120	Quote
014.30.710Internal gear Envelope dimensions Envelope OD 812 mm Envelope bore 571.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	571.2	80	24 x phi 18 / M16	8	571.2 / 72	120	Quote
013.30.800Internal gear Envelope dimensions Envelope OD 922 mm Envelope bore 635.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	635.2	100	30 x phi 22 / M20	8	635.2 / 80	220	Quote
013.40.800Internal gear Envelope dimensions Envelope OD 922 mm Envelope bore 635.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	635.2	100	30 x phi 22 / M20	8	635.2 / 80	220	Quote
014.30.800Internal gear Envelope dimensions Envelope OD 922 mm Envelope bore 634 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	634	100	30 x phi 22 / M20	10	634 / 64	220	Quote
014.40.800Internal gear Envelope dimensions Envelope OD 922 mm Envelope bore 634 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	634	100	30 x phi 22 / M20	10	634 / 64	220	Quote
013.30.900Internal gear Envelope dimensions Envelope OD 1022 mm Envelope bore 739.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	739.2	100	30 x phi 22 / M20	8	739.2 / 93	240	Quote
013.40.900Internal gear Envelope dimensions Envelope OD 1022 mm Envelope bore 739.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	739.2	100	30 x phi 22 / M20	8	739.2 / 93	240	Quote
014.30.900Internal gear Envelope dimensions Envelope OD 1022 mm Envelope bore 734 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	734	100	30 x phi 22 / M20	10	734 / 74	240	Quote
014.40.900Internal gear Envelope dimensions Envelope OD 1022 mm Envelope bore 734 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	734	100	30 x phi 22 / M20	10	734 / 74	240	Quote
013.30.1000Internal gear Envelope dimensions Envelope OD 1122 mm Envelope bore 824 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	824	100	36 x phi 22 / M20	10	824 / 83	270	Quote
013.40.1000Internal gear Envelope dimensions Envelope OD 1122 mm Envelope bore 824 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	824	100	36 x phi 22 / M20	10	824 / 83	270	Quote
014.30.1000Internal gear Envelope dimensions Envelope OD 1122 mm Envelope bore 820.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	820.8	100	36 x phi 22 / M20	12	820.8 / 69	270	Quote
014.40.1000Internal gear Envelope dimensions Envelope OD 1122 mm Envelope bore 820.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	820.8	100	36 x phi 22 / M20	12	820.8 / 69	270	Quote
013.30.1120Internal gear Envelope dimensions Envelope OD 1242 mm Envelope bore 944 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	944	100	36 x phi 22 / M20	10	944 / 95	300	Quote
013.40.1120Internal gear Envelope dimensions Envelope OD 1242 mm Envelope bore 944 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	944	100	36 x phi 22 / M20	10	944 / 95	300	Quote
014.30.1120Internal gear Envelope dimensions Envelope OD 1242 mm Envelope bore 940.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	940.8	100	36 x phi 22 / M20	12	940.8 / 79	300	Quote
014.40.1120Internal gear Envelope dimensions Envelope OD 1242 mm Envelope bore 940.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	940.8	100	36 x phi 22 / M20	12	940.8 / 79	300	Quote
013.35.1250Internal gear Envelope dimensions Envelope OD 1390 mm Envelope bore 1048.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	1048.8	110	40 x phi 26 / M24	12	1048.8 / 88	420	Quote
013.45.1250Internal gear Envelope dimensions Envelope OD 1390 mm Envelope bore 1048.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	1048.8	110	40 x phi 26 / M24	12	1048.8 / 88	420	Quote
014.35.1250Internal gear Envelope dimensions Envelope OD 1390 mm Envelope bore 1041.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	1041.6	110	40 x phi 26 / M24	14	1041.6 / 75	420	Quote
014.45.1250Internal gear Envelope dimensions Envelope OD 1390 mm Envelope bore 1041.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	1041.6	110	40 x phi 26 / M24	14	1041.6 / 75	420	Quote
013.35.1400Internal gear Envelope dimensions Envelope OD 1540 mm Envelope bore 1192.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	1192.8	110	40 x phi 26 / M24	12	1192.8 / 100	480	Quote
013.45.1400Internal gear Envelope dimensions Envelope OD 1540 mm Envelope bore 1192.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	1192.8	110	40 x phi 26 / M24	12	1192.8 / 100	480	Quote
014.35.1400Internal gear Envelope dimensions Envelope OD 1540 mm Envelope bore 1195.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	1195.6	110	40 x phi 26 / M24	14	1195.6 / 86	480	Quote
014.45.1400Internal gear Envelope dimensions Envelope OD 1540 mm Envelope bore 1195.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	1195.6	110	40 x phi 26 / M24	14	1195.6 / 86	480	Quote
013.35.1600Internal gear Envelope dimensions Envelope OD 1740 mm Envelope bore 1391.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	1391.6	110	45 x phi 26 / M24	14	1391.6 / 100	550	Quote
013.45.1600Internal gear Envelope dimensions Envelope OD 1740 mm Envelope bore 1391.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	1391.6	110	45 x phi 26 / M24	14	1391.6 / 100	550	Quote
014.35.1600Internal gear Envelope dimensions Envelope OD 1740 mm Envelope bore 1382.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	1382.4	110	45 x phi 26 / M24	16	1382.4 / 87	550	Quote
014.45.1600Internal gear Envelope dimensions Envelope OD 1740 mm Envelope bore 1382.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	1382.4	110	45 x phi 26 / M24	16	1382.4 / 87	550	Quote
013.35.1800Internal gear Envelope dimensions Envelope OD 1940 mm Envelope bore 1573.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	1573.6	110	45 x phi 26 / M24	14	1573.6 / 113	610	Quote
013.45.1800Internal gear Envelope dimensions Envelope OD 1940 mm Envelope bore 1573.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	1573.6	110	45 x phi 26 / M24	14	1573.6 / 113	610	Quote
014.35.1800Internal gear Envelope dimensions Envelope OD 1940 mm Envelope bore 1574.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	1574.4	110	45 x phi 26 / M24	16	1574.4 / 99	610	Quote
014.45.1800Internal gear Envelope dimensions Envelope OD 1940 mm Envelope bore 1574.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	1574.4	110	45 x phi 26 / M24	16	1574.4 / 99	610	Quote
013.40.2000Internal gear Envelope dimensions Envelope OD 2178 mm Envelope bore 1734.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	1734.4	144	48 x phi 33 / M30	16	1734.4 / 109	1100	Quote
013.60.2000Internal gear Envelope dimensions Envelope OD 2178 mm Envelope bore 1734.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	1734.4	144	48 x phi 33 / M30	16	1734.4 / 109	1100	Quote
014.40.2000Internal gear Envelope dimensions Envelope OD 2178 mm Envelope bore 1735.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	1735.2	144	48 x phi 33 / M30	18	1735.2 / 97	1100	Quote
014.60.2000Internal gear Envelope dimensions Envelope OD 2178 mm Envelope bore 1735.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	1735.2	144	48 x phi 33 / M30	18	1735.2 / 97	1100	Quote
013.40.2240Internal gear Envelope dimensions Envelope OD 2418 mm Envelope bore 1990.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	1990.4	144	48 x phi 33 / M30	16	1990.4 / 125	1250	Quote
013.60.2240Internal gear Envelope dimensions Envelope OD 2418 mm Envelope bore 1990.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	1990.4	144	48 x phi 33 / M30	16	1990.4 / 125	1250	Quote
014.40.2240Internal gear Envelope dimensions Envelope OD 2418 mm Envelope bore 1987.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	1987.2	144	48 x phi 33 / M30	18	1987.2 / 111	1250	Quote
014.60.2240Internal gear Envelope dimensions Envelope OD 2418 mm Envelope bore 1987.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	1987.2	144	48 x phi 33 / M30	18	1987.2 / 111	1250	Quote
013.40.2500Internal gear Envelope dimensions Envelope OD 2678 mm Envelope bore 2239.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	2239.2	144	56 x phi 33 / M30	18	2239.2 / 125	1400	Quote
013.60.2500Internal gear Envelope dimensions Envelope OD 2678 mm Envelope bore 2239.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	2239.2	144	56 x phi 33 / M30	18	2239.2 / 125	1400	Quote
014.40.2500Internal gear Envelope dimensions Envelope OD 2678 mm Envelope bore 2228 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	2228	144	56 x phi 33 / M30	20	2228 / 112	1400	Quote
014.60.2500Internal gear Envelope dimensions Envelope OD 2678 mm Envelope bore 2228 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	2228	144	56 x phi 33 / M30	20	2228 / 112	1400	Quote
013.40.2800Internal gear Envelope dimensions Envelope OD 2978 mm Envelope bore 2527.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	2527.2	144	56 x phi 33 / M30	18	2527.2 / 141	1600	Quote
013.60.2800Internal gear Envelope dimensions Envelope OD 2978 mm Envelope bore 2527.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	2527.2	144	56 x phi 33 / M30	18	2527.2 / 141	1600	Quote
014.40.2800Internal gear Envelope dimensions Envelope OD 2978 mm Envelope bore 2528 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	2528	144	56 x phi 33 / M30	20	2528 / 127	1600	Quote
014.60.2800Internal gear Envelope dimensions Envelope OD 2978 mm Envelope bore 2528 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	2528	144	56 x phi 33 / M30	20	2528 / 127	1600	Quote
013.50.3150Internal gear Envelope dimensions Envelope OD 3376 mm Envelope bore 2828 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	2828	174	56 x phi 45 / M42	20	2828 / 142	2800	Quote
013.75.3150Internal gear Envelope dimensions Envelope OD 3376 mm Envelope bore 2828 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	2828	174	56 x phi 45 / M42	20	2828 / 142	2800	Quote
014.50.3150Internal gear Envelope dimensions Envelope OD 3376 mm Envelope bore 2824.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	2824.8	174	56 x phi 45 / M42	22	2824.8 / 129	2800	Quote
014.75.3150Internal gear Envelope dimensions Envelope OD 3376 mm Envelope bore 2824.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	2824.8	174	56 x phi 45 / M42	22	2824.8 / 129	2800	Quote
013.50.3550Internal gear Envelope dimensions Envelope OD 3776 mm Envelope bore 3228 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	3228	174	56 x phi 45 / M42	20	3228 / 162	3500	Quote
013.75.3550Internal gear Envelope dimensions Envelope OD 3776 mm Envelope bore 3228 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	3228	174	56 x phi 45 / M42	20	3228 / 162	3500	Quote
014.50.3550Internal gear Envelope dimensions Envelope OD 3776 mm Envelope bore 3220.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	3220.8	174	56 x phi 45 / M42	22	3220.8 / 147	3500	Quote
014.75.3550Internal gear Envelope dimensions Envelope OD 3776 mm Envelope bore 3220.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	3220.8	174	56 x phi 45 / M42	22	3220.8 / 147	3500	Quote
013.50.4000Internal gear Envelope dimensions Envelope OD 4226 mm Envelope bore 3660.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	3660.8	174	60 x phi 45 / M42	22	3660.8 / 167	4200	Quote
013.75.4000Internal gear Envelope dimensions Envelope OD 4226 mm Envelope bore 3660.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	3660.8	174	60 x phi 45 / M42	22	3660.8 / 167	4200	Quote
014.50.4000Internal gear Envelope dimensions Envelope OD 4226 mm Envelope bore 3660 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	3660	174	60 x phi 45 / M42	25	3660 / 147	4200	Quote
014.75.4000Internal gear Envelope dimensions Envelope OD 4226 mm Envelope bore 3660 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	3660	174	60 x phi 45 / M42	25	3660 / 147	4200	Quote
013.50.4500Internal gear Envelope dimensions Envelope OD 4726 mm Envelope bore 4166.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	4166.8	174	60 x phi 45 / M42	22	4166.8 / 190	5100	Quote
013.75.4500Internal gear Envelope dimensions Envelope OD 4726 mm Envelope bore 4166.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	4166.8	174	60 x phi 45 / M42	22	4166.8 / 190	5100	Quote
014.50.4500Internal gear Envelope dimensions Envelope OD 4726 mm Envelope bore 4160 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	4160	174	60 x phi 45 / M42	25	4160 / 167	5100	Quote
014.75.4500Internal gear Envelope dimensions Envelope OD 4726 mm Envelope bore 4160 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	4160	174	60 x phi 45 / M42	25	4160 / 167	5100	Quote

Catalogue notes

The 013/014 internal gear series is useful when the machine designer wants to keep the outside diameter clean or protect the drive teeth inside the equipment envelope. Typical screening cases include compact crane bases, rotary positioners, industrial manipulators, vehicle-mounted equipment, and machinery where external guards or surrounding structures limit the use of an outside pinion. Internal gear layouts should be checked together with pinion access, lubrication route, sealing space, and the radial clearance needed for assembly and future maintenance.

Catalogue dimensions are reference data and may extend beyond the current verified in-house machining range. Final manufacturing capability is confirmed against the customer drawing before quotation.

Final quotation and production are based on confirmed drawings, load conditions, material requirements, heat treatment, inspection documents, and packing requirements.
