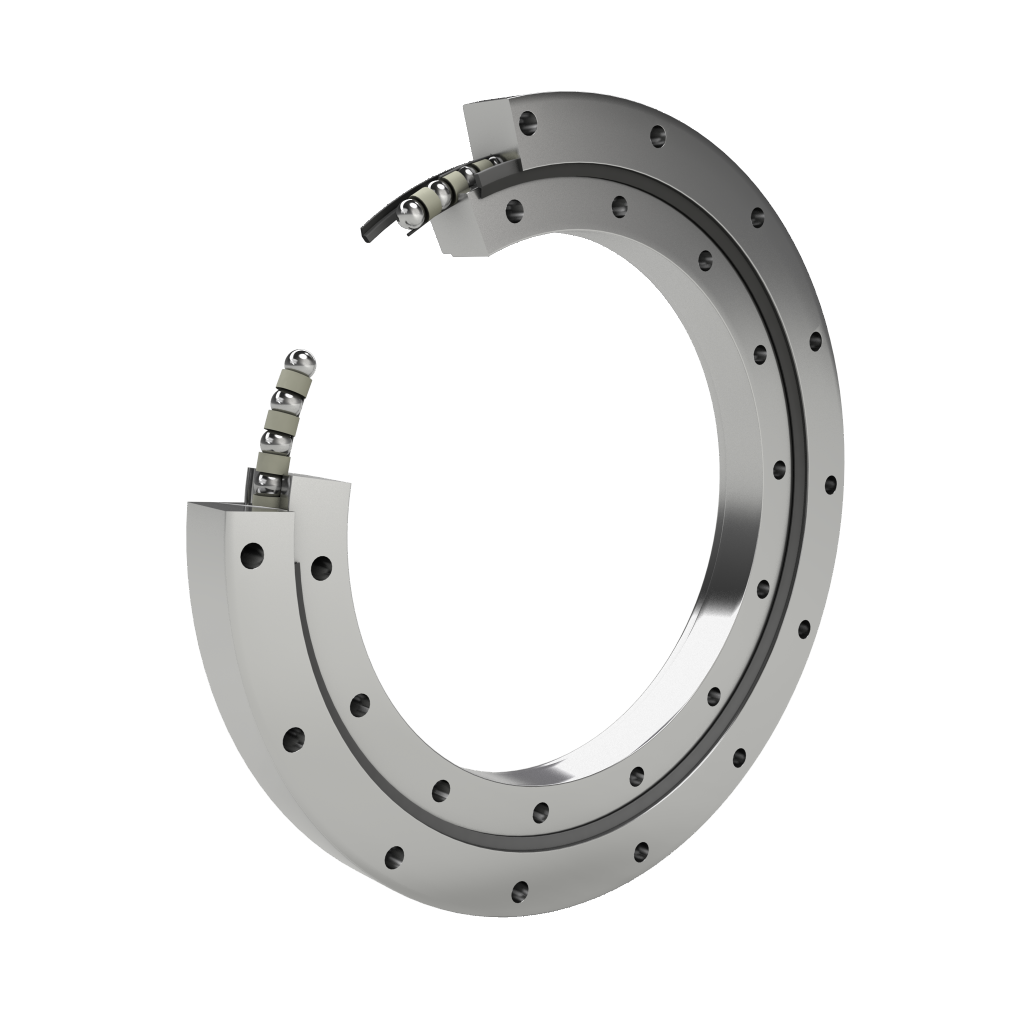

010 Series Ungeared Slewing Bearings

Ungeared single row four-point contact ball slewing bearings for applications where rotation is driven by external mechanisms or where gear teeth are not required.

No gearSimple structureMounting flexibility

ENGINEERING OVERVIEW

010 Ungeared

Ungeared single row four-point contact ball slewing bearings for applications where rotation is driven by external mechanisms or where gear teeth are not required.

StructureSingle row four-point contact ball

Gear typeNo gear

Models in this series48 verified rows

MODEL TABLE

010 series catalogue parameters

Default columns show ring-body D/d/H plus the critical envelope dimension used for installation clearance. Click a model number to open its generated detail page.

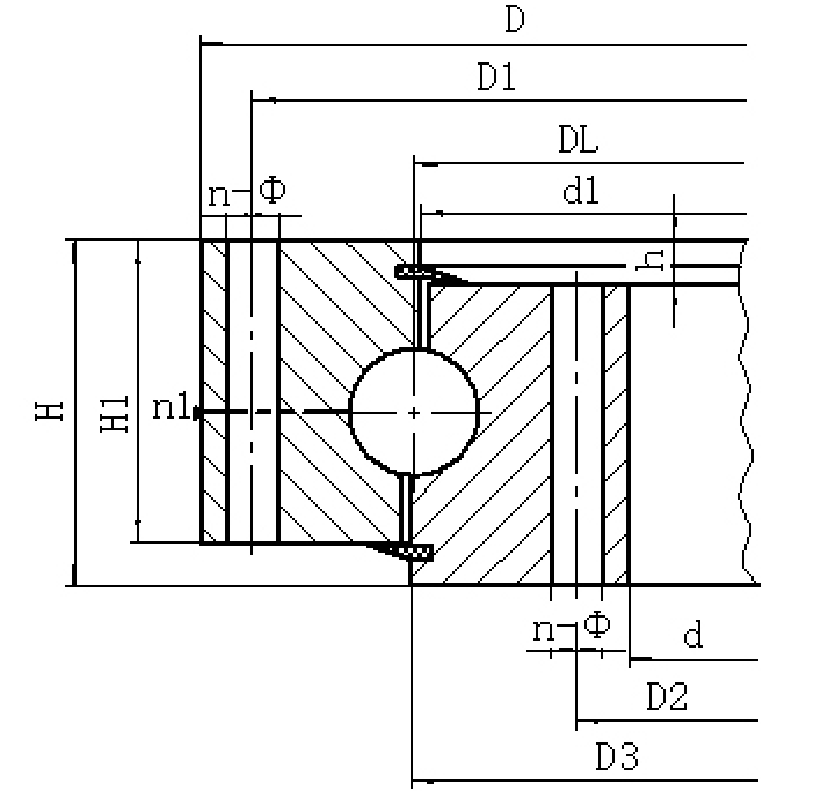

Diameter definition: D is the ring-body outside diameter, d is the ring-body inside diameter, and H is the total height. For ungeared models, D and d are the complete outside and inside envelope dimensions.

Click a model number to open its detail page.

MODEL	D	d	H	MOUNTING HOLES	WEIGHT	RFQ
010.20.200No gear Envelope dimensions Envelope OD 280 mm Envelope bore 120 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	280	120	60	12 x phi 16 / M14	20	Quote
010.20.224No gear Envelope dimensions Envelope OD 304 mm Envelope bore 144 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	304	144	60	12 x phi 16 / M14	22	Quote
010.20.250No gear Envelope dimensions Envelope OD 330 mm Envelope bore 170 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	330	170	60	18 x phi 16 / M14	25	Quote
010.20.280No gear Envelope dimensions Envelope OD 360 mm Envelope bore 200 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	360	200	60	18 x phi 16 / M14	28	Quote
010.25.315No gear Envelope dimensions Envelope OD 408 mm Envelope bore 222 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	408	222	70	20 x phi 18 / M16	44	Quote
010.25.355No gear Envelope dimensions Envelope OD 448 mm Envelope bore 262 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	448	262	70	20 x phi 18 / M16	49	Quote
010.25.400No gear Envelope dimensions Envelope OD 493 mm Envelope bore 307 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	493	307	70	20 x phi 18 / M16	56	Quote
010.25.450No gear Envelope dimensions Envelope OD 543 mm Envelope bore 357 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	543	357	70	20 x phi 18 / M16	62	Quote
010.25.500No gear Envelope dimensions Envelope OD 602 mm Envelope bore 398 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	80	20 x phi 18 / M16	85	Quote
010.30.500No gear Envelope dimensions Envelope OD 602 mm Envelope bore 398 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	80	20 x phi 18 / M16	85	Quote
010.25.560No gear Envelope dimensions Envelope OD 662 mm Envelope bore 458 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	80	20 x phi 18 / M16	95	Quote
010.30.560No gear Envelope dimensions Envelope OD 662 mm Envelope bore 458 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	80	20 x phi 18 / M16	95	Quote
010.25.630No gear Envelope dimensions Envelope OD 732 mm Envelope bore 528 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	80	24 x phi 18 / M16	110	Quote
010.30.630No gear Envelope dimensions Envelope OD 732 mm Envelope bore 528 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	80	24 x phi 18 / M16	110	Quote
010.25.710No gear Envelope dimensions Envelope OD 812 mm Envelope bore 608 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	80	24 x phi 18 / M16	120	Quote
010.30.710No gear Envelope dimensions Envelope OD 812 mm Envelope bore 608 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	80	24 x phi 18 / M16	120	Quote
010.30.800No gear Envelope dimensions Envelope OD 922 mm Envelope bore 678 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	100	30 x phi 22 / M20	220	Quote
010.40.800No gear Envelope dimensions Envelope OD 922 mm Envelope bore 678 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	100	30 x phi 22 / M20	220	Quote
010.30.900No gear Envelope dimensions Envelope OD 1022 mm Envelope bore 778 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	100	30 x phi 22 / M20	240	Quote
010.40.900No gear Envelope dimensions Envelope OD 1022 mm Envelope bore 778 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	100	30 x phi 22 / M20	240	Quote
010.30.1000No gear Envelope dimensions Envelope OD 1122 mm Envelope bore 878 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	100	36 x phi 22 / M20	270	Quote
010.40.1000No gear Envelope dimensions Envelope OD 1122 mm Envelope bore 878 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	100	36 x phi 22 / M20	270	Quote
010.30.1120No gear Envelope dimensions Envelope OD 1242 mm Envelope bore 998 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	100	36 x phi 22 / M20	300	Quote
010.40.1120No gear Envelope dimensions Envelope OD 1242 mm Envelope bore 998 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	100	36 x phi 22 / M20	300	Quote
010.35.1250No gear Envelope dimensions Envelope OD 1390 mm Envelope bore 1110 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	110	40 x phi 26 / M24	420	Quote
010.45.1250No gear Envelope dimensions Envelope OD 1390 mm Envelope bore 1110 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	110	40 x phi 26 / M24	420	Quote
010.35.1400No gear Envelope dimensions Envelope OD 1540 mm Envelope bore 1260 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	110	40 x phi 26 / M24	480	Quote
010.45.1400No gear Envelope dimensions Envelope OD 1540 mm Envelope bore 1260 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	110	40 x phi 26 / M24	480	Quote
010.35.1600No gear Envelope dimensions Envelope OD 1740 mm Envelope bore 1460 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	110	45 x phi 26 / M24	550	Quote
010.45.1600No gear Envelope dimensions Envelope OD 1740 mm Envelope bore 1460 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	110	45 x phi 26 / M24	550	Quote
010.35.1800No gear Envelope dimensions Envelope OD 1940 mm Envelope bore 1660 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	110	45 x phi 26 / M24	610	Quote
010.45.1800No gear Envelope dimensions Envelope OD 1940 mm Envelope bore 1660 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	110	45 x phi 26 / M24	610	Quote
010.40.2000No gear Envelope dimensions Envelope OD 2178 mm Envelope bore 1825 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	144	48 x phi 33 / M30	1100	Quote
010.60.2000No gear Envelope dimensions Envelope OD 2178 mm Envelope bore 1825 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	144	48 x phi 33 / M30	1100	Quote
010.40.2240No gear Envelope dimensions Envelope OD 2418 mm Envelope bore 2065 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	144	48 x phi 33 / M30	1250	Quote
010.60.2240No gear Envelope dimensions Envelope OD 2418 mm Envelope bore 2065 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	144	48 x phi 33 / M30	1250	Quote
010.40.2500No gear Envelope dimensions Envelope OD 2678 mm Envelope bore 2325 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	144	56 x phi 33 / M30	1400	Quote
010.60.2500No gear Envelope dimensions Envelope OD 2678 mm Envelope bore 2325 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	144	56 x phi 33 / M30	1400	Quote
010.40.2800No gear Envelope dimensions Envelope OD 2978 mm Envelope bore 2625 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	144	56 x phi 33 / M30	1600	Quote
010.60.2800No gear Envelope dimensions Envelope OD 2978 mm Envelope bore 2625 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	144	56 x phi 33 / M30	1600	Quote
010.50.3150No gear Envelope dimensions Envelope OD 3376 mm Envelope bore 2922 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	174	56 x phi 45 / M42	2800	Quote
010.75.3150No gear Envelope dimensions Envelope OD 3376 mm Envelope bore 2922 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	174	56 x phi 45 / M42	2800	Quote
010.50.3550No gear Envelope dimensions Envelope OD 3776 mm Envelope bore 3322 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	174	56 x phi 45 / M42	3500	Quote
010.75.3550No gear Envelope dimensions Envelope OD 3776 mm Envelope bore 3322 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	174	56 x phi 45 / M42	3500	Quote
010.50.4000No gear Envelope dimensions Envelope OD 4226 mm Envelope bore 3772 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	174	60 x phi 45 / M42	4200	Quote
010.75.4000No gear Envelope dimensions Envelope OD 4226 mm Envelope bore 3772 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	174	60 x phi 45 / M42	4200	Quote
010.50.4500No gear Envelope dimensions Envelope OD 4726 mm Envelope bore 4272 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	174	60 x phi 45 / M42	5100	Quote
010.75.4500No gear Envelope dimensions Envelope OD 4726 mm Envelope bore 4272 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	174	60 x phi 45 / M42	5100	Quote

Catalogue notes

The 010 ungeared series is intended for rotating supports where the drive system is not integrated into the bearing itself, such as chain drive, friction drive, hydraulic rotation, external gearbox arrangements, or manually positioned rotary structures. It is often a clean choice for custom turntables, rotary fixtures, service platforms, and OEM frames that already include their own drive ring or torque transmission path. Without gear teeth, the design can reduce gear-related cost and inspection scope, but the buyer should still confirm mounting flatness, lubrication points, bolt preload, and the external drive interface.

Catalogue dimensions are reference data and may extend beyond the current verified in-house machining range. Final manufacturing capability is confirmed against the customer drawing before quotation.

Final quotation and production are based on confirmed drawings, load conditions, material requirements, heat treatment, inspection documents, and packing requirements.
