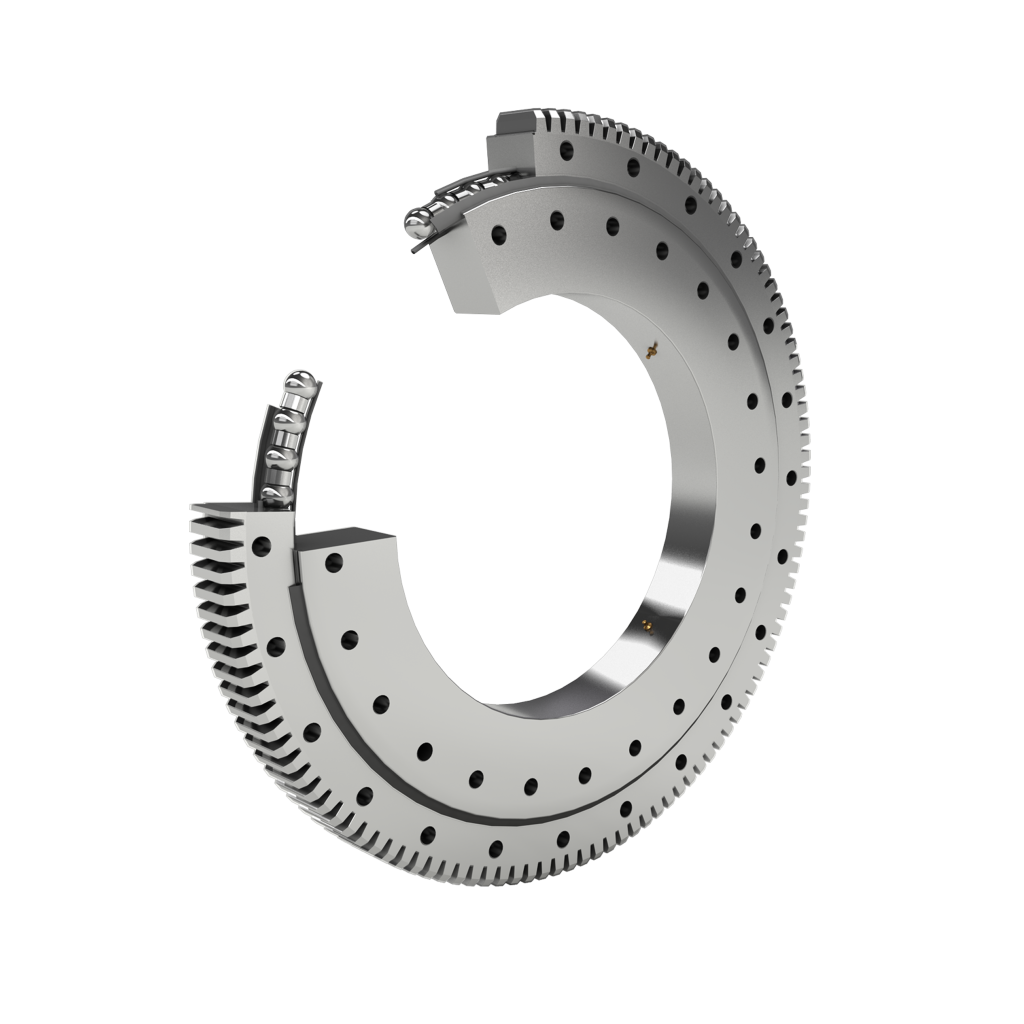

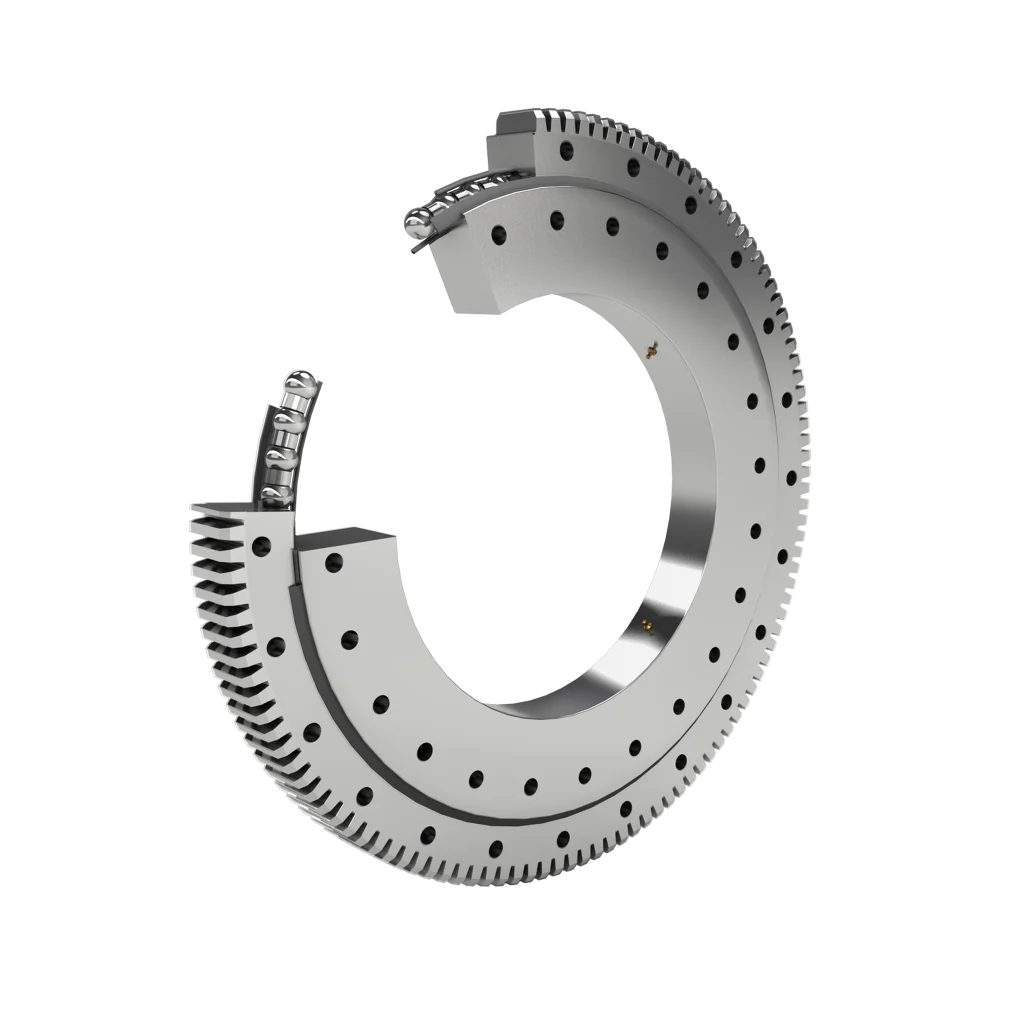

011/012 Series External Gear Slewing Bearings

Standard single row four-point contact ball slewing bearings with external gear teeth for compact rotating structures, construction machinery, industrial platforms, and general equipment applications.

Cost-effectiveExternal gearMedium to large sizes

ENGINEERING OVERVIEW

011/012 External Gear

StructureSingle row four-point contact ball

Gear typeExternal gear

Models in this series88 verified rows

MODEL TABLE

011/012 series catalogue parameters

Default columns show ring-body D/d/H plus the critical envelope dimension used for installation clearance. Click a model number to open its generated detail page.

Diameter definition: D is the outer diameter of the ring body and d is the inner diameter of the ring body. For external gear models, the gear is on the outer ring, so the real maximum outside envelope can be De, not D. The structure must leave clearance for Max OD = max(D, De).

Click a model number to open its detail page.

MODEL	D	d	MAX OD	H	MOUNTING HOLES	GEAR m	De / z	WEIGHT	RFQ
011.20.200External gear Envelope dimensions Envelope OD 300 mm Envelope bore 120 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	280	120	300	60	12 x phi 16 / M14	3	300 / 98	24	Quote
011.20.224External gear Envelope dimensions Envelope OD 321 mm Envelope bore 144 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	304	144	321	60	12 x phi 16 / M14	3	321 / 105	25	Quote
011.20.250External gear Envelope dimensions Envelope OD 352 mm Envelope bore 170 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	330	170	352	60	18 x phi 16 / M14	4	352 / 86	30	Quote
011.20.280External gear Envelope dimensions Envelope OD 384 mm Envelope bore 200 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	360	200	384	60	18 x phi 16 / M14	4	384 / 94	34	Quote
011.25.315External gear Envelope dimensions Envelope OD 435 mm Envelope bore 222 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	408	222	435	70	20 x phi 18 / M16	5	435 / 85	52	Quote
011.25.355External gear Envelope dimensions Envelope OD 475 mm Envelope bore 262 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	448	262	475	70	20 x phi 18 / M16	5	475 / 93	59	Quote
011.25.400External gear Envelope dimensions Envelope OD 528 mm Envelope bore 307 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	493	307	528	70	20 x phi 18 / M16	6	528 / 86	69	Quote
011.25.450External gear Envelope dimensions Envelope OD 576 mm Envelope bore 357 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	543	357	576	70	20 x phi 18 / M16	6	576 / 94	76	Quote
012.25.500External gear Envelope dimensions Envelope OD 628.8 mm Envelope bore 398 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	628.8	80	20 x phi 18 / M16	6	628.8 / 102	85	Quote
012.30.500External gear Envelope dimensions Envelope OD 628.8 mm Envelope bore 398 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	628.8	80	20 x phi 18 / M16	6	628.8 / 102	85	Quote
011.25.500External gear Envelope dimensions Envelope OD 629 mm Envelope bore 398 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	629	80	20 x phi 18 / M16	5	629 / 123	85	Quote
011.30.500External gear Envelope dimensions Envelope OD 629 mm Envelope bore 398 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	629	80	20 x phi 18 / M16	5	629 / 123	85	Quote
012.25.560External gear Envelope dimensions Envelope OD 688.8 mm Envelope bore 458 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	688.8	80	20 x phi 18 / M16	6	688.8 / 112	95	Quote
012.30.560External gear Envelope dimensions Envelope OD 688.8 mm Envelope bore 458 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	688.8	80	20 x phi 18 / M16	6	688.8 / 112	95	Quote
011.25.560External gear Envelope dimensions Envelope OD 689 mm Envelope bore 458 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	689	80	20 x phi 18 / M16	5	689 / 135	95	Quote
011.30.560External gear Envelope dimensions Envelope OD 689 mm Envelope bore 458 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	689	80	20 x phi 18 / M16	5	689 / 135	95	Quote
011.25.630External gear Envelope dimensions Envelope OD 772.8 mm Envelope bore 528 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	772.8	80	24 x phi 18 / M16	6	772.8 / 126	110	Quote
011.30.630External gear Envelope dimensions Envelope OD 772.8 mm Envelope bore 528 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	772.8	80	24 x phi 18 / M16	6	772.8 / 126	110	Quote
012.25.630External gear Envelope dimensions Envelope OD 774.4 mm Envelope bore 528 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	774.4	80	24 x phi 18 / M16	8	774.4 / 94	110	Quote
012.30.630External gear Envelope dimensions Envelope OD 774.4 mm Envelope bore 528 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	774.4	80	24 x phi 18 / M16	8	774.4 / 94	110	Quote
011.25.710External gear Envelope dimensions Envelope OD 850.8 mm Envelope bore 608 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	850.8	80	24 x phi 18 / M16	6	850.8 / 139	120	Quote
011.30.710External gear Envelope dimensions Envelope OD 850.8 mm Envelope bore 608 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	850.8	80	24 x phi 18 / M16	6	850.8 / 139	120	Quote
012.25.710External gear Envelope dimensions Envelope OD 854.4 mm Envelope bore 608 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	854.4	80	24 x phi 18 / M16	8	854.4 / 104	120	Quote
012.30.710External gear Envelope dimensions Envelope OD 854.4 mm Envelope bore 608 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	854.4	80	24 x phi 18 / M16	8	854.4 / 104	120	Quote
011.30.800External gear Envelope dimensions Envelope OD 966.4 mm Envelope bore 678 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	966.4	100	30 x phi 22 / M20	8	966.4 / 118	220	Quote
011.40.800External gear Envelope dimensions Envelope OD 966.4 mm Envelope bore 678 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	966.4	100	30 x phi 22 / M20	8	966.4 / 118	220	Quote
012.30.800External gear Envelope dimensions Envelope OD 968 mm Envelope bore 678 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	968	100	30 x phi 22 / M20	10	968 / 94	220	Quote
012.40.800External gear Envelope dimensions Envelope OD 968 mm Envelope bore 678 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	968	100	30 x phi 22 / M20	10	968 / 94	220	Quote
011.30.900External gear Envelope dimensions Envelope OD 1062.4 mm Envelope bore 778 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	1062.4	100	30 x phi 22 / M20	8	1062.4 / 130	240	Quote
011.40.900External gear Envelope dimensions Envelope OD 1062.4 mm Envelope bore 778 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	1062.4	100	30 x phi 22 / M20	8	1062.4 / 130	240	Quote
012.30.900External gear Envelope dimensions Envelope OD 1068 mm Envelope bore 778 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	1068	100	30 x phi 22 / M20	10	1068 / 104	240	Quote
012.40.900External gear Envelope dimensions Envelope OD 1068 mm Envelope bore 778 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	1068	100	30 x phi 22 / M20	10	1068 / 104	240	Quote
012.30.1000External gear Envelope dimensions Envelope OD 1185.6 mm Envelope bore 878 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	1185.6	100	36 x phi 22 / M20	12	1185.6 / 96	270	Quote
012.40.1000External gear Envelope dimensions Envelope OD 1185.6 mm Envelope bore 878 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	1185.6	100	36 x phi 22 / M20	12	1185.6 / 96	270	Quote
011.30.1000External gear Envelope dimensions Envelope OD 1188 mm Envelope bore 878 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	1188	100	36 x phi 22 / M20	10	1188 / 116	270	Quote
011.40.1000External gear Envelope dimensions Envelope OD 1188 mm Envelope bore 878 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	1188	100	36 x phi 22 / M20	10	1188 / 116	270	Quote
011.30.1120External gear Envelope dimensions Envelope OD 1298 mm Envelope bore 998 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	1298	100	36 x phi 22 / M20	10	1298 / 127	300	Quote
011.40.1120External gear Envelope dimensions Envelope OD 1298 mm Envelope bore 998 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	1298	100	36 x phi 22 / M20	10	1298 / 127	300	Quote
012.30.1120External gear Envelope dimensions Envelope OD 1305.6 mm Envelope bore 998 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	1305.6	100	36 x phi 22 / M20	12	1305.6 / 106	300	Quote
012.40.1120External gear Envelope dimensions Envelope OD 1305.6 mm Envelope bore 998 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	1305.6	100	36 x phi 22 / M20	12	1305.6 / 106	300	Quote
011.35.1250External gear Envelope dimensions Envelope OD 1449.6 mm Envelope bore 1110 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	1449.6	110	40 x phi 26 / M24	12	1449.6 / 118	420	Quote
011.45.1250External gear Envelope dimensions Envelope OD 1449.6 mm Envelope bore 1110 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	1449.6	110	40 x phi 26 / M24	12	1449.6 / 118	420	Quote
012.35.1250External gear Envelope dimensions Envelope OD 1453.2 mm Envelope bore 1110 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	1453.2	110	40 x phi 26 / M24	14	1453.2 / 101	420	Quote
012.45.1250External gear Envelope dimensions Envelope OD 1453.2 mm Envelope bore 1110 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	1453.2	110	40 x phi 26 / M24	14	1453.2 / 101	420	Quote
011.35.1400External gear Envelope dimensions Envelope OD 1605.6 mm Envelope bore 1260 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	1605.6	110	40 x phi 26 / M24	12	1605.6 / 131	480	Quote
011.45.1400External gear Envelope dimensions Envelope OD 1605.6 mm Envelope bore 1260 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	1605.6	110	40 x phi 26 / M24	12	1605.6 / 131	480	Quote
012.35.1400External gear Envelope dimensions Envelope OD 1607.2 mm Envelope bore 1260 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	1607.2	110	40 x phi 26 / M24	14	1607.2 / 112	480	Quote
012.45.1400External gear Envelope dimensions Envelope OD 1607.2 mm Envelope bore 1260 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	1607.2	110	40 x phi 26 / M24	14	1607.2 / 112	480	Quote
011.35.1600External gear Envelope dimensions Envelope OD 1817.2 mm Envelope bore 1460 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	1817.2	110	45 x phi 26 / M24	14	1817.2 / 127	550	Quote
011.45.1600External gear Envelope dimensions Envelope OD 1817.2 mm Envelope bore 1460 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	1817.2	110	45 x phi 26 / M24	14	1817.2 / 127	550	Quote
012.35.1600External gear Envelope dimensions Envelope OD 1820.8 mm Envelope bore 1460 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	1820.8	110	45 x phi 26 / M24	16	1820.8 / 111	550	Quote
012.45.1600External gear Envelope dimensions Envelope OD 1820.8 mm Envelope bore 1460 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	1820.8	110	45 x phi 26 / M24	16	1820.8 / 111	550	Quote
012.35.1800External gear Envelope dimensions Envelope OD 2012.8 mm Envelope bore 1660 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	2012.8	110	45 x phi 26 / M24	16	2012.8 / 123	610	Quote
012.45.1800External gear Envelope dimensions Envelope OD 2012.8 mm Envelope bore 1660 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	2012.8	110	45 x phi 26 / M24	16	2012.8 / 123	610	Quote
011.35.1800External gear Envelope dimensions Envelope OD 2013.2 mm Envelope bore 1660 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	2013.2	110	45 x phi 26 / M24	14	2013.2 / 141	610	Quote
011.45.1800External gear Envelope dimensions Envelope OD 2013.2 mm Envelope bore 1660 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	2013.2	110	45 x phi 26 / M24	14	2013.2 / 141	610	Quote
012.40.2000External gear Envelope dimensions Envelope OD 2264.4 mm Envelope bore 1825 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	2264.4	144	48 x phi 33 / M30	18	2264.4 / 123	1100	Quote
012.60.2000External gear Envelope dimensions Envelope OD 2264.4 mm Envelope bore 1825 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	2264.4	144	48 x phi 33 / M30	18	2264.4 / 123	1100	Quote
011.40.2000External gear Envelope dimensions Envelope OD 2268.8 mm Envelope bore 1825 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	2268.8	144	48 x phi 33 / M30	16	2268.8 / 139	1100	Quote
011.60.2000External gear Envelope dimensions Envelope OD 2268.8 mm Envelope bore 1825 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	2268.8	144	48 x phi 33 / M30	16	2268.8 / 139	1100	Quote
011.40.2240External gear Envelope dimensions Envelope OD 2492.8 mm Envelope bore 2065 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	2492.8	144	48 x phi 33 / M30	16	2492.8 / 153	1250	Quote
011.60.2240External gear Envelope dimensions Envelope OD 2492.8 mm Envelope bore 2065 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	2492.8	144	48 x phi 33 / M30	16	2492.8 / 153	1250	Quote
012.40.2240External gear Envelope dimensions Envelope OD 2498.4 mm Envelope bore 2065 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	2498.4	144	48 x phi 33 / M30	18	2498.4 / 136	1250	Quote
012.60.2240External gear Envelope dimensions Envelope OD 2498.4 mm Envelope bore 2065 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	2498.4	144	48 x phi 33 / M30	18	2498.4 / 136	1250	Quote
011.40.2500External gear Envelope dimensions Envelope OD 2768.4 mm Envelope bore 2325 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	2768.4	144	56 x phi 33 / M30	18	2768.4 / 151	1400	Quote
011.60.2500External gear Envelope dimensions Envelope OD 2768.4 mm Envelope bore 2325 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	2768.4	144	56 x phi 33 / M30	18	2768.4 / 151	1400	Quote
012.40.2500External gear Envelope dimensions Envelope OD 2776 mm Envelope bore 2325 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	2776	144	56 x phi 33 / M30	20	2776 / 136	1400	Quote
012.60.2500External gear Envelope dimensions Envelope OD 2776 mm Envelope bore 2325 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	2776	144	56 x phi 33 / M30	20	2776 / 136	1400	Quote
011.40.2800External gear Envelope dimensions Envelope OD 3074.4 mm Envelope bore 2625 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	3074.4	144	56 x phi 33 / M30	18	3074.4 / 168	1600	Quote
011.60.2800External gear Envelope dimensions Envelope OD 3074.4 mm Envelope bore 2625 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	3074.4	144	56 x phi 33 / M30	18	3074.4 / 168	1600	Quote
012.40.2800External gear Envelope dimensions Envelope OD 3076 mm Envelope bore 2625 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	3076	144	56 x phi 33 / M30	20	3076 / 151	1600	Quote
012.60.2800External gear Envelope dimensions Envelope OD 3076 mm Envelope bore 2625 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	3076	144	56 x phi 33 / M30	20	3076 / 151	1600	Quote
012.50.3150External gear Envelope dimensions Envelope OD 3471.6 mm Envelope bore 2922 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	3471.6	174	56 x phi 45 / M42	22	3471.6 / 155	2800	Quote
012.75.3150External gear Envelope dimensions Envelope OD 3471.6 mm Envelope bore 2922 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	3471.6	174	56 x phi 45 / M42	22	3471.6 / 155	2800	Quote
011.50.3150External gear Envelope dimensions Envelope OD 3476 mm Envelope bore 2922 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	3476	174	56 x phi 45 / M42	20	3476 / 171	2800	Quote
011.75.3150External gear Envelope dimensions Envelope OD 3476 mm Envelope bore 2922 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	3476	174	56 x phi 45 / M42	20	3476 / 171	2800	Quote
011.50.3550External gear Envelope dimensions Envelope OD 3876 mm Envelope bore 3322 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	3876	174	56 x phi 45 / M42	20	3876 / 191	3500	Quote
011.75.3550External gear Envelope dimensions Envelope OD 3876 mm Envelope bore 3322 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	3876	174	56 x phi 45 / M42	20	3876 / 191	3500	Quote
012.50.3550External gear Envelope dimensions Envelope OD 3889.6 mm Envelope bore 3322 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	3889.6	174	56 x phi 45 / M42	22	3889.6 / 174	3500	Quote
012.75.3550External gear Envelope dimensions Envelope OD 3889.6 mm Envelope bore 3322 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	3889.6	174	56 x phi 45 / M42	22	3889.6 / 174	3500	Quote
011.50.4000External gear Envelope dimensions Envelope OD 4329.6 mm Envelope bore 3772 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	4329.6	174	60 x phi 45 / M42	20	4329.6 / 194	4200	Quote
011.75.4000External gear Envelope dimensions Envelope OD 4329.6 mm Envelope bore 3772 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	4329.6	174	60 x phi 45 / M42	20	4329.6 / 194	4200	Quote
012.50.4000External gear Envelope dimensions Envelope OD 4345 mm Envelope bore 3772 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	4345	174	60 x phi 45 / M42	22	4345 / 171	4200	Quote
012.75.4000External gear Envelope dimensions Envelope OD 4345 mm Envelope bore 3772 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	4345	174	60 x phi 45 / M42	22	4345 / 171	4200	Quote
011.50.4500External gear Envelope dimensions Envelope OD 4835.6 mm Envelope bore 4272 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	4835.6	174	60 x phi 45 / M42	20	4835.6 / 217	5100	Quote
011.75.4500External gear Envelope dimensions Envelope OD 4835.6 mm Envelope bore 4272 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	4835.6	174	60 x phi 45 / M42	20	4835.6 / 217	5100	Quote
012.50.4500External gear Envelope dimensions Envelope OD 4845 mm Envelope bore 4272 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	4845	174	60 x phi 45 / M42	22	4845 / 191	5100	Quote
012.75.4500External gear Envelope dimensions Envelope OD 4845 mm Envelope bore 4272 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	4845	174	60 x phi 45 / M42	22	4845 / 191	5100	Quote

Catalogue notes

The 011/012 external gear series is normally selected when the drive pinion can be placed outside the rotating structure and kept accessible for adjustment, lubrication, and service. It is a practical first-screening option for medium-duty cranes, aerial work platforms, compact construction machinery, industrial turntables, agricultural attachments, and general OEM equipment where a single-row four-point contact structure provides an economical balance of combined load capacity, compact height, and manufacturable gear geometry. For RFQ review, confirm pinion position, tooth hardening demand, mounting-hole pattern, and whether the support structure can control ring deformation under overturning moment.

Catalogue dimensions are reference data and may extend beyond the current verified in-house machining range. Final manufacturing capability is confirmed against the customer drawing before quotation.

Final quotation and production are based on confirmed drawings, load conditions, material requirements, heat treatment, inspection documents, and packing requirements.
