MERYDOM 16388001
Factory-certified by MERYDOM to interchange with Kaydon 16388001. The MERYDOM product uses the same model designation for direct cross-reference.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance

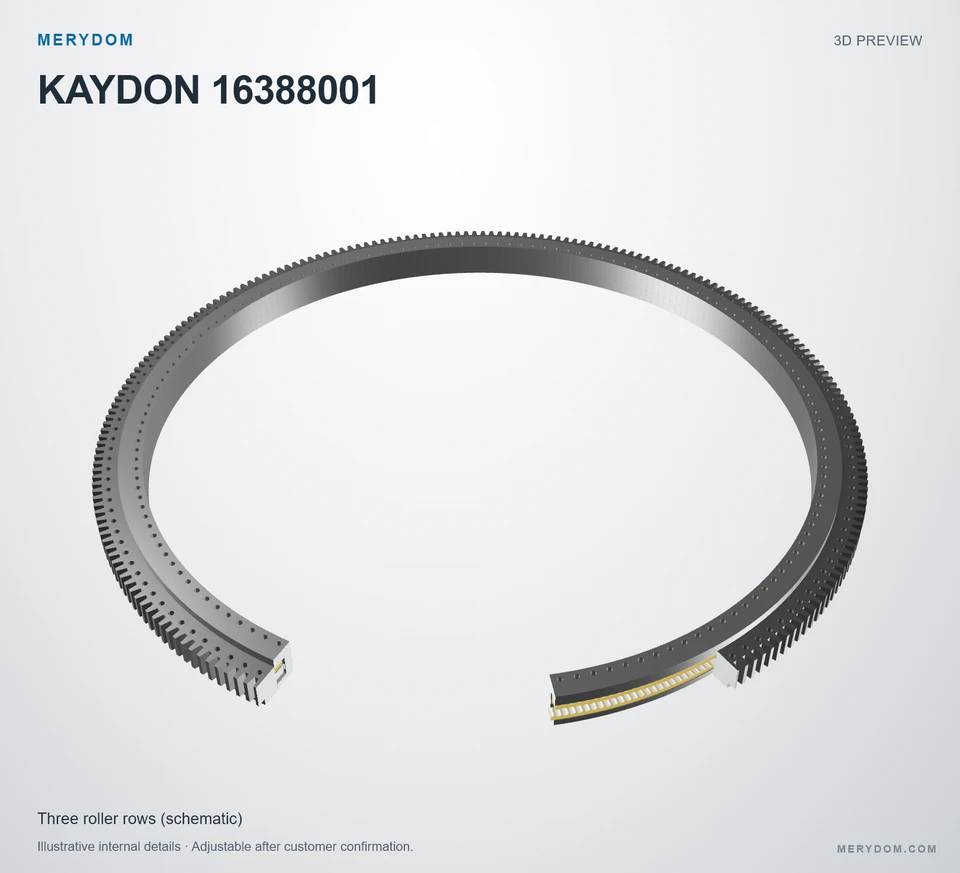

16388001
MERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16388001.
MERYDOM VerifiedEngineering certification · Rev 1.0- Overall OD (Do)
- 233.000 in
- Overall ID (di)
- 203.000 in
- Overall height
- 11.750 in
- Gear arrangement
- External gear
- Mounting holes
- 150 / 150 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Rev 1.0Product specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16388001 |
| Certified interchangeable with | Kaydon 16388001 |
| Factory verification | Level 3 · Engineering Verified |
| Approved drawing revision | 1.0 |
| Reviewed by | MERYDOM Engineering Department |
| Certification date | 2026-08-15 |
| Materials | |
| Ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | TR Series |
| Reference model | 16388001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 233.000 in5,918.2 mm |
| Overall inside diameter (di) | 203.000 in5,156.2 mm |
| Overall height (H) | 11.750 in298.45 mm |
| Outer ring body OD (Dr) | 228.000 in5,791.2 mm |
| Outer ring inner diameter (Di) | 216.880 in5,508.752 mm |
| Inner ring outer diameter (do) | 217.380 in5,521.452 mm |
| Outer ring bolt circle (Lo) | 224.000 in5,689.6 mm |
| Inner ring bolt circle (Li) | 207.000 in5,257.8 mm |
| Gear pitch diameter (D2) | 230.000 in5,842 mm |
| Assembly weight (G) | 25500 lb11,566.605 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 130300 lbf579,603.276 N |
| Moment load rating (Crm) | 43823000 in43,823,000 |
| Mounting | |
| Outer ring bolt holes (no) | 150 holes · 1.563 |
| Inner ring bolt holes (ni) | 150 holes · 1.563 |
| Gear | |
| Pitch system | DP |
| Diametral pitch (Pd) | 1.00000000 DP |
| Equivalent module (m) | 25.4 mm |
| Number of teeth (z2) | 230 |
Level 3 · MERYDOM Engineering VerifiedCertified 2026-08-15 by MERYDOM Engineering Department.

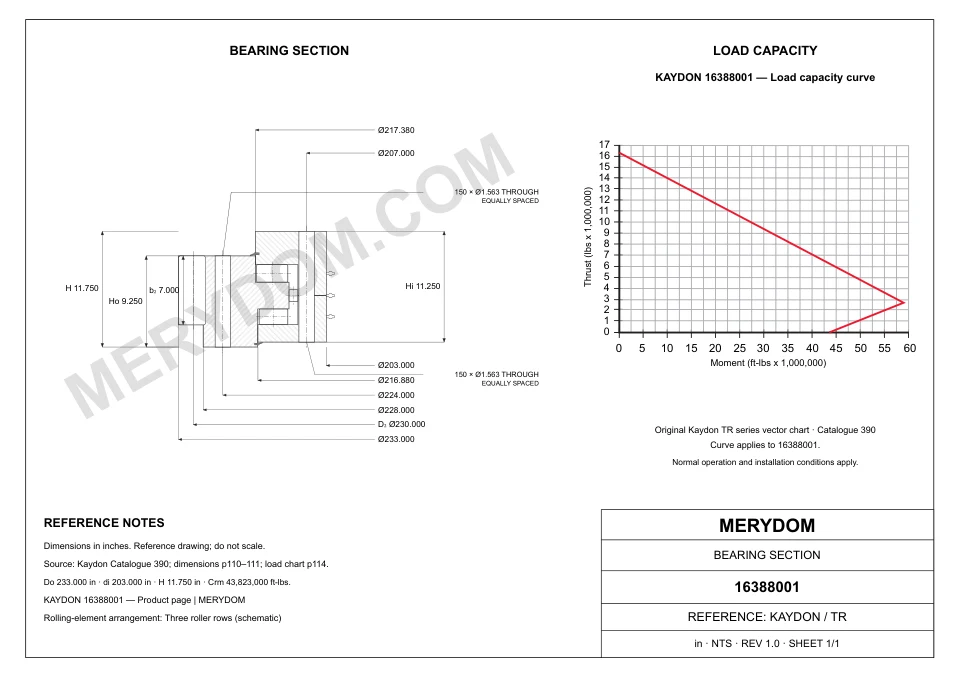

SERIES LOAD CAPACITY
