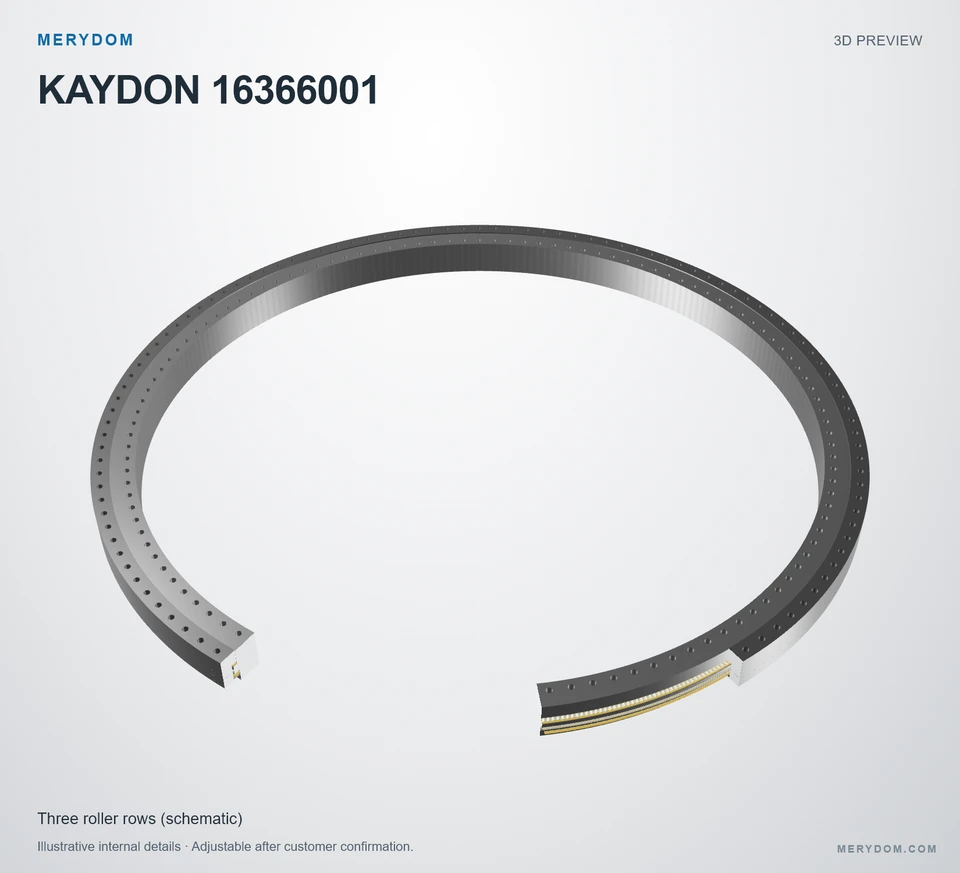

Kaydon 16366001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16366001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16366001 reference belongs to the Tr Series and uses a three-row roller, ungeared slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16366001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16366001.
- Overall OD (Do)
- 236.220 in
- Overall ID (di)
- 210.236 in
- Overall height
- 12.205 in
- Gear arrangement
- Ungeared
- Mounting holes
- 120 / 120 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 236.220 inapproximately 6,000 mm
- Overall inside diameter (di)
- 210.236 inapproximately 5,339.99 mm
- Outer ring inner diameter (Di)
- 225.433 inapproximately 5,726 mm
- Inner ring outer diameter (do)
- 224.409 inapproximately 5,699.99 mm
- Overall height (H)
- 12.205 inapproximately 310.01 mm
- Assembly weight (G)
- 25800 lbapproximately 11,702.683 kg
- Inner ring height (Hi)
- 11.811 inapproximately 300 mm
- Outer ring height (Ho)
- 9.842 inapproximately 249.99 mm
Mounting
- Outer ring bolt circle (Lo)
- 231.102 inapproximately 5,869.99 mm
- Inner ring bolt circle (Li)
- 215.354 inapproximately 5,469.99 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16366001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16366001 |
| Certified interchangeable with | Kaydon 16366001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Tr Series |
| Reference model | 16366001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | Ungeared |
| Dimensions | |
| Overall outside diameter (Do) | 236.220 inapproximately 6,000 mm |
| Overall inside diameter (di) | 210.236 inapproximately 5,339.99 mm |
| Overall height (H) | 12.205 inapproximately 310.01 mm |
| Inner ring height (Hi) | 11.811 inapproximately 300 mm |
| Outer ring height (Ho) | 9.842 inapproximately 249.99 mm |
| Outer ring inner diameter (Di) | 225.433 inapproximately 5,726 mm |
| Inner ring outer diameter (do) | 224.409 inapproximately 5,699.99 mm |
| Outer ring bolt circle (Lo) | 231.102 inapproximately 5,869.99 mm |
| Inner ring bolt circle (Li) | 215.354 inapproximately 5,469.99 mm |
| Assembly weight (G) | 25800 lbapproximately 11,702.683 kg |
| Ratings | |
| Moment load rating (Crm) | 49976000 ft·lbfapproximately 67,758.36 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 120 holes · 1.772 |
| Inner ring bolt holes (ni) | 120 holes · 1.772 |
| Gear | |
| Integral gear | Not applicable |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

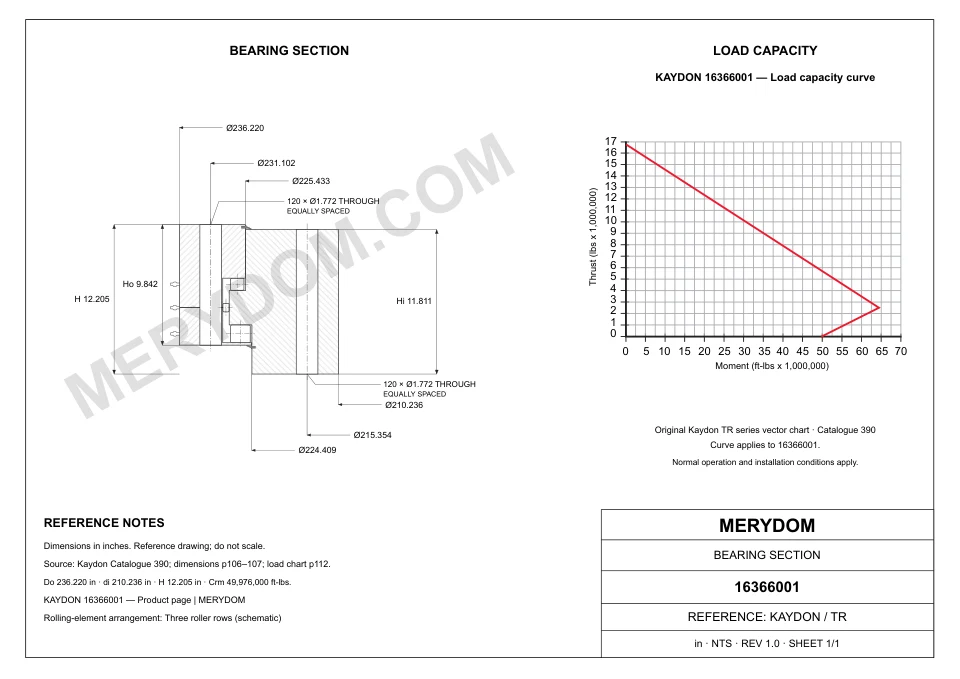

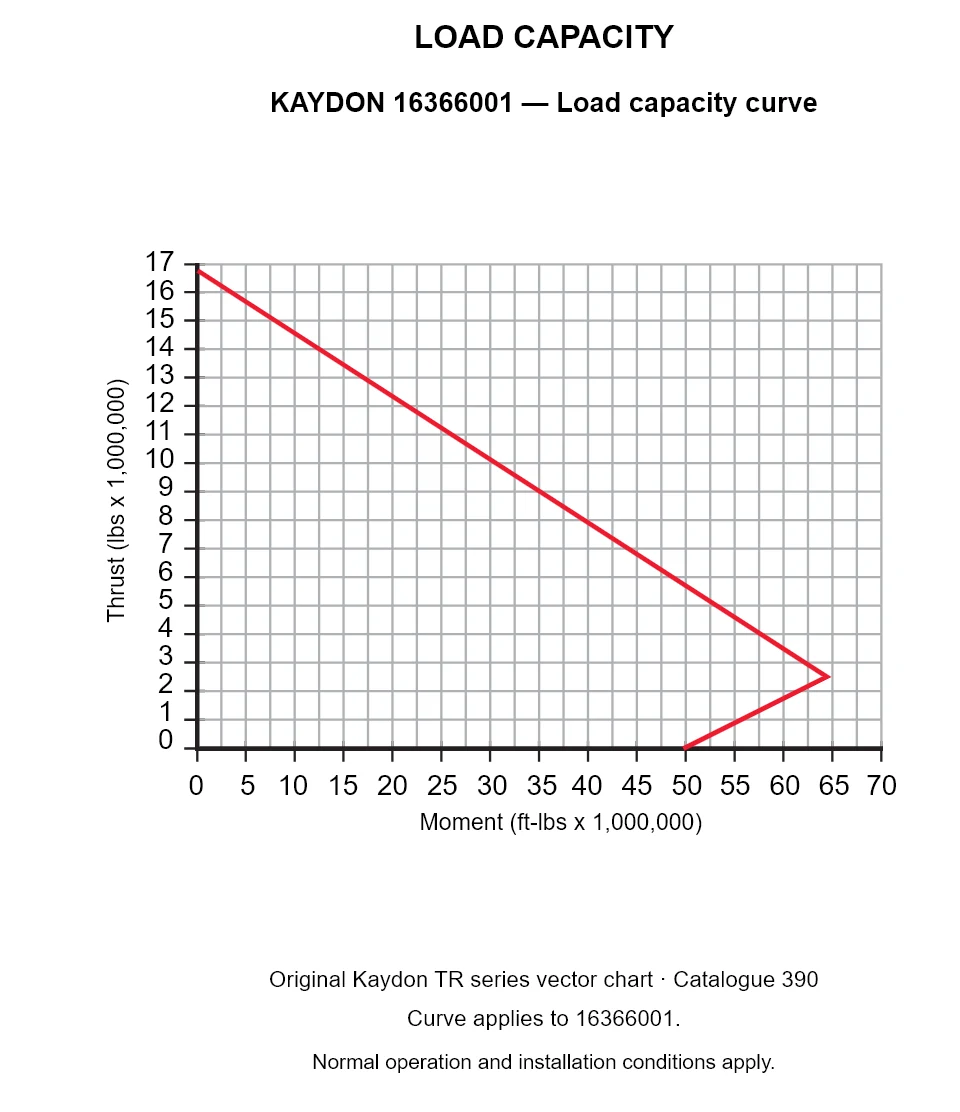

KAYDON 16366001 — Load capacity curve
