MERYDOM 16383001
Factory-certified by MERYDOM to interchange with Kaydon 16383001. The MERYDOM product uses the same model designation for direct cross-reference.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16383001
MERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16383001.
MERYDOM VerifiedEngineering certification · Rev 1.0- Overall OD (Do)
- 155.512 in
- Overall ID (di)
- 131.339 in
- Overall height
- 9.055 in
- Gear arrangement
- Internal gear
- Mounting holes
- 96 / 96 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Rev 1.0Product specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16383001 |
| Certified interchangeable with | Kaydon 16383001 |
| Factory verification | Level 3 · Engineering Verified |

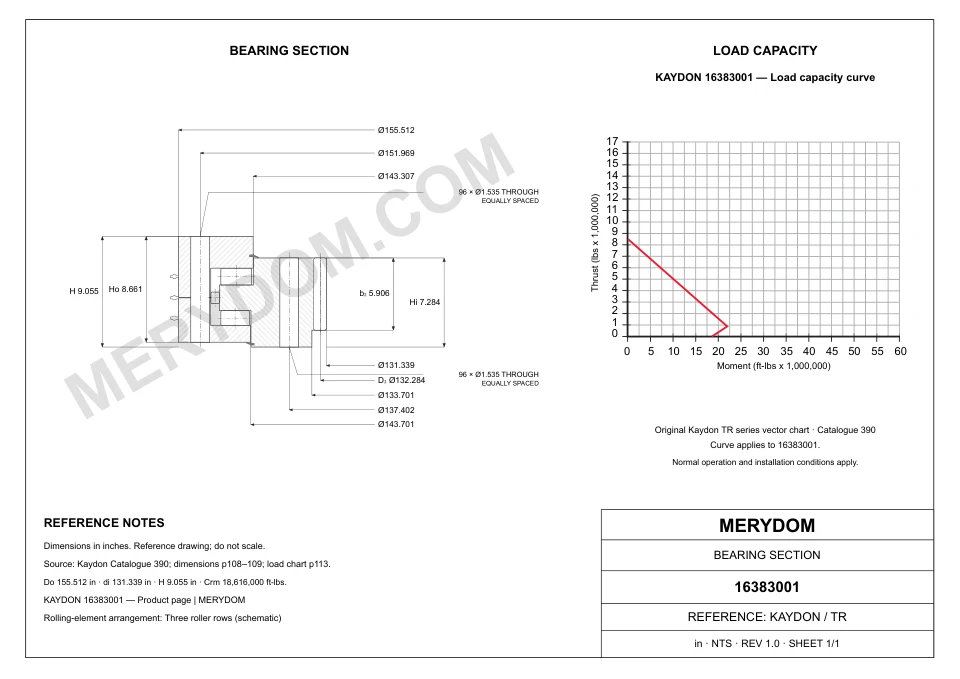

| Approved drawing revision | 1.0 |
| Reviewed by | MERYDOM Engineering Department |
| Certification date | 2026-08-15 |
| Materials | |
| Ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | TR Series |
| Reference model | 16383001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 155.512 in3,950.005 mm |
| Overall inside diameter (di) | 131.339 in3,336.011 mm |
| Overall height (H) | 9.055 in229.997 mm |
| Outer ring inner diameter (Di) | 143.307 in3,639.998 mm |
| Inner ring outer diameter (do) | 143.701 in3,650.005 mm |
| Inner ring body ID (dr) | 133.701 in3,396.005 mm |
| Outer ring bolt circle (Lo) | 151.969 in3,860.013 mm |
| Inner ring bolt circle (Li) | 137.402 in3,490.011 mm |
| Gear pitch diameter (D2) | 132.284 in3,360.014 mm |
| Assembly weight (G) | 10550 lb4,785.4 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 59840 lbf266,181.581 N |
| Moment load rating (Crm) | 18616000 in18,616,000 |
| Mounting | |
| Outer ring bolt holes (no) | 96 holes · 1.535 |
| Inner ring bolt holes (ni) | 96 holes · 1.535 |
| Gear | |
| Pitch system | MODULE |
| Diametral pitch (Pd) | DP |
| Equivalent module (m) | 12 mm |
| Number of teeth (z2) | 280 |
Level 3 · MERYDOM Engineering VerifiedCertified 2026-08-15 by MERYDOM Engineering Department.
SERIES LOAD CAPACITY

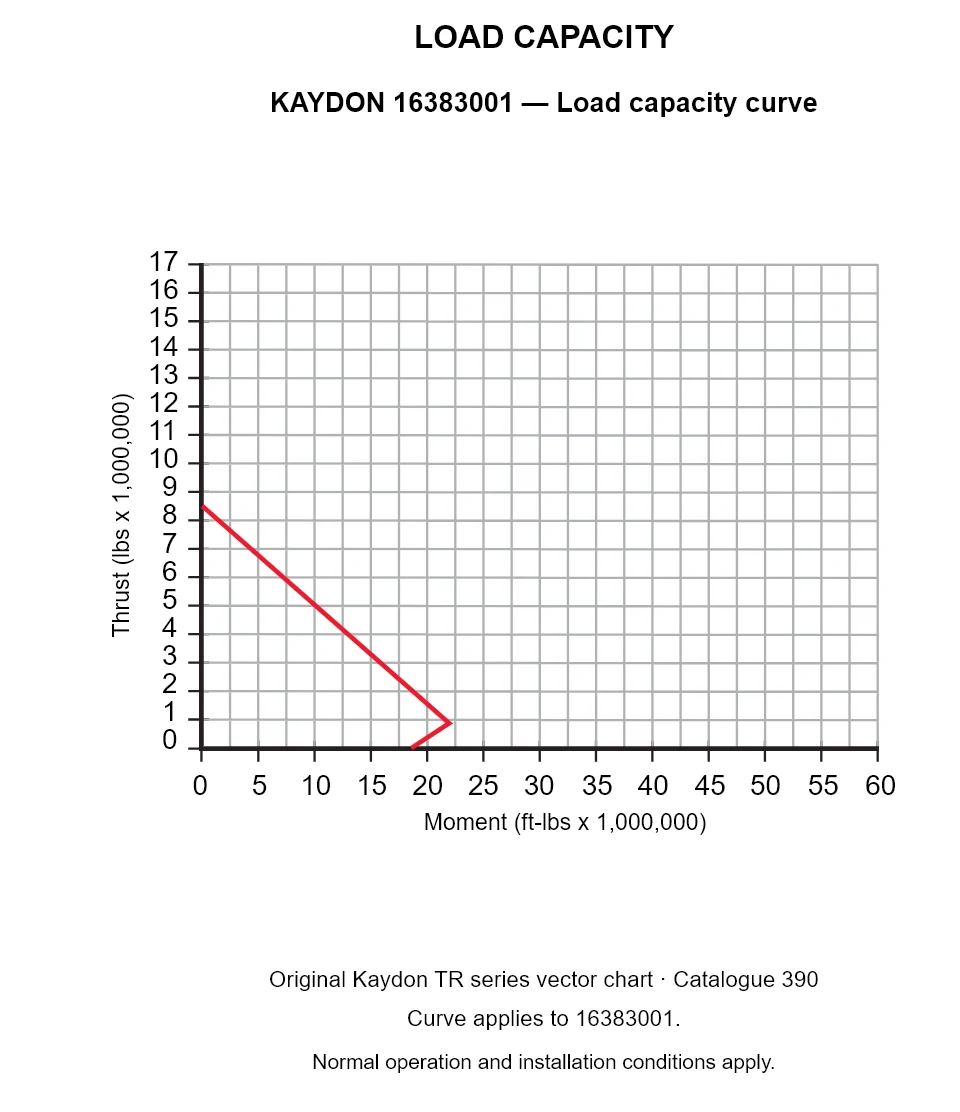

TR Series load chart
