Kaydon 16332001 Slewing Bearing Replacement

Level 3 Verified

MERYDOM manufactures an engineering-verified replacement for the Kaydon 16332001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

The Kaydon 16332001 reference belongs to the Xr Series and uses a cross roller, internal gear slewing bearing configuration.

Request price & deliveryBack to replacement catalog
Back to replacement catalog

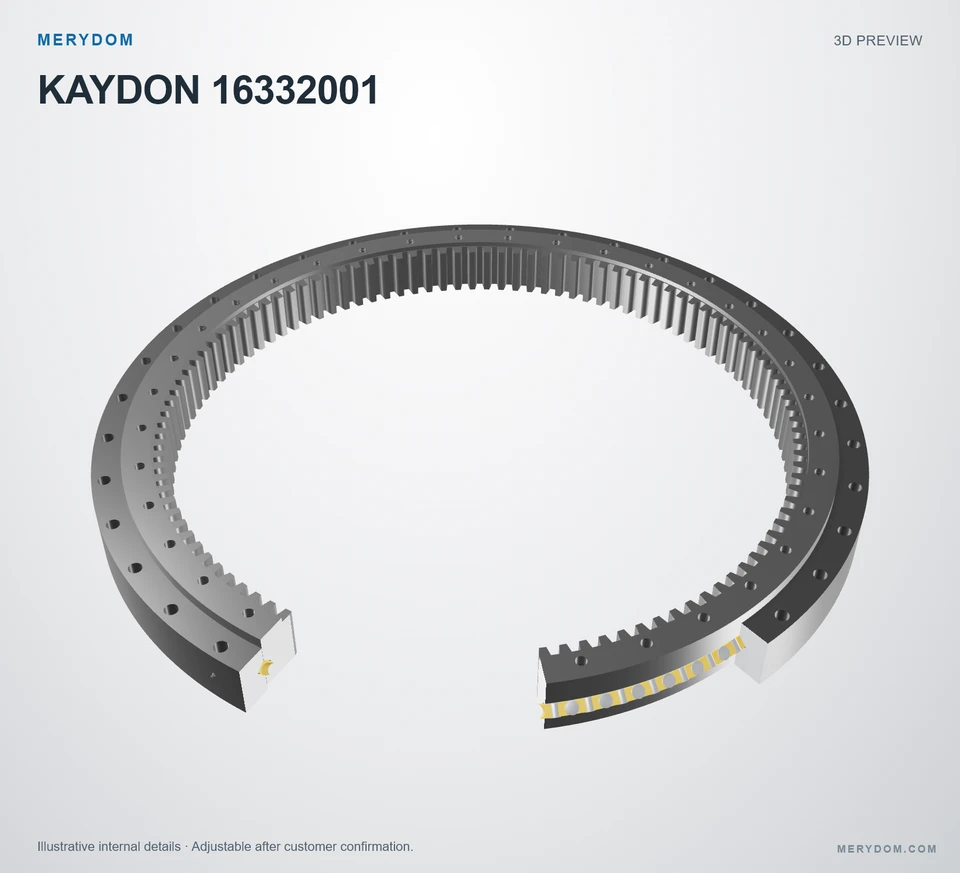

KAYDON 16332001 — 3D model preview
MERYDOM BRAND · CERTIFIED REPLACEMENT

16332001

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16332001.

Certified product dataView complete specifications ↓
Overall OD (Do)
54.740 in
Overall ID (di)
44.400 in
Overall height
4.500 in
Gear arrangement
Internal gear
Mounting holes
36 / 36 outer / inner
Bearing design
Cross roller
Factory assurance
  • Certified dimensional interchange
  • MERYDOM controlled materials
  • Factory documentation available

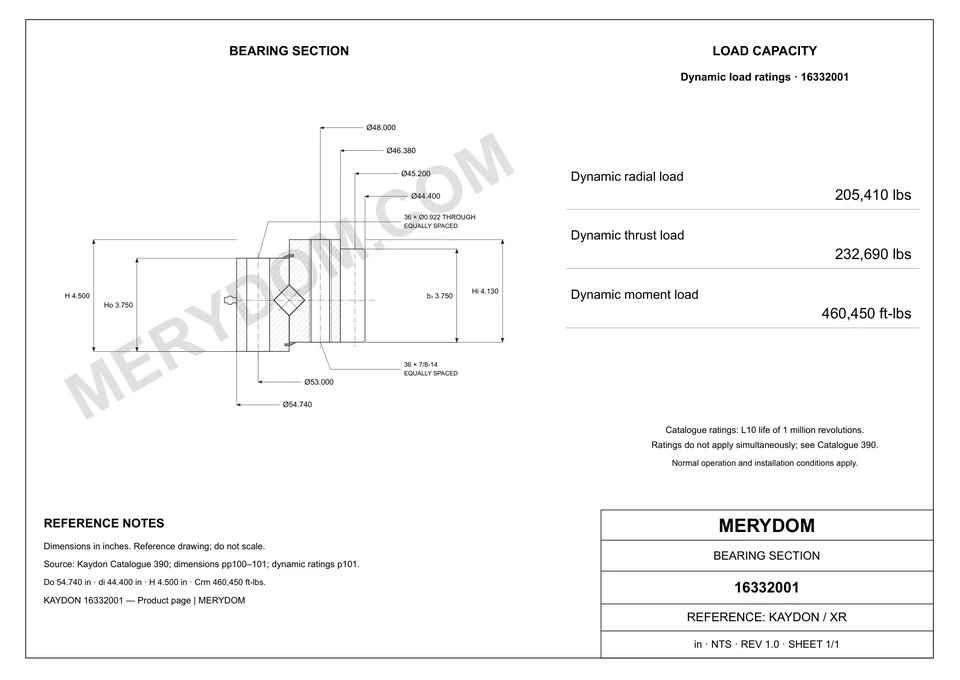

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Overall outside diameter (Do)
54.740 inapproximately 1,390.4 mm
Overall inside diameter (di)
44.400 inapproximately 1,128 mm
Inner ring body ID (dr)
46.380 inapproximately 1,178.1 mm
Overall height (H)
4.500 inapproximately 114 mm
Assembly weight (G)
500 lbapproximately 226.796 kg
Inner ring height (Hi)
4.130 inapproximately 104.9 mm
Outer ring height (Ho)
3.750 inapproximately 95.3 mm

Mounting

Outer ring bolt circle (Lo)
53.000 inapproximately 1,346 mm
Inner ring bolt circle (Li)
48.000 inapproximately 1,219 mm

Gear

Gear pitch diameter (D2)
45.200 inapproximately 1,148 mm
Diametral pitch (Pd)
2.5
Gear tooth count (z2)
113
Catalogue gear face width (b2)
3.750 inapproximately 95.3 mm
MERYDOM CERTIFIED SPECIFICATION

Kaydon 16332001 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record
Technical parameterMERYDOM certified product value
MERYDOM Certified Product
Product brandMERYDOM
MERYDOM model16332001
Certified interchangeable withKaydon 16332001
Factory verificationLevel 3 · Engineering Verified
Reviewed byMERYDOM Engineering Department
Verification metadataControlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options42CrMo / 50Mn
Seal materialNBR · Nitrile rubber
Configurable spacer material optionsEngineering nylon / Brass
Identification
Reference brandKaydon
SeriesXr Series
Reference model16332001
System of measurementInchMetric reference shown alongside
Bearing structureCross roller
Gear arrangementInternal gear
Dimensions
Overall outside diameter (Do)54.740 inapproximately 1,390.4 mm
Overall inside diameter (di)44.400 inapproximately 1,128 mm
Overall height (H)4.500 inapproximately 114 mm
Inner ring height (Hi)4.130 inapproximately 104.9 mm
Outer ring height (Ho)3.750 inapproximately 95.3 mm
Inner ring body ID (dr)46.380 inapproximately 1,178.1 mm
Outer ring bolt circle (Lo)53.000 inapproximately 1,346 mm
Inner ring bolt circle (Li)48.000 inapproximately 1,219 mm
Gear pitch diameter (D2)45.200 inapproximately 1,148 mm
Assembly weight (G)500 lbapproximately 226.796 kg
Ratings
Maximum gear tooth load (Fz)28600 lbfapproximately 127.22 kN
Dynamic radial load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings205410.0000000000 lbfapproximately 913.71 kN
Dynamic thrust load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings232690.0000000000 lbfapproximately 1,035.06 kN
Dynamic moment load rating · L10 at 1,000,000 revolutions · not simultaneous with other listed dynamic ratings460450.0000000000 ft·lbfapproximately 624.29 kN·m
Mounting
Outer ring bolt holes (no)36 holes · 0.922
Inner ring bolt holes (ni)36 holes · 7/8-14
Gear
Pitch systemDP
Source diametral pitch (Pd)2.5 DP
Equivalent module (derived reference only) (m)10.16 mm
Number of teeth (z2)113
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.
MERYDOM ENGINEERING

MERYDOM Replacement for Kaydon 16332001
