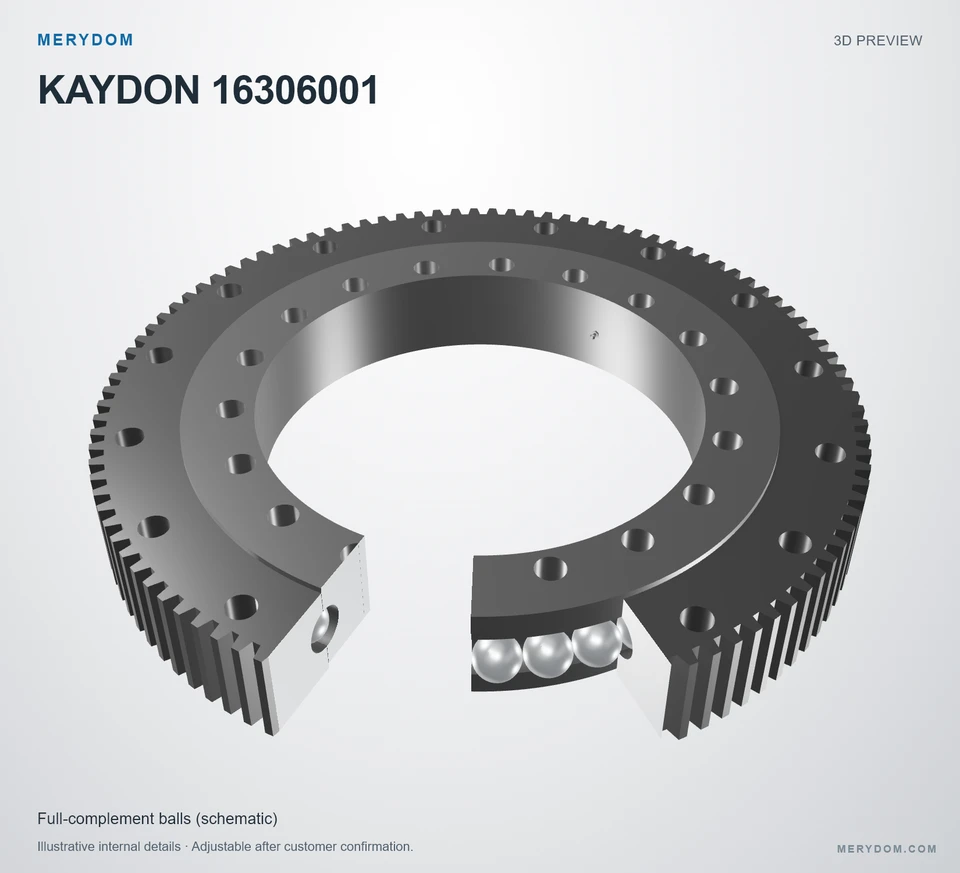

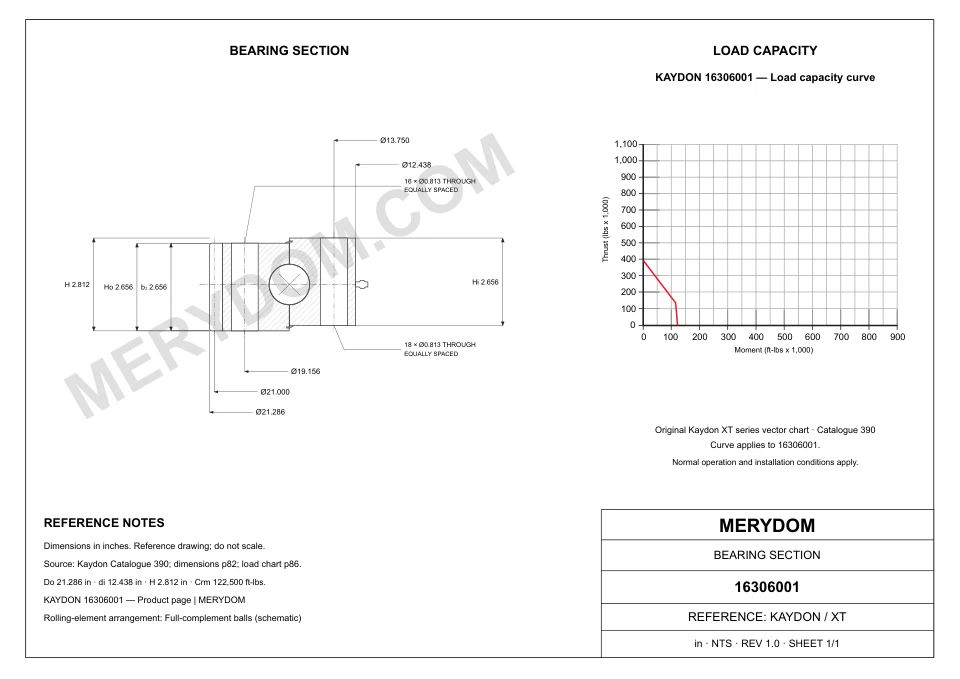

Kaydon 16306001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16306001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16306001 reference belongs to the Xt Series and uses a four-point contact ball, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16306001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16306001.
- Overall OD (Do)
- 21.286 in
- Overall ID (di)
- 12.438 in
- Overall height
- 2.812 in
- Gear arrangement
- External gear
- Mounting holes
- 16 / 18 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 21.286 inapproximately 540.66 mm
- Overall inside diameter (di)
- 12.438 inapproximately 315.93 mm
- Overall height (H)
- 2.812 inapproximately 71.42 mm
- Assembly weight (G)
- 140 lbapproximately 63.503 kg
- Inner ring height (Hi)
- 2.656 inapproximately 67.46 mm
- Outer ring height (Ho)
- 2.656 inapproximately 67.46 mm
Mounting
- Outer ring bolt circle (Lo)
- 19.156 inapproximately 486.56 mm
- Inner ring bolt circle (Li)
- 13.750 inapproximately 349.3 mm
Gear
- Gear pitch diameter (D2)
- 21.000 inapproximately 533 mm
- Gear tooth count (z2)
- 105
- Catalogue gear face width (b2)
- 2.656 inapproximately 67.46 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16306001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16306001 |
| Certified interchangeable with | Kaydon 16306001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Xt Series |
| Reference model | 16306001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Do) | 21.286 inapproximately 540.66 mm |
| Overall inside diameter (di) | 12.438 inapproximately 315.93 mm |
| Overall height (H) | 2.812 inapproximately 71.42 mm |
| Inner ring height (Hi) | 2.656 inapproximately 67.46 mm |
| Outer ring height (Ho) | 2.656 inapproximately 67.46 mm |
| Outer ring bolt circle (Lo) | 19.156 inapproximately 486.56 mm |
| Inner ring bolt circle (Li) | 13.750 inapproximately 349.3 mm |
| Gear pitch diameter (D2) | 21.000 inapproximately 533 mm |
| Assembly weight (G) | 140 lbapproximately 63.503 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 10570 lbfapproximately 47.02 kN |
| Moment load rating (Crm) | 122500 ft·lbfapproximately 166.09 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 16 holes · 0.813 |
| Inner ring bolt holes (ni) | 18 holes · 0.813 |
| Gear | |
| Pitch system | SPECIAL_DP |
| Source-defined gear pitch (Pd) | 5/7 source-defined pitch |
| Number of teeth (z2) | 105 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

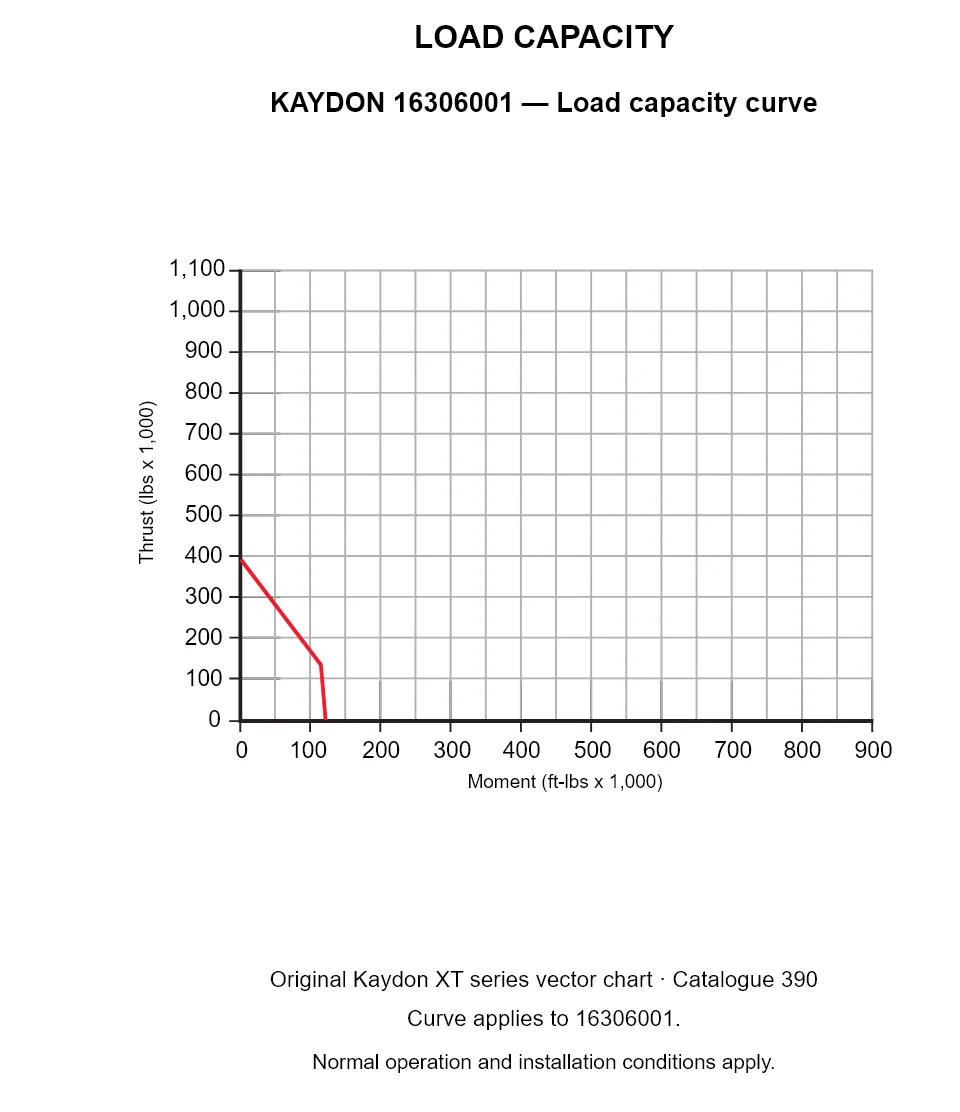

KAYDON 16306001 — Load capacity curve
KAYDON 16306001 — Load capacity curve
KAYDON 16306001 — Load capacity curve. Normal operation and installation conditions apply.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16306001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 16306001.
