Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration
MERYDOM XSU 141094
Level 3 VerifiedFactory-certified by MERYDOM to interchange with INA XSU 141094. The MERYDOM product uses the same model designation for direct cross-reference.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
XSU 141094
MERYDOM VerifiedEngineering certification · Rev Rev 1.0MERYDOM-manufactured slewing bearing certified for interchange with INA XSU 141094.
- Overall OD (Do)
- 1164 mm
- Overall ID (di)
- 1024 mm
- Overall height
- Not published
- Gear arrangement
- Ungeared
- Mounting holes
- 48 / 48 outer / inner
- Bearing design
- Cross roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Mass)
- 77 kg
- Overall outside diameter (Da)
- 1164 mm1,164 mm
- Overall inside diameter (di)
- 1024 mm1,024 mm
- Catalog diameter Di (Di)
- 1095+0,7 mm
- Catalog diameter da (da)
- 1093–0,7 mm
Mounting
- Outer ring bolt circle (La)
- 1140 mm1,140 mm
- Outer ring mounting-hole count (na)
- 48
- Inner ring bolt circle (Li)
- 1048 mm1,048 mm
- Inner ring mounting-hole count (ni)
- 48
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Rev Rev 1.0Product specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | XSU 141094 |
| Certified interchangeable with | INA XSU 141094 |
| Factory verification | Level 3 · Engineering Verified |
| Approved drawing revision | Rev 1.0 |
| Reviewed by | MERYDOM Engineering Department |
| Certification date | 2026-08-17 |
| Materials | |
| Ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | INA |
| Series | XSU 14 Series |
| Reference model | XSU 141094 |
| System of measurement | Metric |
| Bearing structure | Cross roller |
| Gear arrangement | Ungeared |
| Dimensions | |
| Mass (Mass) | 77 kg |
| Overall outside diameter (Da) | 1164 mm1,164 mm |
| Overall inside diameter (di) | 1024 mm1,024 mm |
| Catalog diameter Di (Di) | 1095+0,7 mm |
| Catalog diameter da (da) | 1093–0,7 mm |
| Mounting | |
| Outer ring bolt circle (La) | 1140 mm1,140 mm |
| Outer ring mounting-hole count (na) | 48 |
| Inner ring bolt circle (Li) | 1048 mm1,048 mm |
| Inner ring mounting-hole count (ni) | 48 |
| Ratings | |
| Maximum permissible radial load (Fr perm) | 198,2 kN198.2 kN |
| Basic dynamic axial load rating (Ca) | 390 kN |
| Basic static axial load rating (C0a) | 1360 kN1,360 kN |
| Basic dynamic radial load rating (Cr) | 246 kN |
| Basic static radial load rating (C0r) | 670 kN |
| Preload (Preload) | 0,01 incl. 0,05 mm |
Level 3 · MERYDOM Engineering VerifiedCertified 2026-08-17 by MERYDOM Engineering Department.

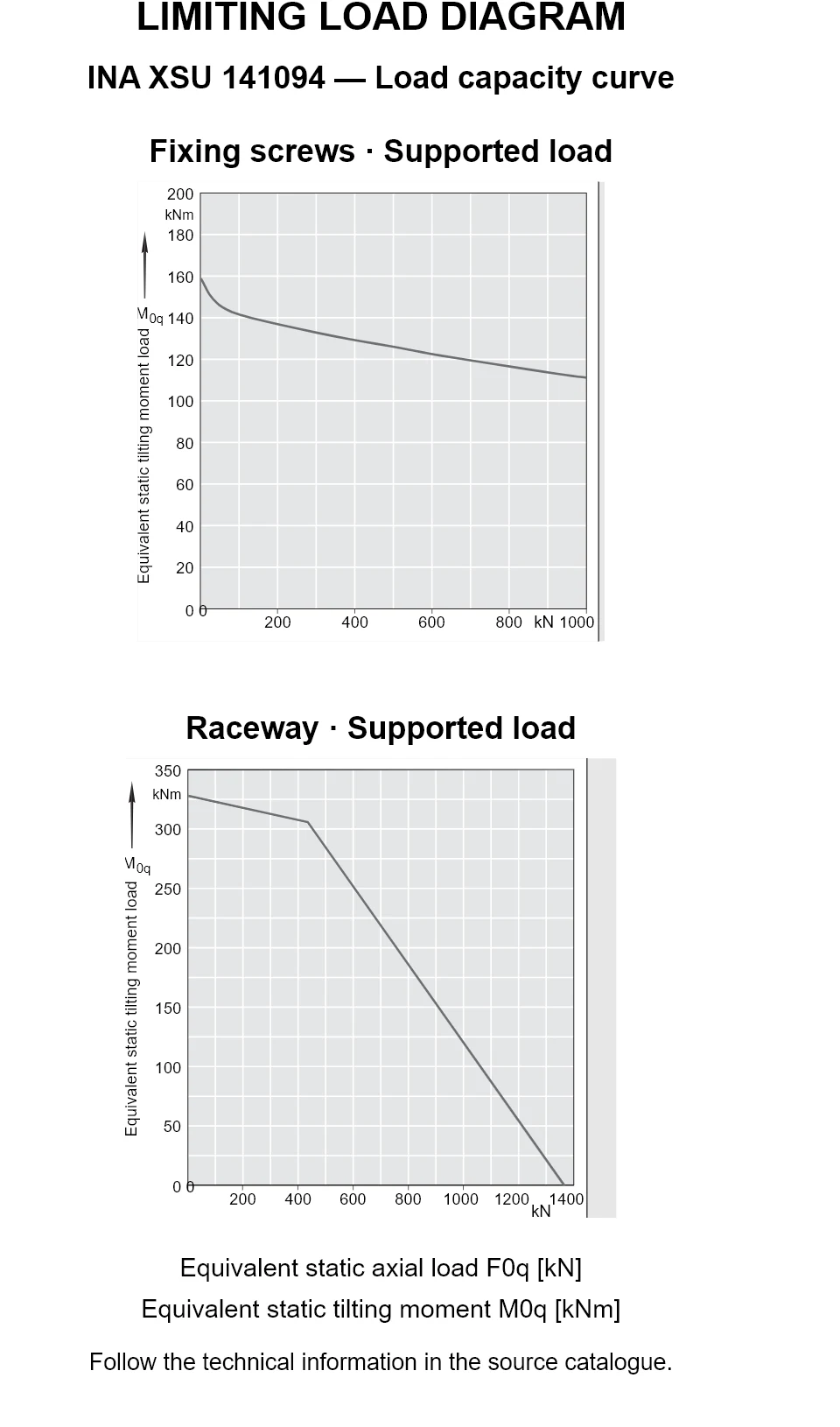

SERIES LOAD CAPACITY
XSU 14 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
Factory-certified replacement design
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Default approved drawing revision 1.0
- Certification date linked to the data-import record
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
