INA XSU 140744 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the INA XSU 140744 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The INA XSU 140744 reference belongs to the Xsu 14 Series and uses a cross roller, ungeared slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
XSU 140744
MERYDOM-manufactured slewing bearing certified for interchange with INA XSU 140744.
- Overall OD (Do)
- 814 mm
- Overall ID (di)
- 674 mm
- Overall height
- 56 mm
- Gear arrangement
- Ungeared
- Mounting holes
- 40 / 40 outer / inner
- Bearing design
- Cross roller
MERYDOM VerifiedLevel 3 · Engineering verification record
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Mass)
- 52 kg
- Overall outside diameter (Da)
- 814 mm
- Overall inside diameter (di)
- 674 mm
- Catalog diameter Di (Di)
- 745+0,6 mm
- Catalog diameter da (da)
- 743–0,6 mm
- Overall height (H)
- 56 mm
Mounting
- Outer ring bolt circle (La)
- 790 mm
- Outer ring mounting-hole count (na)
- 40
- Inner ring bolt circle (Li)
- 698 mm
- Inner ring mounting-hole count (ni)
- 40
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordINA XSU 140744 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | XSU 140744 |
| Certified interchangeable with | INA XSU 140744 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | INA |
| Series | Xsu 14 Series |
| Reference model | XSU 140744 |
| System of measurement | Metric |
| Bearing structure | Cross roller |
| Gear arrangement | Ungeared |
| Dimensions | |
| Mass (Mass) | 52 kg |
| Overall outside diameter (Da) | 814 mm |
| Overall inside diameter (di) | 674 mm |
| Catalog diameter Di (Di) | 745+0,6 mm |
| Catalog diameter da (da) | 743–0,6 mm |
| Overall height (H) | 56 mm |
| Mounting | |
| Outer ring bolt circle (La) | 790 mm |
| Outer ring mounting-hole count (na) | 40 |
| Inner ring bolt circle (Li) | 698 mm |
| Inner ring mounting-hole count (ni) | 40 |
| Ratings | |
| Maximum permissible radial load (Fr perm) | 165.2 kN |
| Basic dynamic axial load rating (Ca) | 315 kN |
| Basic static axial load rating (C0a) | 930 kN |
| Basic dynamic radial load rating (Cr) | 200 kN |
| Basic static radial load rating (C0r) | 455 kN |
| Preload (Preload) | 0,01 incl. 0,04 mm |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

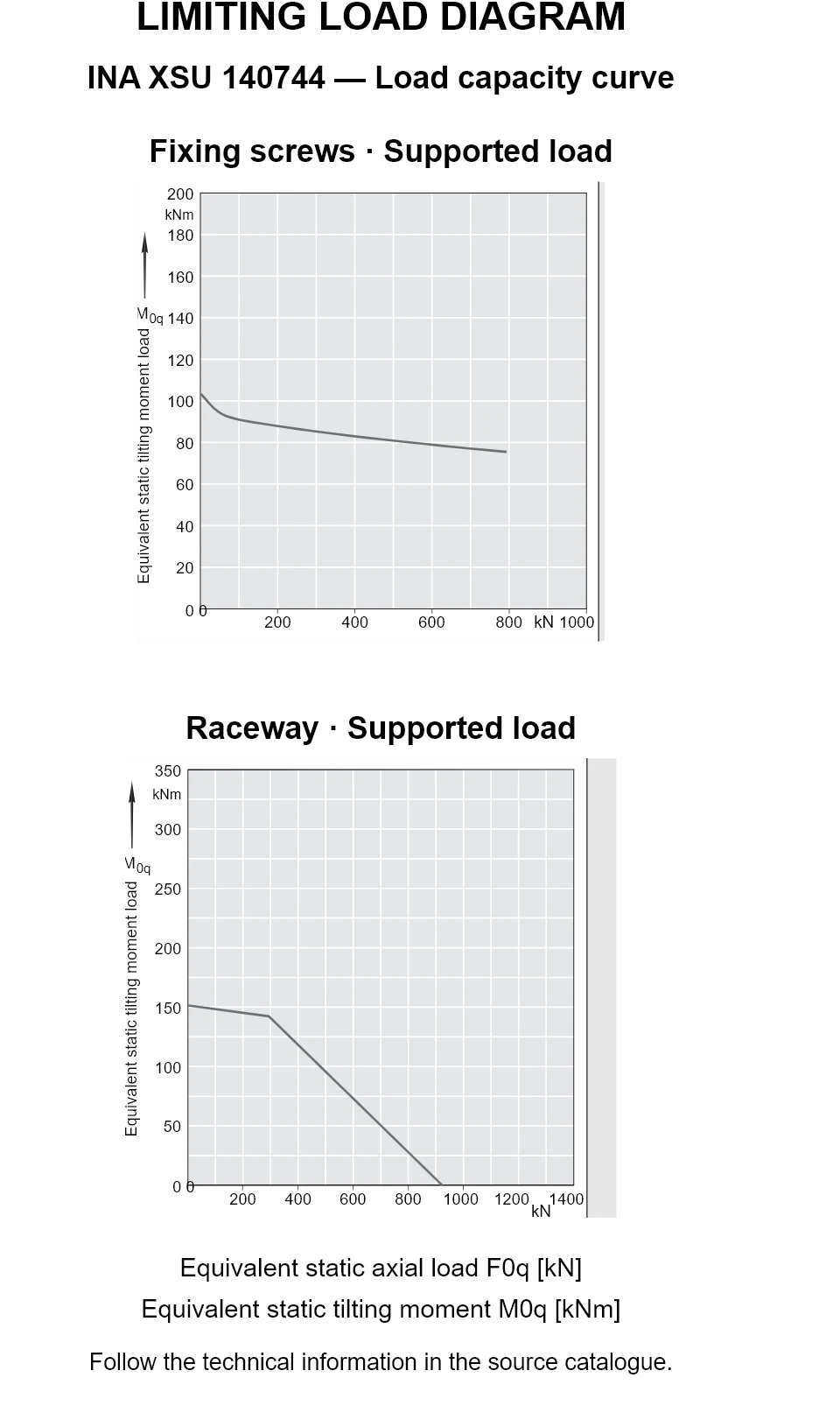

INA XSU 140744 — Load capacity curve
INA XSU 140744 — Load capacity curve
INA XSU 140744 — Load capacity curve. Follow the technical information in the source catalogue.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for INA XSU 140744
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
