STANDARD SERIES

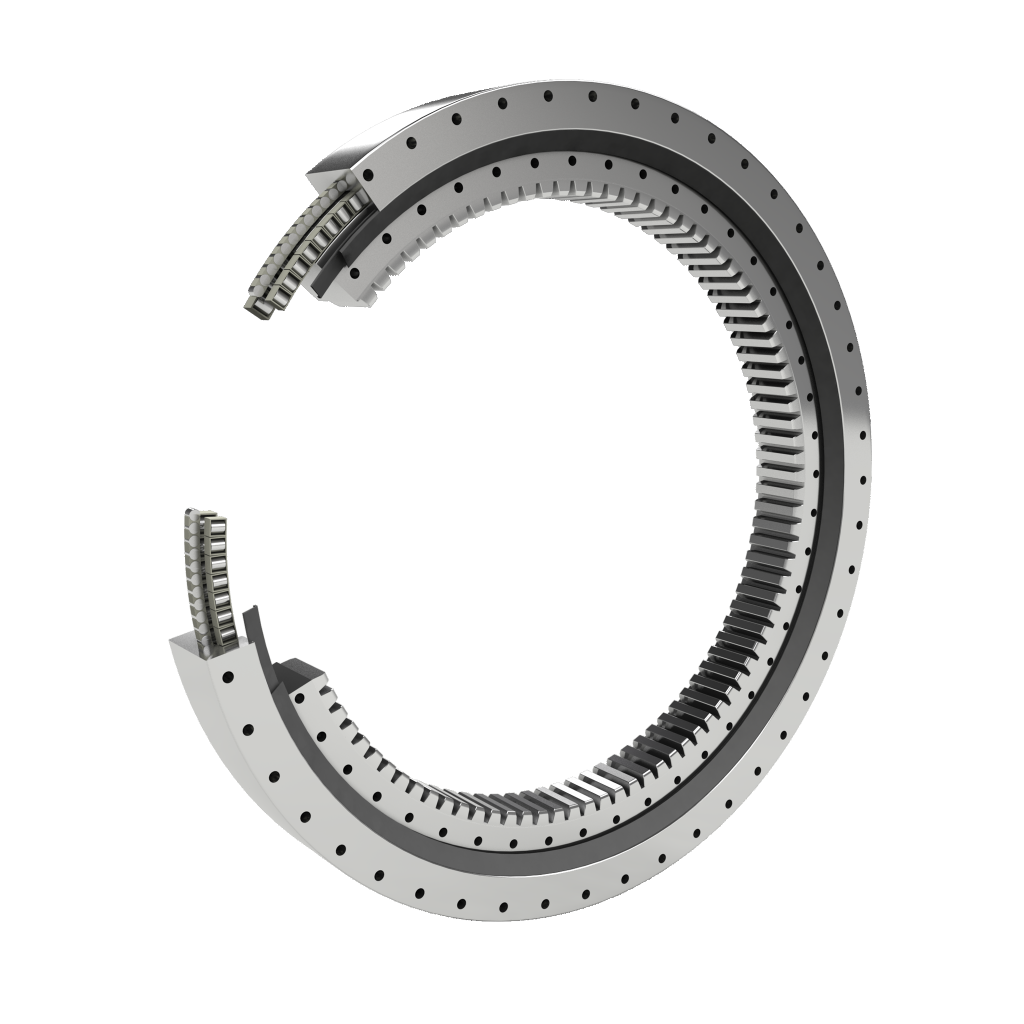

133/134 Series Internal Gear Three Row Roller Slewing Bearings

Three row roller slewing bearings with internal gear teeth for large equipment requiring high load capacity and compact drive positioning.

Very heavy loadInternal gearLarge equipment

ENGINEERING OVERVIEW

133/134 Three Row Internal Gear

Three row roller slewing bearings with internal gear teeth for large equipment requiring high load capacity and compact drive positioning.

StructureThree row roller

Gear typeInternal gear

Models in this series40 verified rows

MODEL TABLE

133/134 series catalogue parameters

Default columns show ring-body D/d/H plus the critical envelope dimension used for installation clearance. Click a model number to open its generated detail page.

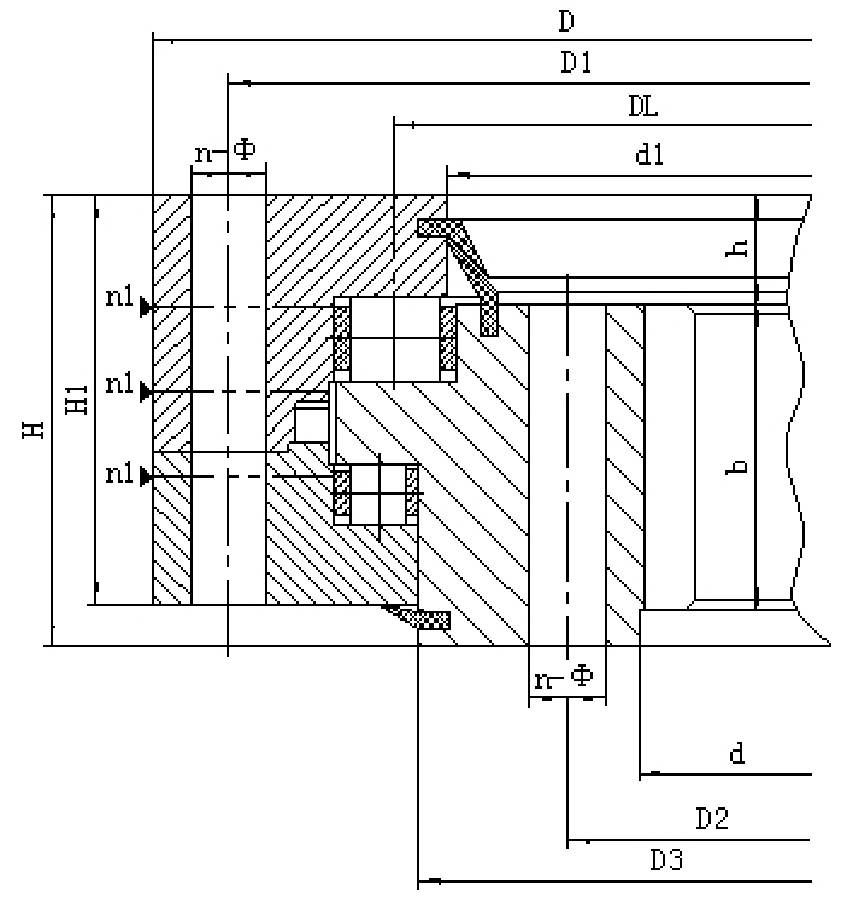

Diameter definition: D is the ring-body outside diameter and d is the ring-body inside diameter. For internal gear models, the gear is inside the bore, so the largest object that can pass through the center may be De, not d. Use Min bore = min(d, De).

Click a model number to open its detail page.

MODEL	D	d	MIN BORE	H	MOUNTING HOLES	GEAR m	De / z	WEIGHT	RFQ
133.25.500Internal gear Envelope dimensions Envelope OD 634 mm Envelope bore 337 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	634	366	337	148	24 x phi 18 / M16	5	337 / 68	224	Quote
134.25.500Internal gear Envelope dimensions Envelope OD 634 mm Envelope bore 338.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	634	366	338.4	148	24 x phi 18 / M16	6	338.4 / 57	224	Quote
133.25.560Internal gear Envelope dimensions Envelope OD 694 mm Envelope bore 397 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	694	426	397	148	24 x phi 18 / M16	5	397 / 80	240	Quote
134.25.560Internal gear Envelope dimensions Envelope OD 694 mm Envelope bore 398.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	694	426	398.4	148	24 x phi 18 / M16	6	398.4 / 67	240	Quote
133.25.630Internal gear Envelope dimensions Envelope OD 764 mm Envelope bore 458.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	764	496	458.4	148	28 x phi 18 / M16	6	458.4 / 77	270	Quote
134.25.630Internal gear Envelope dimensions Envelope OD 764 mm Envelope bore 459.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	764	496	459.2	148	28 x phi 18 / M16	8	459.2 / 58	270	Quote
133.25.710Internal gear Envelope dimensions Envelope OD 844 mm Envelope bore 536.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	844	576	536.4	148	28 x phi 18 / M16	6	536.4 / 90	300	Quote
134.25.710Internal gear Envelope dimensions Envelope OD 844 mm Envelope bore 539.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	844	576	539.2	148	28 x phi 18 / M16	8	539.2 / 68	300	Quote
133.32.800Internal gear Envelope dimensions Envelope OD 964 mm Envelope bore 595.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	964	636	595.2	182	36 x phi 22 / M20	8	595.2 / 75	500	Quote
134.32.800Internal gear Envelope dimensions Envelope OD 964 mm Envelope bore 594 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	964	636	594	182	36 x phi 22 / M20	10	594 / 60	500	Quote
133.32.900Internal gear Envelope dimensions Envelope OD 1064 mm Envelope bore 691.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1064	736	691.2	182	36 x phi 22 / M20	8	691.2 / 87	600	Quote
134.32.900Internal gear Envelope dimensions Envelope OD 1064 mm Envelope bore 694 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1064	736	694	182	36 x phi 22 / M20	10	694 / 70	600	Quote
133.32.1000Internal gear Envelope dimensions Envelope OD 1164 mm Envelope bore 784 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1164	836	784	182	40 x phi 22 / M20	10	784 / 79	680	Quote
134.32.1000Internal gear Envelope dimensions Envelope OD 1164 mm Envelope bore 784.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1164	836	784.8	182	40 x phi 22 / M20	12	784.8 / 66	680	Quote
133.32.1120Internal gear Envelope dimensions Envelope OD 1284 mm Envelope bore 904 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1284	956	904	182	40 x phi 22 / M20	10	904 / 91	820	Quote
134.32.1120Internal gear Envelope dimensions Envelope OD 1284 mm Envelope bore 904.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1284	956	904.8	182	40 x phi 22 / M20	12	904.8 / 76	820	Quote
133.40.1250Internal gear Envelope dimensions Envelope OD 1445 mm Envelope bore 988.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1445	1055	988.8	220	45 x phi 26 / M24	12	988.8 / 83	1200	Quote
134.40.1250Internal gear Envelope dimensions Envelope OD 1445 mm Envelope bore 985.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1445	1055	985.6	220	45 x phi 26 / M24	14	985.6 / 71	1200	Quote
133.40.1400Internal gear Envelope dimensions Envelope OD 1595 mm Envelope bore 1144.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1595	1205	1144.8	220	45 x phi 26 / M24	12	1144.8 / 96	1300	Quote
134.40.1400Internal gear Envelope dimensions Envelope OD 1595 mm Envelope bore 1139.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1595	1205	1139.6	220	45 x phi 26 / M24	14	1139.6 / 82	1300	Quote
133.40.1600Internal gear Envelope dimensions Envelope OD 1795 mm Envelope bore 1335.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1795	1405	1335.6	220	48 x phi 26 / M24	14	1335.6 / 96	1520	Quote
134.40.1600Internal gear Envelope dimensions Envelope OD 1795 mm Envelope bore 1334.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1795	1405	1334.4	220	48 x phi 26 / M24	16	1334.4 / 84	1520	Quote
133.40.1800Internal gear Envelope dimensions Envelope OD 1995 mm Envelope bore 1531.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1995	1605	1531.6	220	48 x phi 26 / M24	14	1531.6 / 110	1750	Quote
134.40.1800Internal gear Envelope dimensions Envelope OD 1995 mm Envelope bore 1526.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1995	1605	1526.4	220	48 x phi 26 / M24	16	1526.4 / 96	1750	Quote
133.45.2000Internal gear Envelope dimensions Envelope OD 2221 mm Envelope bore 1702.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2221	1779	1702.4	231	60 x phi 33 / M30	16	1702.4 / 107	2400	Quote
134.45.2000Internal gear Envelope dimensions Envelope OD 2221 mm Envelope bore 1699.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2221	1779	1699.2	231	60 x phi 33 / M30	18	1699.2 / 95	2400	Quote
133.45.2240Internal gear Envelope dimensions Envelope OD 2461 mm Envelope bore 1926.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2461	2019	1926.4	231	60 x phi 33 / M30	16	1926.4 / 121	2700	Quote
134.45.2240Internal gear Envelope dimensions Envelope OD 2461 mm Envelope bore 1933.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2461	2019	1933.2	231	60 x phi 33 / M30	18	1933.2 / 108	2700	Quote
133.45.2500Internal gear Envelope dimensions Envelope OD 2721 mm Envelope bore 2185.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2721	2279	2185.2	231	72 x phi 33 / M30	18	2185.2 / 122	3000	Quote
134.45.2500Internal gear Envelope dimensions Envelope OD 2721 mm Envelope bore 2188 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2721	2279	2188	231	72 x phi 33 / M30	20	2188 / 110	3000	Quote
133.45.2800Internal gear Envelope dimensions Envelope OD 3021 mm Envelope bore 2491.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3021	2579	2491.2	231	72 x phi 33 / M30	18	2491.2 / 139	3400	Quote
134.45.2800Internal gear Envelope dimensions Envelope OD 3021 mm Envelope bore 2488 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3021	2579	2488	231	72 x phi 33 / M30	20	2488 / 125	3400	Quote
133.50.3150Internal gear Envelope dimensions Envelope OD 3432 mm Envelope bore 2768 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3432	2868	2768	270	72 x phi 45 / M42	20	2768 / 139	5000	Quote
134.50.3150Internal gear Envelope dimensions Envelope OD 3432 mm Envelope bore 2758.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3432	2868	2758.8	270	72 x phi 45 / M42	22	2758.8 / 126	5000	Quote
133.50.3550Internal gear Envelope dimensions Envelope OD 3832 mm Envelope bore 3168 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3832	3268	3168	270	72 x phi 45 / M42	20	3168 / 159	5680	Quote
134.50.3550Internal gear Envelope dimensions Envelope OD 3832 mm Envelope bore 3154.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3832	3268	3154.8	270	72 x phi 45 / M42	22	3154.8 / 144	5680	Quote
133.50.4000Internal gear Envelope dimensions Envelope OD 4282 mm Envelope bore 3616.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4282	3718	3616.8	270	80 x phi 45 / M42	22	3616.8 / 165	6470	Quote
134.50.4000Internal gear Envelope dimensions Envelope OD 4282 mm Envelope bore 3610 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4282	3718	3610	270	80 x phi 45 / M42	25	3610 / 145	6470	Quote
133.50.4500Internal gear Envelope dimensions Envelope OD 4782 mm Envelope bore 4122.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4782	4218	4122.8	270	80 x phi 45 / M42	22	4122.8 / 188	7320	Quote
134.50.4500Internal gear Envelope dimensions Envelope OD 4782 mm Envelope bore 4110 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4782	4218	4110	270	80 x phi 45 / M42	25	4110 / 165	7320	Quote

Catalogue notes

The 133/134 internal gear three-row roller series is designed for heavy equipment where very high load capacity is required but the drive gear should be protected or kept inside the equipment envelope. It can be considered for large cranes, tunnel or shield equipment, marine and deck machinery, heavy-duty rotary platforms, and OEM structures where outside space is limited or gear exposure is undesirable. Internal gear heavy-series selection should verify pinion access, gear hardening, lubrication, sealing, lifting and handling points, bolt arrangement, and whether the supporting frame can carry the moment load without harmful deformation.

Catalogue dimensions are reference data and may extend beyond the current verified in-house machining range. Final manufacturing capability is confirmed against the customer drawing before quotation.

Final quotation and production are based on confirmed drawings, load conditions, material requirements, heat treatment, inspection documents, and packing requirements.
