STANDARD SERIES

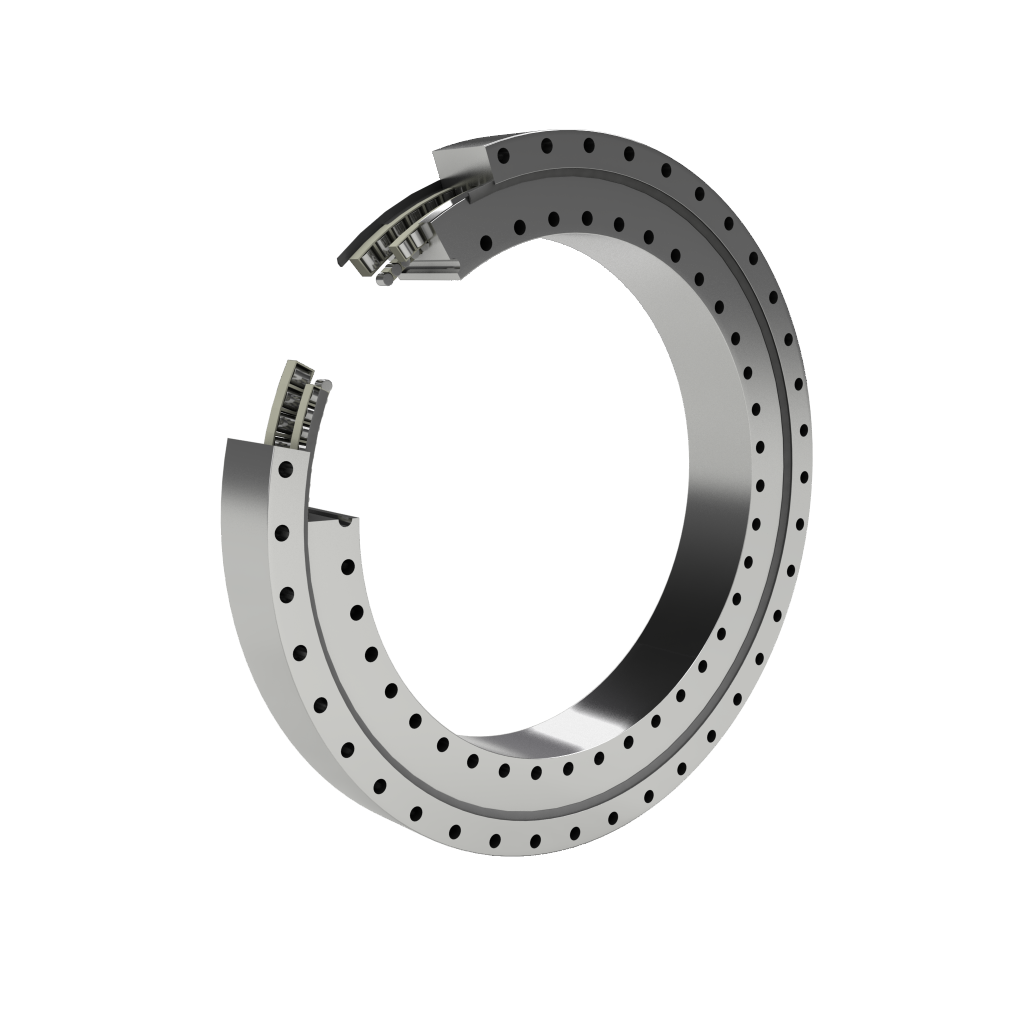

130 Series Ungeared Three Row Roller Slewing Bearings

Ungeared three row roller slewing bearings for high-capacity support where gear drive is handled separately from the bearing.

Very heavy loadNo gearLarge diameter

ENGINEERING OVERVIEW

130 Three Row Ungeared

Ungeared three row roller slewing bearings for high-capacity support where gear drive is handled separately from the bearing.

StructureThree row roller

Gear typeNo gear

Models in this series20 verified rows

MODEL TABLE

130 series catalogue parameters

Default columns show ring-body D/d/H plus the critical envelope dimension used for installation clearance. Click a model number to open its generated detail page.

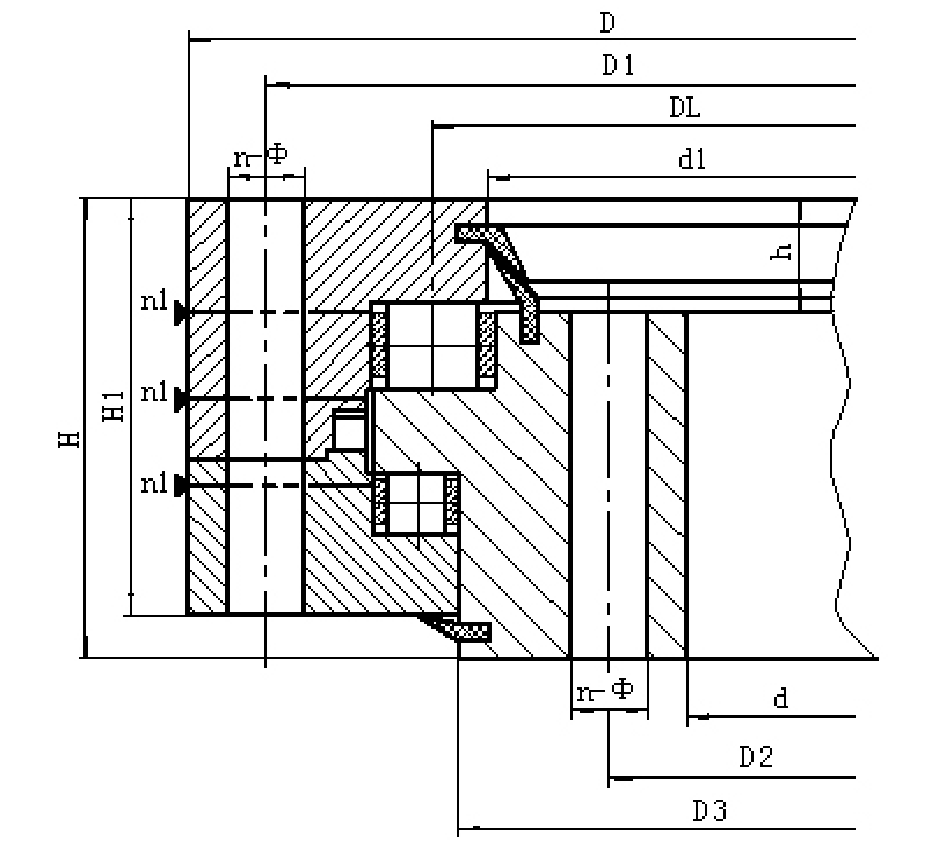

Diameter definition: D is the ring-body outside diameter, d is the ring-body inside diameter, and H is the total height. For ungeared models, D and d are the complete outside and inside envelope dimensions.

Click a model number to open its detail page.

MODEL	D	d	H	MOUNTING HOLES	WEIGHT	RFQ
130.25.500No gear Envelope dimensions Envelope OD 634 mm Envelope bore 366 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	634	366	148	24 x phi 18 / M16	224	Quote
130.25.560No gear Envelope dimensions Envelope OD 694 mm Envelope bore 426 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	694	426	148	24 x phi 18 / M16	240	Quote
130.25.630No gear Envelope dimensions Envelope OD 764 mm Envelope bore 496 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	764	496	148	28 x phi 18 / M16	270	Quote
130.25.710No gear Envelope dimensions Envelope OD 844 mm Envelope bore 576 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	844	576	148	28 x phi 18 / M16	300	Quote
130.32.800No gear Envelope dimensions Envelope OD 964 mm Envelope bore 636 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	964	636	182	36 x phi 22 / M20	500	Quote
130.32.900No gear Envelope dimensions Envelope OD 1064 mm Envelope bore 736 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1064	736	182	36 x phi 22 / M20	600	Quote
130.32.1000No gear Envelope dimensions Envelope OD 1164 mm Envelope bore 836 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1164	836	182	40 x phi 22 / M20	680	Quote
130.32.1120No gear Envelope dimensions Envelope OD 1284 mm Envelope bore 956 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1284	956	182	40 x phi 22 / M20	820	Quote
130.40.1250No gear Envelope dimensions Envelope OD 1445 mm Envelope bore 1055 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1445	1055	220	45 x phi 26 / M24	1200	Quote
130.40.1400No gear Envelope dimensions Envelope OD 1595 mm Envelope bore 1205 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1595	1205	220	45 x phi 26 / M24	1300	Quote
130.40.1600No gear Envelope dimensions Envelope OD 1795 mm Envelope bore 1405 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1795	1405	220	48 x phi 26 / M24	1520	Quote
130.40.1800No gear Envelope dimensions Envelope OD 1995 mm Envelope bore 1605 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1995	1605	220	48 x phi 26 / M24	1750	Quote
130.45.2000No gear Envelope dimensions Envelope OD 2221 mm Envelope bore 1779 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2221	1779	231	60 x phi 33 / M30	2400	Quote
130.45.2240No gear Envelope dimensions Envelope OD 2461 mm Envelope bore 2019 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2461	2019	231	60 x phi 33 / M30	2700	Quote
130.45.2500No gear Envelope dimensions Envelope OD 2721 mm Envelope bore 2279 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2721	2279	231	72 x phi 33 / M30	3000	Quote
130.45.2800No gear Envelope dimensions Envelope OD 3021 mm Envelope bore 2579 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3021	2579	231	72 x phi 33 / M30	3400	Quote
130.50.3150No gear Envelope dimensions Envelope OD 3432 mm Envelope bore 2868 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3432	2868	270	72 x phi 45 / M42	5000	Quote
130.50.3550No gear Envelope dimensions Envelope OD 3832 mm Envelope bore 3268 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3832	3268	270	72 x phi 45 / M42	5680	Quote
130.50.4000No gear Envelope dimensions Envelope OD 4282 mm Envelope bore 3718 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4282	3718	270	80 x phi 45 / M42	6470	Quote
130.50.4500No gear Envelope dimensions Envelope OD 4782 mm Envelope bore 4218 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4782	4218	270	80 x phi 45 / M42	7320	Quote

Catalogue notes

The 130 ungeared three-row roller series is used when the bearing must carry very high loads but the rotation drive is handled by another system, such as a separate gear ring, hydraulic arrangement, friction drive, or large custom transmission. It is suitable for heavy rotary foundations, large industrial turntables, offshore and port equipment supports, special lifting platforms, and custom machinery where capacity and structural stiffness are the main screening factors. Final selection should be made only after checking full load spectra, mounting geometry, bolt preload, support stiffness, lubrication access, transport handling, and required inspection records.

Catalogue dimensions are reference data and may extend beyond the current verified in-house machining range. Final manufacturing capability is confirmed against the customer drawing before quotation.

Final quotation and production are based on confirmed drawings, load conditions, material requirements, heat treatment, inspection documents, and packing requirements.
