111/112 Series External Gear Crossed Roller Slewing Bearings

Crossed cylindrical roller slewing bearings with external gear teeth for applications requiring higher rigidity, better running accuracy, or controlled clearance.

High rigidityRunning accuracyExternal gear

ENGINEERING OVERVIEW

111/112 Crossed Roller External Gear

Crossed cylindrical roller slewing bearings with external gear teeth for applications requiring higher rigidity, better running accuracy, or controlled clearance.

StructureSingle row crossed cylindrical roller

Gear typeExternal gear

Models in this series40 verified rows

MODEL TABLE

111/112 series catalogue parameters

Default columns show ring-body D/d/H plus the critical envelope dimension used for installation clearance. Click a model number to open its generated detail page.

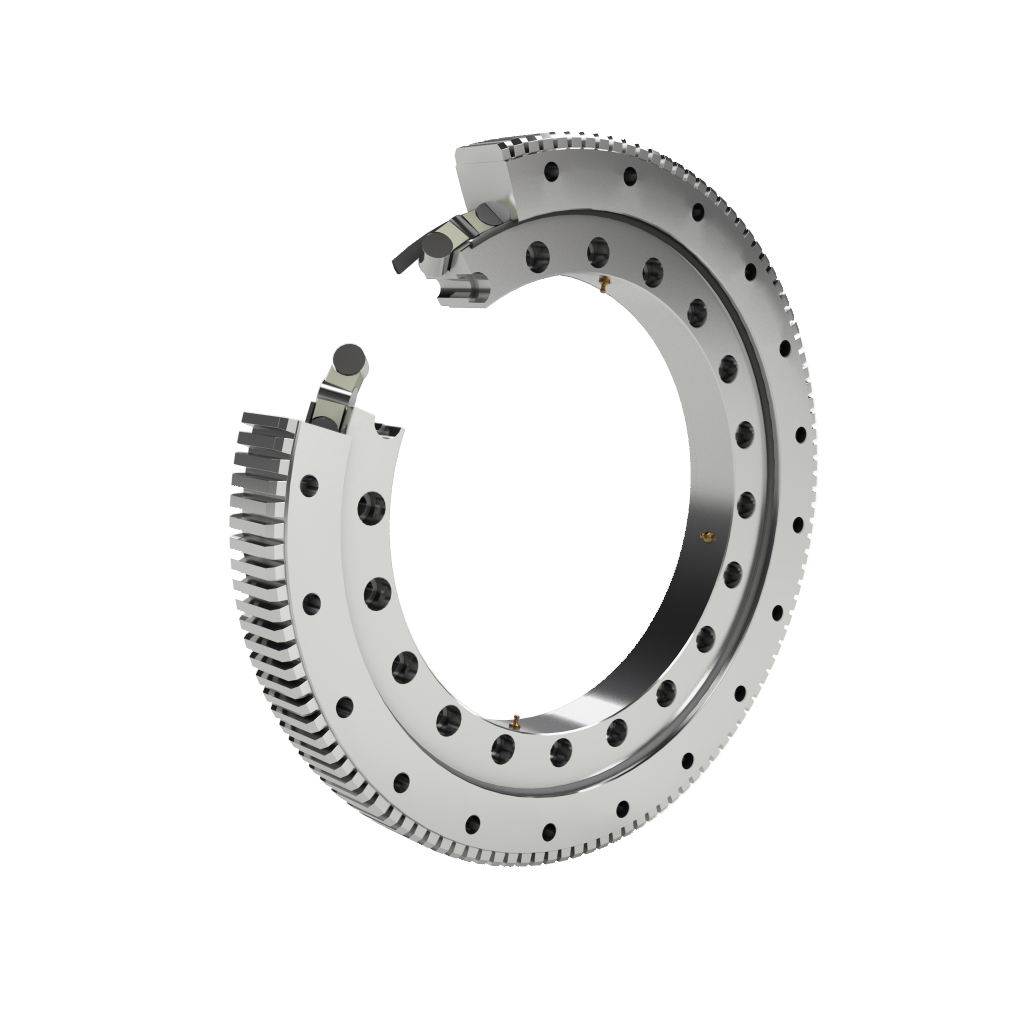

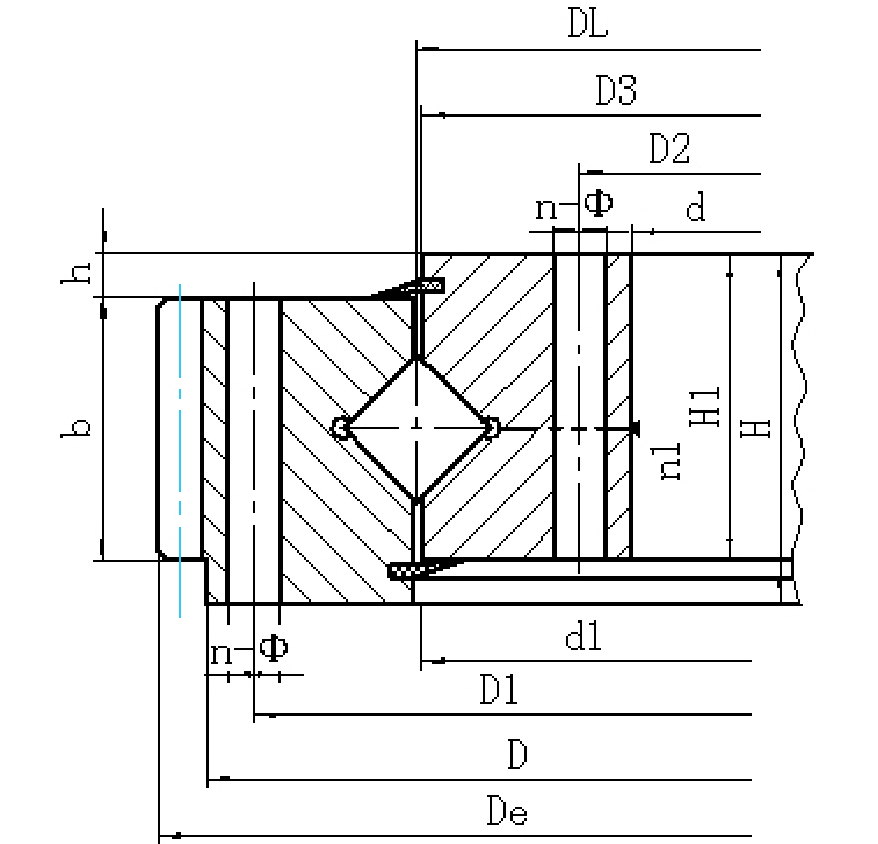

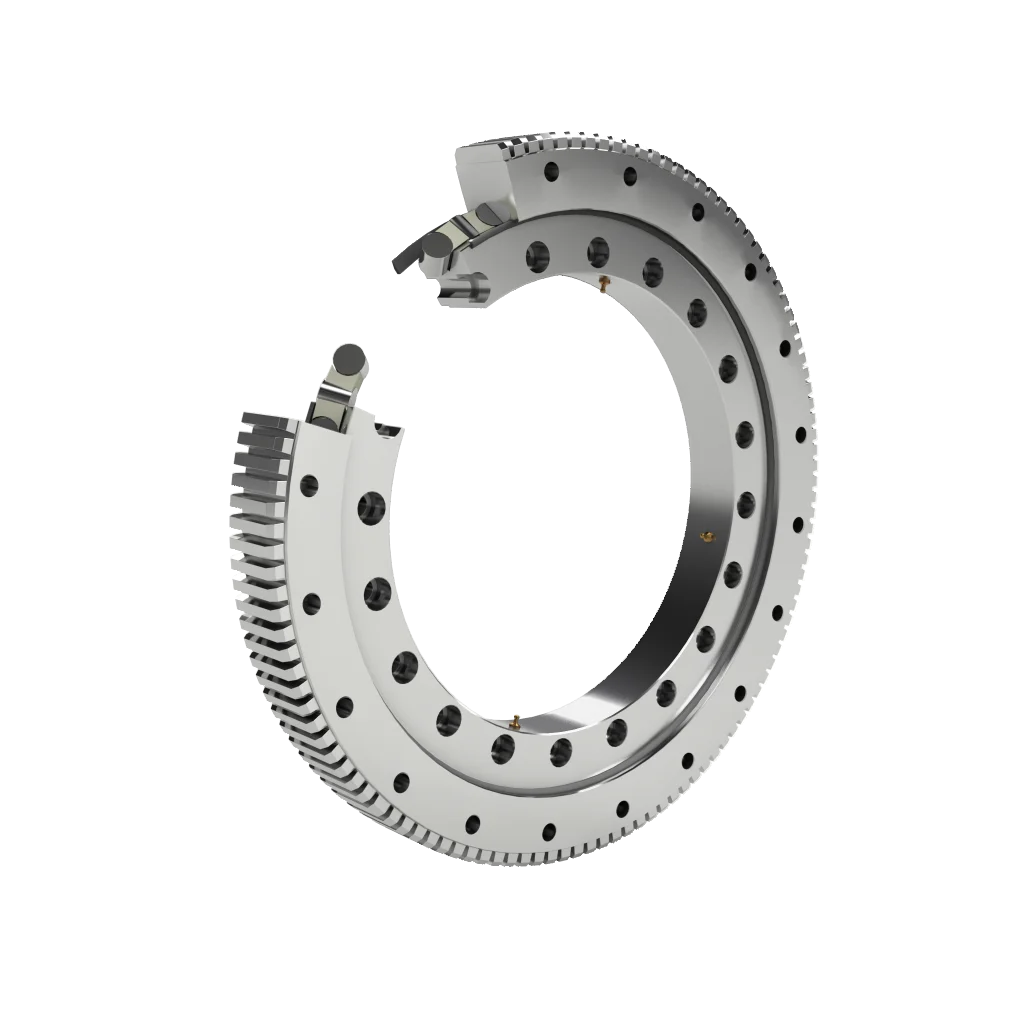

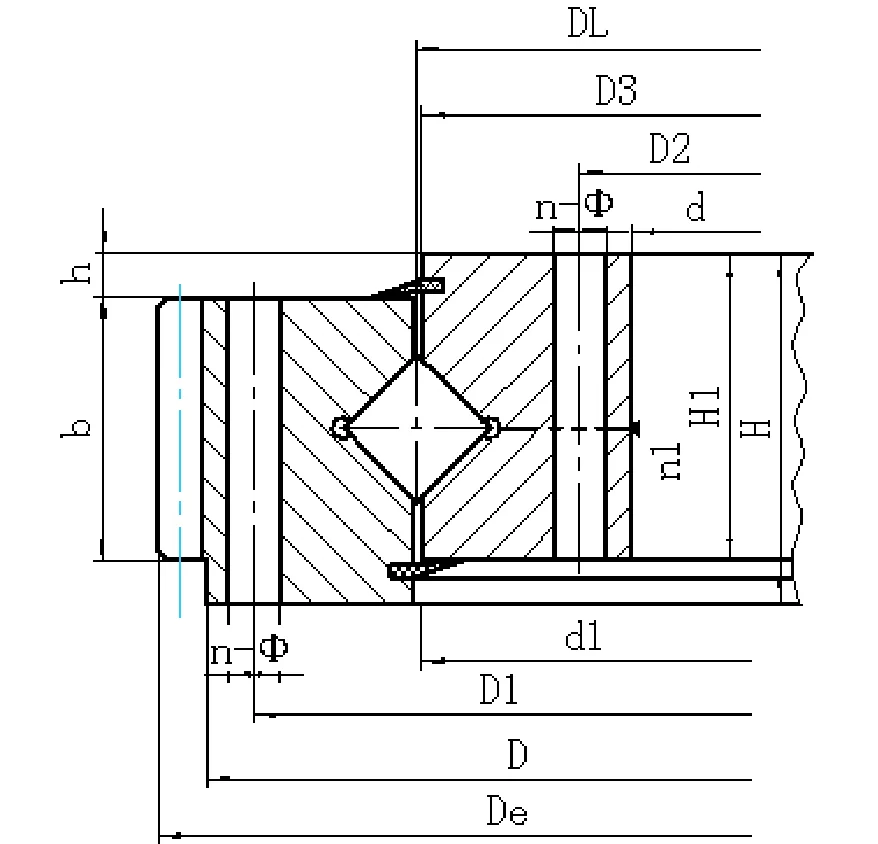

Diameter definition: D is the outer diameter of the ring body and d is the inner diameter of the ring body. For external gear models, the gear is on the outer ring, so the real maximum outside envelope can be De, not D. The structure must leave clearance for Max OD = max(D, De).

Click a model number to open its detail page.

MODEL	D	d	MAX OD	H	MOUNTING HOLES	GEAR m	De / z	WEIGHT	RFQ
112.25.500External gear Envelope dimensions Envelope OD 628.8 mm Envelope bore 398 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	628.8	75	20 x phi 18 / M16	6	628.8 / 102	80	Quote
111.25.500External gear Envelope dimensions Envelope OD 629 mm Envelope bore 398 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	602	398	629	75	20 x phi 18 / M16	5	629 / 123	80	Quote
112.25.560External gear Envelope dimensions Envelope OD 688.8 mm Envelope bore 458 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	688.8	75	20 x phi 18 / M16	6	688.8 / 112	90	Quote
111.25.560External gear Envelope dimensions Envelope OD 689 mm Envelope bore 458 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	662	458	689	75	20 x phi 18 / M16	5	689 / 135	90	Quote
111.25.630External gear Envelope dimensions Envelope OD 772.8 mm Envelope bore 528 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	772.8	75	24 x phi 18 / M16	6	772.8 / 126	100	Quote
112.25.630External gear Envelope dimensions Envelope OD 774.4 mm Envelope bore 528 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	732	528	774.4	75	24 x phi 18 / M16	8	774.4 / 94	100	Quote
111.25.710External gear Envelope dimensions Envelope OD 850.8 mm Envelope bore 608 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	850.8	75	24 x phi 18 / M16	6	850.8 / 139	110	Quote
112.25.710External gear Envelope dimensions Envelope OD 854.4 mm Envelope bore 608 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	812	608	854.4	75	24 x phi 18 / M16	8	854.4 / 104	110	Quote
111.28.800External gear Envelope dimensions Envelope OD 966.4 mm Envelope bore 678 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	966.4	82	30 x phi 22 / M20	8	966.4 / 118	170	Quote
112.28.800External gear Envelope dimensions Envelope OD 968 mm Envelope bore 678 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	922	678	968	82	30 x phi 22 / M20	10	968 / 94	170	Quote
111.28.900External gear Envelope dimensions Envelope OD 1062.4 mm Envelope bore 778 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	1062.4	82	30 x phi 22 / M20	8	1062.4 / 130	190	Quote
112.28.900External gear Envelope dimensions Envelope OD 1068 mm Envelope bore 778 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1022	778	1068	82	30 x phi 22 / M20	10	1068 / 104	190	Quote
112.28.1000External gear Envelope dimensions Envelope OD 1185.6 mm Envelope bore 878 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	1185.6	82	36 x phi 22 / M20	12	1185.6 / 96	210	Quote
111.28.1000External gear Envelope dimensions Envelope OD 1188 mm Envelope bore 878 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1122	878	1188	82	36 x phi 22 / M20	10	1188 / 116	210	Quote
111.28.1120External gear Envelope dimensions Envelope OD 1298 mm Envelope bore 998 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	1298	82	36 x phi 22 / M20	10	1298 / 127	230	Quote
112.28.1120External gear Envelope dimensions Envelope OD 1305.6 mm Envelope bore 998 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1242	998	1305.6	82	36 x phi 22 / M20	12	1305.6 / 106	230	Quote
111.32.1250External gear Envelope dimensions Envelope OD 1449.6 mm Envelope bore 1110 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	1449.6	91	40 x phi 26 / M24	12	1449.6 / 118	350	Quote
112.32.1250External gear Envelope dimensions Envelope OD 1453.2 mm Envelope bore 1110 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1390	1110	1453.2	91	40 x phi 26 / M24	14	1453.2 / 101	350	Quote
111.32.1400External gear Envelope dimensions Envelope OD 1605.6 mm Envelope bore 1260 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	1605.6	91	40 x phi 26 / M24	12	1605.6 / 131	400	Quote
112.32.1400External gear Envelope dimensions Envelope OD 1607.2 mm Envelope bore 1260 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1540	1260	1607.2	91	40 x phi 26 / M24	14	1607.2 / 112	400	Quote
111.32.1600External gear Envelope dimensions Envelope OD 1817.2 mm Envelope bore 1460 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	1817.2	91	45 x phi 26 / M24	14	1817.2 / 127	440	Quote
112.32.1600External gear Envelope dimensions Envelope OD 1820.8 mm Envelope bore 1460 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1740	1460	1820.8	91	45 x phi 26 / M24	16	1820.8 / 111	440	Quote
112.32.1800External gear Envelope dimensions Envelope OD 2012.8 mm Envelope bore 1660 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	2012.8	91	45 x phi 26 / M24	16	2012.8 / 123	500	Quote
111.32.1800External gear Envelope dimensions Envelope OD 2013.2 mm Envelope bore 1660 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1940	1660	2013.2	91	45 x phi 26 / M24	14	2013.2 / 141	500	Quote
112.40.2000External gear Envelope dimensions Envelope OD 2264.4 mm Envelope bore 1825 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	2264.4	112	48 x phi 33 / M30	18	2264.4 / 123	900	Quote
111.40.2000External gear Envelope dimensions Envelope OD 2268.8 mm Envelope bore 1825 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2178	1825	2268.8	112	48 x phi 33 / M30	16	2268.8 / 139	900	Quote
111.40.2240External gear Envelope dimensions Envelope OD 2492.8 mm Envelope bore 2065 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	2492.8	112	48 x phi 33 / M30	16	2492.8 / 153	1000	Quote
112.40.2240External gear Envelope dimensions Envelope OD 2498.4 mm Envelope bore 2065 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2418	2065	2498.4	112	48 x phi 33 / M30	18	2498.4 / 136	1000	Quote
111.40.2500External gear Envelope dimensions Envelope OD 2768.4 mm Envelope bore 2325 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	2768.4	112	56 x phi 33 / M30	18	2768.4 / 151	1100	Quote
112.40.2500External gear Envelope dimensions Envelope OD 2776 mm Envelope bore 2325 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2678	2325	2776	112	56 x phi 33 / M30	20	2776 / 136	1100	Quote
111.40.2800External gear Envelope dimensions Envelope OD 3074.4 mm Envelope bore 2625 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	3074.4	112	56 x phi 33 / M30	18	3074.4 / 168	1250	Quote
112.40.2800External gear Envelope dimensions Envelope OD 3076 mm Envelope bore 2625 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2978	2625	3076	112	56 x phi 33 / M30	20	3076 / 151	1250	Quote
112.50.3150External gear Envelope dimensions Envelope OD 3471.6 mm Envelope bore 2922 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	3471.6	134	56 x phi 45 / M42	22	3471.6 / 155	2150	Quote
111.50.3150External gear Envelope dimensions Envelope OD 3476 mm Envelope bore 2922 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3376	2922	3476	134	56 x phi 45 / M42	20	3476 / 171	2150	Quote
111.50.3550External gear Envelope dimensions Envelope OD 3876 mm Envelope bore 3322 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	3876	134	56 x phi 45 / M42	20	3876 / 191	2470	Quote
112.50.3550External gear Envelope dimensions Envelope OD 3889.6 mm Envelope bore 3322 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3776	3322	3889.6	134	56 x phi 45 / M42	22	3889.6 / 174	2470	Quote
111.50.4000External gear Envelope dimensions Envelope OD 4329.6 mm Envelope bore 3772 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	4329.6	134	60 x phi 45 / M42	22	4329.6 / 194	2800	Quote
112.50.4000External gear Envelope dimensions Envelope OD 4345 mm Envelope bore 3772 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4226	3772	4345	134	60 x phi 45 / M42	25	4345 / 171	2800	Quote
111.50.4500External gear Envelope dimensions Envelope OD 4835.6 mm Envelope bore 4272 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	4835.6	134	60 x phi 45 / M42	22	4835.6 / 217	3100	Quote
112.50.4500External gear Envelope dimensions Envelope OD 4845 mm Envelope bore 4272 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4726	4272	4845	134	60 x phi 45 / M42	25	4845 / 191	3100	Quote

Catalogue notes

The 111/112 external gear crossed roller series is intended for applications where rigidity, controlled clearance, and rotational accuracy matter more than high continuous speed. The external gear makes it suitable for directly driven rotary axes, welding positioners, precision turntables, manipulators, indexing equipment, and compact industrial machines where the pinion remains serviceable from outside. Compared with a general single-row ball structure, the crossed roller layout should be reviewed more carefully for mounting flatness, preload or clearance target, runout demand, and shock-load conditions.

Catalogue dimensions are reference data and may extend beyond the current verified in-house machining range. Final manufacturing capability is confirmed against the customer drawing before quotation.

Final quotation and production are based on confirmed drawings, load conditions, material requirements, heat treatment, inspection documents, and packing requirements.
