STANDARD SERIES

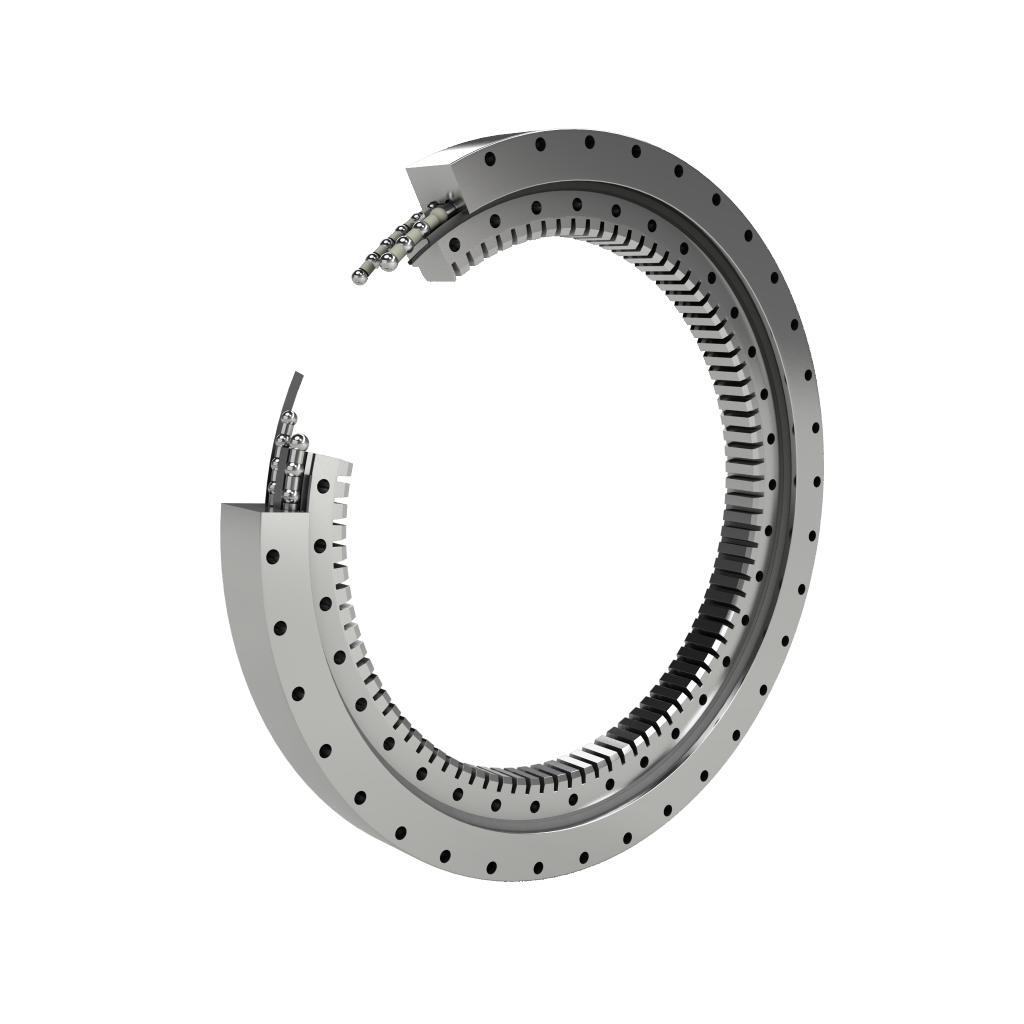

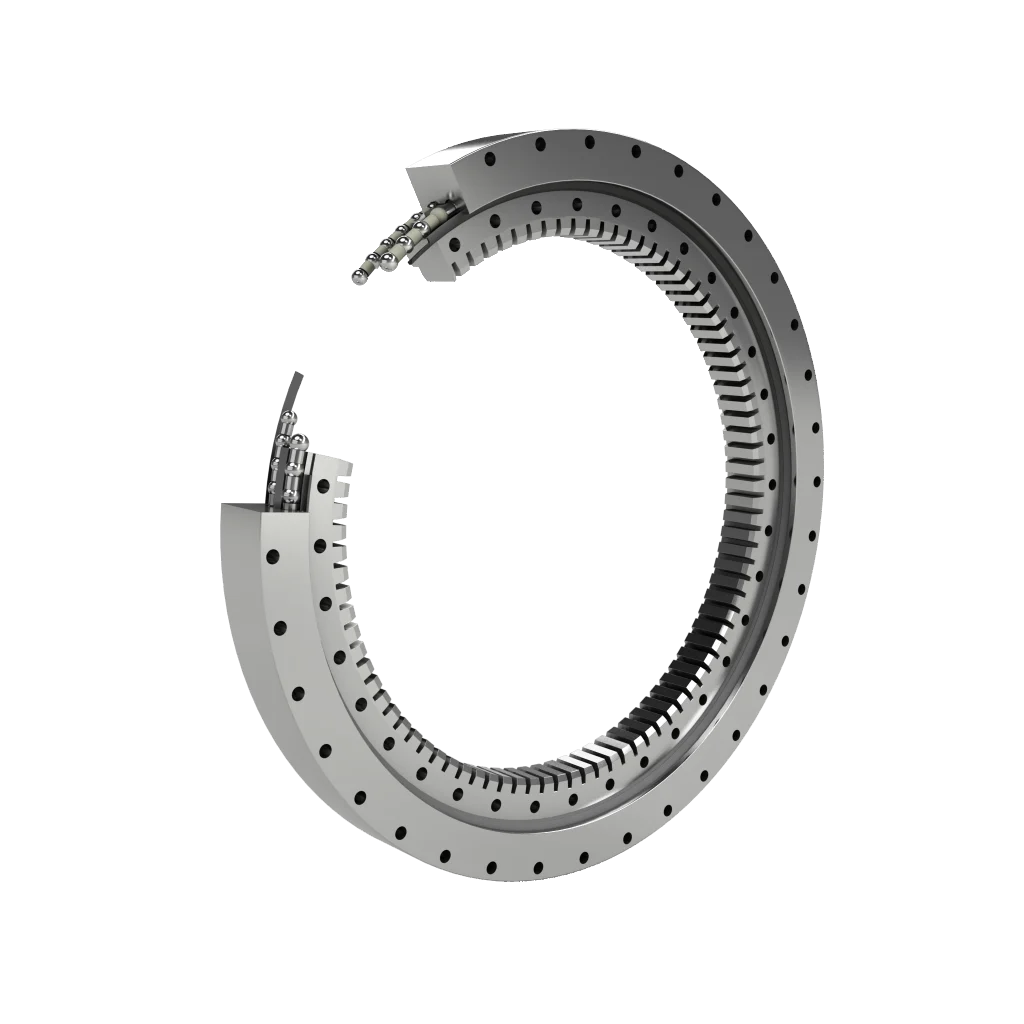

023/024 Series Internal Gear Double Row Ball Slewing Bearings

Double row four-point contact ball slewing bearings with internal gear teeth for heavy-duty equipment requiring compact drive integration.

Double row ballInternal gearHeavy load

ENGINEERING OVERVIEW

023/024 Double Row Internal Gear

Double row four-point contact ball slewing bearings with internal gear teeth for heavy-duty equipment requiring compact drive integration.

StructureDouble row four-point contact ball

Gear typeInternal gear

Models in this series40 verified rows

MODEL TABLE

023/024 series catalogue parameters

Default columns show ring-body D/d/H plus the critical envelope dimension used for installation clearance. Click a model number to open its generated detail page.

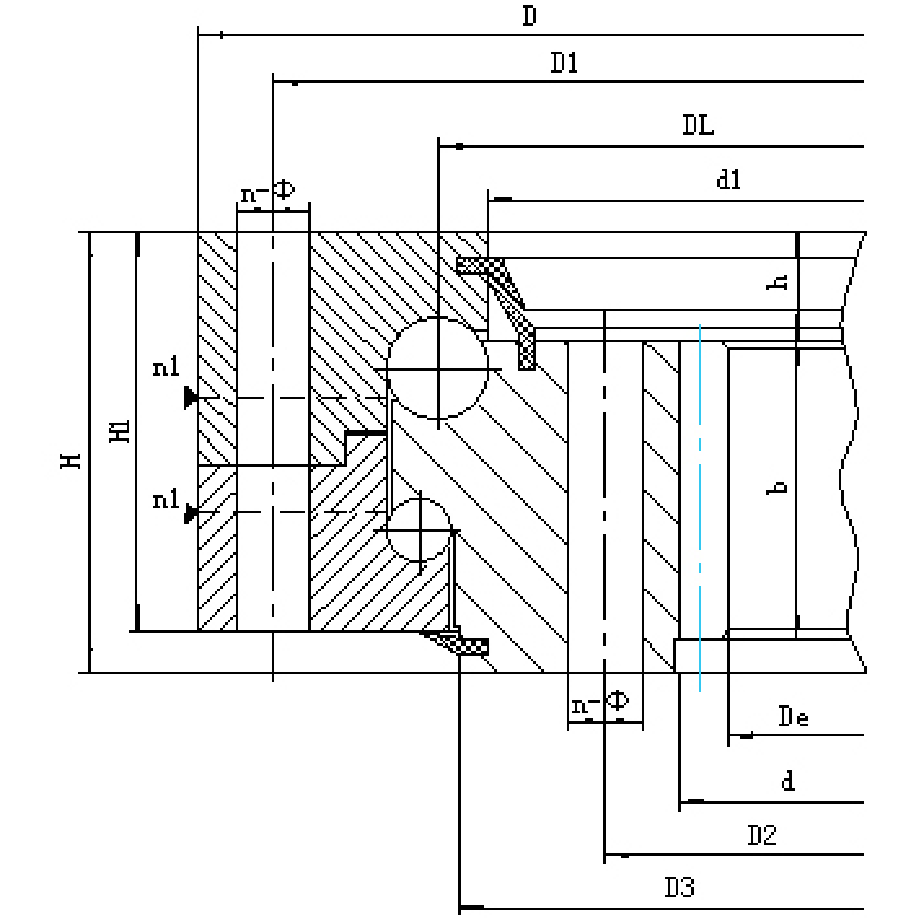

Diameter definition: D is the ring-body outside diameter and d is the ring-body inside diameter. For internal gear models, the gear is inside the bore, so the largest object that can pass through the center may be De, not d. Use Min bore = min(d, De).

Click a model number to open its detail page.

MODEL	D	d	MIN BORE	H	MOUNTING HOLES	GEAR m	De / z	WEIGHT	RFQ
023.25.500Internal gear Envelope dimensions Envelope OD 616 mm Envelope bore 357 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	616	384	357	106	20 x phi 18	5	357 / 72	100	Quote
024.25.500Internal gear Envelope dimensions Envelope OD 616 mm Envelope bore 350.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	616	384	350.4	106	20 x phi 18	6	350.4 / 59	100	Quote
023.25.560Internal gear Envelope dimensions Envelope OD 676 mm Envelope bore 417 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	676	444	417	106	20 x phi 18	5	417 / 84	115	Quote
024.25.560Internal gear Envelope dimensions Envelope OD 676 mm Envelope bore 410.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	676	444	410.4	106	20 x phi 18	6	410.4 / 69	115	Quote
023.25.630Internal gear Envelope dimensions Envelope OD 746 mm Envelope bore 482.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	746	514	482.4	106	24 x phi 18	6	482.4 / 81	130	Quote
024.25.630Internal gear Envelope dimensions Envelope OD 746 mm Envelope bore 475.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	746	514	475.2	106	24 x phi 18	8	475.2 / 60	130	Quote
023.25.710Internal gear Envelope dimensions Envelope OD 826 mm Envelope bore 560.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	826	594	560.4	106	24 x phi 18	6	560.4 / 94	140	Quote
024.25.710Internal gear Envelope dimensions Envelope OD 826 mm Envelope bore 555.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	826	594	555.2	106	24 x phi 18	8	555.2 / 70	140	Quote
023.30.800Internal gear Envelope dimensions Envelope OD 942 mm Envelope bore 619.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	942	658	619.2	124	30 x phi 22	8	619.2 / 78	200	Quote
024.30.800Internal gear Envelope dimensions Envelope OD 942 mm Envelope bore 614 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	942	658	614	124	30 x phi 22	10	614 / 62	200	Quote
023.30.900Internal gear Envelope dimensions Envelope OD 1042 mm Envelope bore 715.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1042	758	715.2	124	30 x phi 22	8	715.2 / 90	250	Quote
024.30.900Internal gear Envelope dimensions Envelope OD 1042 mm Envelope bore 714 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1042	758	714	124	30 x phi 22	10	714 / 72	250	Quote
023.30.1000Internal gear Envelope dimensions Envelope OD 1142 mm Envelope bore 814 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1142	858	814	124	36 x phi 22	10	814 / 82	300	Quote
024.30.1000Internal gear Envelope dimensions Envelope OD 1142 mm Envelope bore 796.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1142	858	796.8	124	36 x phi 22	12	796.8 / 67	300	Quote
023.30.1120Internal gear Envelope dimensions Envelope OD 1262 mm Envelope bore 924 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1262	978	924	124	36 x phi 22	10	924 / 93	340	Quote
024.30.1120Internal gear Envelope dimensions Envelope OD 1262 mm Envelope bore 916.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1262	978	916.8	124	36 x phi 22	12	916.8 / 77	340	Quote
023.40.1250Internal gear Envelope dimensions Envelope OD 1426 mm Envelope bore 1012.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1426	1074	1012.8	160	40 x phi 26	12	1012.8 / 85	580	Quote
024.40.1250Internal gear Envelope dimensions Envelope OD 1426 mm Envelope bore 1013.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1426	1074	1013.6	160	40 x phi 26	14	1013.6 / 73	580	Quote
023.40.1400Internal gear Envelope dimensions Envelope OD 1576 mm Envelope bore 1156.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1576	1224	1156.8	160	40 x phi 26	12	1156.8 / 97	650	Quote
024.40.1400Internal gear Envelope dimensions Envelope OD 1576 mm Envelope bore 1153.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1576	1224	1153.6	160	40 x phi 26	14	1153.6 / 83	650	Quote
023.40.1600Internal gear Envelope dimensions Envelope OD 1776 mm Envelope bore 1349.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1776	1424	1349.6	160	45 x phi 26	14	1349.6 / 97	750	Quote
024.40.1600Internal gear Envelope dimensions Envelope OD 1776 mm Envelope bore 1350.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1776	1424	1350.4	160	45 x phi 26	16	1350.4 / 85	750	Quote
023.40.1800Internal gear Envelope dimensions Envelope OD 1976 mm Envelope bore 1545.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1976	1624	1545.6	160	45 x phi 26	14	1545.6 / 111	820	Quote
024.40.1800Internal gear Envelope dimensions Envelope OD 1976 mm Envelope bore 1542.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1976	1624	1542.4	160	45 x phi 26	16	1542.4 / 97	820	Quote
023.50.2000Internal gear Envelope dimensions Envelope OD 2215 mm Envelope bore 1702.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2215	1785	1702.4	190	48 x phi 33	16	1702.4 / 107	1150	Quote
024.50.2000Internal gear Envelope dimensions Envelope OD 2215 mm Envelope bore 1699.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2215	1785	1699.2	190	48 x phi 33	18	1699.2 / 95	1150	Quote
023.50.2240Internal gear Envelope dimensions Envelope OD 2455 mm Envelope bore 1942.4 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2455	2025	1942.4	190	48 x phi 33	16	1942.4 / 122	1500	Quote
024.50.2240Internal gear Envelope dimensions Envelope OD 2455 mm Envelope bore 1933.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2455	2025	1933.2	190	48 x phi 33	18	1933.2 / 108	1500	Quote
023.50.2500Internal gear Envelope dimensions Envelope OD 2715 mm Envelope bore 2203.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2715	2285	2203.2	190	56 x phi 33	18	2203.2 / 123	1700	Quote
024.50.2500Internal gear Envelope dimensions Envelope OD 2715 mm Envelope bore 2188 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2715	2285	2188	190	56 x phi 33	20	2188 / 110	1700	Quote
023.50.2800Internal gear Envelope dimensions Envelope OD 3015 mm Envelope bore 2491.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3015	2585	2491.2	190	56 x phi 33	18	2491.2 / 139	1900	Quote
024.50.2800Internal gear Envelope dimensions Envelope OD 3015 mm Envelope bore 2488 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3015	2585	2488	190	56 x phi 33	20	2488 / 125	1900	Quote
023.60.3150Internal gear Envelope dimensions Envelope OD 3428 mm Envelope bore 2768 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3428	2872	2768	226	56 x phi 45	20	2768 / 139	3300	Quote
024.60.3150Internal gear Envelope dimensions Envelope OD 3428 mm Envelope bore 2758.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3428	2872	2758.8	226	56 x phi 45	22	2758.8 / 126	3300	Quote
023.60.3550Internal gear Envelope dimensions Envelope OD 3828 mm Envelope bore 3168 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3828	3272	3168	226	56 x phi 45	20	3168 / 159	3700	Quote
024.60.3550Internal gear Envelope dimensions Envelope OD 3828 mm Envelope bore 3176.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3828	3272	3176.8	226	56 x phi 45	22	3176.8 / 145	3700	Quote
023.60.4000Internal gear Envelope dimensions Envelope OD 4278 mm Envelope bore 3616.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4278	3722	3616.8	226	60 x phi 45	22	3616.8 / 165	4200	Quote
024.60.4000Internal gear Envelope dimensions Envelope OD 4278 mm Envelope bore 3610 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4278	3722	3610	226	60 x phi 45	25	3610 / 145	4200	Quote
023.60.4500Internal gear Envelope dimensions Envelope OD 4778 mm Envelope bore 4122.8 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4778	4222	4122.8	226	60 x phi 45	22	4122.8 / 188	4700	Quote
024.60.4500Internal gear Envelope dimensions Envelope OD 4778 mm Envelope bore 4110 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4778	4222	4110	226	60 x phi 45	25	4110 / 165	4700	Quote

Catalogue notes

The 023/024 internal gear double-row ball series is appropriate for heavier rotating equipment where the drive needs to stay inside the bearing envelope or protected from external impact and contamination. It can be considered for compact crane structures, machinery with restricted outside diameter, heavy-duty rotary tables, and OEM equipment that combines higher moment loading with a guarded drive train. Internal gear models should be reviewed for pinion installation space, tooth access, lubrication, sealing, and whether the equipment frame leaves enough clearance for assembly and future service.

Catalogue dimensions are reference data and may extend beyond the current verified in-house machining range. Final manufacturing capability is confirmed against the customer drawing before quotation.

Final quotation and production are based on confirmed drawings, load conditions, material requirements, heat treatment, inspection documents, and packing requirements.
