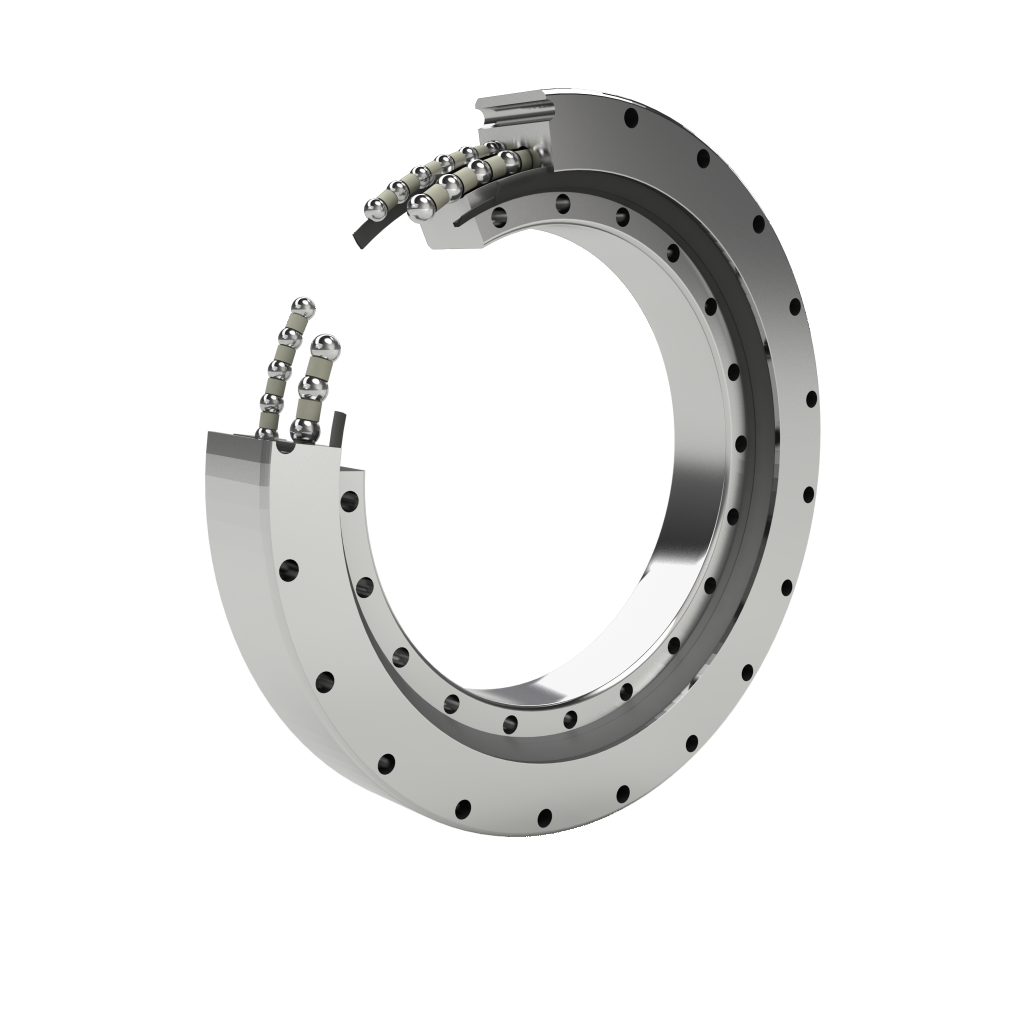

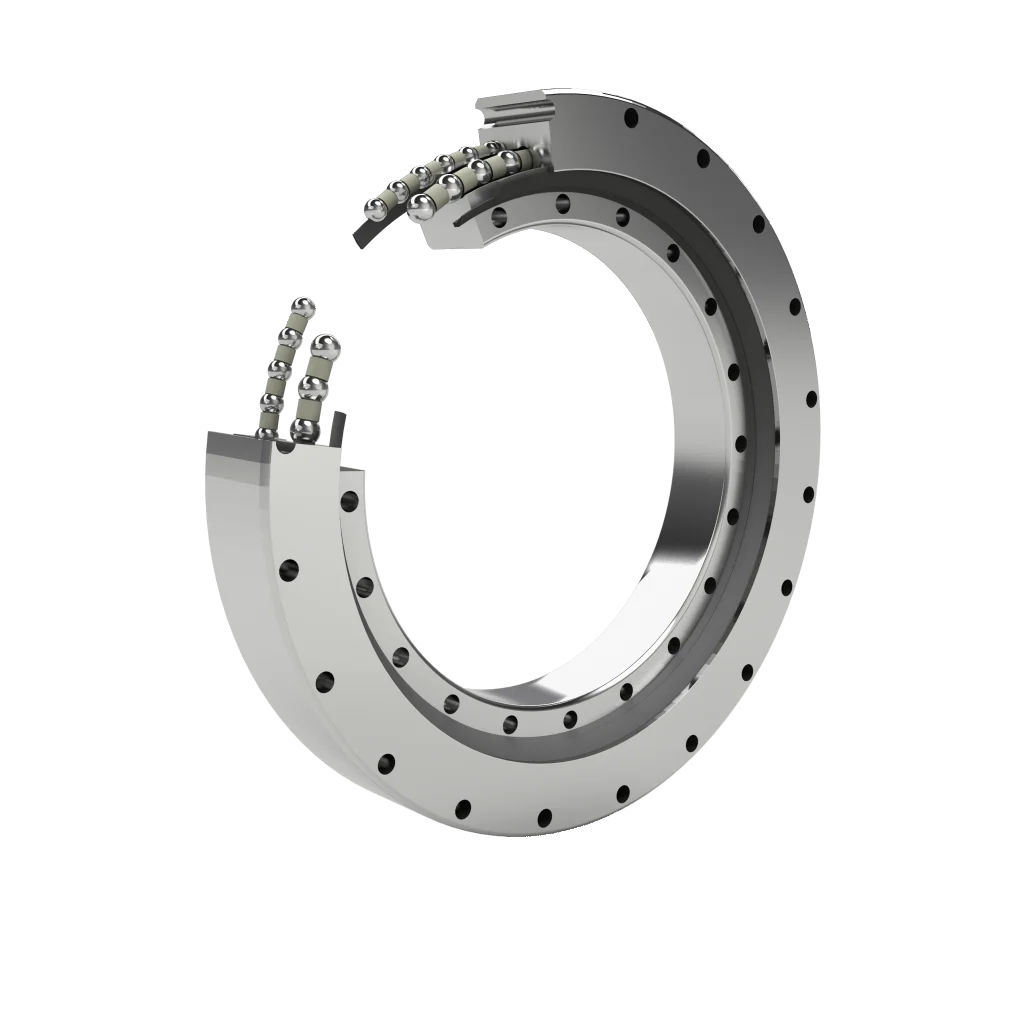

020 Series Ungeared Double Row Ball Slewing Bearings

Ungeared double row ball slewing bearings for applications where higher load capacity is required but gear teeth are not part of the bearing.

Double row ballNo gearHigh load support

ENGINEERING OVERVIEW

020 Double Row Ungeared

Ungeared double row ball slewing bearings for applications where higher load capacity is required but gear teeth are not part of the bearing.

StructureDouble row four-point contact ball

Gear typeNo gear

Models in this series20 verified rows

MODEL TABLE

020 series catalogue parameters

Default columns show ring-body D/d/H plus the critical envelope dimension used for installation clearance. Click a model number to open its generated detail page.

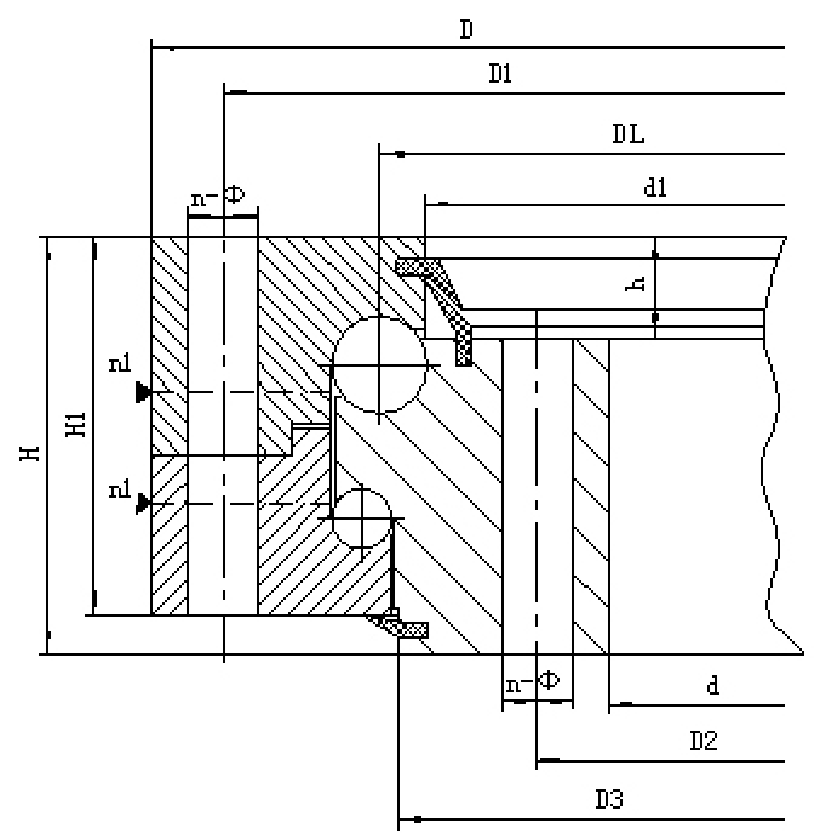

Diameter definition: D is the ring-body outside diameter, d is the ring-body inside diameter, and H is the total height. For ungeared models, D and d are the complete outside and inside envelope dimensions.

Click a model number to open its detail page.

MODEL	D	d	H	MOUNTING HOLES	WEIGHT	RFQ
020.25.500No gear Envelope dimensions Envelope OD 616 mm Envelope bore 384 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	616	384	106	20 x phi 18	100	Quote
020.25.560No gear Envelope dimensions Envelope OD 676 mm Envelope bore 444 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	676	444	106	20 x phi 18	115	Quote
020.25.630No gear Envelope dimensions Envelope OD 746 mm Envelope bore 514 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	746	514	106	24 x phi 18	130	Quote
020.25.710No gear Envelope dimensions Envelope OD 826 mm Envelope bore 594 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	826	594	106	24 x phi 18	140	Quote
020.30.800No gear Envelope dimensions Envelope OD 942 mm Envelope bore 658 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	942	658	124	30 x phi 22	200	Quote
020.30.900No gear Envelope dimensions Envelope OD 1042 mm Envelope bore 758 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1042	758	124	30 x phi 22	250	Quote
020.30.1000No gear Envelope dimensions Envelope OD 1142 mm Envelope bore 858 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1142	858	124	36 x phi 22	300	Quote
020.30.1120No gear Envelope dimensions Envelope OD 1262 mm Envelope bore 978 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1262	978	124	36 x phi 22	340	Quote
020.40.1250No gear Envelope dimensions Envelope OD 1426 mm Envelope bore 1074 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1426	1074	160	40 x phi 26	580	Quote
020.40.1400No gear Envelope dimensions Envelope OD 1576 mm Envelope bore 1224 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1576	1224	160	40 x phi 26	650	Quote
020.40.1600No gear Envelope dimensions Envelope OD 1776 mm Envelope bore 1424 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1776	1424	160	45 x phi 26	750	Quote
020.40.1800No gear Envelope dimensions Envelope OD 1976 mm Envelope bore 1624 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1976	1624	160	45 x phi 26	820	Quote
020.50.2000No gear Envelope dimensions Envelope OD 2215 mm Envelope bore 1785 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2215	1785	190	48 x phi 33	1150	Quote
020.50.2240No gear Envelope dimensions Envelope OD 2455 mm Envelope bore 2025 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2455	2025	190	48 x phi 33	1500	Quote
020.50.2500No gear Envelope dimensions Envelope OD 2715 mm Envelope bore 2285 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	2715	2285	190	56 x phi 33	1700	Quote
020.50.2800No gear Envelope dimensions Envelope OD 3015 mm Envelope bore 2585 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3015	2585	190	56 x phi 33	1900	Quote
020.60.3150No gear Envelope dimensions Envelope OD 3428 mm Envelope bore 2872 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3428	2872	226	56 x phi 45	3300	Quote
020.60.3550No gear Envelope dimensions Envelope OD 3828 mm Envelope bore 3272 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	3828	3272	226	56 x phi 45	3700	Quote
020.60.4000No gear Envelope dimensions Envelope OD 4278 mm Envelope bore 3722 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4278	3722	226	60 x phi 45	4200	Quote
020.60.4500No gear Envelope dimensions Envelope OD 4778 mm Envelope bore 4222 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	4778	4222	226	60 x phi 45	4700	Quote

Catalogue notes

The 020 ungeared double-row ball series is a screening option for high-load rotating supports where the buyer uses a separate drive ring, gearbox, friction drive, or hydraulic rotation system. It is often relevant to large industrial turntables, material-handling fixtures, custom lifting structures, inspection rigs, and OEM equipment where bearing capacity is required but gear teeth are supplied elsewhere. Because the bearing does not define the drive interface, drawing review should focus on bolt circle compatibility, support-structure stiffness, overturning moment, lubrication access, and the external drive arrangement.

Catalogue dimensions are reference data and may extend beyond the current verified in-house machining range. Final manufacturing capability is confirmed against the customer drawing before quotation.

Final quotation and production are based on confirmed drawings, load conditions, material requirements, heat treatment, inspection documents, and packing requirements.
