Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration
MERYDOM 32-20 1250/2-06750
Level 3 VerifiedFactory-certified by MERYDOM to interchange with IMO 32-20 1250/2-06750. The MERYDOM product uses the same model designation for direct cross-reference.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
32-20 1250/2-06750

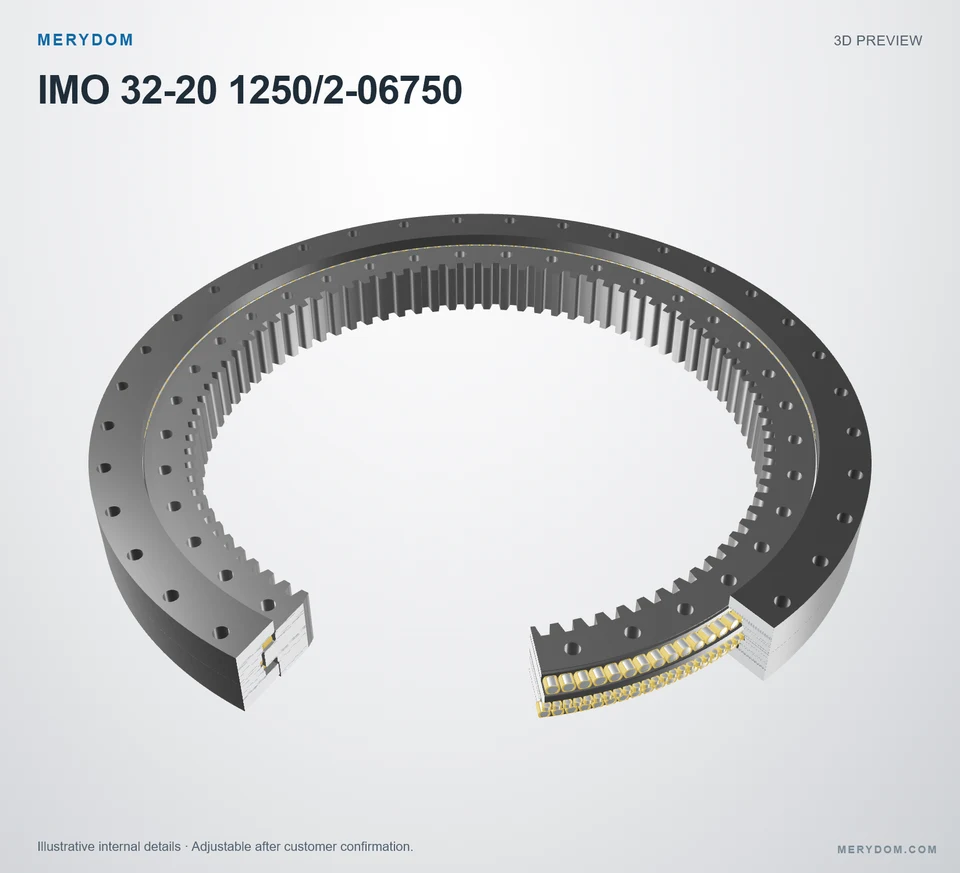

MERYDOM VerifiedEngineering certification · Rev Rev 1.0MERYDOM-manufactured slewing bearing certified for interchange with IMO 32-20 1250/2-06750.
- Overall OD (Do)
- 1397 mm
- Overall ID (di)
- 1032 mm
- Overall height
- Not published
- Gear arrangement
- Internal gear
- Mounting holes
- 36 / outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Da)
- 1397 mm1,397 mm
- Overall inside diameter (di)
- 1032 mm1,032 mm
- Assembly weight (G)
- 539 kg
Mounting
- Outer ring bolt circle (La)
- 1345 mm1,345 mm
- Inner ring bolt circle (Li)
- 1145 mm1,145 mm
- Outer ring mounting-hole count (na)
- 36
Gear
- Gear pitch diameter (d)
- 1044 mm1,044 mm
- Gear module (m)
- 12 mm
- Gear tooth count (z)
- 87
- Addendum modification coefficient (x)
- -0.50-0.5
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Rev Rev 1.0Product specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 32-20 1250/2-06750 |
| Certified interchangeable with | IMO 32-20 1250/2-06750 |
| Factory verification | Level 3 · Engineering Verified |
| Approved drawing revision | Rev 1.0 |
| Reviewed by | MERYDOM Engineering Department |
| Certification date | 2026-08-16 |
| Materials | |
| Ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | IMO |
| Series | 320 Series |
| Reference model | 32-20 1250/2-06750 |
| System of measurement | Metric |
| Bearing structure | Three-row roller |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Da) | 1397 mm1,397 mm |
| Overall inside diameter (di) | 1032 mm1,032 mm |
| Assembly weight (G) | 539 kg |
| Mounting | |
| Outer ring bolt circle (La) | 1345 mm1,345 mm |
| Inner ring bolt circle (Li) | 1145 mm1,145 mm |
| Outer ring mounting-hole count (na) | 36 |
| Gear | |
| Gear pitch diameter (d) | 1044 mm1,044 mm |
| Gear module (m) | 12 mm |
| Gear tooth count (z) | 87 |
| Addendum modification coefficient (x) | -0.50-0.5 |
| Ratings | |
| Permitted circumferential force, normal (fz_norm) | 117 kN |
| Permitted circumferential force, maximum (fz_max) | 214 kN |
| Static radial load rating (Co_rad) | 625 kN |
| Static axial load rating, tension (Co_ax_T) | 7383 kN7,383 kN |
| Static axial load rating, compression (Co_ax_H) | 4452 kN4,452 kN |
| Dynamic radial load rating (C_rad) | 407 kN |
| Dynamic axial load rating, tension (C_ax_T) | 1371 kN1,371 kN |
| Dynamic axial load rating, compression (C_ax_H) | 1005 kN1,005 kN |
Level 3 · MERYDOM Engineering VerifiedCertified 2026-08-16 by MERYDOM Engineering Department.

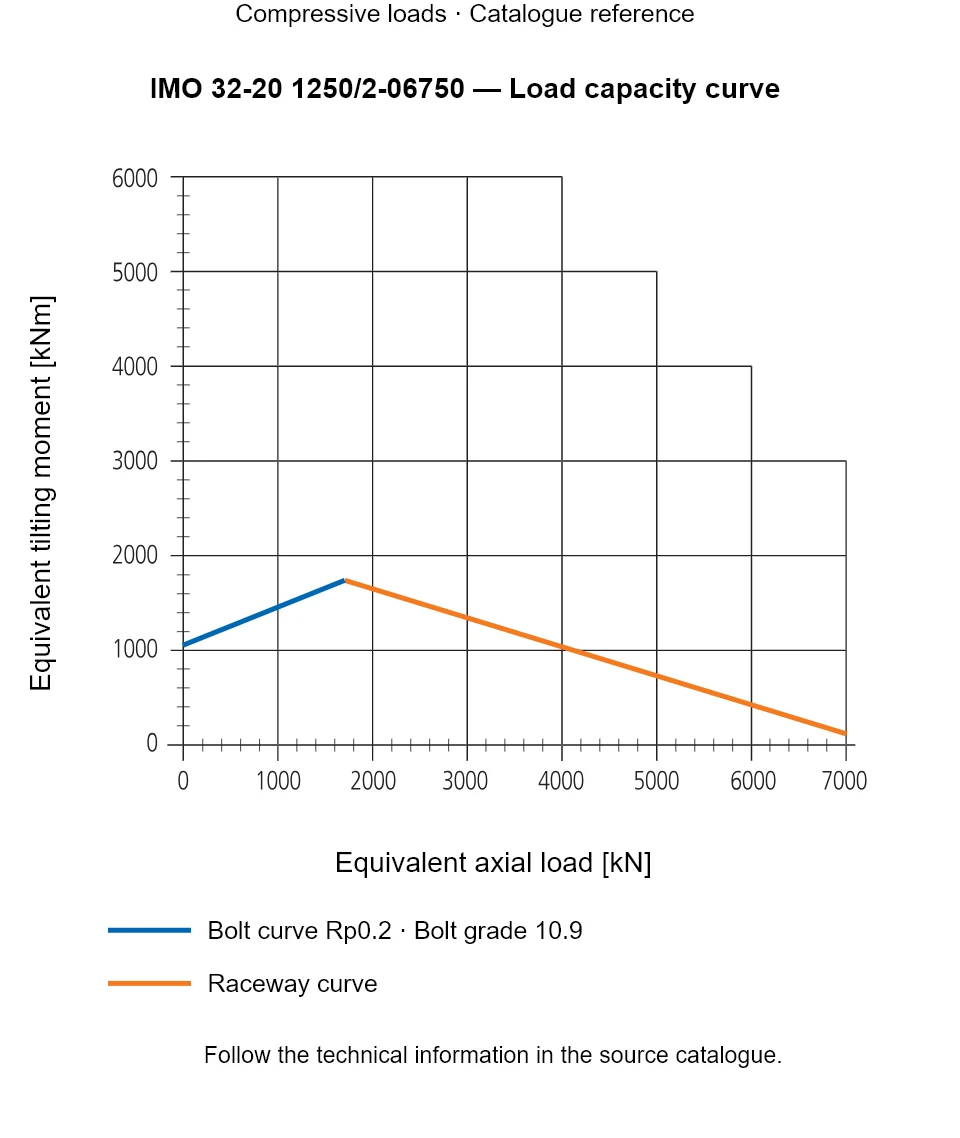

SERIES LOAD CAPACITY
320 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
Factory-certified replacement design
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Default approved drawing revision 1.0
- Certification date linked to the data-import record
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 32-20 1250/2-06750.
