Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration
MERYDOM 10-25 1455/0-03070
Level 3 VerifiedFactory-certified by MERYDOM to interchange with IMO 10-25 1455/0-03070. The MERYDOM product uses the same model designation for direct cross-reference.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
10-25 1455/0-03070

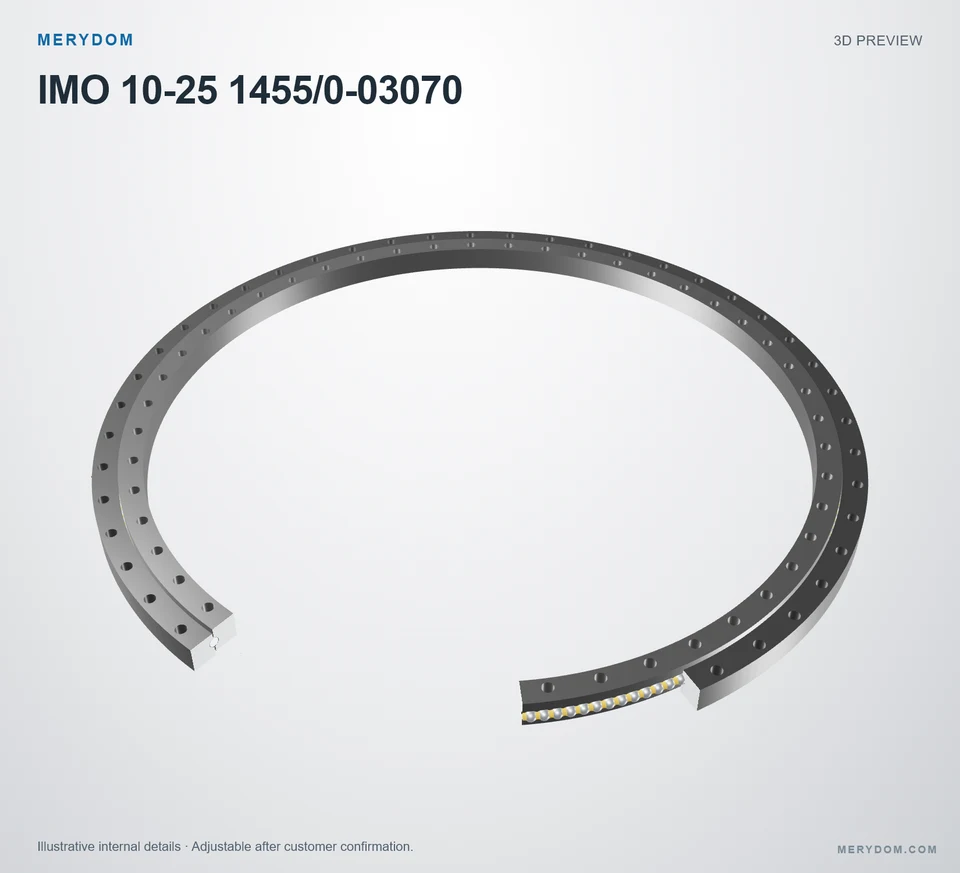

MERYDOM VerifiedEngineering certification · Rev Rev 1.0MERYDOM-manufactured slewing bearing certified for interchange with IMO 10-25 1455/0-03070.
- Overall OD (Do)
- 1555 mm
- Overall ID (di)
- 1355 mm
- Overall height
- Not published
- Gear arrangement
- Ungeared
- Mounting holes
- 48 / 48 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

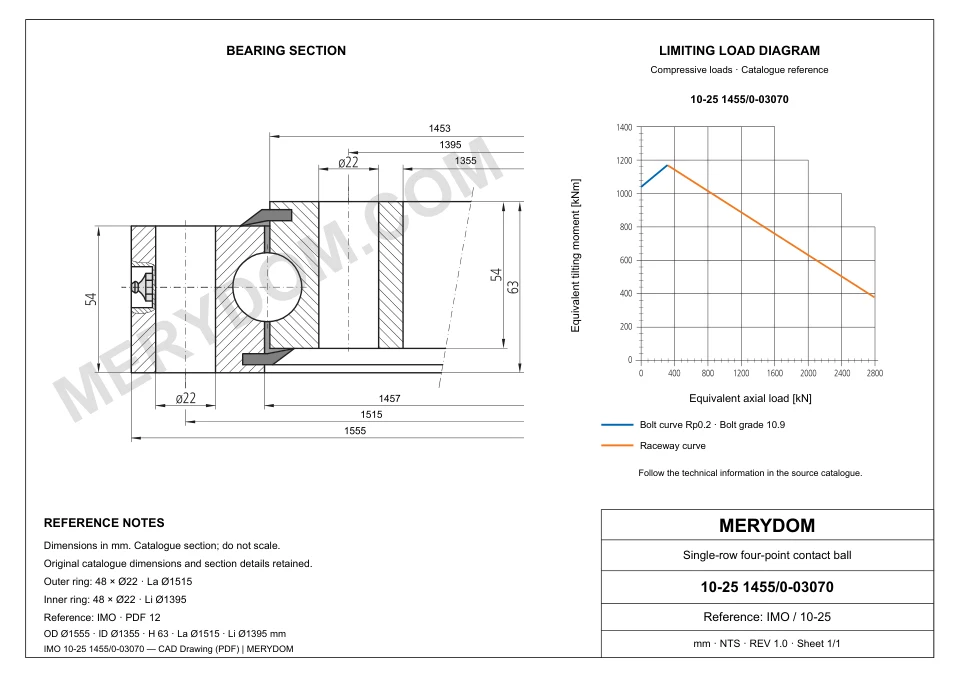

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Da)
- 1555 mm1,555 mm
- Overall inside diameter (di)
- 1355 mm1,355 mm
- Assembly weight (G)
- 174 kg
Mounting
- Outer ring bolt circle (La)
- 1515 mm1,515 mm
- Outer ring mounting-hole count (na)
- 48
- Inner ring bolt circle (Li)
- 1395 mm1,395 mm
- Inner ring mounting-hole count (ni)
- 48
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Rev Rev 1.0Product specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 10-25 1455/0-03070 |
| Certified interchangeable with | IMO 10-25 1455/0-03070 |
| Factory verification | Level 3 · Engineering Verified |
| Approved drawing revision | Rev 1.0 |
| Reviewed by | MERYDOM Engineering Department |
| Certification date | 2026-08-16 |
| Materials | |
| Ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | IMO |
| Series | 125 Series |
| Reference model | 10-25 1455/0-03070 |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Ungeared |
| Dimensions | |
| Overall outside diameter (Da) | 1555 mm1,555 mm |
| Overall inside diameter (di) | 1355 mm1,355 mm |
| Assembly weight (G) | 174 kg |
| Mounting | |
| Outer ring bolt circle (La) | 1515 mm1,515 mm |
| Outer ring mounting-hole count (na) | 48 |
| Inner ring bolt circle (Li) | 1395 mm1,395 mm |
| Inner ring mounting-hole count (ni) | 48 |
| Ratings | |
| Static radial load rating (Co_rad) | 1450 kN1,450 kN |
| Static axial load rating (Co_ax) | 3879 kN3,879 kN |
| Dynamic radial load rating (C_rad) | 383 kN |
| Dynamic axial load rating (C_ax) | 447 kN |
Level 3 · MERYDOM Engineering VerifiedCertified 2026-08-16 by MERYDOM Engineering Department.

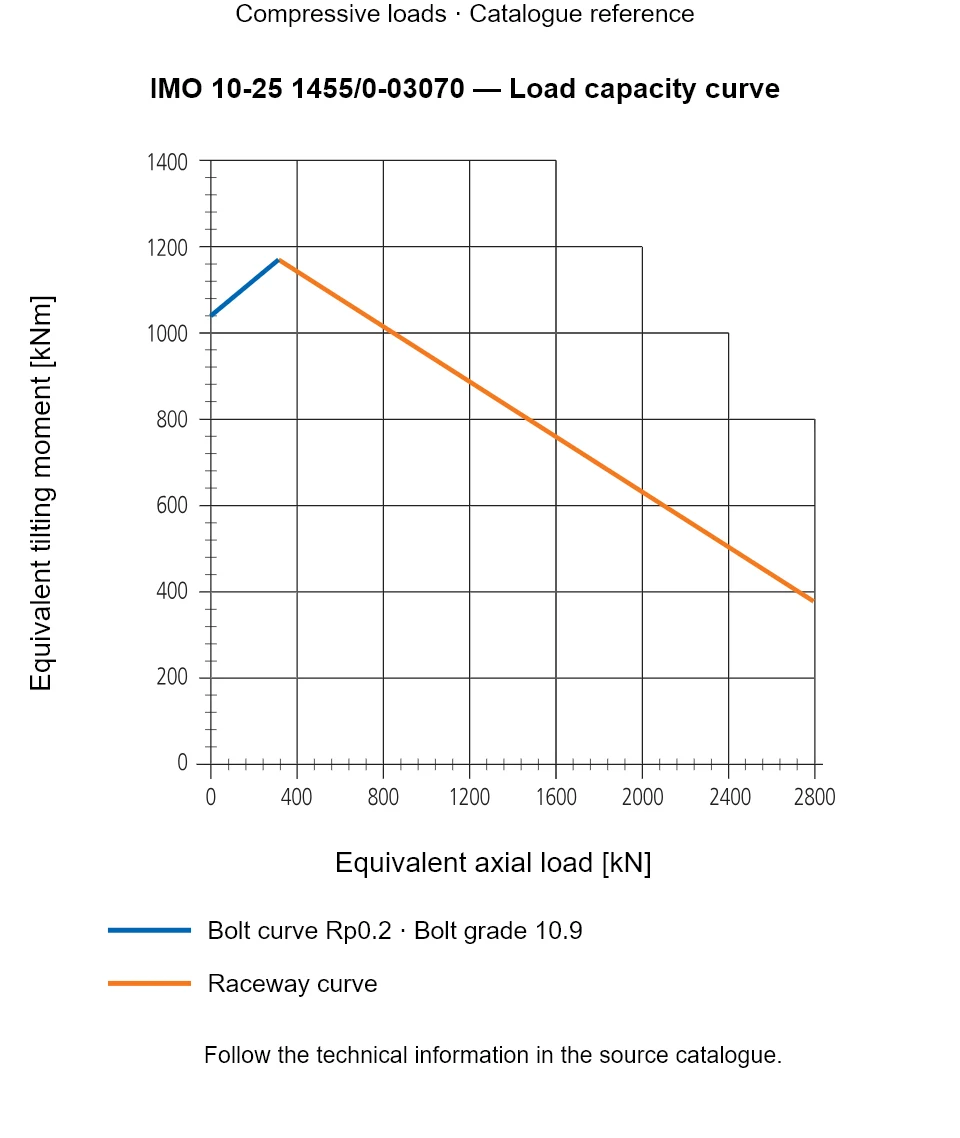

SERIES LOAD CAPACITY
125 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
Factory-certified replacement design
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Default approved drawing revision 1.0
- Certification date linked to the data-import record
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
