STANDARD SERIES

23 Series Flanged Slewing Bearings

Flanged slewing bearing series for compact equipment, lower weight designs, and applications requiring a simplified mounting interface.

Flanged ringsLower weightCompact mounting

ENGINEERING OVERVIEW

23 Flanged Series

Flanged slewing bearing series for compact equipment, lower weight designs, and applications requiring a simplified mounting interface.

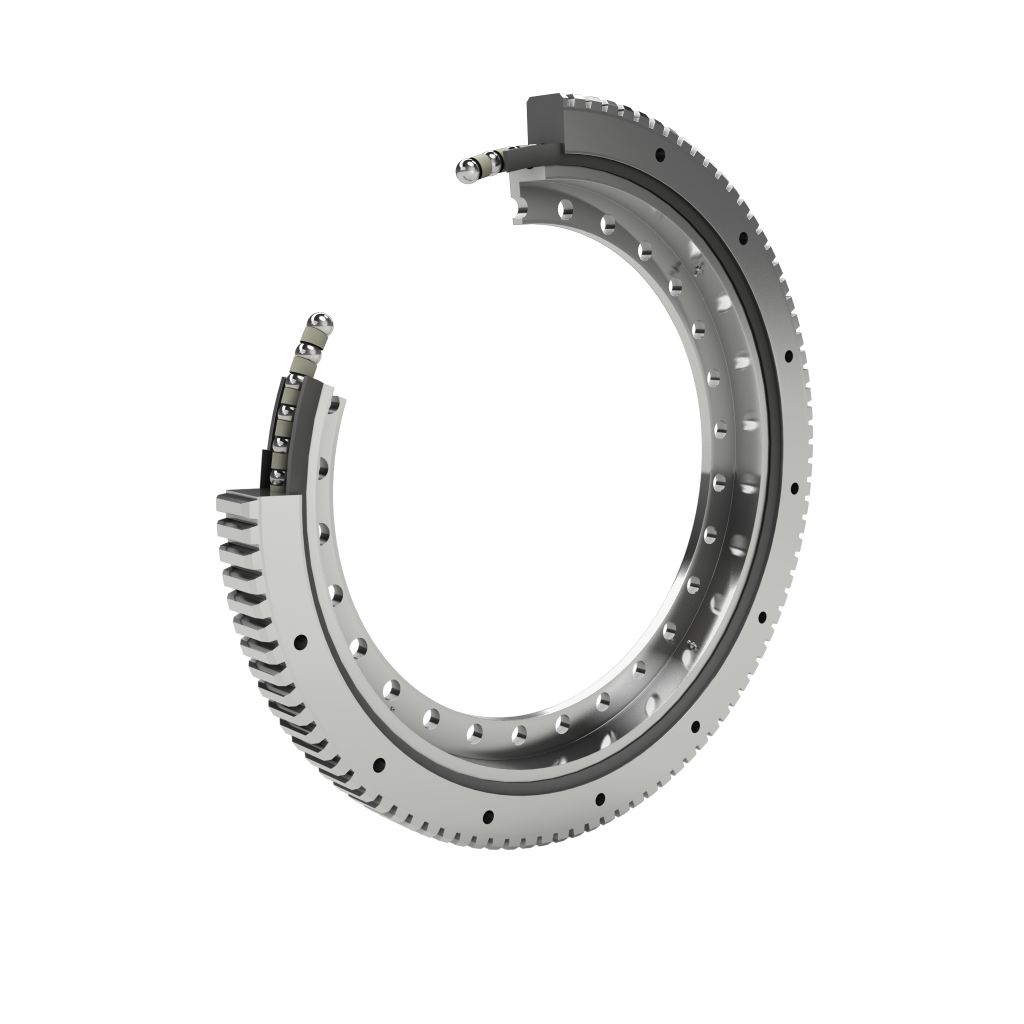

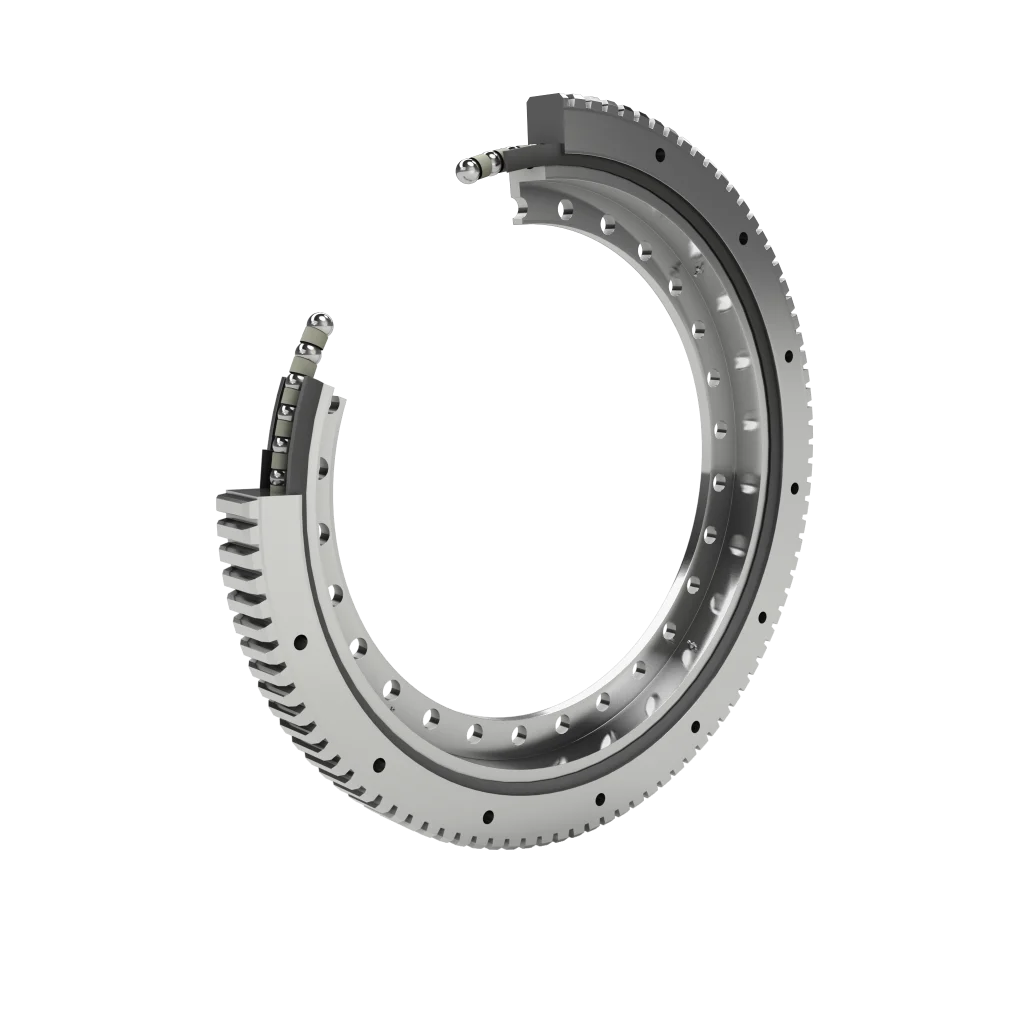

StructureFlanged four-point contact ball

Gear typeExternal / internal / no gear

Models in this series21 verified rows

MODEL TABLE

23 series catalogue parameters

Default columns show ring-body D/d/H plus the critical envelope dimension used for installation clearance. Click a model number to open its generated detail page.

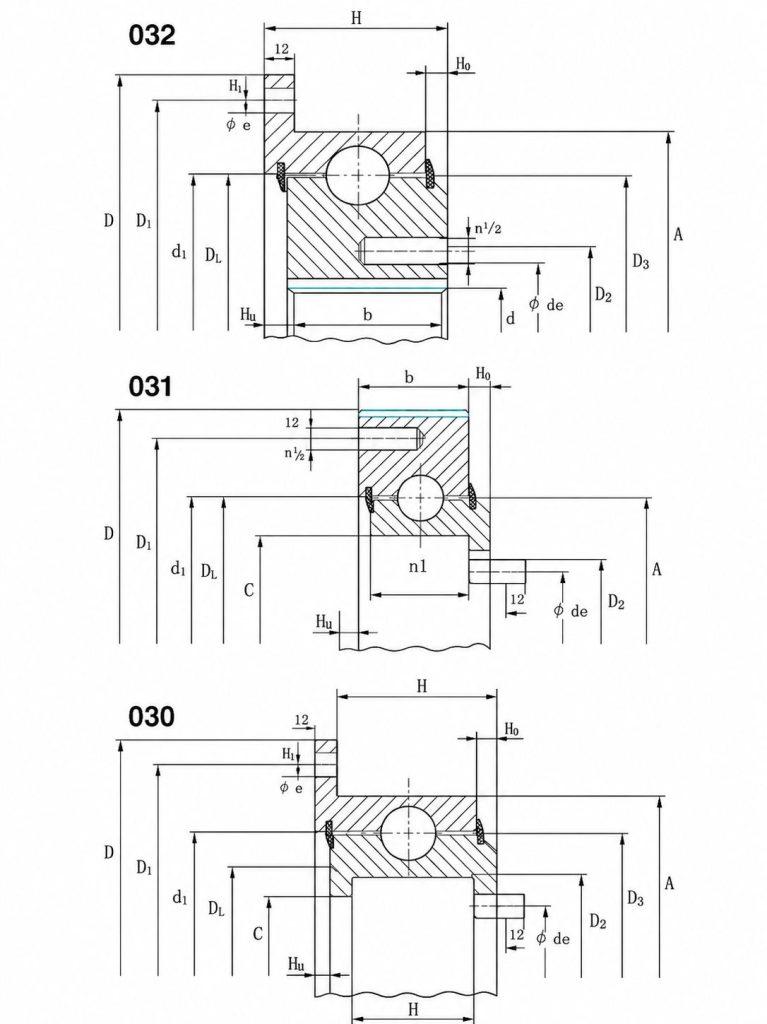

Diameter definition: D is the outer diameter of the ring body and d is the inner diameter of the ring body. For external gear models, the gear is on the outer ring, so the real maximum outside envelope can be De, not D. The structure must leave clearance for Max OD = max(D, De).

Click a model number to open its detail page.

MODEL	D	d	H	MOUNTING HOLES	GEAR m	De / z	WEIGHT	RFQ
231.20.0414External gear Envelope dimensions Envelope OD 504 mm Envelope bore 304 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	504	304	56	10/24 x phi M12/18	5	495 / 99	29	Quote
230.20.0414No gear Envelope dimensions Envelope OD 518 mm Envelope bore 304 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	518	304	56	16/24 x phi 18/18			23	Quote
232.20.0414Internal gear Envelope dimensions Envelope OD 518 mm Envelope bore 326.5 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	518	326.5	56	16/12 x phi 18/M12	5	335 / 67	26.9	Quote
231.20.0544External gear Envelope dimensions Envelope OD 640.8 mm Envelope bore 434 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	640.8	434	56	14/28 x phi M12/18	6	630 / 105	39.2	Quote
230.20.0544No gear Envelope dimensions Envelope OD 648 mm Envelope bore 434 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	648	434	56	20/28 x phi 18/18			30.4	Quote
232.20.0544Internal gear Envelope dimensions Envelope OD 648 mm Envelope bore 445.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	648	445.2	56	20/16 x phi 18/M12	6	456 / 76	36.7	Quote
231.20.0644External gear Envelope dimensions Envelope OD 742.8 mm Envelope bore 534 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	742.8	534	56	16/32 x phi M12/18	6	732 / 122	47.2	Quote
230.20.0644No gear Envelope dimensions Envelope OD 748 mm Envelope bore 534 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	748	534	56	24/32 x phi 18/18			35.8	Quote
232.20.0644Internal gear Envelope dimensions Envelope OD 748 mm Envelope bore 547.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	748	547.2	56	24/18 x phi 18/M12	6	558 / 93	43.4	Quote
231.20.0744External gear Envelope dimensions Envelope OD 838.8 mm Envelope bore 634 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	838.8	634	56	18/32 x phi M12/18	6	828 / 138	53.1	Quote
230.20.0744No gear Envelope dimensions Envelope OD 848 mm Envelope bore 634 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	848	634	56	24/32 x phi 18/18			42.2	Quote
232.20.0744Internal gear Envelope dimensions Envelope OD 848 mm Envelope bore 649.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	848	649.2	56	24/20 x phi 18/M12	6	660 / 110	50.8	Quote
230.20.0844No gear Envelope dimensions Envelope OD 948 mm Envelope bore 734 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	948	734	56	28/36 x phi 18/18			47.1	Quote
232.20.0844Internal gear Envelope dimensions Envelope OD 948 mm Envelope bore 737.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	948	737.6	56	28/20 x phi 18/M12	8	752 / 94	61.3	Quote
231.20.0844External gear Envelope dimensions Envelope OD 950.4 mm Envelope bore 734 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	950.4	734	56	18/36 x phi M12/18	8	936 / 117	64.7	Quote
231.20.0944External gear Envelope dimensions Envelope OD 1046.4 mm Envelope bore 834 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1046.4	834	56	20/40 x phi M12/18	8	1032 / 129	69.1	Quote
230.20.0944No gear Envelope dimensions Envelope OD 1048 mm Envelope bore 834 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1048	834	56	32/40 x phi 18/18			52.3	Quote
232.20.0944Internal gear Envelope dimensions Envelope OD 1048 mm Envelope bore 841.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1048	841.6	56	32/22 x phi 18/M12	8	856 / 107	65.4	Quote
230.20.1094No gear Envelope dimensions Envelope OD 1198 mm Envelope bore 984 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1198	984	56	32/40 x phi 18/18			61.1	Quote
232.20.1094Internal gear Envelope dimensions Envelope OD 1198 mm Envelope bore 985.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1198	985.6	56	32/24 x phi 18/M12	8	1000 / 125	80.3	Quote
231.20.1094External gear Envelope dimensions Envelope OD 1198.4 mm Envelope bore 984 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1198.4	984	56	22/40 x phi M12/18	8	1184 / 148	82.5	Quote

Catalogue notes

The 23 flanged series is suited to equipment where installation space, weight, and simplified mounting are more important than maximum bearing section size. The flange can reduce the need for thick adapter plates and helps designers locate the bearing in compact frames. Typical applications include small cranes, light-duty vehicle-mounted equipment, man lifts, packaging turntables, food-processing equipment, light automation, and compact industrial rotary units. For selection, confirm whether the flange faces can be fully supported and whether vibration or thrust loads require additional axial location features.

Catalogue dimensions are reference data and may extend beyond the current verified in-house machining range. Final manufacturing capability is confirmed against the customer drawing before quotation.

Final quotation and production are based on confirmed drawings, load conditions, material requirements, heat treatment, inspection documents, and packing requirements.
