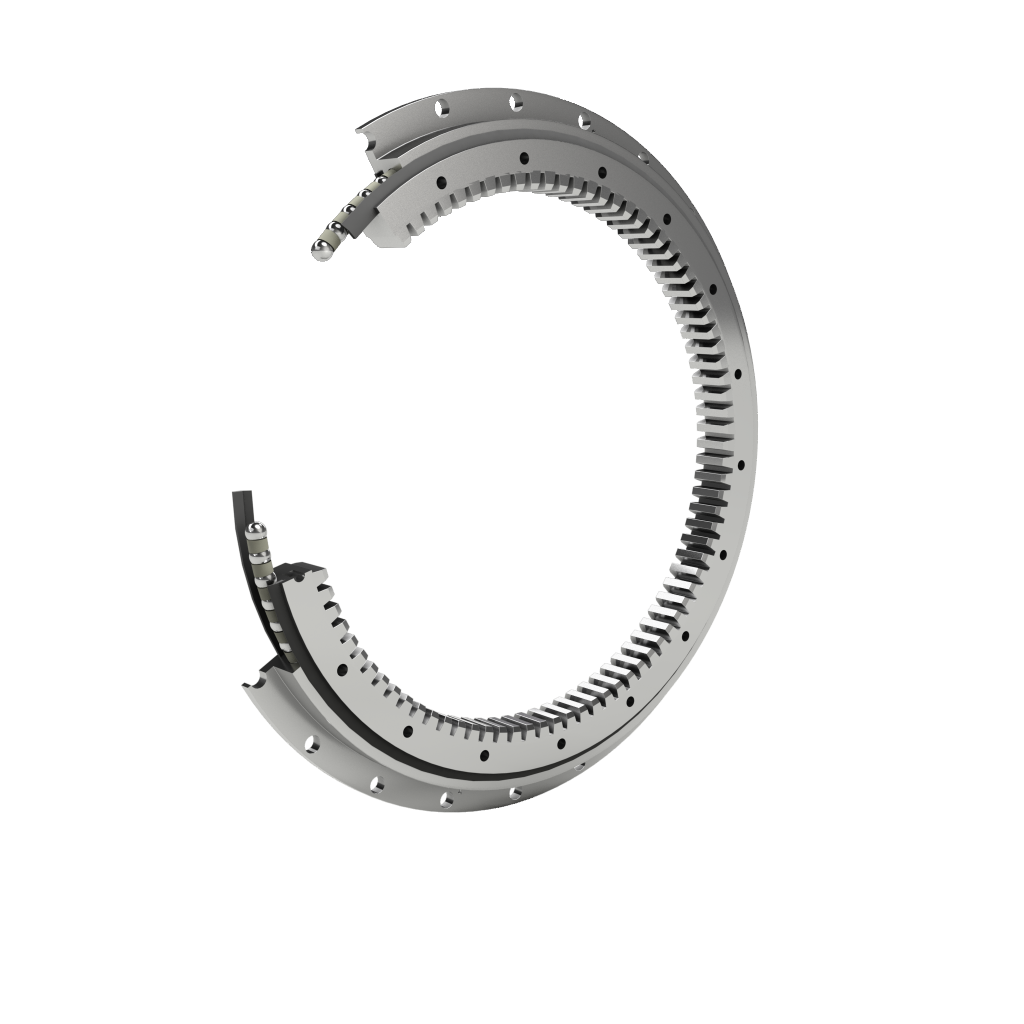

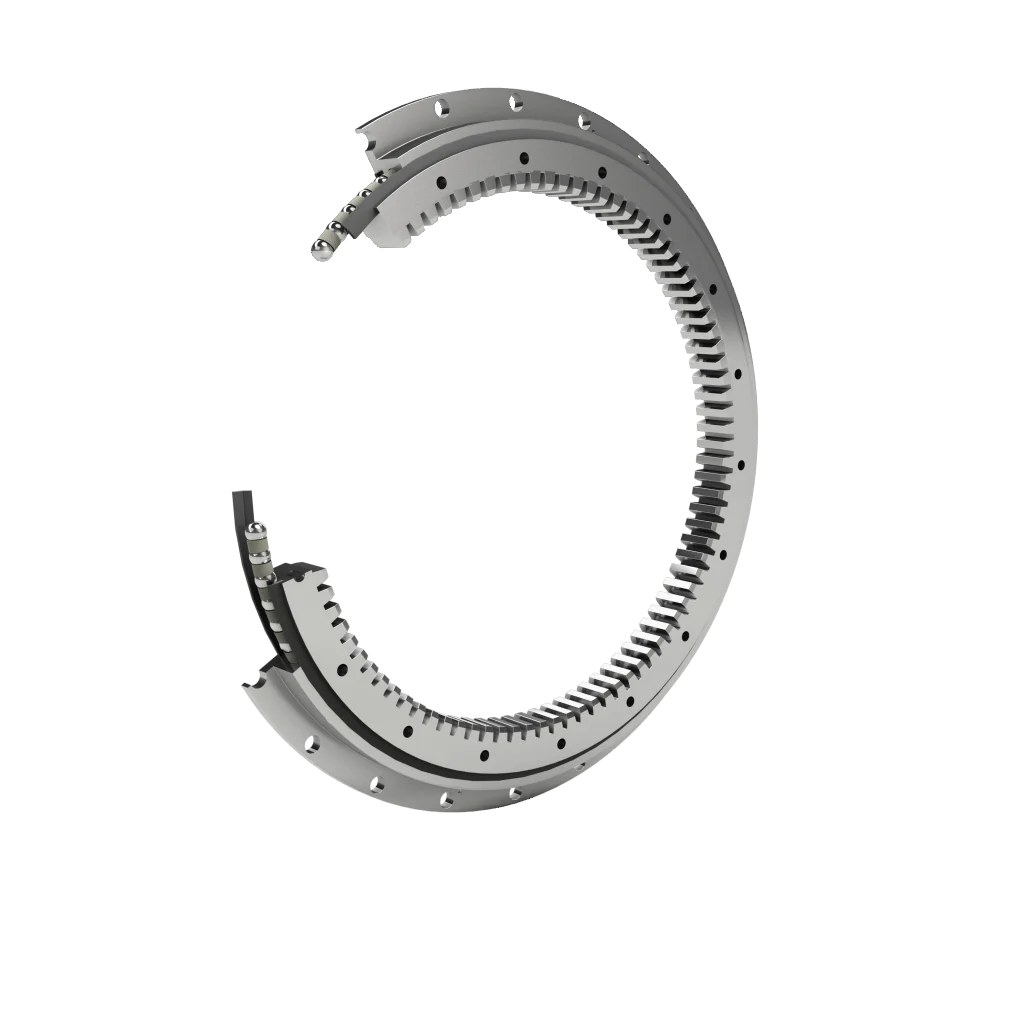

06 Light Series Slewing Bearings

Light series slewing bearings for compact structures where reduced section height, lower weight, and economical manufacturing are important.

Light seriesCompactCost-sensitive projects

ENGINEERING OVERVIEW

06 Light Series

Light series slewing bearings for compact structures where reduced section height, lower weight, and economical manufacturing are important.

StructureLight series four-point contact ball

Gear typeExternal / internal / no gear

Models in this series21 verified rows

MODEL TABLE

06 series catalogue parameters

Default columns show ring-body D/d/H plus the critical envelope dimension used for installation clearance. Click a model number to open its generated detail page.

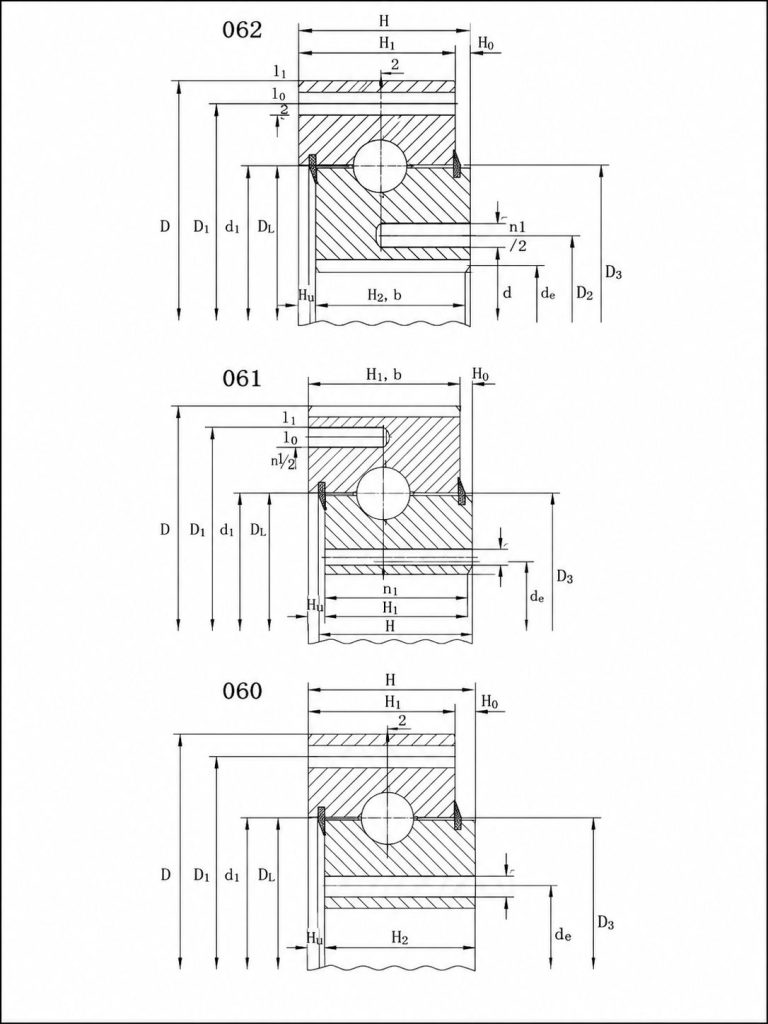

Diameter definition: D is the outer diameter of the ring body and d is the inner diameter of the ring body. For external gear models, the gear is on the outer ring, so the real maximum outside envelope can be De, not D. The structure must leave clearance for Max OD = max(D, De).

Click a model number to open its detail page.

MODEL	D	d	H	MOUNTING HOLES	GEAR m	De / z	WEIGHT	RFQ
060.20.0414No gear Envelope dimensions Envelope OD 486 mm Envelope bore 342 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	486	342	56	24 x phi 13.5/12			29	Quote
062.20.0414Internal gear Envelope dimensions Envelope OD 486 mm Envelope bore 326.5 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	486	326.5	56	24 x phi 13.5/M12	5	335 / 67	31	Quote
061.20.0414External gear Envelope dimensions Envelope OD 504 mm Envelope bore 342 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	504	342	56	20/24 x phi 13.5/M12	5	495 / 99	31	Quote
060.20.0544No gear Envelope dimensions Envelope OD 616 mm Envelope bore 472 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	616	472	56	32 x phi 13.5/12			37	Quote
062.20.0544Internal gear Envelope dimensions Envelope OD 616 mm Envelope bore 445.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	616	445.2	56	32 x phi 13.5/M12	6	456 / 76	42	Quote
061.20.0544External gear Envelope dimensions Envelope OD 640.8 mm Envelope bore 472 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	640.8	472	56	28/32 x phi 13.5/M12	6	630 / 105	43	Quote
060.20.0644No gear Envelope dimensions Envelope OD 716 mm Envelope bore 572 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	716	572	56	36 x phi 13.5/12			44	Quote
062.20.0644Internal gear Envelope dimensions Envelope OD 716 mm Envelope bore 547.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	716	547.2	56	36 x phi 13.5/M12	6	558 / 93	50	Quote
061.20.0644External gear Envelope dimensions Envelope OD 742.8 mm Envelope bore 572 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	742.8	572	56	32/36 x phi 13.5/M12	6	732 / 122	52	Quote
060.20.0744No gear Envelope dimensions Envelope OD 816 mm Envelope bore 672 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	816	672	56	40 x phi 13.5/12			52	Quote
062.20.0744Internal gear Envelope dimensions Envelope OD 816 mm Envelope bore 649.2 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	816	649.2	56	40 x phi 13.5/M12	6	660 / 110	58	Quote
061.20.0744External gear Envelope dimensions Envelope OD 838.8 mm Envelope bore 672 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	838.8	672	56	36/40 x phi 13.5/M12	6	828 / 138	59	Quote
060.20.0844No gear Envelope dimensions Envelope OD 916 mm Envelope bore 772 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	916	772	56	40 x phi 13.5/12			60	Quote
062.20.0844Internal gear Envelope dimensions Envelope OD 916 mm Envelope bore 737.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	916	737.6	56	40 x phi 13.5/M12	8	752 / 94	69	Quote
061.20.0844External gear Envelope dimensions Envelope OD 950.4 mm Envelope bore 772 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	950.4	772	56	36/40 x phi 13.5/M12	8	936 / 117	71	Quote
060.20.0944No gear Envelope dimensions Envelope OD 1016 mm Envelope bore 872 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1016	872	56	44 x phi 13.5/12			67	Quote
062.20.0944Internal gear Envelope dimensions Envelope OD 1016 mm Envelope bore 841.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1016	841.6	56	44 x phi 13.5/M12	8	856 / 107	76	Quote
061.20.0944External gear Envelope dimensions Envelope OD 1046.4 mm Envelope bore 872 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1046.4	872	56	40/44 x phi 13.5/M12	8	1032 / 129	77	Quote
060.20.1094No gear Envelope dimensions Envelope OD 1166 mm Envelope bore 1022 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1166	1022	56	48 x phi 13.5/12			77	Quote
062.20.1094Internal gear Envelope dimensions Envelope OD 1166 mm Envelope bore 985.6 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1166	985.6	56	48 x phi 13.5/M12	8	1000 / 125	91	Quote
061.20.1094External gear Envelope dimensions Envelope OD 1198.4 mm Envelope bore 1022 mm D / d meaning D and d are ring-body dimensions; De describes gear diameter or pitch reference depending on series.	1198.4	1022	56	44/48 x phi 13.5/M12	8	1184 / 148	91	Quote

Catalogue notes

The 06 light series is mainly a dimensional reference for lighter-duty rotating mechanisms where a large bore, low section height, and controlled cost are priorities. It can be considered for inspection tables, display or service turntables, small automation axes, agricultural attachments, light handling devices, and non-severe industrial rotation. Because light-section rings are more sensitive to mounting-surface stiffness and bolt support, the application load case, permissible deflection, rotation frequency, and expected service factor should be reviewed before treating a catalogue model as a production-ready replacement.

Catalogue dimensions are reference data and may extend beyond the current verified in-house machining range. Final manufacturing capability is confirmed against the customer drawing before quotation.

Final quotation and production are based on confirmed drawings, load conditions, material requirements, heat treatment, inspection documents, and packing requirements.
