SKF RKS.211430101001 Slewing Bearing Replacement

Name: MERYDOM Replacement for SKF RKS.211430101001 Slewing Bearing
Brand: MERYDOM
SKU: RKS.211430101001

Back to replacement catalog

MERYDOM BRAND · CERTIFIED REPLACEMENT

RKS.211430101001

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with SKF RKS.211430101001.

Certified product dataView complete specifications ↓

Overall OD (Do): 972 mm
Overall ID (di): 785,6 mm
Overall height: 82 mm
Gear arrangement: Internal gear
Mounting holes: / outer / inner
Bearing design: Crossed Cylindrical Roller

Factory assurance

Certified dimensional interchange
MERYDOM controlled materials
Factory documentation available

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

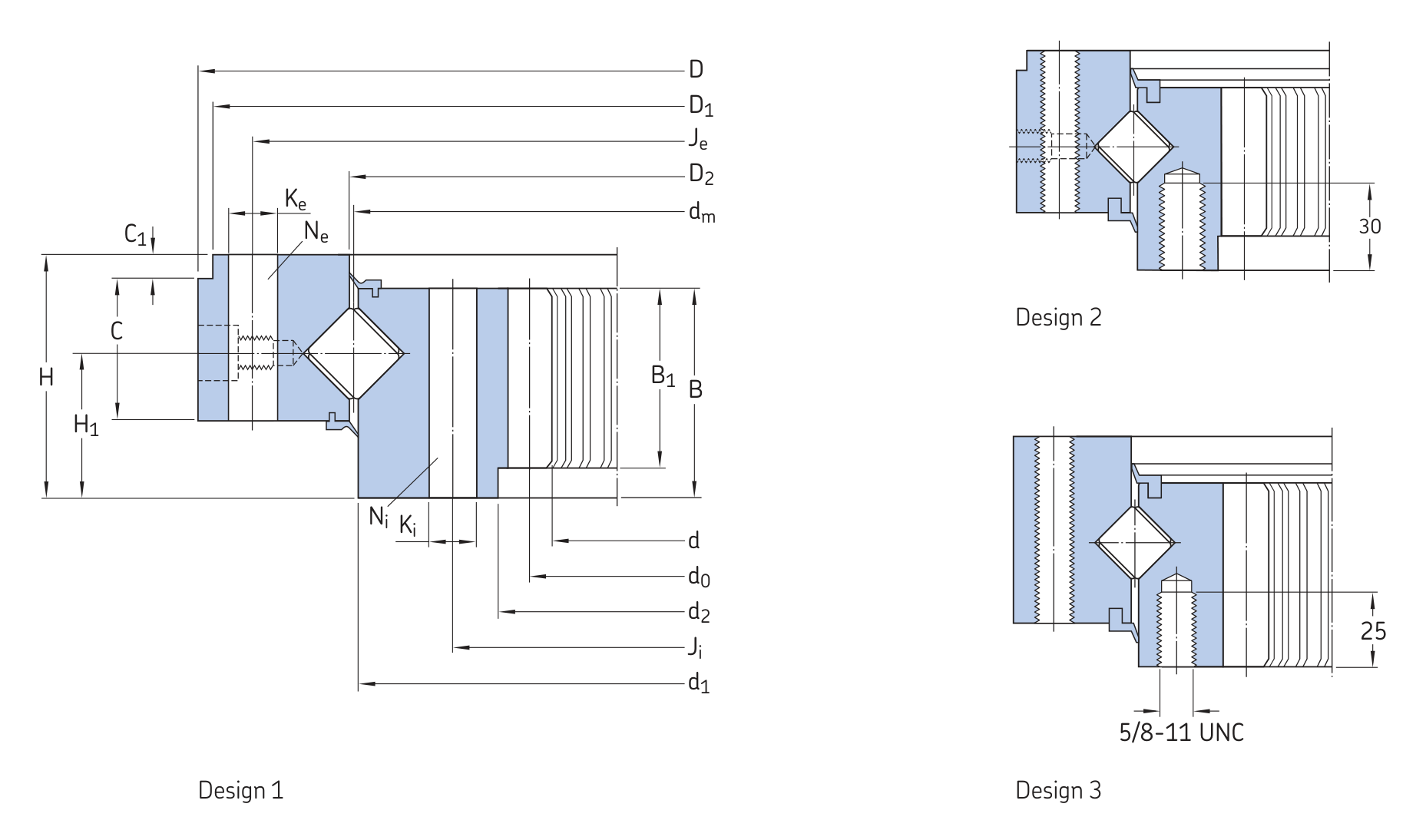

Dimensions

Raceway diameter (dm): 885 mm
Overall outside diameter (D): 972 mm
Overall inside diameter (d): 785.6 mm
Overall height (H): 82 mm
SKF catalogue dimension H1 (H1): 46 mm
SKF catalogue dimension D1 (D1): 970 mm
SKF catalogue dimension D2 (D2): 887 mm
SKF catalogue dimension C (C): 61 mm
SKF catalogue dimension C1 (C1): 10 mm
SKF catalogue dimension d1 (d1): 883 mm
SKF catalogue dimension d2 (d2): 820 mm
SKF catalogue dimension B (B): 68 mm
SKF catalogue dimension B1 (B1): 60 mm
Mass (Mass): 110 kg

MERYDOM CERTIFIED SPECIFICATION

SKF RKS.211430101001 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record

Technical parameter	MERYDOM certified product value
MERYDOM Certified Product
Product brand	MERYDOM
MERYDOM model	RKS.211430101001
Certified interchangeable with	SKF RKS.211430101001
Factory verification	Level 3 · Engineering Verified
Reviewed by	MERYDOM Engineering Department
Verification metadata	Controlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options	42CrMo / 50Mn
Seal material	NBR · Nitrile rubber
Configurable spacer material options	Engineering nylon / Brass
Identification
Reference brand	SKF
Series	Custom cross roller · Internal Series
Reference model	RKS.211430101001
System of measurement	Metric
Bearing structure	Crossed Cylindrical Roller
Gear arrangement	Internal gear
Dimensions
Raceway diameter (dm)	885 mm
Overall outside diameter (D)	972 mm
Overall inside diameter (d)	785.6 mm
Overall height (H)	82 mm
SKF catalogue dimension H1 (H1)	46 mm
SKF catalogue dimension D1 (D1)	970 mm
SKF catalogue dimension D2 (D2)	887 mm
SKF catalogue dimension C (C)	61 mm
SKF catalogue dimension C1 (C1)	10 mm
SKF catalogue dimension d1 (d1)	883 mm
SKF catalogue dimension d2 (d2)	820 mm
SKF catalogue dimension B (B)	68 mm
SKF catalogue dimension B1 (B1)	60 mm
Mass (Mass)	110 kg
Ratings
Basic dynamic axial load rating (C)	427 kN
Basic static axial load rating (C0)	1,980 kN

Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

SERIES LOAD CAPACITY

Custom cross roller · Internal Series load chart

Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.

Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for SKF RKS.211430101001

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

Matching model designation and installation envelope
Reviewed mounting-hole and bolt-circle interfaces
Gear arrangement matched to the referenced configuration

MERYDOM construction

Configurable 42CrMo or 50Mn ring material options
NBR nitrile-rubber sealing system
Configurable engineering nylon or brass spacer options

Factory documentation

Engineering verification by MERYDOM Engineering Department
Verification evidence is maintained in the controlled internal record
Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

Confirm support flatness, bolt grade and preload
Verify applied loads, duty cycle and lubrication
Confirm temperature, environment and installation conditions
