Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration
MERYDOM 191.40.4000.990.41.1502
Level 3 VerifiedFactory-certified by MERYDOM to interchange with Rothe Erde 191.40.4000.990.41.1502. The MERYDOM product uses the same model designation for direct cross-reference.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
191.40.4000.990.41.1502

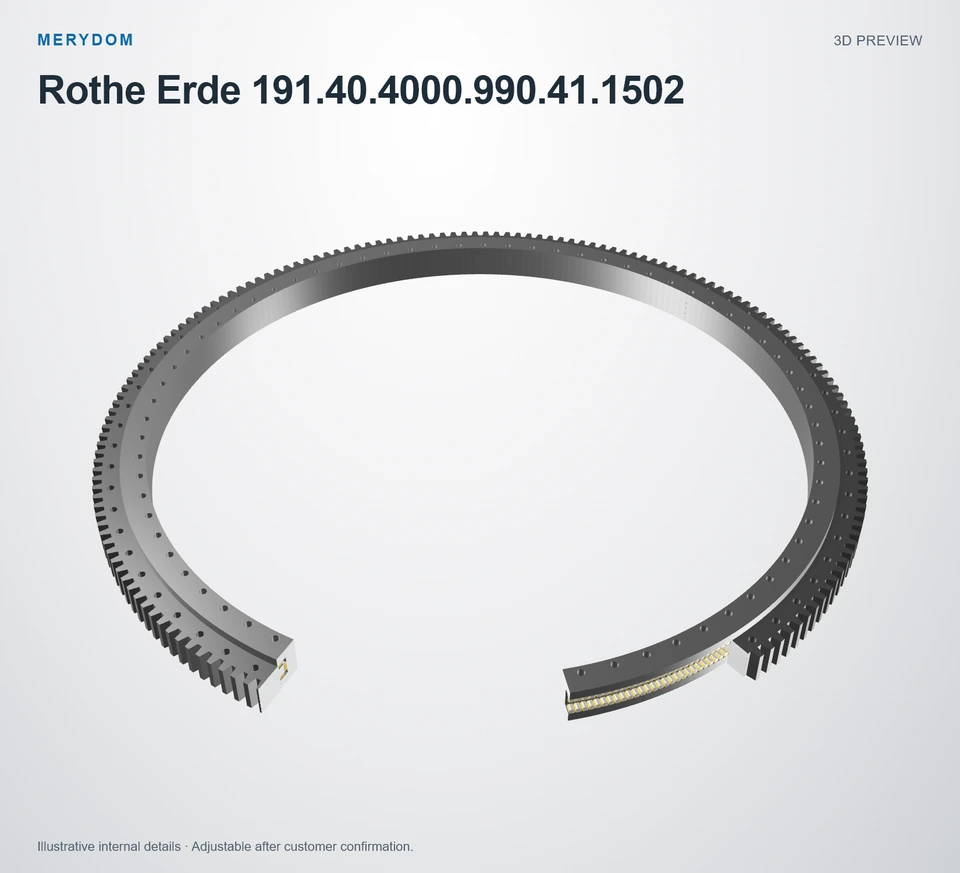

MERYDOM VerifiedEngineering certification · Rev Rev 1.0MERYDOM-manufactured slewing bearing certified for interchange with Rothe Erde 191.40.4000.990.41.1502.
- Overall OD (Do)
- 4363,2 mm
- Overall ID (di)
- 3762 mm
- Overall height
- 220 mm
- Gear arrangement
- External gear
- Mounting holes
- 72 / 72 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Rev Rev 1.0Product specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 191.40.4000.990.41.1502 |
| Certified interchangeable with | Rothe Erde 191.40.4000.990.41.1502 |
| Factory verification | Level 3 · Engineering Verified |
| Approved drawing revision | Rev 1.0 |
| Reviewed by | MERYDOM Engineering Department |
| Certification date | 2026-08-16 |
| Materials | |
| Ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Rothe Erde |
| Series | 19 Series |
| Reference model | 191.40.4000.990.41.1502 |
| System of measurement | Metric |
| Bearing structure | Three-row roller |
| Gear arrangement | External gear |
| Dimensions | |
| Overall outside diameter (Da) | 4363,2 mm4,363.2 mm |
| Overall inside diameter (Di) | 3762 mm3,762 mm |
| Overall height (H) | 220 mm |
| Outer ring bolt circle (La) | 4165 mm4,165 mm |
| Inner ring bolt circle (Li) | 3840 mm3,840 mm |
| Gear pitch diameter (d) | 4296 mm4,296 mm |
| Assembly weight (Weight) | 4805 kg4,805 kg |
| Mounting | |
| Outer ring bolt holes (no) | 72 holes · M 36 |
| Inner ring bolt holes (ni) | 72 holes · B 39 |
| Gear | |
| Pitch system | module |
| Diametral pitch (Pd) | DP |
| Equivalent module (m) | 24 mm |
| Number of teeth (z2) | 179 |
Level 3 · MERYDOM Engineering VerifiedCertified 2026-08-16 by MERYDOM Engineering Department.

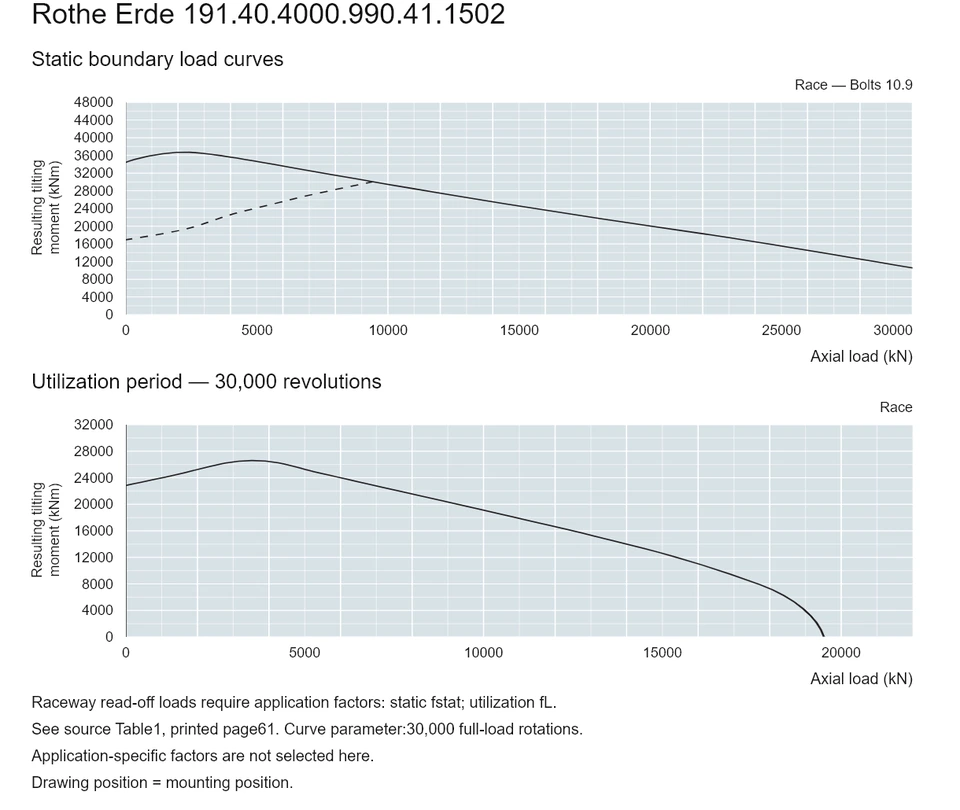

SERIES LOAD CAPACITY
19 Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
Factory-certified replacement design
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Default approved drawing revision 1.0
- Certification date linked to the data-import record
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 191.40.4000.990.41.1502.
