MERYDOM 25-0841-01 Replacement for ROLLIX

Name: MERYDOM 25-0841-01
Brand: MERYDOM
SKU: 25-0841-01

Back to replacement catalog

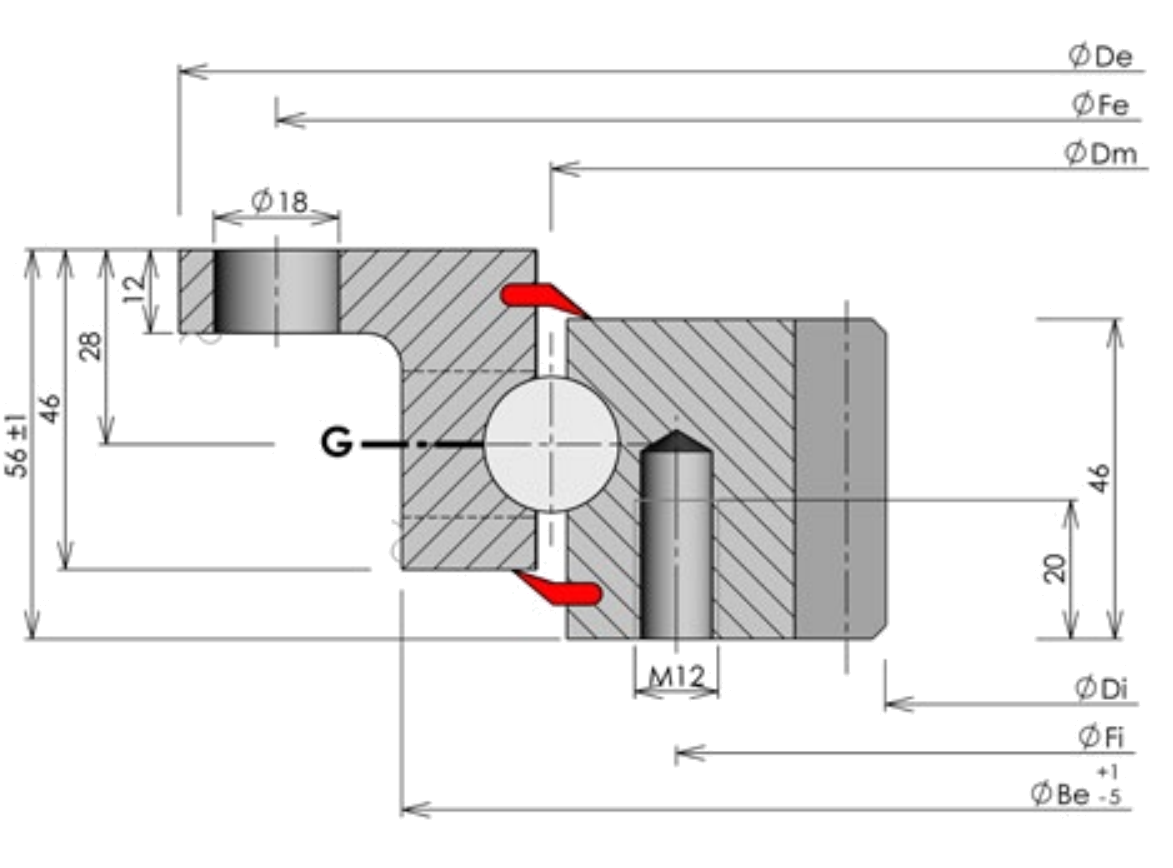

ROLLIX 25 Series Internal gear outline drawing — 25 Series · Internal gear outlineClick image to enlarge

MERYDOM BRAND · CERTIFIED REPLACEMENT

25-0841-01

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with ROLLIX 25-0841-01.

Certified product dataView complete specifications ↓

Overall OD (Do): 948 mm
Overall ID (di): 736 mm
Overall height: 56 mm
Gear arrangement: Internal gear
Mounting holes: 14 / 20 outer / inner
Bearing design: Light Series Ball

Factory assurance

Certified dimensional interchange
MERYDOM controlled materials
Factory documentation available

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Overall height (HT): 56 mm
Overall outside diameter (ØDe): 948 mm
Outer ring height (He): 46 mm
Overall inside diameter (ØDi): 736 mm
Inner ring height (Hi): 46 mm
Assembly weight (Weight): 64 kg

Mounting

Outer ring hole type (External ring hole type): Th
Outer ring bolt circle (ØFe): 920 mm
Outer ring mounting-hole count (Ne): 14
Outer ring mounting-hole specification (Dhe): 18 mm
Inner ring hole type (Inner ring hole type): Bd
Inner ring bolt circle (ØFi): 805 mm
Inner ring mounting-hole count (Ni): 20
Inner ring mounting-hole specification (Dhi): M12 mm

Gear

Gear module (Module): 8 mm
Gear tooth count (Z): 94
Gear face width (W): 46 mm

MERYDOM CERTIFIED SPECIFICATION

Product specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record

Technical parameter	MERYDOM certified product value
MERYDOM Certified Product
Product brand	MERYDOM
MERYDOM model	25-0841-01
Certified interchangeable with	ROLLIX 25-0841-01
Factory verification	Level 3 · Engineering Verified
Reviewed by	MERYDOM Engineering Department
Verification metadata	Controlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options	42CrMo / 50Mn
Seal material	NBR · Nitrile rubber
Configurable spacer material options	Engineering nylon / Brass
Identification
Reference brand	ROLLIX
Series	25 Series
Reference model	25-0841-01
System of measurement	Metric
Bearing structure	Light Series Ball
Gear arrangement	Internal gear
Dimensions
Overall height (HT)	56 mm
Overall outside diameter (ØDe)	948 mm
Outer ring height (He)	46 mm
Overall inside diameter (ØDi)	736 mm
Inner ring height (Hi)	46 mm
Assembly weight (Weight)	64 kg
Mounting
Outer ring hole type (External ring hole type)	Th
Outer ring bolt circle (ØFe)	920 mm
Outer ring mounting-hole count (Ne)	14
Outer ring mounting-hole specification (Dhe)	18 mm
Inner ring hole type (Inner ring hole type)	Bd
Inner ring bolt circle (ØFi)	805 mm
Inner ring mounting-hole count (Ni)	20
Inner ring mounting-hole specification (Dhi)	M12 mm
Gear
Gear module (Module)	8 mm
Gear tooth count (Z)	94
Gear face width (W)	46 mm
Ratings
Gear capacity, unhardened (Gear capacity unhardened)	54 kN
Miscellaneous
Ring with greasing holes (Ring with greasing holes)	E
Greasing hole type (Greasing hole type)	R

Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

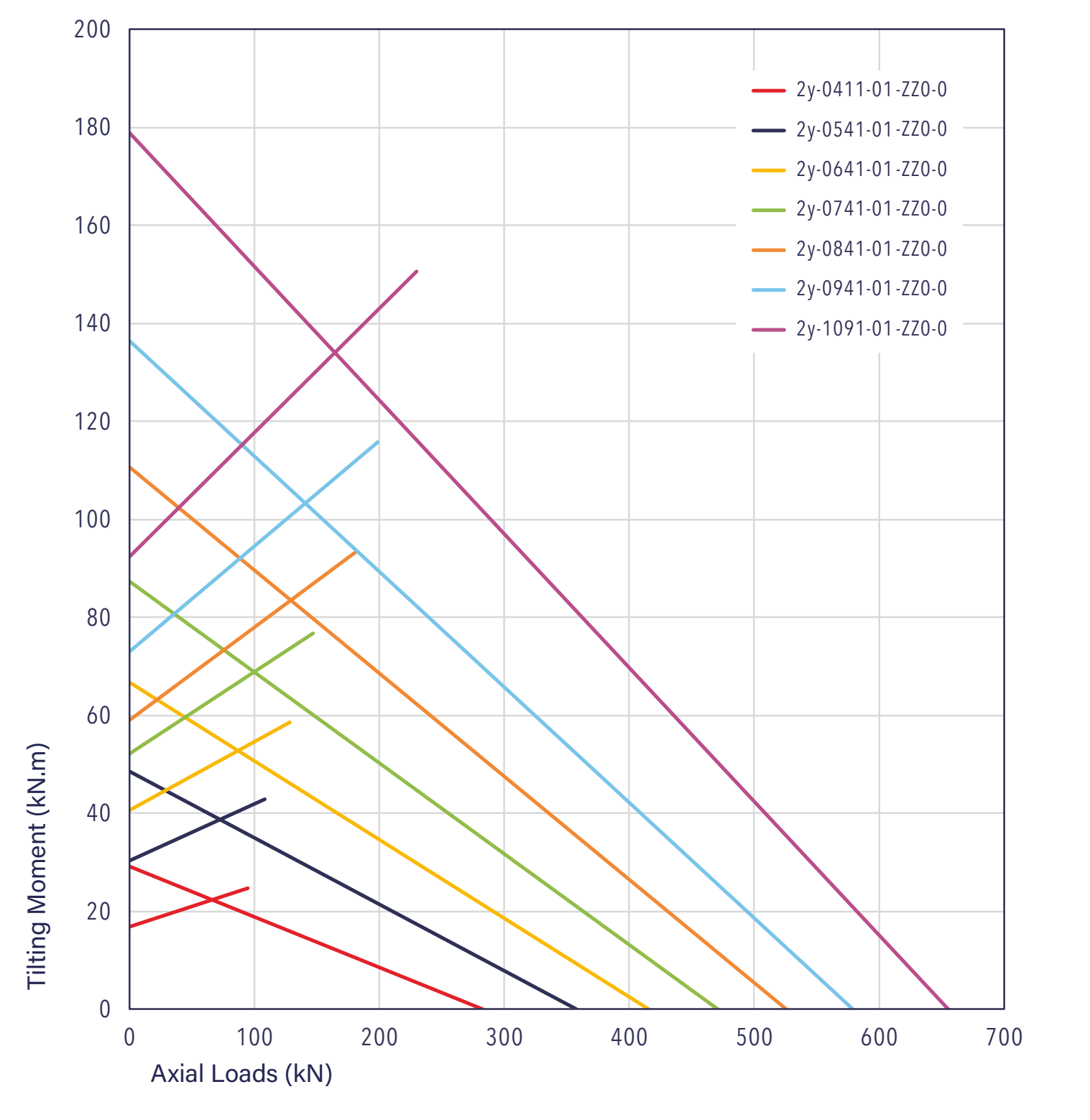

SERIES LOAD CAPACITY

25 Series load chart

Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.

Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

Factory-certified replacement design

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

Matching model designation and installation envelope
Reviewed mounting-hole and bolt-circle interfaces
Gear arrangement matched to the referenced configuration

MERYDOM construction

Configurable 42CrMo or 50Mn ring material options
NBR nitrile-rubber sealing system
Configurable engineering nylon or brass spacer options

Factory documentation

Engineering verification by MERYDOM Engineering Department
Verification evidence is maintained in the controlled internal record
Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

Confirm support flatness, bolt grade and preload
Verify applied loads, duty cycle and lubrication
Confirm temperature, environment and installation conditions
