La Leonessa VS125B02 Slewing Bearing Replacement

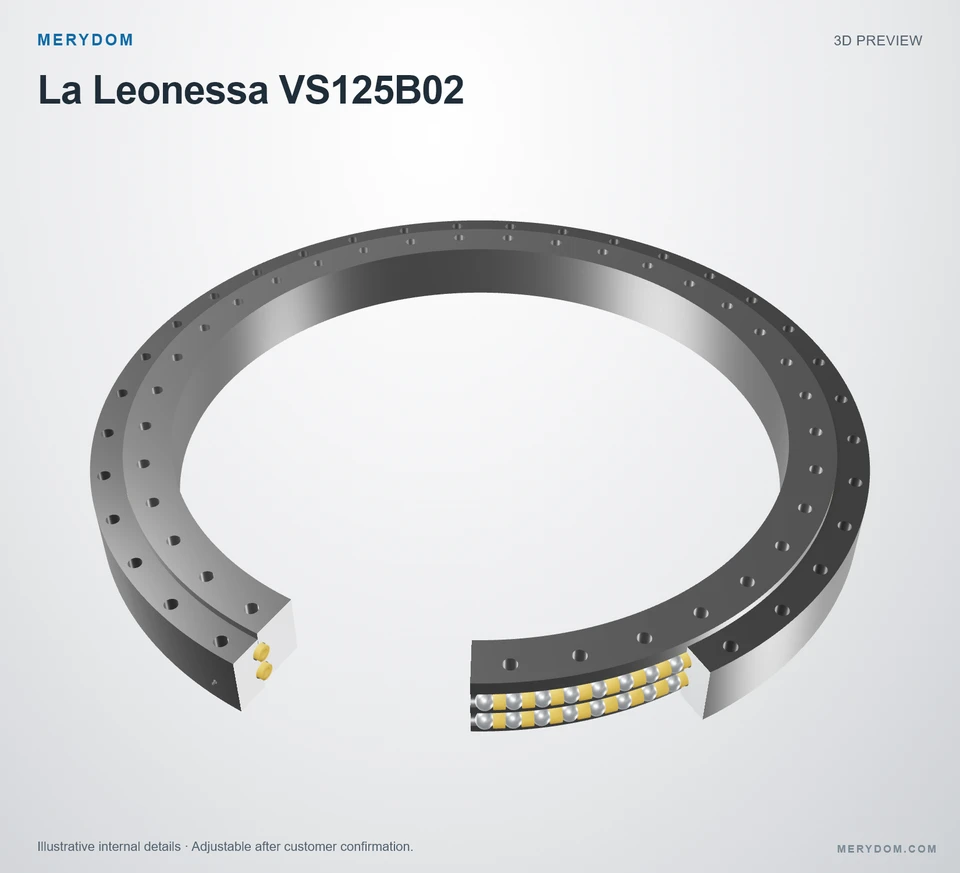

Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the La Leonessa VS125B02 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The La Leonessa VS125B02 reference belongs to the 2S Series and uses a double-row ball, ungeared slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
VS125B02
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with La Leonessa VS125B02.
- Overall OD (Do)
- 1.250,0 mm
- Overall ID (di)
- 996,0 mm
- Overall height
- 110,0 mm
- Gear arrangement
- Ungeared
- Mounting holes
- 36 / 36 outer / inner
- Bearing design
- Double-row ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

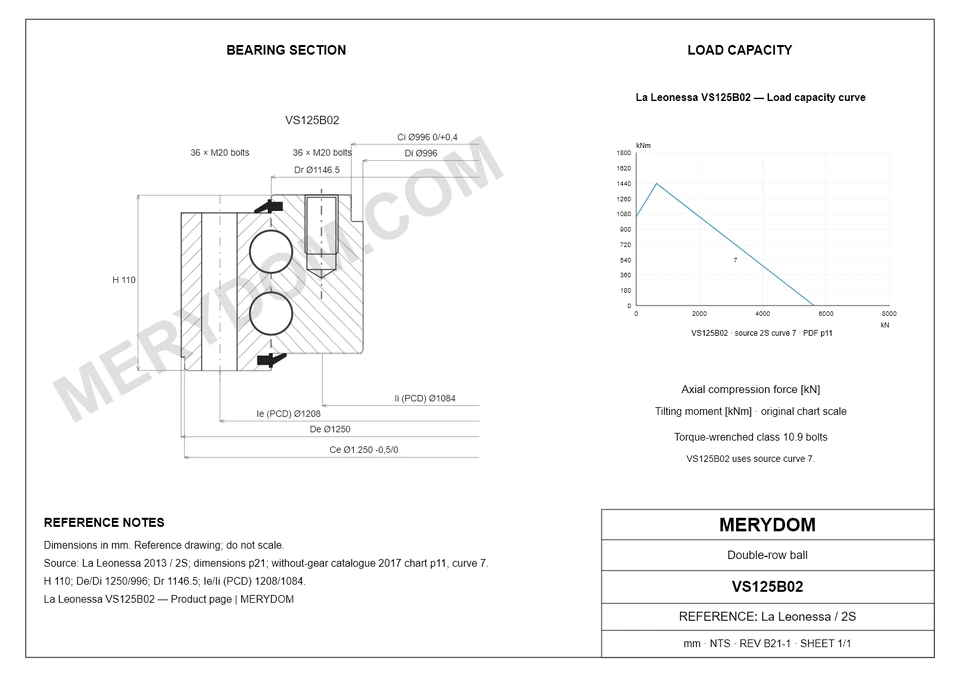

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (P)
- 325 kg
- Overall outside diameter (De)
- 1,250 mm
- Overall inside diameter (Di)
- 996 mm
- Overall height (H)
- 110 mm
- Dim Dr (Dr)
- 1,146.5 mm
- Dim Centering External (Ce)
- 1.250 -0,5/0 mm
- Dim Centering Internal (Ci)
- 996 0/+0,4 mm
Mounting
- Outer ring bolt circle (Ie)
- 1,208 mm
- Outer ring mounting-hole count (ne)
- 36
- Outer ring mounting-hole specification (Me)
- M20
- Inner ring bolt circle (Ii)
- 1,084 mm
- Inner ring mounting-hole count (ni)
- 36
- Inner ring mounting-hole specification (Mi)
- M20
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordLa Leonessa VS125B02 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | VS125B02 |
| Certified interchangeable with | La Leonessa VS125B02 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | La Leonessa |
| Series | 2S Series |
| Reference model | VS125B02 |
| System of measurement | Metric |
| Bearing structure | Double-row ball |
| Gear arrangement | Ungeared |
| Dimensions | |
| Mass (P) | 325 kg |
| Overall outside diameter (De) | 1,250 mm |
| Overall inside diameter (Di) | 996 mm |
| Overall height (H) | 110 mm |
| Dim Dr (Dr) | 1,146.5 mm |
| Dim Centering External (Ce) | 1.250 -0,5/0 mm |
| Dim Centering Internal (Ci) | 996 0/+0,4 mm |
| Mounting | |
| Outer ring bolt circle (Ie) | 1,208 mm |
| Outer ring mounting-hole count (ne) | 36 |
| Outer ring mounting-hole specification (Me) | M20 |
| Inner ring bolt circle (Ii) | 1,084 mm |
| Inner ring mounting-hole count (ni) | 36 |
| Inner ring mounting-hole specification (Mi) | M20 |
| Ratings | |
| Basic static axial load rating (C0a) | 5,610 kN |
| Static tilting moment rating (M0r) | 1,627 kNm |
| Miscellaneous | |
| Pattern (Schema) | A |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

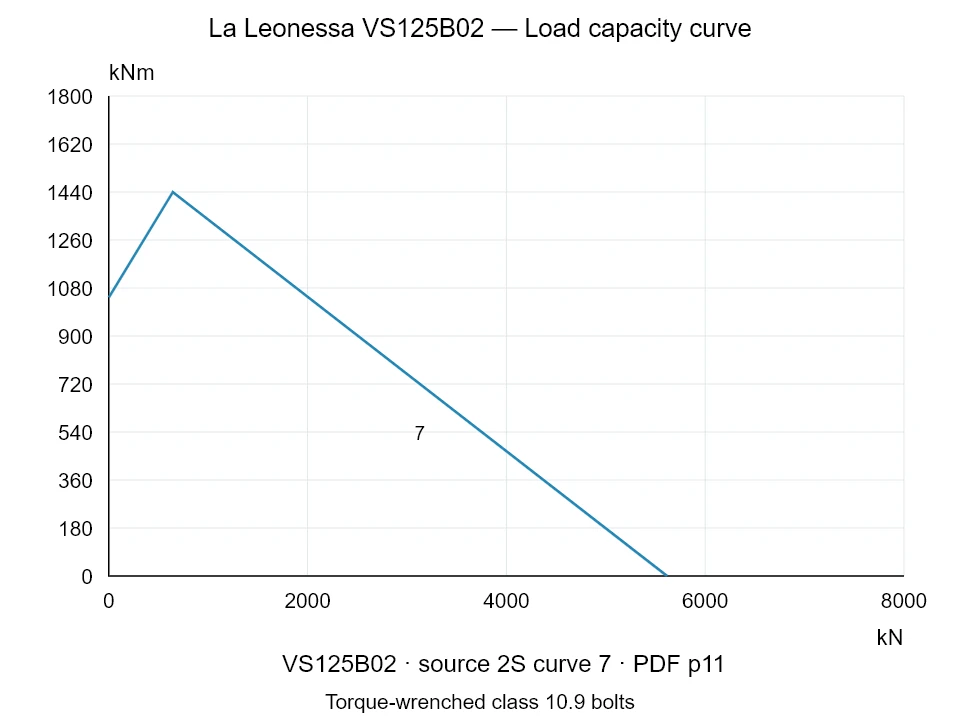

SERIES LOAD CAPACITY
2S Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for La Leonessa VS125B02
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
