La Leonessa VI206A00 Slewing Bearing Replacement

Name: MERYDOM Replacement for La Leonessa VI206A00 Slewing Bearing
Brand: MERYDOM
SKU: VI206A00

Back to replacement catalog

MERYDOM BRAND · CERTIFIED REPLACEMENT

VI206A00

MERYDOM VerifiedLevel 3 · Engineering verification record

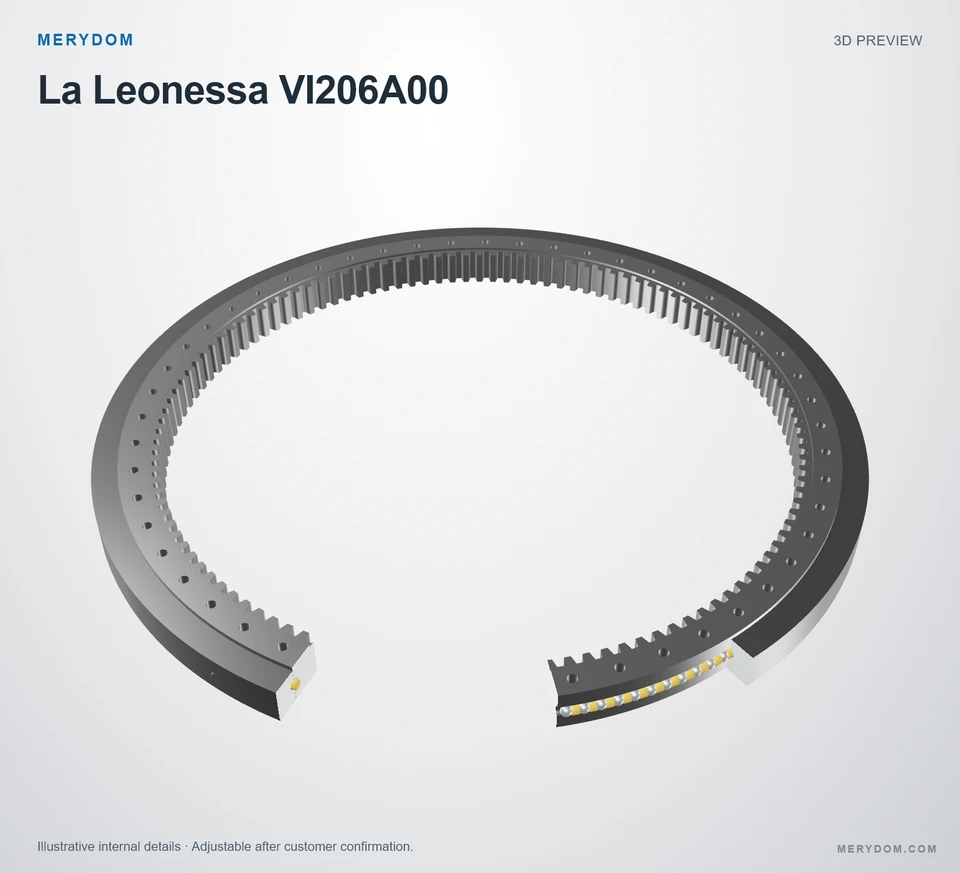

MERYDOM-manufactured slewing bearing certified for interchange with La Leonessa VI206A00.

Certified product dataView complete specifications ↓

Overall OD (Do): 2.065,0 mm
Overall ID (di): 1.708,0 mm
Overall height: 109,0 mm
Gear arrangement: Internal gear
Mounting holes: 52 / 52 outer / inner
Bearing design: Four-point contact ball

Factory assurance

Certified dimensional interchange
MERYDOM controlled materials
Factory documentation available

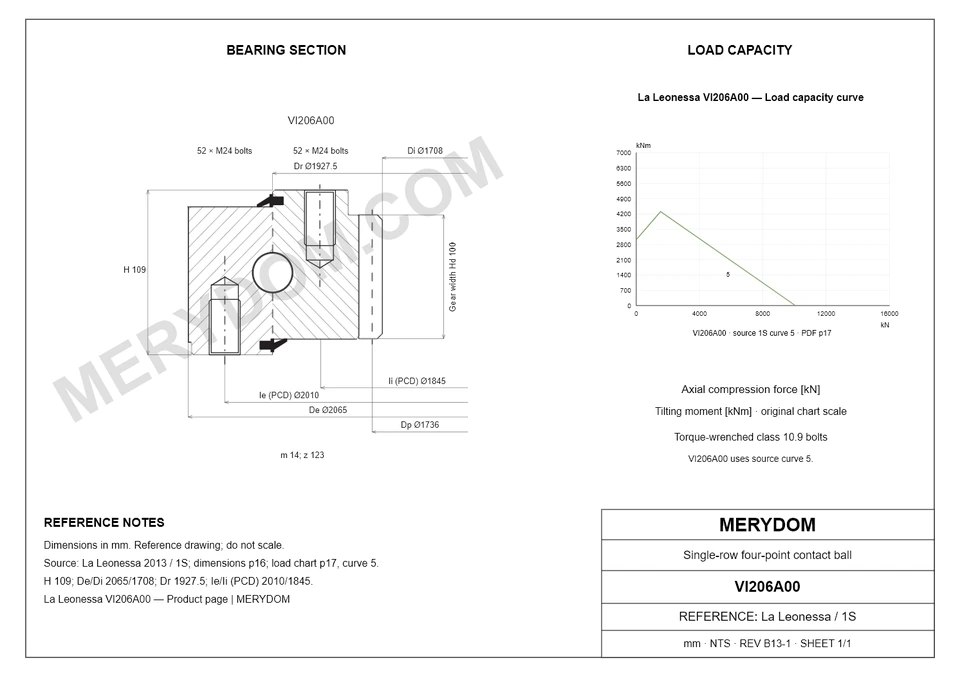

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Mass (P): 680 kg
Overall outside diameter (De): 2,065 mm
Overall inside diameter (Di): 1,708 mm
Overall height (H): 109 mm
Dim Dr (Dr): 1,927.5 mm
Dim Centering External (Ce): 2.062 0/-0,44 mm

Mounting

Outer ring bolt circle (Ie): 2,010 mm
Outer ring mounting-hole count (ne): 52
Outer ring mounting-hole specification (Me): M24
Inner ring bolt circle (Ii): 1,845 mm
Inner ring mounting-hole count (ni): 52
Inner ring mounting-hole specification (Mi): M24

Gear

Gear module (m): 14 mm
Gear tooth count (z): 123
Addendum modification product x*m (xm): 7 mm
Gear pitch diameter (Dp): 1,736 mm
Gear Tooth Height (Hd): 100 mm

MERYDOM CERTIFIED SPECIFICATION

La Leonessa VI206A00 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record

Technical parameter	MERYDOM certified product value
MERYDOM Certified Product
Product brand	MERYDOM
MERYDOM model	VI206A00
Certified interchangeable with	La Leonessa VI206A00
Factory verification	Level 3 · Engineering Verified
Reviewed by	MERYDOM Engineering Department
Verification metadata	Controlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options	42CrMo / 50Mn
Seal material	NBR · Nitrile rubber
Configurable spacer material options	Engineering nylon / Brass
Identification
Reference brand	La Leonessa
Series	1SI Series
Reference model	VI206A00
System of measurement	Metric
Bearing structure	Four-point contact ball
Gear arrangement	Internal gear
Dimensions
Mass (P)	680 kg
Overall outside diameter (De)	2,065 mm
Overall inside diameter (Di)	1,708 mm
Overall height (H)	109 mm
Dim Dr (Dr)	1,927.5 mm
Dim Centering External (Ce)	2.062 0/-0,44 mm
Mounting
Outer ring bolt circle (Ie)	2,010 mm
Outer ring mounting-hole count (ne)	52
Outer ring mounting-hole specification (Me)	M24
Inner ring bolt circle (Ii)	1,845 mm
Inner ring mounting-hole count (ni)	52
Inner ring mounting-hole specification (Mi)	M24
Gear
Gear module (m)	14 mm
Gear tooth count (z)	123
Addendum modification product x*m (xm)	7 mm
Gear pitch diameter (Dp)	1,736 mm
Gear Tooth Height (Hd)	100 mm
Ratings
Basic static axial load rating (C0a)	9,990 kN
Static tilting moment rating (M0r)	5,049 kNm
Normal tooth force (Fnom)	140 kN
Maximum tooth force (Fmax)	280 kN
Miscellaneous
Pattern (Schema)	C

Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

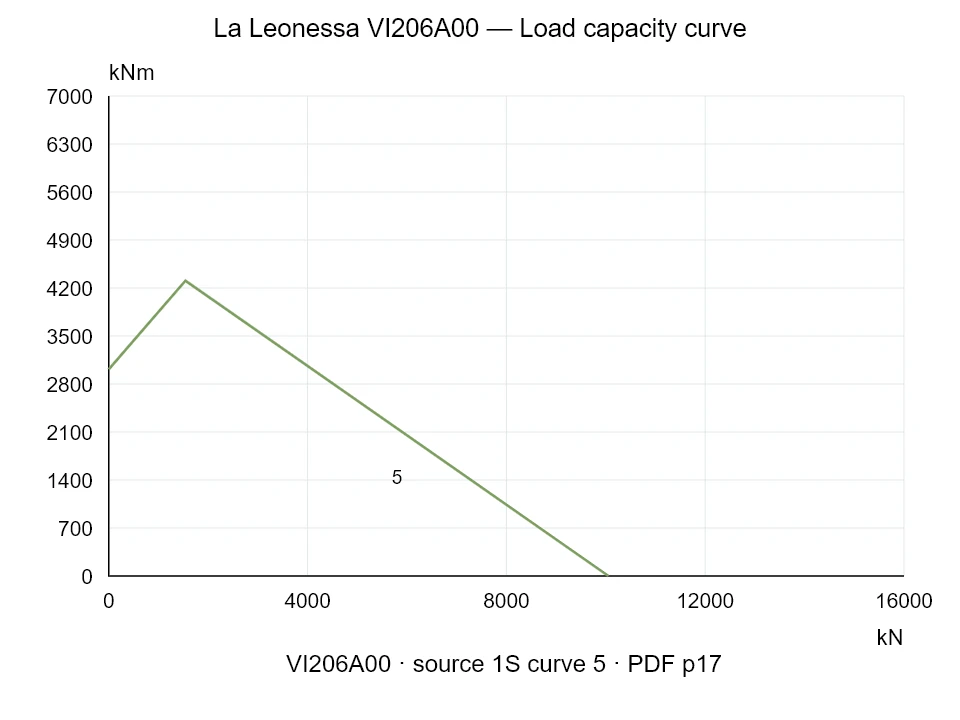

SERIES LOAD CAPACITY

1SI Series load chart

Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.

Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for La Leonessa VI206A00

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

Matching model designation and installation envelope
Reviewed mounting-hole and bolt-circle interfaces
Gear arrangement matched to the referenced configuration

MERYDOM construction

Configurable 42CrMo or 50Mn ring material options
NBR nitrile-rubber sealing system
Configurable engineering nylon or brass spacer options

Factory documentation

Engineering verification by MERYDOM Engineering Department
Verification evidence is maintained in the controlled internal record
Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

Confirm support flatness, bolt grade and preload
Verify applied loads, duty cycle and lubrication
Confirm temperature, environment and installation conditions
