La Leonessa VI085B00 Slewing Bearing Replacement

Name: MERYDOM Replacement for La Leonessa VI085B00 Slewing Bearing
Brand: MERYDOM
SKU: VI085B00

Back to replacement catalog

MERYDOM BRAND · CERTIFIED REPLACEMENT

VI085B00

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with La Leonessa VI085B00.

Certified product dataView complete specifications ↓

Overall OD (Do): 850,0 mm
Overall ID (di): 641,0 mm
Overall height: 92,0 mm
Gear arrangement: Internal gear
Mounting holes: 36 / 36 outer / inner
Bearing design: Double-row ball

Factory assurance

Certified dimensional interchange
MERYDOM controlled materials
Factory documentation available

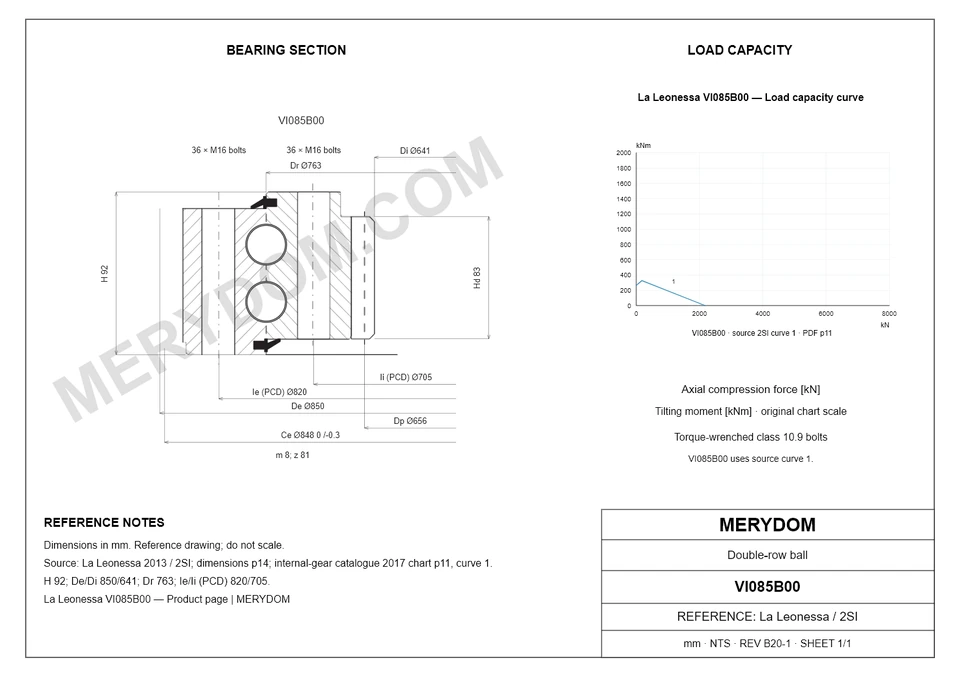

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Mass (P): 127 kg
Overall outside diameter (De): 850 mm
Overall inside diameter (Di): 641 mm
Overall height (H): 92 mm
Dim Dr (Dr): 763 mm
Dim Centering External (Ce): 848 0 /-0,3 mm

Mounting

Outer ring bolt circle (Ie): 820 mm
Outer ring mounting-hole count (ne): 36
Outer ring mounting-hole specification (Me): M16
Inner ring bolt circle (Ii): 705 mm
Inner ring mounting-hole count (ni): 36
Inner ring mounting-hole specification (Mi): M16

Gear

Gear module (m): 8 mm
Gear tooth count (z): 81
Addendum modification product x*m (xm): 4 mm
Liebherr catalogue gear dimension k*m (km): 0.5 mm
Gear pitch diameter (Dp): 656 mm
Gear Tooth Height (Hd): 83 mm

MERYDOM CERTIFIED SPECIFICATION

La Leonessa VI085B00 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record

Technical parameter	MERYDOM certified product value
MERYDOM Certified Product
Product brand	MERYDOM
MERYDOM model	VI085B00
Certified interchangeable with	La Leonessa VI085B00
Factory verification	Level 3 · Engineering Verified
Reviewed by	MERYDOM Engineering Department
Verification metadata	Controlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options	42CrMo / 50Mn
Seal material	NBR · Nitrile rubber
Configurable spacer material options	Engineering nylon / Brass
Identification
Reference brand	La Leonessa
Series	2SI Series
Reference model	VI085B00
System of measurement	Metric
Bearing structure	Double-row ball
Gear arrangement	Internal gear
Dimensions
Mass (P)	127 kg
Overall outside diameter (De)	850 mm
Overall inside diameter (Di)	641 mm
Overall height (H)	92 mm
Dim Dr (Dr)	763 mm
Dim Centering External (Ce)	848 0 /-0,3 mm
Mounting
Outer ring bolt circle (Ie)	820 mm
Outer ring mounting-hole count (ne)	36
Outer ring mounting-hole specification (Me)	M16
Inner ring bolt circle (Ii)	705 mm
Inner ring mounting-hole count (ni)	36
Inner ring mounting-hole specification (Mi)	M16
Gear
Gear module (m)	8 mm
Gear tooth count (z)	81
Addendum modification product x*m (xm)	4 mm
Liebherr catalogue gear dimension k*m (km)	0.5 mm
Gear pitch diameter (Dp)	656 mm
Gear Tooth Height (Hd)	83 mm
Ratings
Basic static axial load rating (C0a)	2,120 kN
Static tilting moment rating (M0r)	369 kNm
Normal tooth force (Fnom)	55 kN
Maximum tooth force (Fmax)	110 kN
Miscellaneous
Pattern (Schema)	B

Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

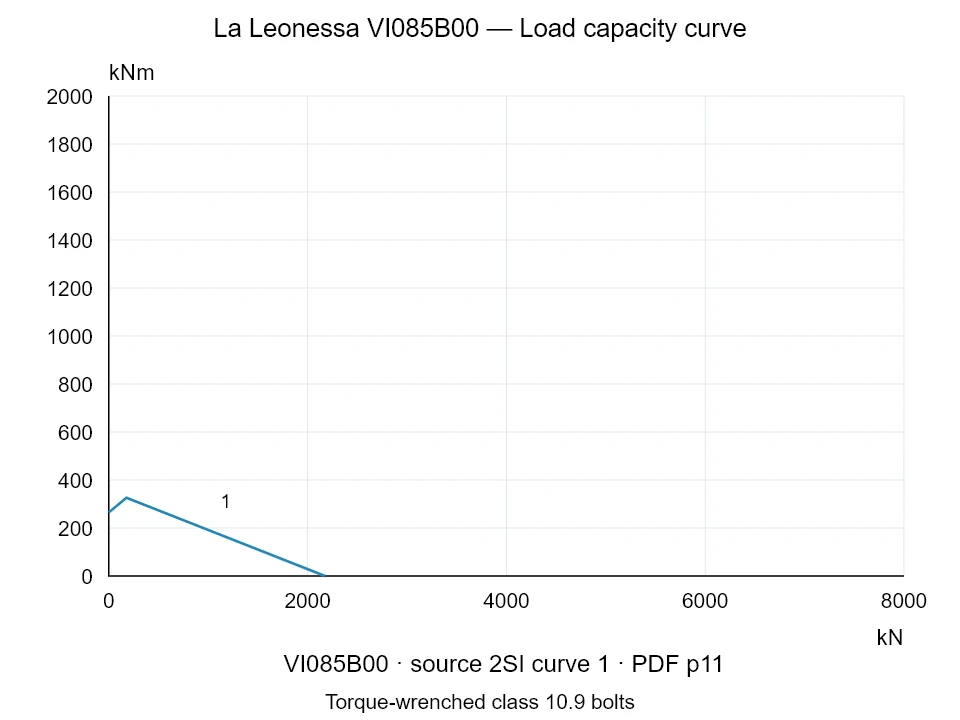

SERIES LOAD CAPACITY

2SI Series load chart

Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.

Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for La Leonessa VI085B00

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

Matching model designation and installation envelope
Reviewed mounting-hole and bolt-circle interfaces
Gear arrangement matched to the referenced configuration

MERYDOM construction

Configurable 42CrMo or 50Mn ring material options
NBR nitrile-rubber sealing system
Configurable engineering nylon or brass spacer options

Factory documentation

Engineering verification by MERYDOM Engineering Department
Verification evidence is maintained in the controlled internal record
Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

Confirm support flatness, bolt grade and preload
Verify applied loads, duty cycle and lubrication
Confirm temperature, environment and installation conditions
