La Leonessa VE061B05 Slewing Bearing Replacement

Name: MERYDOM Replacement for La Leonessa VE061B05 Slewing Bearing
Brand: MERYDOM
SKU: VE061B05

Back to replacement catalog

MERYDOM BRAND · CERTIFIED REPLACEMENT

VE061B05

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with La Leonessa VE061B05.

Certified product dataView complete specifications ↓

Overall OD (Do): 614,4 mm
Overall ID (di): 378,0 mm
Overall height: 98,0 mm
Gear arrangement: External gear
Mounting holes: 24 / 24 outer / inner
Bearing design: Double-row ball

Factory assurance

Certified dimensional interchange
MERYDOM controlled materials
Factory documentation available

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Mass (P): 98 kg
Overall outside diameter (De): 614.4 mm
Overall inside diameter (Di): 378 mm
Overall height (H): 98 mm
Dim Dr (Dr): 475 mm

Mounting

Outer ring bolt circle (Ie): 540 mm
Outer ring mounting-hole count (ne): 24
Outer ring mounting-hole specification (Me): M18
Inner ring bolt circle (Ii): 410 mm
Inner ring mounting-hole count (ni): 24
Inner ring mounting-hole specification (Mi): M18

Gear

Gear module (m): 8 mm
Gear tooth count (z): 74
Addendum modification product x*m (xm): 4 mm
Liebherr catalogue gear dimension k*m (km): 0.8 mm
Gear pitch diameter (Dp): 600 mm
Gear Tooth Height (Hd): 80 mm

MERYDOM CERTIFIED SPECIFICATION

La Leonessa VE061B05 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record

Technical parameter	MERYDOM certified product value
MERYDOM Certified Product
Product brand	MERYDOM
MERYDOM model	VE061B05
Certified interchangeable with	La Leonessa VE061B05
Factory verification	Level 3 · Engineering Verified
Reviewed by	MERYDOM Engineering Department
Verification metadata	Controlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options	42CrMo / 50Mn
Seal material	NBR · Nitrile rubber
Configurable spacer material options	Engineering nylon / Brass
Identification
Reference brand	La Leonessa
Series	2SE Series
Reference model	VE061B05
System of measurement	Metric
Bearing structure	Double-row ball
Gear arrangement	External gear
Dimensions
Mass (P)	98 kg
Overall outside diameter (De)	614.4 mm
Overall inside diameter (Di)	378 mm
Overall height (H)	98 mm
Dim Dr (Dr)	475 mm
Mounting
Outer ring bolt circle (Ie)	540 mm
Outer ring mounting-hole count (ne)	24
Outer ring mounting-hole specification (Me)	M18
Inner ring bolt circle (Ii)	410 mm
Inner ring mounting-hole count (ni)	24
Inner ring mounting-hole specification (Mi)	M18
Gear
Gear module (m)	8 mm
Gear tooth count (z)	74
Addendum modification product x*m (xm)	4 mm
Liebherr catalogue gear dimension k*m (km)	0.8 mm
Gear pitch diameter (Dp)	600 mm
Gear Tooth Height (Hd)	80 mm
Ratings
Basic static axial load rating (C0a)	1,890 kN
Static tilting moment rating (M0r)	276 kNm
Normal tooth force (Fnom)	62 kN
Maximum tooth force (Fmax)	124 kN
Miscellaneous
Pattern (Schema)	B

Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

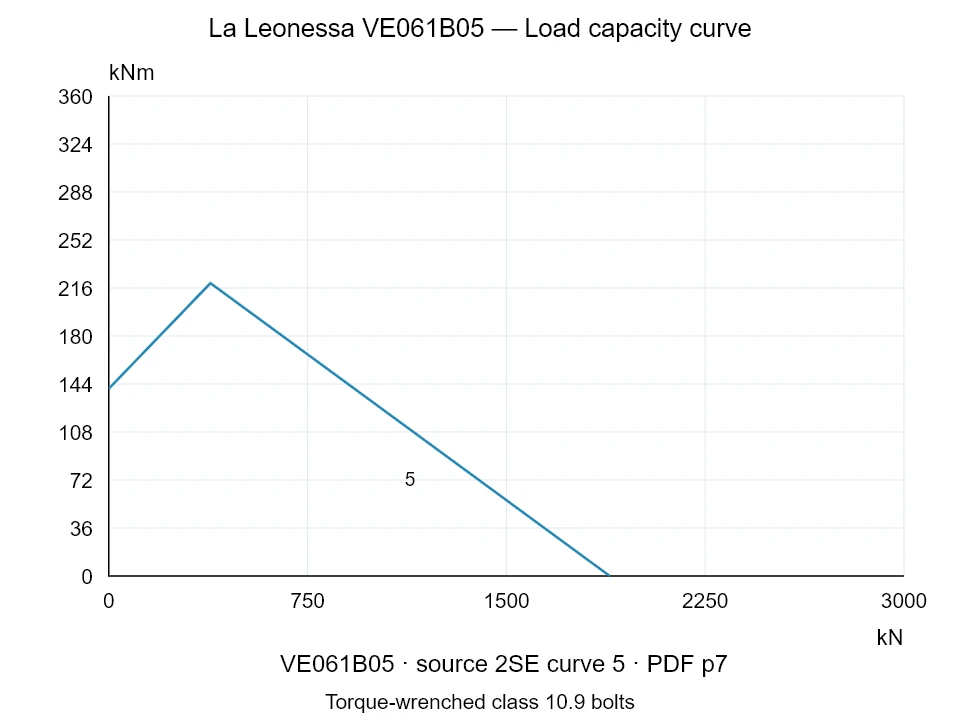

SERIES LOAD CAPACITY

2SE Series load chart

Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.

Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

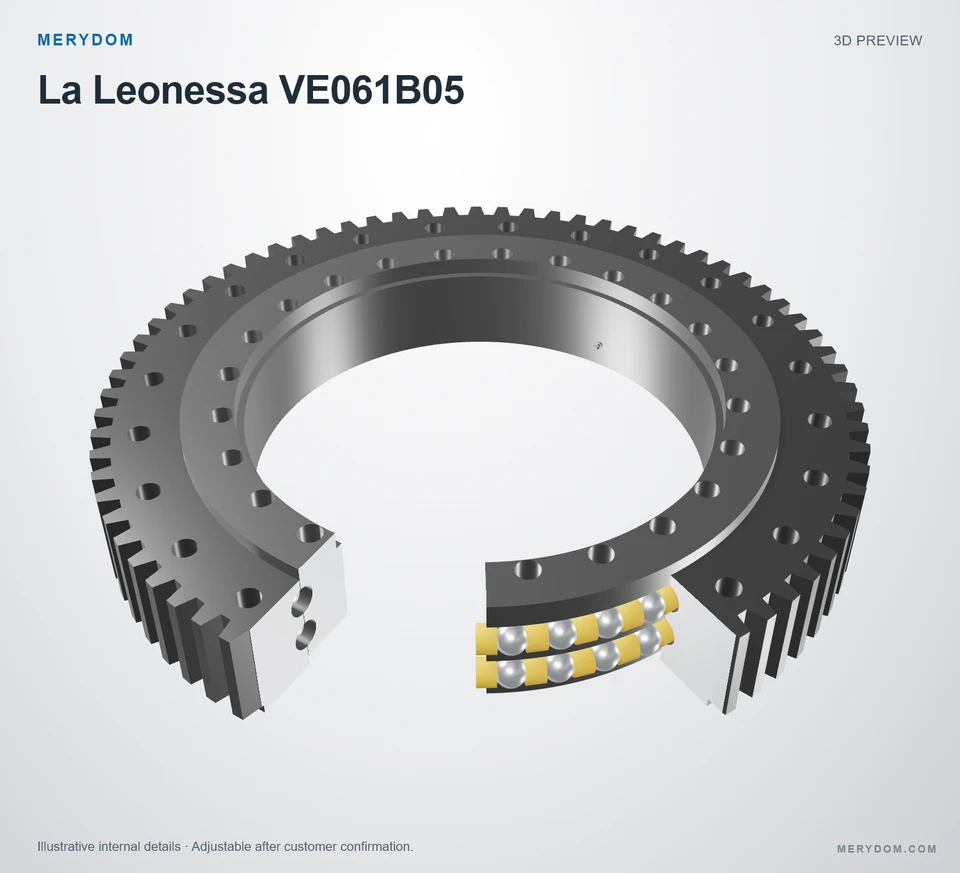

MERYDOM Replacement for La Leonessa VE061B05

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

Matching model designation and installation envelope
Reviewed mounting-hole and bolt-circle interfaces
Gear arrangement matched to the referenced configuration

MERYDOM construction

Configurable 42CrMo or 50Mn ring material options
NBR nitrile-rubber sealing system
Configurable engineering nylon or brass spacer options

Factory documentation

Engineering verification by MERYDOM Engineering Department
Verification evidence is maintained in the controlled internal record
Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

Confirm support flatness, bolt grade and preload
Verify applied loads, duty cycle and lubrication
Confirm temperature, environment and installation conditions
