La Leonessa V40I034 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the La Leonessa V40I034 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The La Leonessa V40I034 reference belongs to the 1RI Series and uses a four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
V40I034
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with La Leonessa V40I034.
- Overall OD (Do)
- 1.530,0 mm
- Overall ID (di)
- 1.186,0 mm
- Overall height
- 130,0 mm
- Gear arrangement
- Internal gear
- Mounting holes
- 36 / 36 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (P)
- 560 kg
- Overall outside diameter (De)
- 1,530 mm
- Overall inside diameter (Di)
- 1,186 mm
- Overall height (H)
- 130 mm
- Dim Dr (Dr)
- 1,383.5 mm
- Dim Centering External (Ce)
- 1.410 +0,5/0 mm
- Dim Centering Internal (Ci)
- 1.360 0/-0,5 mm
Mounting
- Outer ring bolt circle (Ie)
- 1,480 mm
- Outer ring mounting-hole count (ne)
- 36
- Outer ring mounting-hole specification (Me)
- M24
- Inner ring bolt circle (Ii)
- 1,290 mm
- Inner ring mounting-hole count (ni)
- 36
- Inner ring mounting-hole specification (Mi)
- M24
Gear
- Gear module (m)
- 10 mm
- Gear tooth count (z)
- 120
- Addendum modification product x*m (xm)
- 3 mm
- Gear pitch diameter (Dp)
- 1,206 mm
- Gear Tooth Height (Hd)
- 90 mm
- Gear Hardening Indicator (Tempra)
- •
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordLa Leonessa V40I034 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | V40I034 |
| Certified interchangeable with | La Leonessa V40I034 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | La Leonessa |
| Series | 1RI Series |
| Reference model | V40I034 |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Mass (P) | 560 kg |
| Overall outside diameter (De) | 1,530 mm |
| Overall inside diameter (Di) | 1,186 mm |
| Overall height (H) | 130 mm |
| Dim Dr (Dr) | 1,383.5 mm |
| Dim Centering External (Ce) | 1.410 +0,5/0 mm |
| Dim Centering Internal (Ci) | 1.360 0/-0,5 mm |
| Mounting | |
| Outer ring bolt circle (Ie) | 1,480 mm |
| Outer ring mounting-hole count (ne) | 36 |
| Outer ring mounting-hole specification (Me) | M24 |
| Inner ring bolt circle (Ii) | 1,290 mm |
| Inner ring mounting-hole count (ni) | 36 |
| Inner ring mounting-hole specification (Mi) | M24 |
| Gear | |
| Gear module (m) | 10 mm |
| Gear tooth count (z) | 120 |
| Addendum modification product x*m (xm) | 3 mm |
| Gear pitch diameter (Dp) | 1,206 mm |
| Gear Tooth Height (Hd) | 90 mm |
| Gear Hardening Indicator (Tempra) | • |
| Ratings | |
| Basic static axial load rating (C0a) | 6,740 kN |
| Static tilting moment rating (M0r) | 2,349 kNm |
| Normal tooth force (Fnom) | 129 kN |
| Maximum tooth force (Fmax) | 258 kN |
| Miscellaneous | |
| Pattern (Schema) | B |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

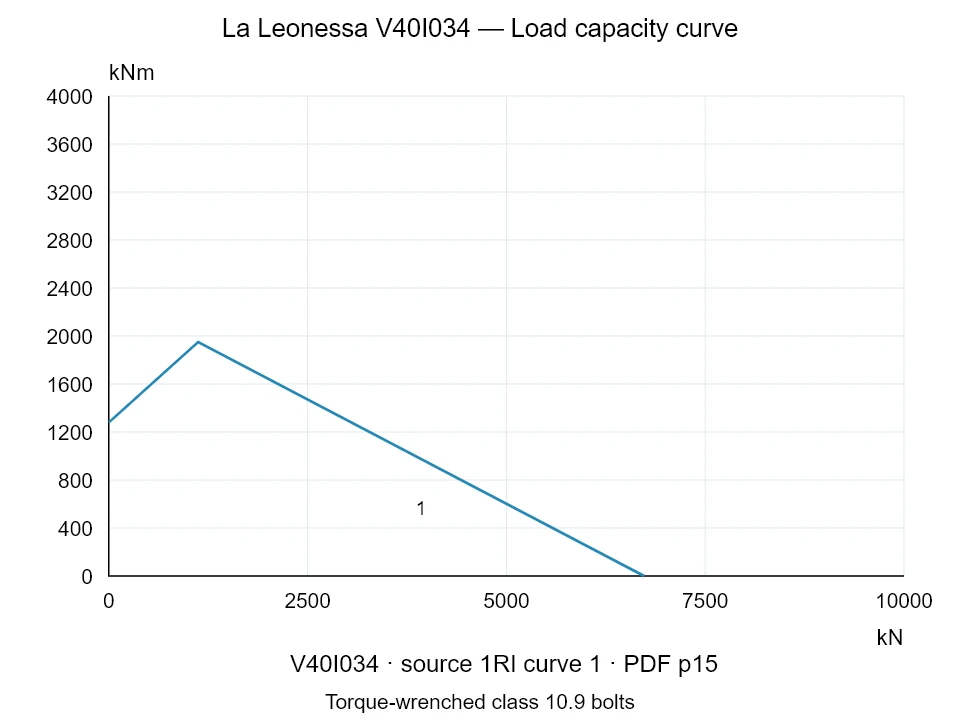

SERIES LOAD CAPACITY
1RI Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for La Leonessa V40I034
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
