Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration
MERYDOM MTO-065T
Factory-certified by MERYDOM to interchange with Kaydon MTO-065T. The MERYDOM product uses the same model designation for direct cross-reference.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance

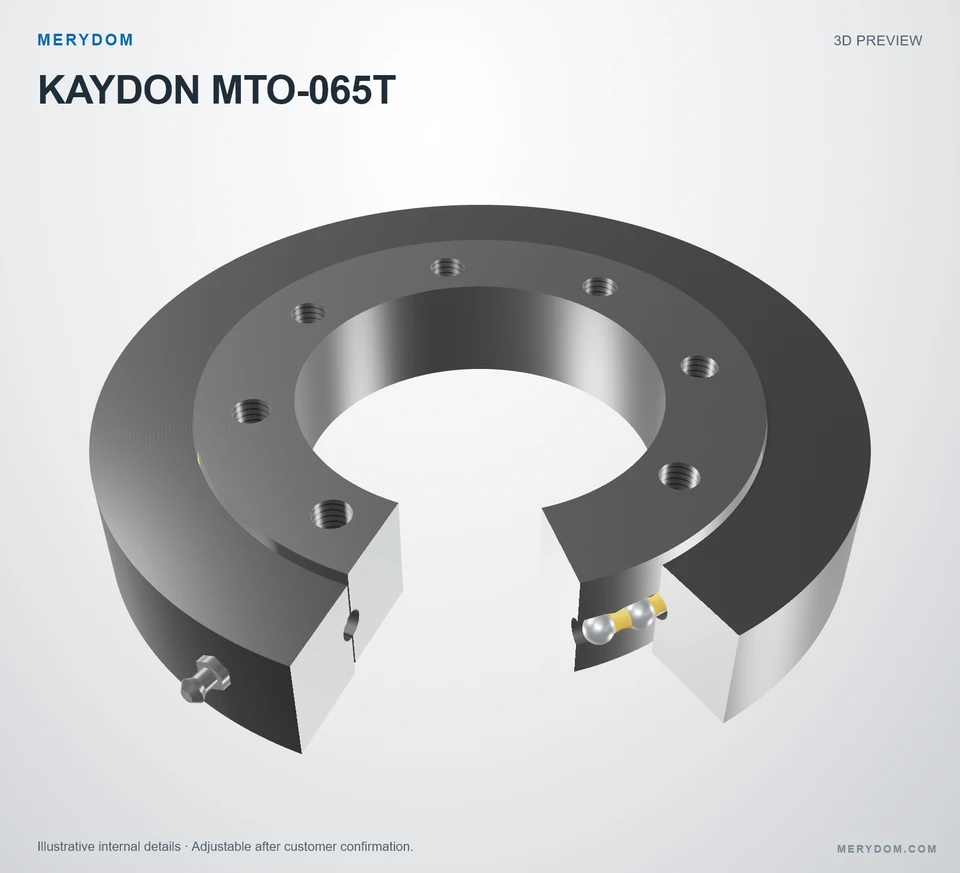

MTO-065T
MERYDOM-manufactured slewing bearing certified for interchange with Kaydon MTO-065T.
MERYDOM VerifiedEngineering certification · Rev 1.0- Overall OD (Do)
- 5.315 in
- Overall ID (di)
- 2.559 in
- Overall height
- 0.866 in
- Gear arrangement
- Ungeared
- Mounting holes
- 8 / 8 outer / inner
- Bearing design
- Four-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

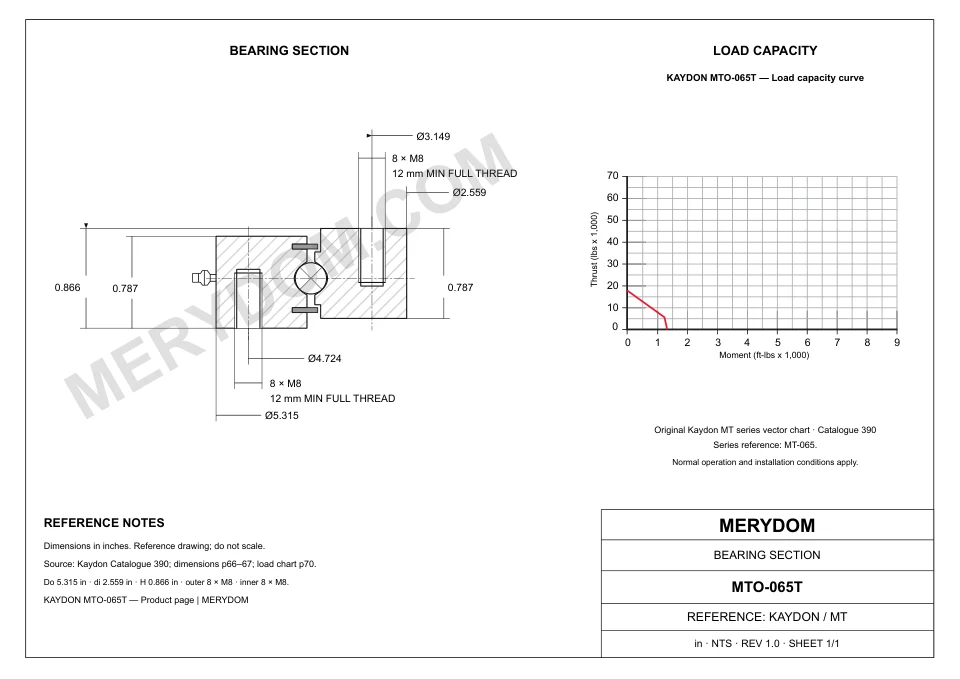

MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Rev 1.0Product specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | MTO-065T |
| Certified interchangeable with | Kaydon MTO-065T |
| Factory verification | Level 3 · Engineering Verified |
| Approved drawing revision | 1.0 |
| Reviewed by | MERYDOM Engineering Department |
| Certification date | 2026-08-15 |
| Materials | |
| Ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | MT Series |
| Reference model | MTO-065T |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Ungeared |
| Dimensions | |
| Overall outside diameter (Do) | 5.315 in135.001 mm |
| Overall inside diameter (di) | 2.559 in64.999 mm |
| Overall height (H) | 0.866 in21.996 mm |
| Outer ring bolt circle (Lo) | 4.724 in119.99 mm |
| Inner ring bolt circle (Li) | 3.149 in79.985 mm |
| Assembly weight (G) | 4 lb1.814 kg |
| Ratings | |
| Moment load rating (Crm) | 1075 in1,075 |
| Mounting | |
| Outer ring bolt holes (no) | 8 holes · M8 |
| Inner ring bolt holes (ni) | 8 holes · M8 |
| Gear | |
| Integral gear | Not applicable |
Level 3 · MERYDOM Engineering VerifiedCertified 2026-08-15 by MERYDOM Engineering Department.

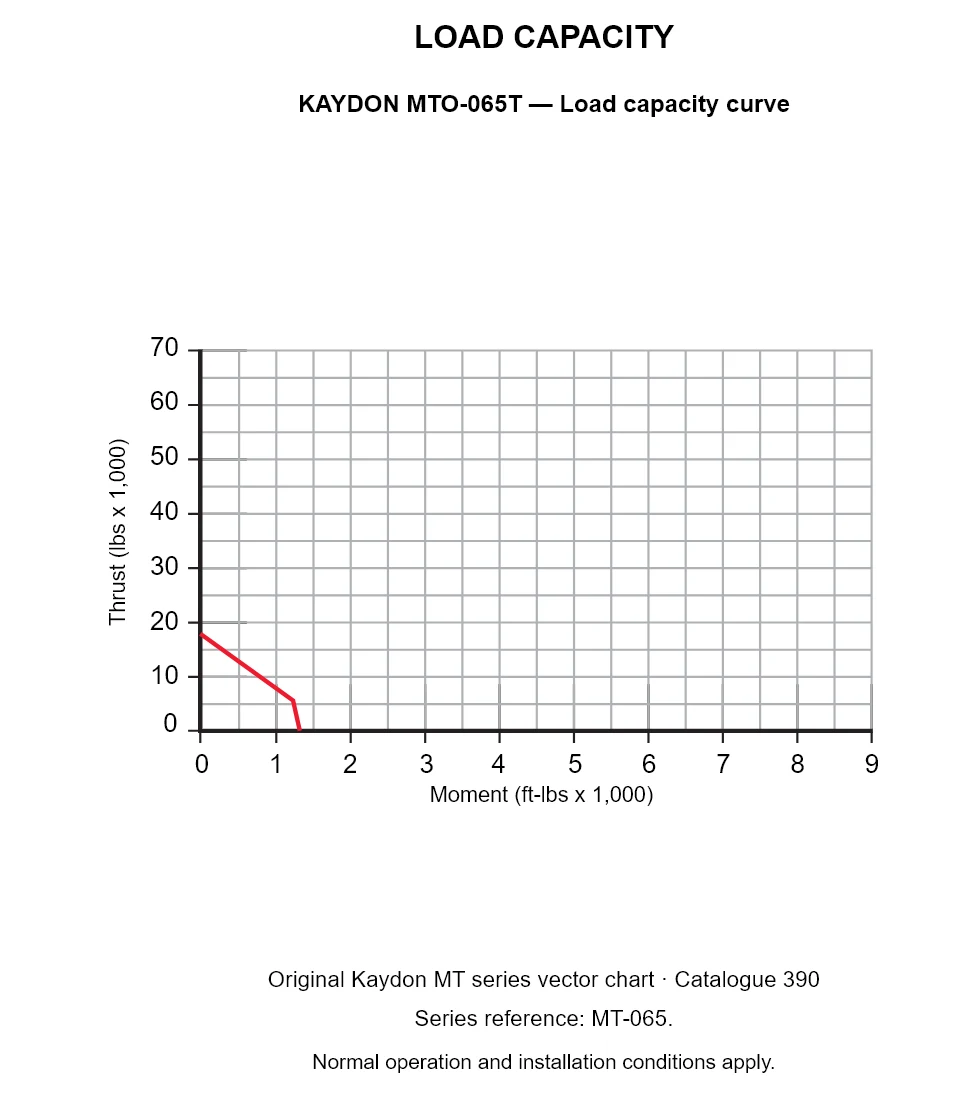

SERIES LOAD CAPACITY
MT Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
Factory-certified replacement design
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Default approved drawing revision 1.0
- Certification date linked to the data-import record
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model MTO-065T.
