Kaydon MTE-324X Slewing Bearing Replacement

Level 3 Verified

MERYDOM manufactures an engineering-verified replacement for the Kaydon MTE-324X slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

The Kaydon MTE-324X reference belongs to the Mt Series and uses a four-point contact ball, external gear slewing bearing configuration.

Request price & deliveryBack to replacement catalog
Back to replacement catalog

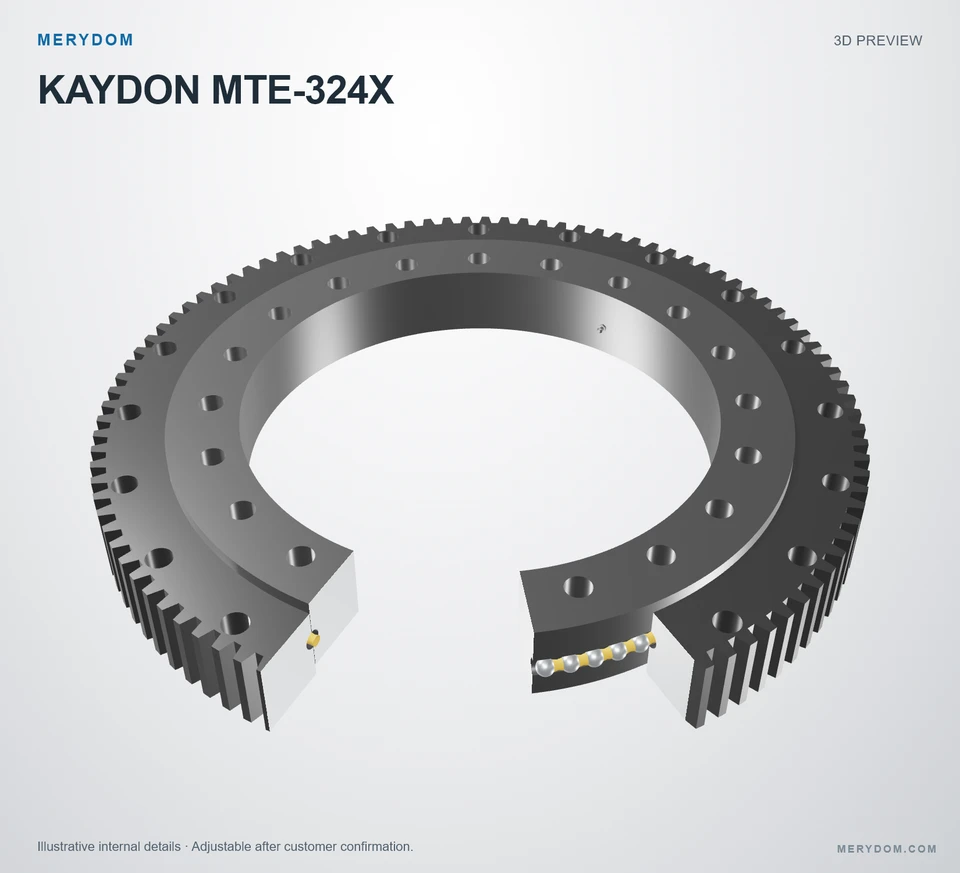

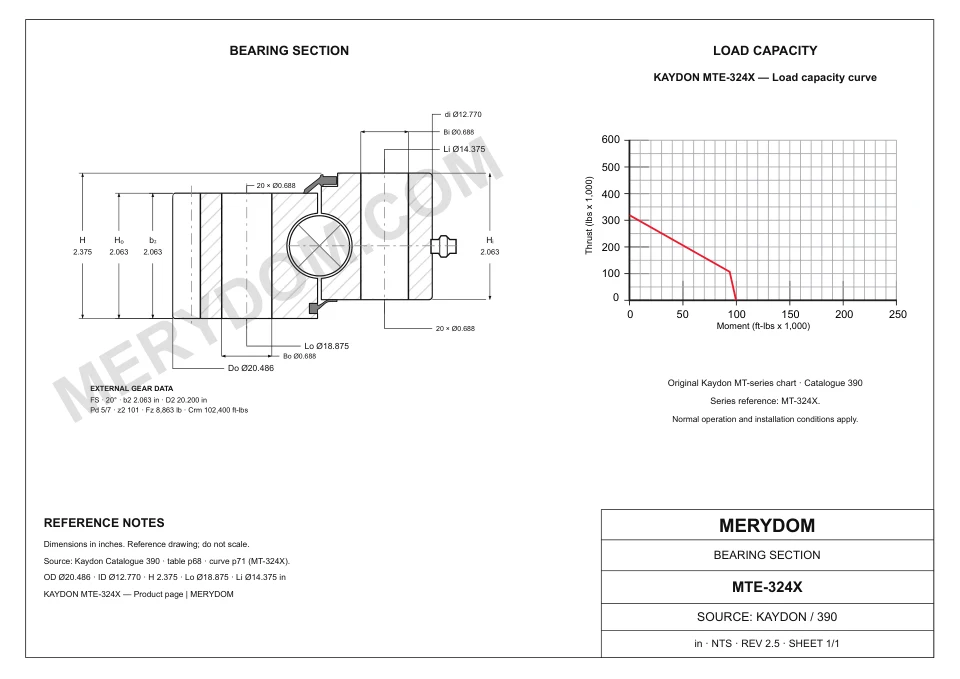

KAYDON MTE-324X · 3D Model Preview
MERYDOM BRAND · CERTIFIED REPLACEMENT

MTE-324X

MERYDOM VerifiedLevel 3 · Engineering verification record

MERYDOM-manufactured slewing bearing certified for interchange with Kaydon MTE-324X.

Certified product dataView complete specifications ↓
Overall OD (Do)
20.486 in
Overall ID (di)
12.770 in
Overall height
2.375 in
Gear arrangement
External gear
Mounting holes
20 / 20 outer / inner
Bearing design
Four-point contact ball
Factory assurance
  • Certified dimensional interchange
  • MERYDOM controlled materials
  • Factory documentation available
PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Overall outside diameter (Do)
20.486 inapproximately 520.34 mm
Overall inside diameter (di)
12.770 inapproximately 324.4 mm
Overall height (H)
2.375 inapproximately 60.33 mm
Assembly weight (G)
99 lbapproximately 44.906 kg
Inner ring height (Hi)
2.063 inapproximately 52.4 mm
Outer ring height (Ho)
2.063 inapproximately 52.4 mm

Mounting

Outer ring bolt circle (Lo)
18.875 inapproximately 479.43 mm
Inner ring bolt circle (Li)
14.375 inapproximately 365.13 mm

Gear

Gear pitch diameter (D2)
20.200 inapproximately 513 mm
Gear tooth count (z2)
101
Catalogue gear face width (b2)
2.063 inapproximately 52.4 mm
MERYDOM CERTIFIED SPECIFICATION

Kaydon MTE-324X Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record
Technical parameterMERYDOM certified product value
MERYDOM Certified Product
Product brandMERYDOM
MERYDOM modelMTE-324X
Certified interchangeable withKaydon MTE-324X
Factory verificationLevel 3 · Engineering Verified
Reviewed byMERYDOM Engineering Department
Verification metadataControlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options42CrMo / 50Mn
Seal materialNBR · Nitrile rubber
Configurable spacer material optionsEngineering nylon / Brass
Identification
Reference brandKaydon
SeriesMt Series
Reference modelMTE-324X
System of measurementInchMetric reference shown alongside
Bearing structureFour-point contact ball
Gear arrangementExternal gear
Dimensions
Overall outside diameter (Do)20.486 inapproximately 520.34 mm
Overall inside diameter (di)12.770 inapproximately 324.4 mm
Overall height (H)2.375 inapproximately 60.33 mm
Inner ring height (Hi)2.063 inapproximately 52.4 mm
Outer ring height (Ho)2.063 inapproximately 52.4 mm
Outer ring bolt circle (Lo)18.875 inapproximately 479.43 mm
Inner ring bolt circle (Li)14.375 inapproximately 365.13 mm
Gear pitch diameter (D2)20.200 inapproximately 513 mm
Assembly weight (G)99 lbapproximately 44.906 kg
Ratings
Maximum gear tooth load (Fz)8863 lbfapproximately 39.42 kN
Moment load rating (Crm)102400 ft·lbfapproximately 138.84 kN·m
Mounting
Outer ring bolt holes (no)20 holes · 0.688
Inner ring bolt holes (ni)20 holes · 0.688
Gear
Pitch systemSPECIAL_DP
Source-defined gear pitch (Pd)5/7 source-defined pitch
Number of teeth (z2)101
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

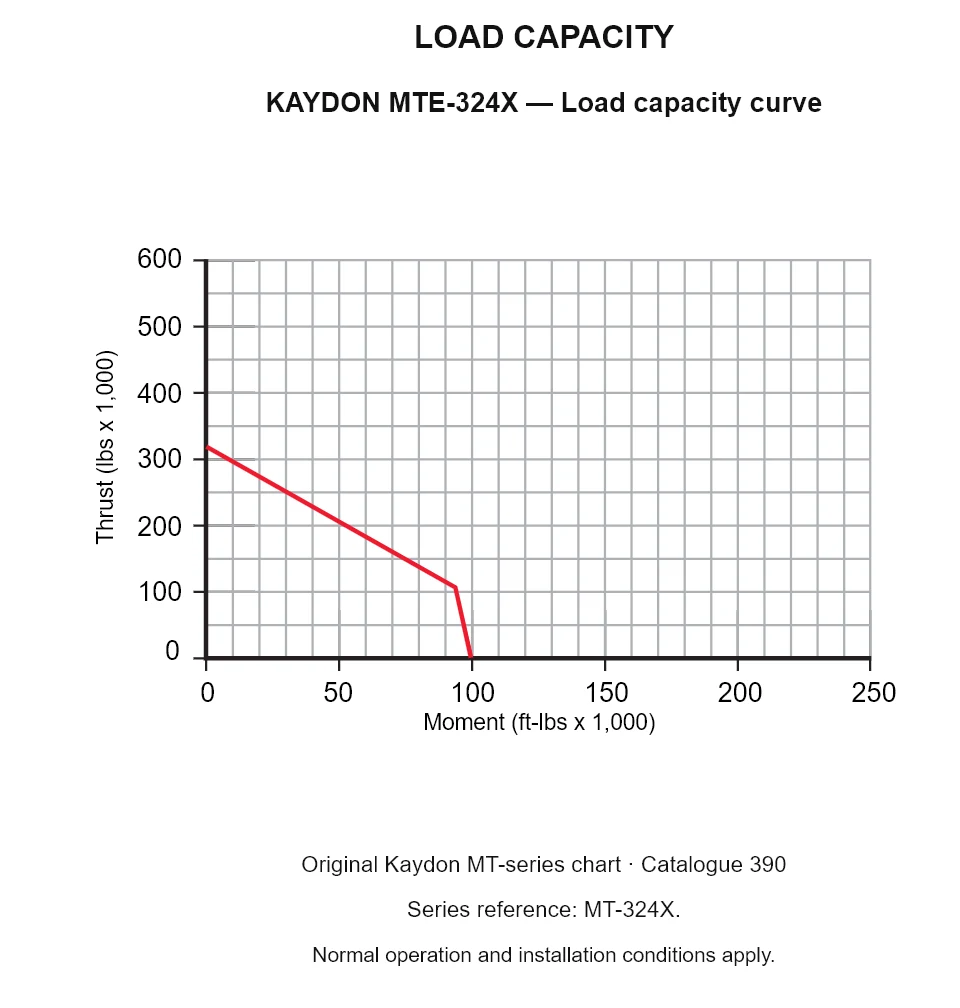

KAYDON MTE-324X — Load capacity curve
