Kaydon 16384001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16384001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

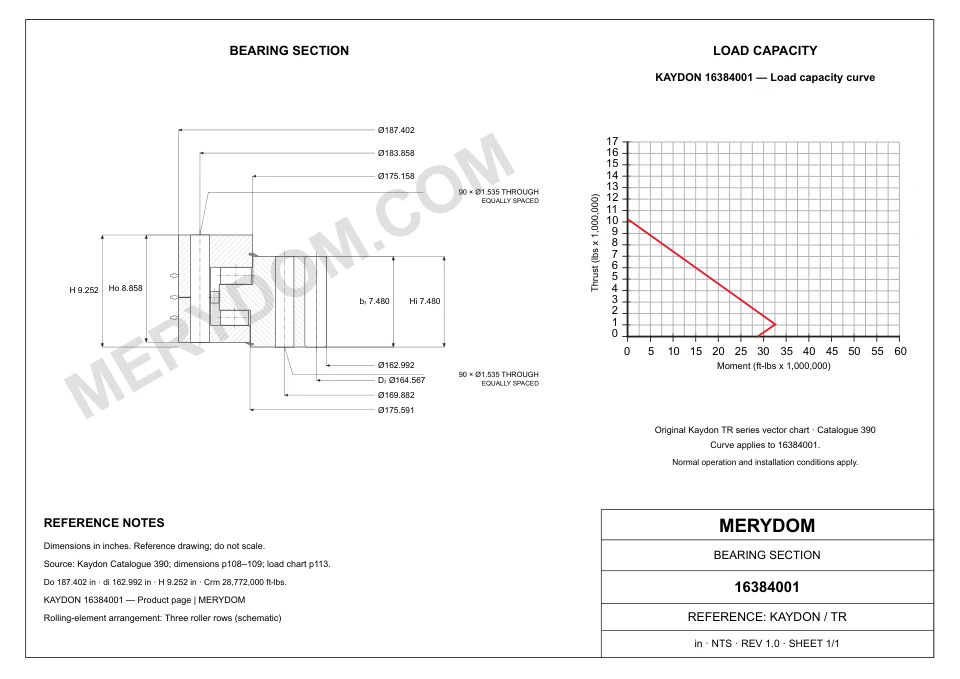

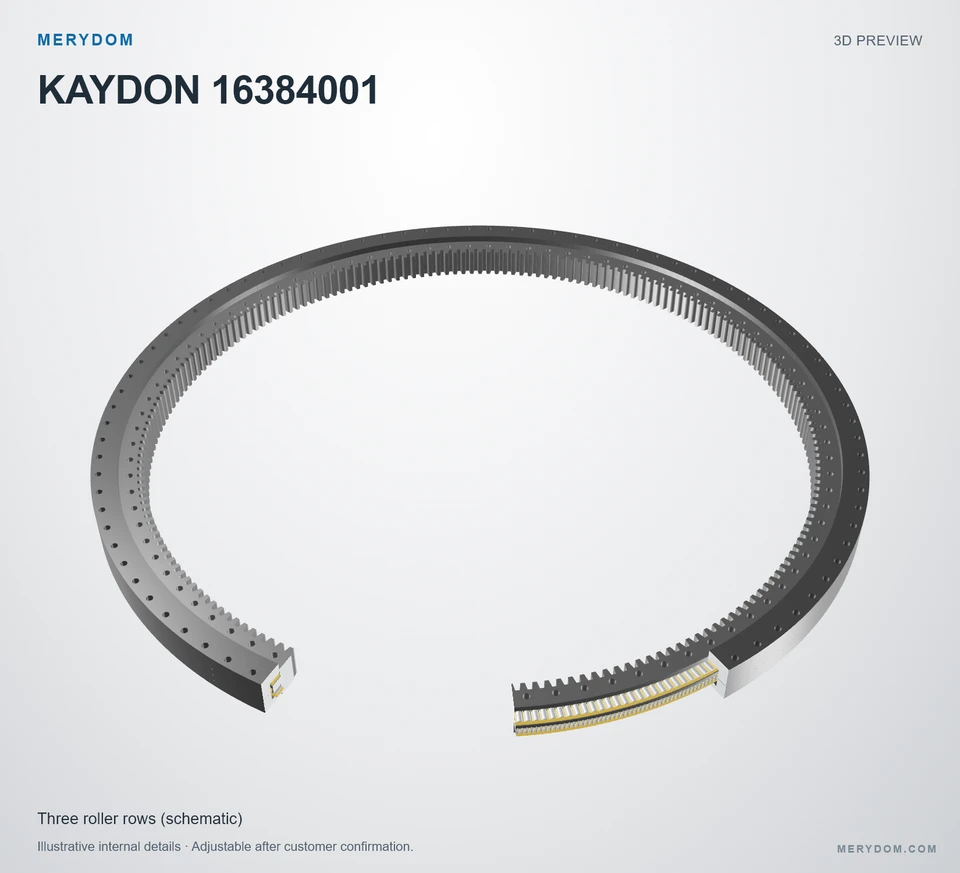

The Kaydon 16384001 reference belongs to the Tr Series and uses a three-row roller, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16384001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16384001.
- Overall OD (Do)
- 187.402 in
- Overall ID (di)
- 162.992 in
- Overall height
- 9.252 in
- Gear arrangement
- Internal gear
- Mounting holes
- 90 / 90 outer / inner
- Bearing design
- Three-row roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 187.402 inapproximately 4,760.01 mm
- Overall inside diameter (di)
- 162.992 inapproximately 4,140 mm
- Outer ring inner diameter (Di)
- 175.158 inapproximately 4,449.01 mm
- Inner ring outer diameter (do)
- 175.591 inapproximately 4,460.01 mm
- Overall height (H)
- 9.252 inapproximately 235 mm
- Assembly weight (G)
- 14200 lbapproximately 6,441.012 kg
- Inner ring height (Hi)
- 7.480 inapproximately 190 mm
- Outer ring height (Ho)
- 8.858 inapproximately 224.99 mm
Mounting
- Outer ring bolt circle (Lo)
- 183.858 inapproximately 4,669.99 mm
- Inner ring bolt circle (Li)
- 169.882 inapproximately 4,315 mm
Gear
- Gear pitch diameter (D2)
- 164.567 inapproximately 4,180 mm
- Gear tooth count (z2)
- 209
- Catalogue gear face width (b2)
- 7.480 inapproximately 190 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16384001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16384001 |
| Certified interchangeable with | Kaydon 16384001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Tr Series |
| Reference model | 16384001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Three-row roller |
| Gear arrangement | Internal gear |
| Dimensions | |
| Overall outside diameter (Do) | 187.402 inapproximately 4,760.01 mm |
| Overall inside diameter (di) | 162.992 inapproximately 4,140 mm |
| Overall height (H) | 9.252 inapproximately 235 mm |
| Inner ring height (Hi) | 7.480 inapproximately 190 mm |
| Outer ring height (Ho) | 8.858 inapproximately 224.99 mm |
| Outer ring inner diameter (Di) | 175.158 inapproximately 4,449.01 mm |
| Inner ring outer diameter (do) | 175.591 inapproximately 4,460.01 mm |
| Outer ring bolt circle (Lo) | 183.858 inapproximately 4,669.99 mm |
| Inner ring bolt circle (Li) | 169.882 inapproximately 4,315 mm |
| Gear pitch diameter (D2) | 164.567 inapproximately 4,180 mm |
| Assembly weight (G) | 14200 lbapproximately 6,441.012 kg |
| Ratings | |
| Maximum gear tooth load (Fz) | 128000 lbfapproximately 569.37 kN |
| Moment load rating (Crm) | 28772000 ft·lbfapproximately 39,009.59 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 90 holes · 1.535 |
| Inner ring bolt holes (ni) | 90 holes · 1.535 |
| Gear | |
| Pitch system | MODULE |
| Source module (m) | Module 20 (source (20)) |
| Number of teeth (z2) | 209 |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

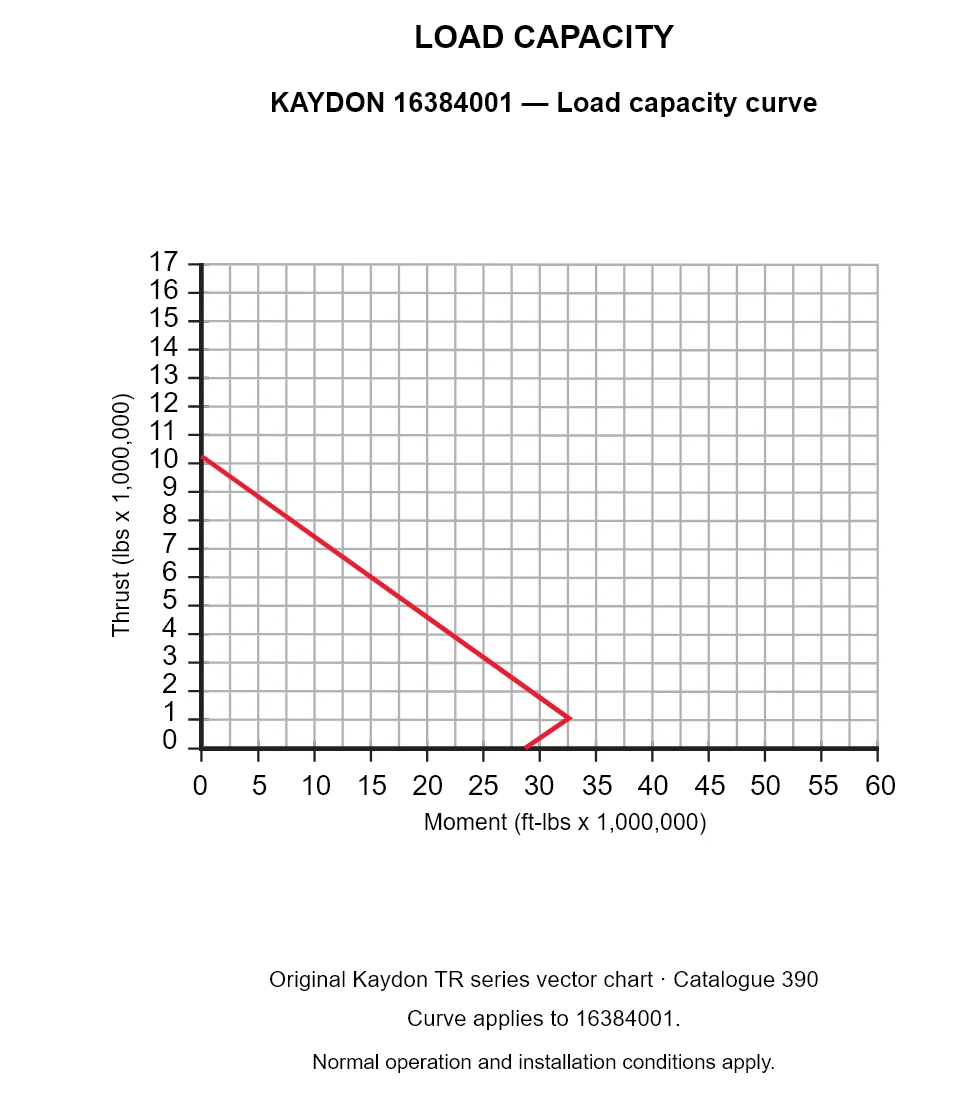

KAYDON 16384001 — Load capacity curve
KAYDON 16384001 — Load capacity curve
KAYDON 16384001 — Load capacity curve. Normal operation and installation conditions apply.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for Kaydon 16384001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
