Kaydon 16282001 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the Kaydon 16282001 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The Kaydon 16282001 reference belongs to the Dt Series and uses an eight-point contact ball, ungeared slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
16282001
MERYDOM VerifiedLevel 3 · Engineering verification recordMERYDOM-manufactured slewing bearing certified for interchange with Kaydon 16282001.
- Overall OD (Do)
- 20.375 in
- Overall ID (di)
- 12.250 in
- Overall height
- 4.500 in
- Gear arrangement
- Ungeared
- Mounting holes
- 20 / 20 outer / inner
- Bearing design
- Eight-point contact ball
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Do)
- 20.375 inapproximately 517.53 mm
- Overall inside diameter (di)
- 12.250 inapproximately 311.2 mm
- Overall height (H)
- 4.500 inapproximately 114 mm
- Assembly weight (G)
- 210 lbapproximately 95.254 kg
- Inner ring height (Hi)
- 4.185 inapproximately 106.3 mm
- Outer ring height (Ho)
- 4.185 inapproximately 106.3 mm
Mounting
- Outer ring bolt circle (Lo)
- 18.875 inapproximately 479.43 mm
- Inner ring bolt circle (Li)
- 13.625 inapproximately 346.08 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordKaydon 16282001 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 16282001 |
| Certified interchangeable with | Kaydon 16282001 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | Kaydon |
| Series | Dt Series |
| Reference model | 16282001 |
| System of measurement | InchMetric reference shown alongside |
| Bearing structure | Eight-point contact ball |
| Gear arrangement | Ungeared |
| Dimensions | |
| Overall outside diameter (Do) | 20.375 inapproximately 517.53 mm |
| Overall inside diameter (di) | 12.250 inapproximately 311.2 mm |
| Overall height (H) | 4.500 inapproximately 114 mm |
| Inner ring height (Hi) | 4.185 inapproximately 106.3 mm |
| Outer ring height (Ho) | 4.185 inapproximately 106.3 mm |
| Outer ring bolt circle (Lo) | 18.875 inapproximately 479.43 mm |
| Inner ring bolt circle (Li) | 13.625 inapproximately 346.08 mm |
| Assembly weight (G) | 210 lbapproximately 95.254 kg |
| Ratings | |
| Moment load rating (Crm) | 102500 ft·lbfapproximately 138.97 kN·m |
| Mounting | |
| Outer ring bolt holes (no) | 20 holes · 0.688 |
| Inner ring bolt holes (ni) | 20 holes · 0.688 |
| Gear | |
| Integral gear | Not applicable |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

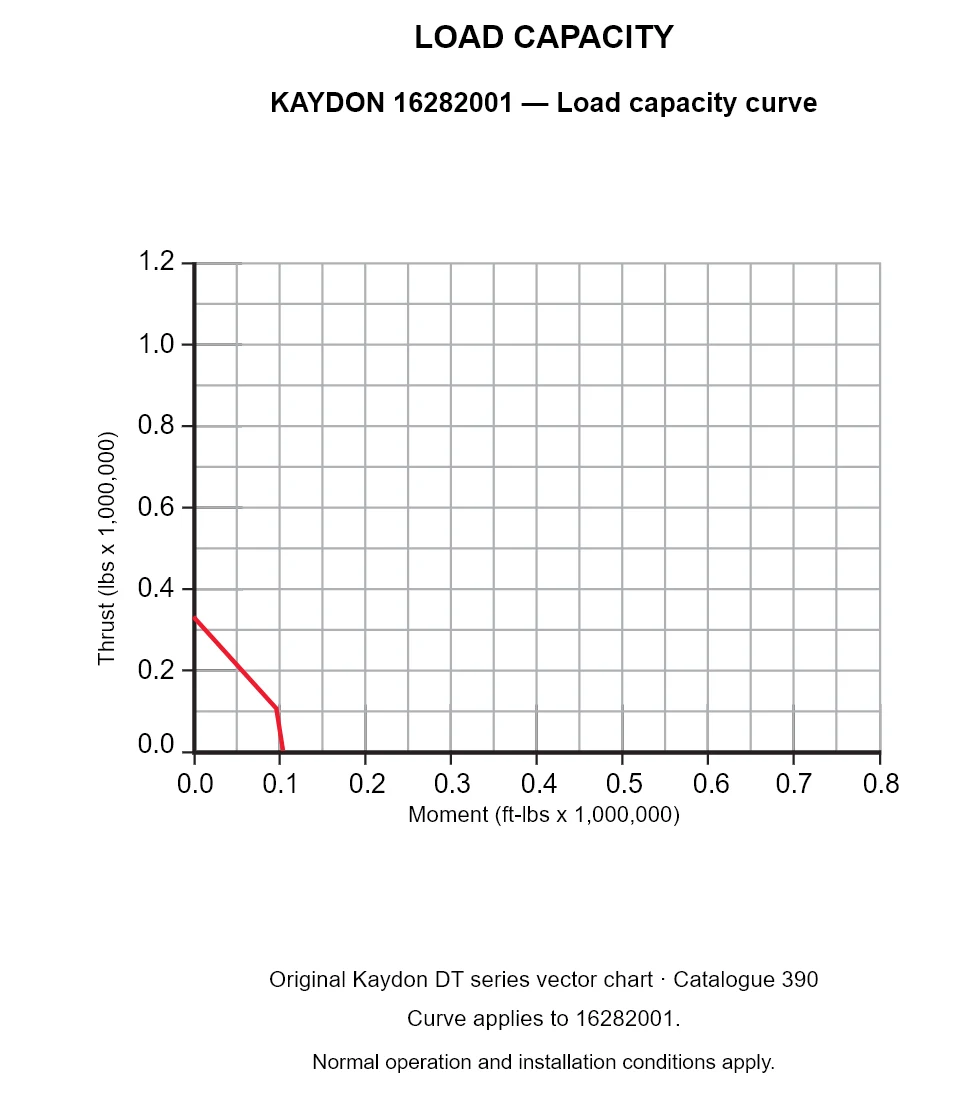

KAYDON 16282001 — Load capacity curve
KAYDON 16282001 — Load capacity curve
KAYDON 16282001 — Load capacity curve. Normal operation and installation conditions apply.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING

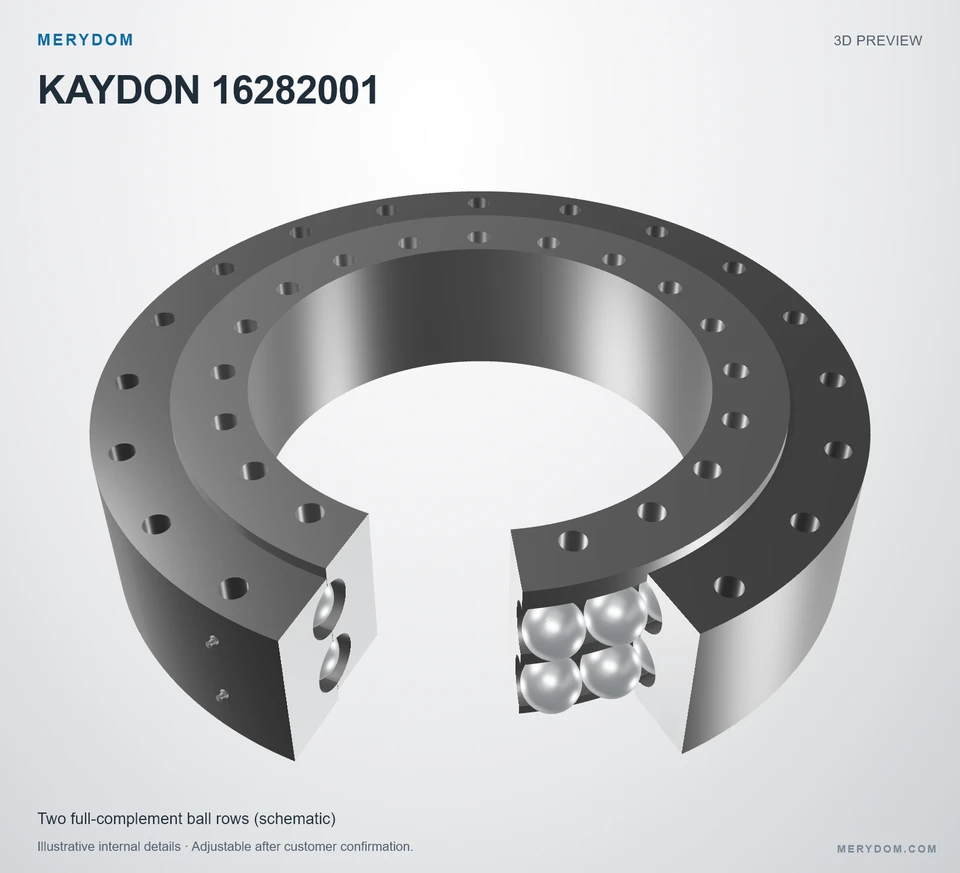

MERYDOM Replacement for Kaydon 16282001
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
