Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration
MERYDOM XU 080149
Level 3 VerifiedFactory-certified by MERYDOM to interchange with INA XU 080149. The MERYDOM product uses the same model designation for direct cross-reference.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
XU 080149

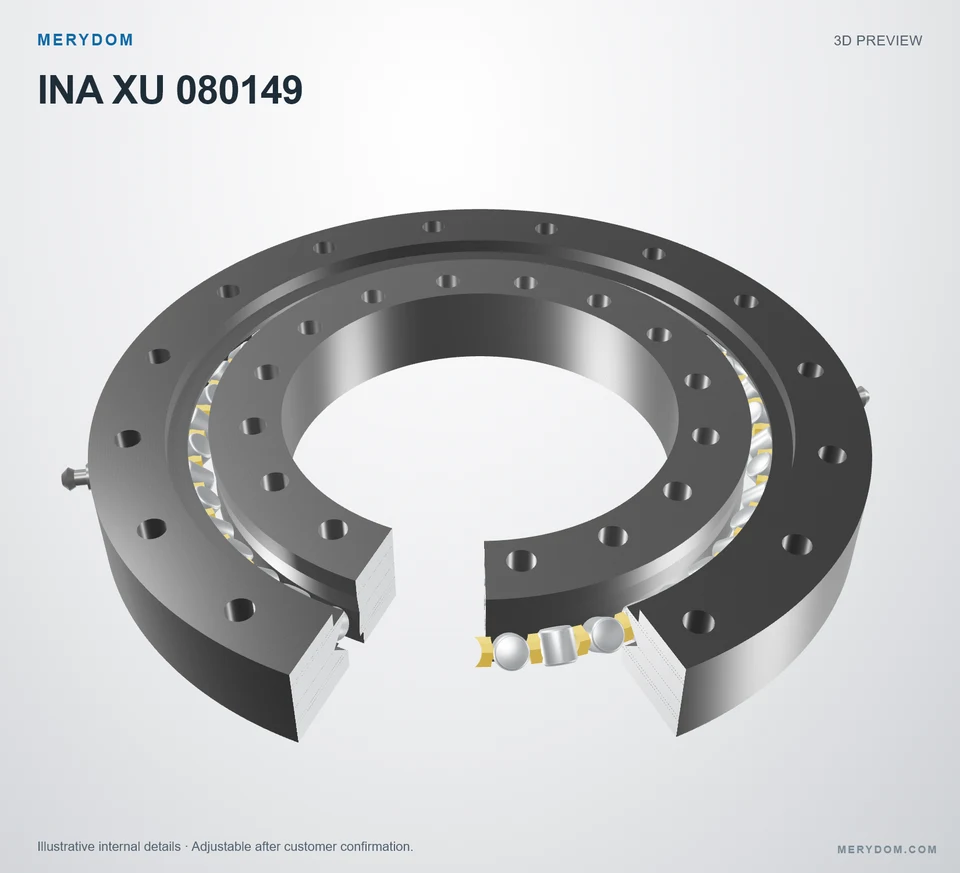

MERYDOM VerifiedEngineering certification · Rev Rev 1.0MERYDOM-manufactured slewing bearing certified for interchange with INA XU 080149.
- Overall OD (Do)
- 196,85 mm
- Overall ID (di)
- 101,6 mm
- Overall height
- 22,22 mm
- Gear arrangement
- Ungeared
- Mounting holes
- 16 / 16 outer / inner
- Bearing design
- Cross roller
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Mass)
- 3,6 kg3.6 kg
- Overall outside diameter (Da)
- 196,85 mm196.85 mm
- Overall inside diameter (di)
- 101,6 mm101.6 mm
- Catalog diameter Di (Di)
- 149,6 mm149.6 mm
- Overall height (H)
- 22,22 mm22.22 mm
- Inner height (h)
- 22,22 mm22.22 mm

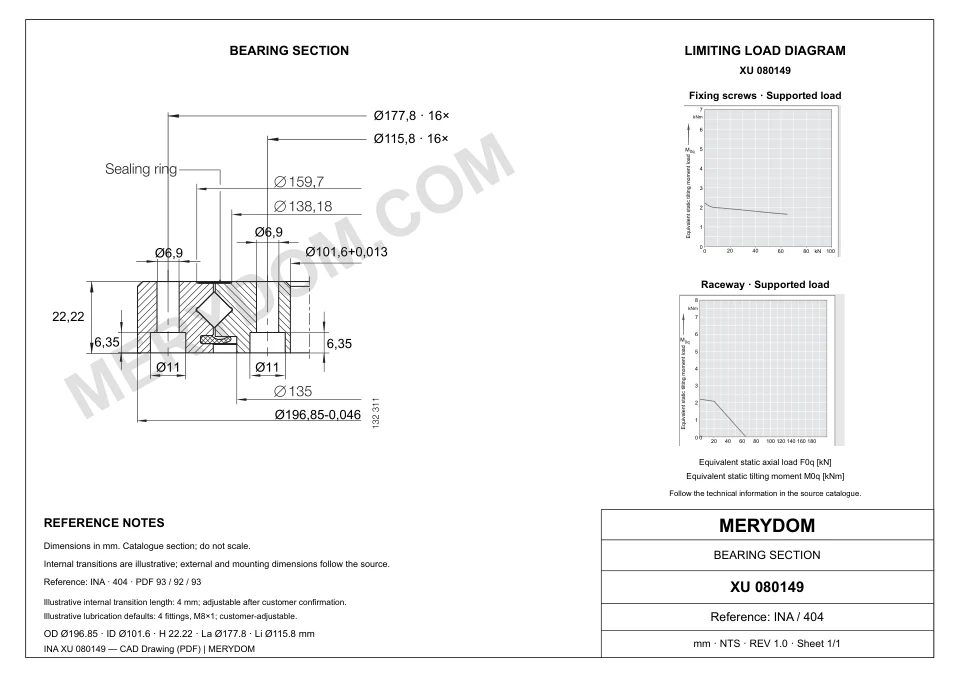

Mounting
- Outer ring bolt circle (La)
- 177,8 mm177.8 mm
- Inner ring bolt circle (Li)
- 115,8 mm115.8 mm
- Outer ring mounting-hole count (na)
- 16
- Inner ring mounting-hole count (ni)
- 16
- Common mounting-hole diameter (dB)
- 6,9 mm6.9 mm
- Counterbore diameter (ds)
- 11 mm
- Counterbore depth (ts)
- 6,35 mm6.35 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Rev Rev 1.0Product specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | XU 080149 |
| Certified interchangeable with | INA XU 080149 |
| Factory verification | Level 3 · Engineering Verified |
| Approved drawing revision | Rev 1.0 |
| Reviewed by | MERYDOM Engineering Department |
| Certification date | 2026-08-17 |
| Materials | |
| Ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | INA |
| Series | XU Series |
| Reference model | XU 080149 |
| System of measurement | Metric |
| Bearing structure | Cross roller |
| Gear arrangement | Ungeared |
| Dimensions | |
| Mass (Mass) | 3,6 kg3.6 kg |
| Overall outside diameter (Da) | 196,85 mm196.85 mm |
| Overall inside diameter (di) | 101,6 mm101.6 mm |
| Catalog diameter Di (Di) | 149,6 mm149.6 mm |
| Overall height (H) | 22,22 mm22.22 mm |
| Inner height (h) | 22,22 mm22.22 mm |
| Mounting | |
| Outer ring bolt circle (La) | 177,8 mm177.8 mm |
| Inner ring bolt circle (Li) | 115,8 mm115.8 mm |
| Outer ring mounting-hole count (na) | 16 |
| Inner ring mounting-hole count (ni) | 16 |
| Common mounting-hole diameter (dB) | 6,9 mm6.9 mm |
| Counterbore diameter (ds) | 11 mm |
| Counterbore depth (ts) | 6,35 mm6.35 mm |
| Ratings | |
| Maximum permissible radial load (Fr perm) | 15,4 kN15.4 kN |
| Basic dynamic axial load rating (Ca) | 63 kN |
| Basic static axial load rating (C0a) | 66 kN |
| Basic dynamic radial load rating (Cr) | 40 kN |
| Basic static radial load rating (C0r) | 32,5 kN32.5 kN |
| Preload (Preload) | 0,005 incl. 0,02 mm |
Level 3 · MERYDOM Engineering VerifiedCertified 2026-08-17 by MERYDOM Engineering Department.

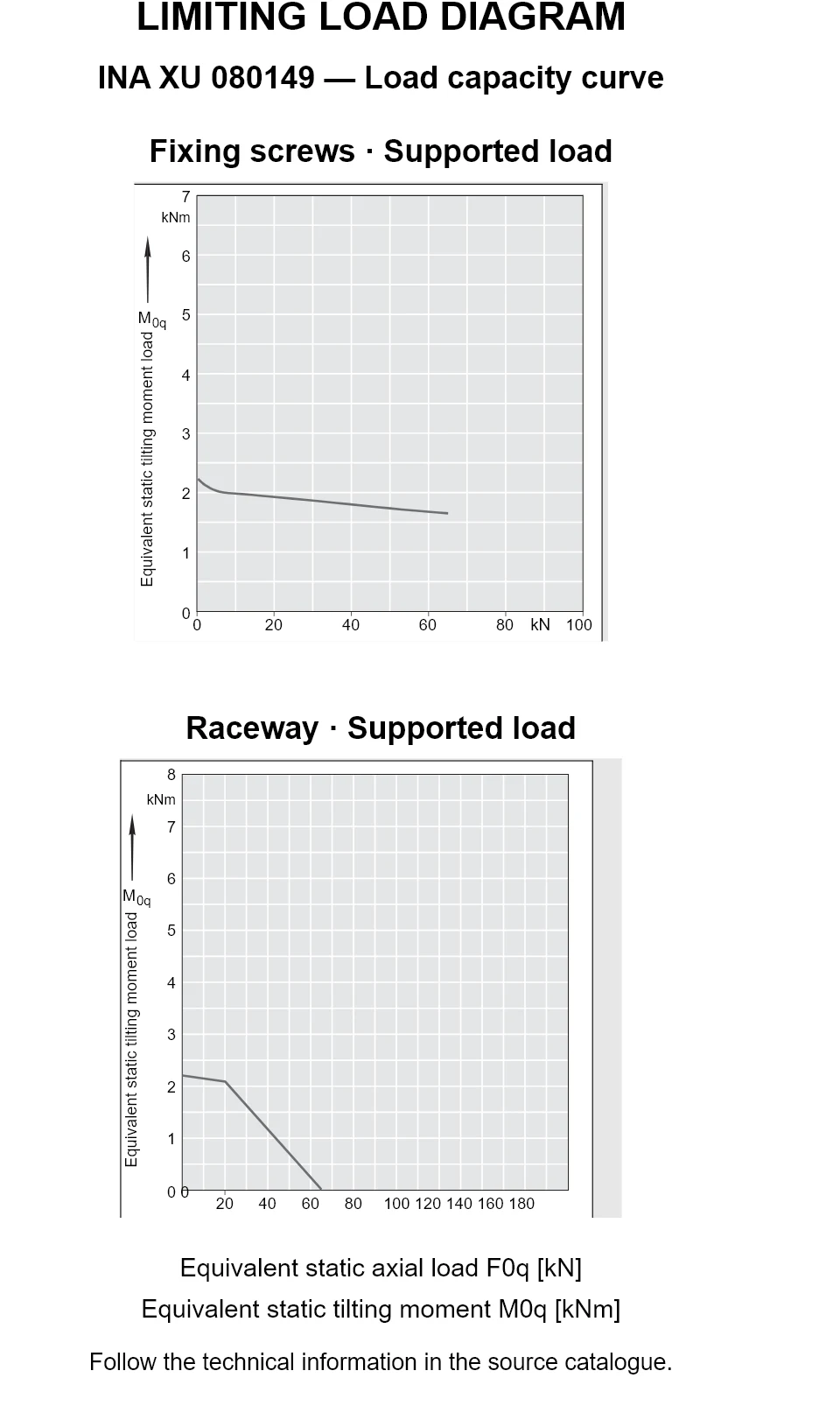

SERIES LOAD CAPACITY
XU Series load chart
Use the model designation in the catalog legend as an initial moment-and-thrust capacity reference.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
Factory-certified replacement design
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Default approved drawing revision 1.0
- Certification date linked to the data-import record
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
LEGAL & ENGINEERING NOTICE
Independent replacement certification
- MERYDOM is the manufacturer and certifying party for the MERYDOM product displayed on this page.
- Third-party brand names and model numbers remain the property of their respective owners and are used only to identify the intended interchange reference.
- MERYDOM is an independent manufacturer and is not affiliated with, endorsed by or sponsored by the referenced OEM.
- The interchangeability statement applies to the matching model designation and the published verification scope; application suitability still depends on loads, duty cycle, installation, lubrication and operating environment.
- The approved quotation, manufacturing drawing and contract technical agreement control the final supplied product.
MERYDOM REPLACEMENT SUPPORT
Request price & deliveryReady for price, delivery and application confirmation?
Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model XU 080149.
