INA XA 200352 H Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the INA XA 200352 H slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The INA XA 200352 H reference belongs to the Xa Series and uses a cross roller, external gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
XA 200352 H
MERYDOM-manufactured slewing bearing certified for interchange with INA XA 200352 H.
- Overall OD (Do)
- 462 mm
- Overall ID (di)
- 274 mm
- Overall height
- 59 mm
- Gear arrangement
- External gear
- Mounting holes
- 24 / 24 outer / inner
- Bearing design
- Cross roller
MERYDOM VerifiedLevel 3 · Engineering verification record
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Mass)
- 34.5 kg
- Overall outside diameter (Da)
- 462 mm
- Overall inside diameter (di)
- 274 mm
- Catalog diameter Di (Di)
- 353 mm
- Catalog diameter da (da)
- 351 mm
- Overall height (H)
- 59 mm
- Inner height (h)
- 54 mm
Mounting
- Outer ring bolt circle (La)
- 407 mm
- Inner ring bolt circle (Li)
- 298 mm
- Outer ring mounting-hole count (na)
- 24
- Inner ring mounting-hole count (ni)
- 24
- Common mounting-hole diameter (dB)
- 14 mm
Gear
- Gear pitch diameter (d0)
- 450 mm
- Gear module (m)
- 6 mm
- Gear tooth count (z)
- 75
- Gear face width (b)
- 30 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordINA XA 200352 H Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | XA 200352 H |
| Certified interchangeable with | INA XA 200352 H |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | INA |
| Series | Xa Series |
| Reference model | XA 200352 H |
| System of measurement | Metric |
| Bearing structure | Cross roller |
| Gear arrangement | External gear |
| Dimensions | |
| Mass (Mass) | 34.5 kg |
| Overall outside diameter (Da) | 462 mm |
| Overall inside diameter (di) | 274 mm |
| Catalog diameter Di (Di) | 353 mm |
| Catalog diameter da (da) | 351 mm |
| Overall height (H) | 59 mm |
| Inner height (h) | 54 mm |
| Mounting | |
| Outer ring bolt circle (La) | 407 mm |
| Inner ring bolt circle (Li) | 298 mm |
| Outer ring mounting-hole count (na) | 24 |
| Inner ring mounting-hole count (ni) | 24 |
| Common mounting-hole diameter (dB) | 14 mm |
| Gear | |
| Gear pitch diameter (d0) | 450 mm |
| Gear module (m) | 6 mm |
| Gear tooth count (z) | 75 |
| Gear face width (b) | 30 mm |
| Ratings | |
| Maximum permissible radial load (Fr perm) | 99.1 kN |
| Normal tooth force (Fznorm) | 20.9 kN |
| Maximum tooth force (Fzmax) | 34.5 kN |
| Basic dynamic axial load rating (Ca) | 335 kN |
| Basic static axial load rating (C0a) | 720 kN |
| Basic dynamic radial load rating (Cr) | 214 kN |
| Basic static radial load rating (C0r) | 355 kN |
| Preload (Preload) | 0 incl. 0,02 mm |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

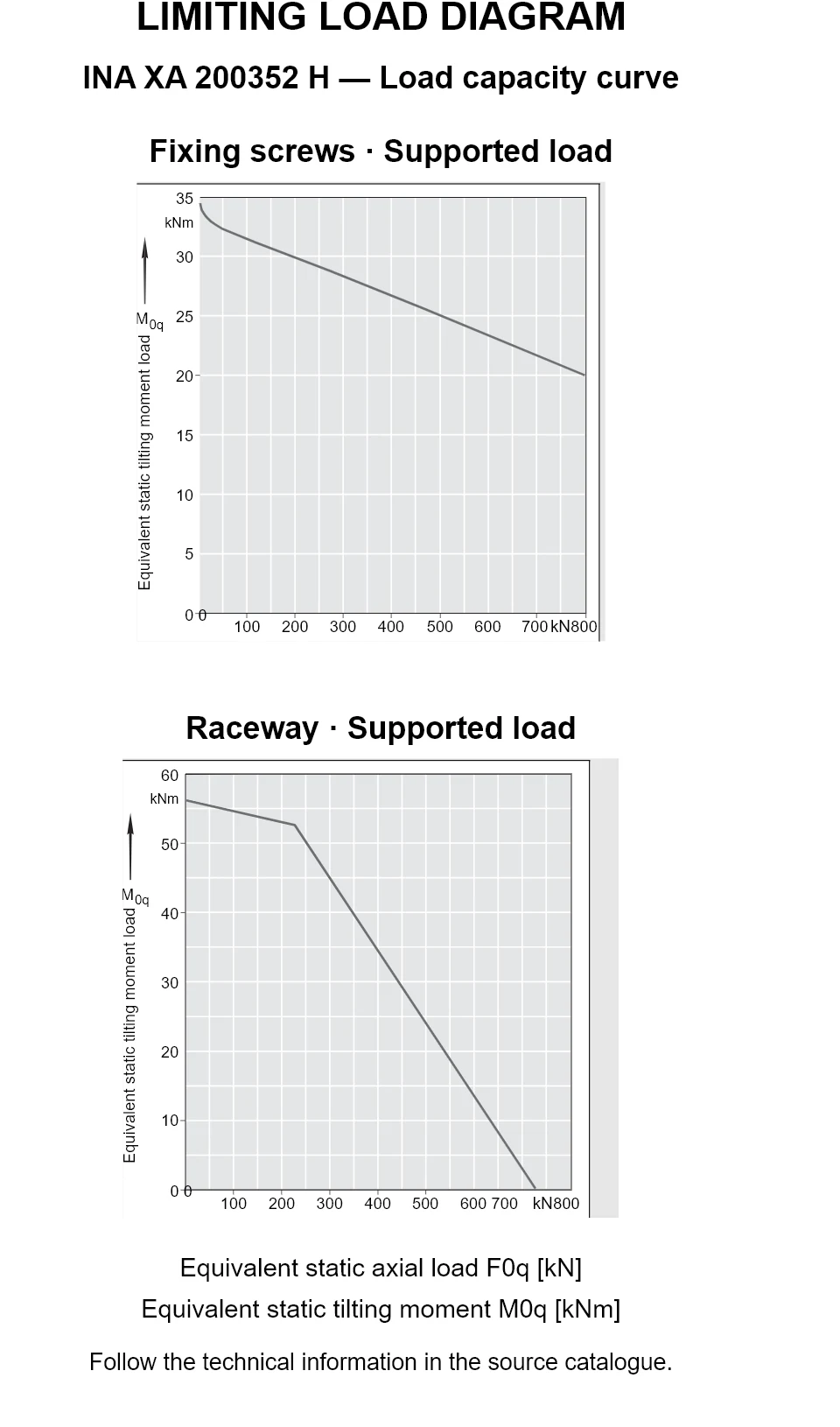

INA XA 200352 H — Load capacity curve
INA XA 200352 H — Load capacity curve
INA XA 200352 H — Load capacity curve. Follow the technical information in the source catalogue.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for INA XA 200352 H
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
