INA VI 160288 N Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the INA VI 160288 N slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The INA VI 160288 N reference belongs to the Vi Series and uses a four-point contact ball, internal gear slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance

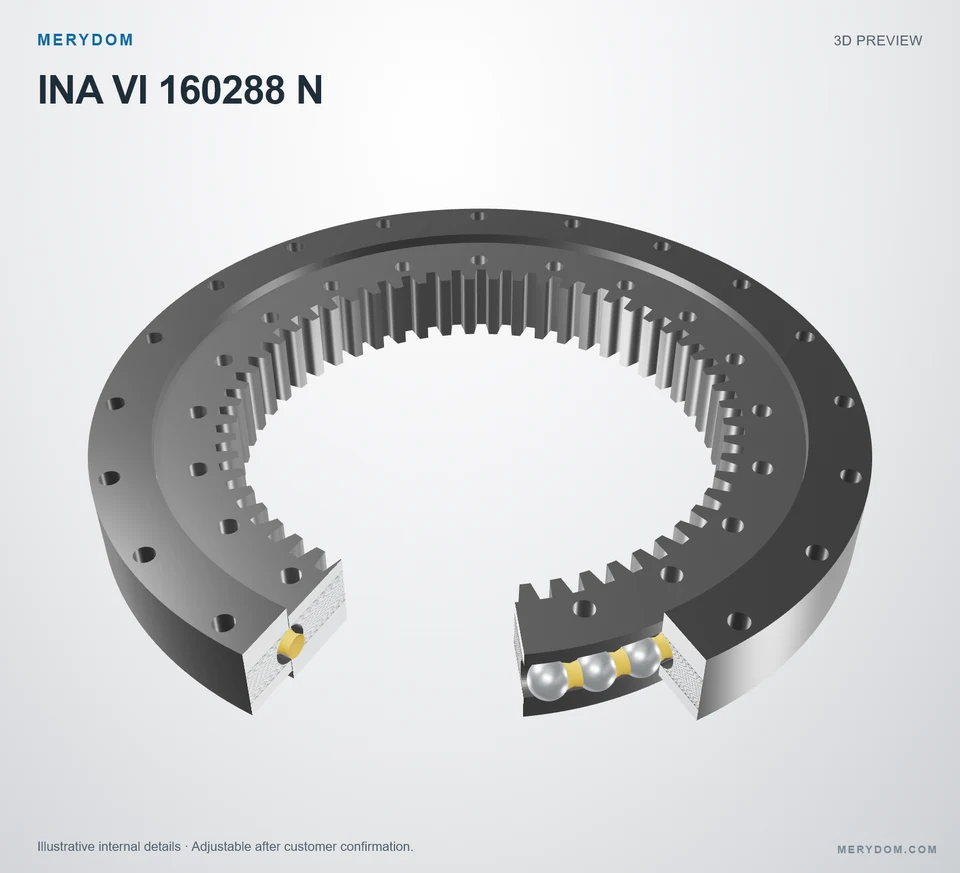

VI 160288 N
MERYDOM-manufactured slewing bearing certified for interchange with INA VI 160288 N.
- Overall OD (Do)
- 340 mm
- Overall ID (di)
- 216 mm
- Overall height
- 39 mm
- Gear arrangement
- Internal gear
- Mounting holes
- 20 / 20 outer / inner
- Bearing design
- Four-point contact ball
MERYDOM VerifiedLevel 3 · Engineering verification record
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available

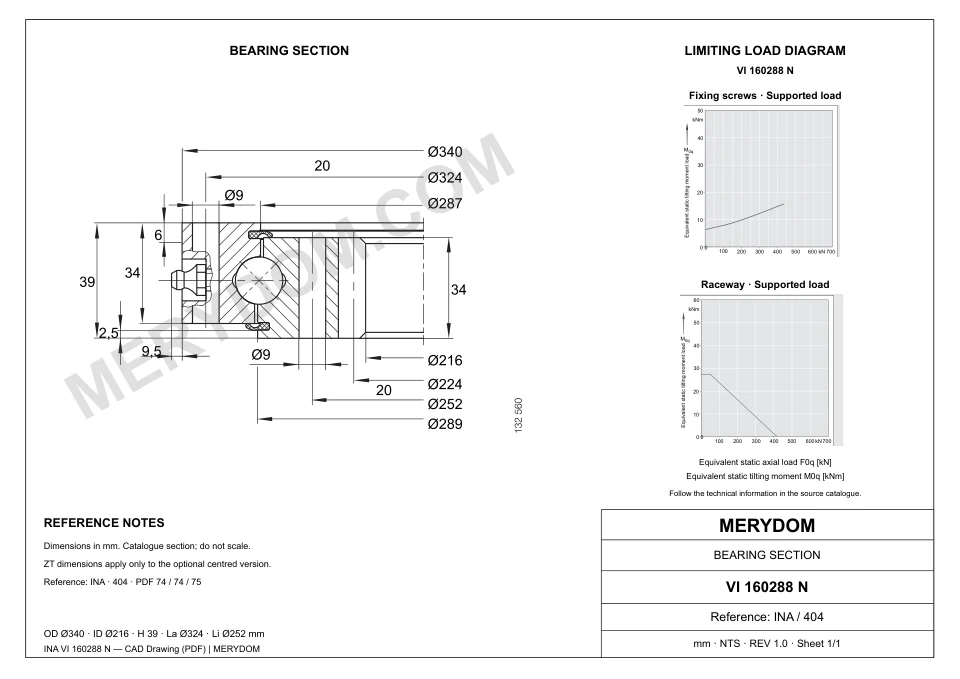

PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Mass (Mass)
- 12 kg
- Overall outside diameter (Da)
- 340 mm
- Outside centring diameter (DaZT)
- 338 mm
- Overall inside diameter (di)
- 216 mm
- Catalog diameter Di (Di)
- 287 mm
- Catalog diameter da (da)
- 289 mm
- Catalog centring diameter daZT (daZT)
- 287 mm
- Overall height (H)
- 39 mm
- Inner height (h)
- 34 mm
- Outer centring length (T)
- 6 mm
- Inner centring length (t)
- 2.5 mm
- Maximum dimension u (u)
- 9.5 mm
Mounting
- Outer ring bolt circle (La)
- 324 mm
- Inner ring bolt circle (Li)
- 252 mm
- Outer ring mounting-hole count (na)
- 20
- Inner ring mounting-hole count (ni)
- 20
- Common mounting-hole diameter (dB)
- 9 mm
Gear
- Gear pitch diameter (d0)
- 224 mm
- Gear module (m)
- 4 mm
- Gear tooth count (z)
- 56
- Gear face width (b)
- 34 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordINA VI 160288 N Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | VI 160288 N |
| Certified interchangeable with | INA VI 160288 N |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | INA |
| Series | Vi Series |
| Reference model | VI 160288 N |
| System of measurement | Metric |
| Bearing structure | Four-point contact ball |
| Gear arrangement | Internal gear |
| Dimensions | |
| Mass (Mass) | 12 kg |
| Overall outside diameter (Da) | 340 mm |
| Outside centring diameter (DaZT) | 338 mm |
| Overall inside diameter (di) | 216 mm |
| Catalog diameter Di (Di) | 287 mm |
| Catalog diameter da (da) | 289 mm |
| Catalog centring diameter daZT (daZT) | 287 mm |
| Overall height (H) | 39 mm |
| Inner height (h) | 34 mm |
| Outer centring length (T) | 6 mm |
| Inner centring length (t) | 2.5 mm |
| Maximum dimension u (u) | 9.5 mm |
| Mounting | |
| Outer ring bolt circle (La) | 324 mm |
| Inner ring bolt circle (Li) | 252 mm |
| Outer ring mounting-hole count (na) | 20 |
| Inner ring mounting-hole count (ni) | 20 |
| Common mounting-hole diameter (dB) | 9 mm |
| Gear | |
| Gear pitch diameter (d0) | 224 mm |
| Gear module (m) | 4 mm |
| Gear tooth count (z) | 56 |
| Gear face width (b) | 34 mm |
| Ratings | |
| Maximum permissible radial load (Fr perm) | 35 kN |
| Normal tooth force (Fznorm) | 12.3 kN |
| Maximum tooth force (Fzmax) | 17.8 kN |
| Basic dynamic axial load rating (Ca) | 165 kN |
| Basic static axial load rating (C0a) | 420 kN |
| Basic dynamic radial load rating (Cr) | 108 kN |
| Basic static radial load rating (C0r) | 190 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

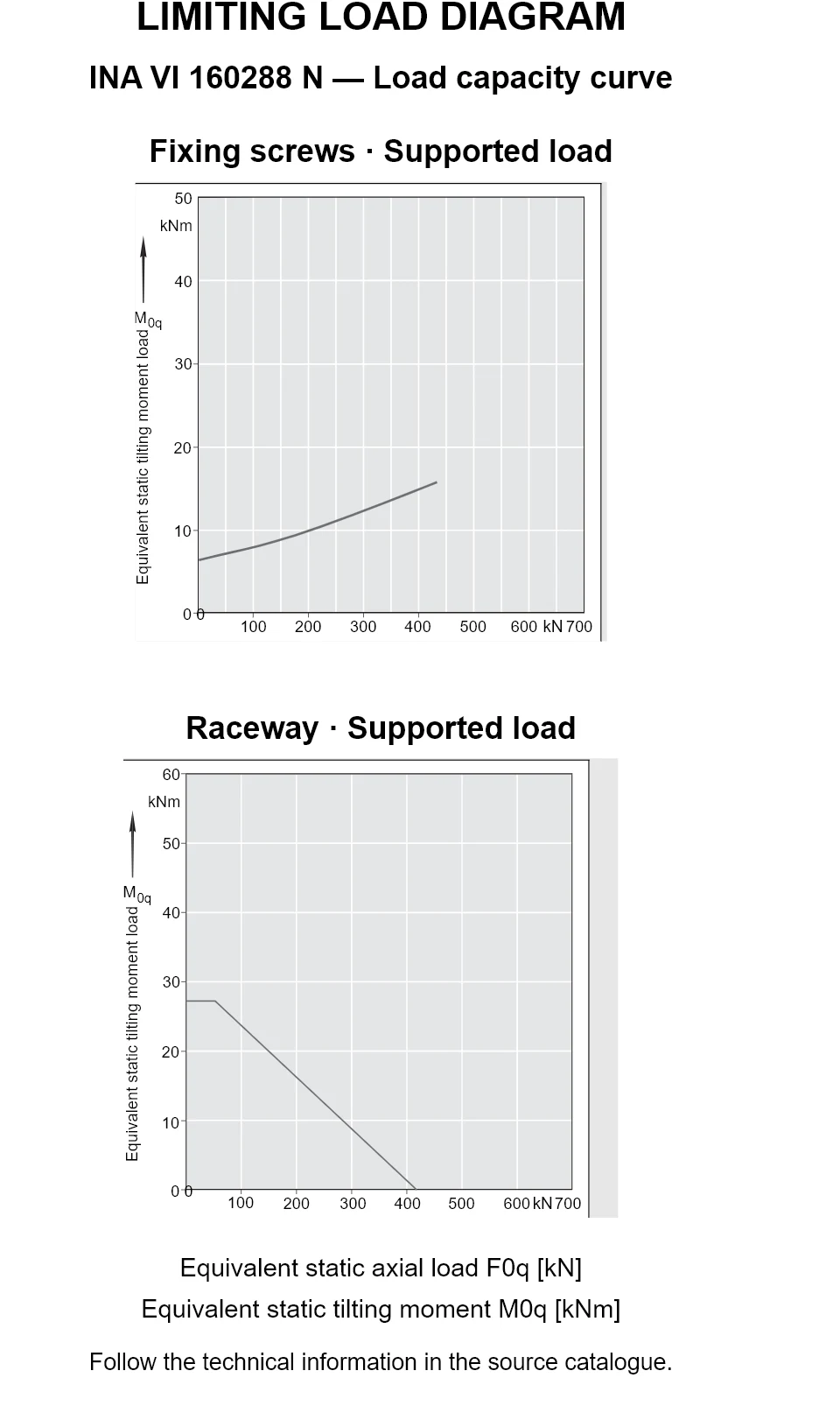

INA VI 160288 N — Load capacity curve
INA VI 160288 N — Load capacity curve
INA VI 160288 N — Load capacity curve. Follow the technical information in the source catalogue.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for INA VI 160288 N
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
