Certified interchangeability
- Matching model designation and installation envelope
- Reviewed mounting-hole and bolt-circle interfaces
- Gear arrangement matched to the referenced configuration
IMO 90-20 0841/0-07052 Slewing Bearing Replacement
Level 3 VerifiedMERYDOM manufactures an engineering-verified replacement for the IMO 90-20 0841/0-07052 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.
The IMO 90-20 0841/0-07052 reference belongs to the 920 Series and uses a ball bearing with flange rings, ungeared slewing bearing configuration.
MERYDOM BRAND · CERTIFIED REPLACEMENTCertified product dataView complete specifications ↓ Factory assurance
90-20 0841/0-07052
MERYDOM-manufactured slewing bearing certified for interchange with IMO 90-20 0841/0-07052.
- Overall OD (Do)
- 948 mm
- Overall ID (di)
- 734 mm
- Overall height
- 56 mm
- Gear arrangement
- Ungeared
- Mounting holes
- 14 / 18 outer / inner
- Bearing design
- Ball bearing with flange rings
MERYDOM VerifiedLevel 3 · Engineering verification record
- Certified dimensional interchange
- MERYDOM controlled materials
- Factory documentation available
PRODUCT DIMENSIONS
View complete specifications ↓Published dimensions and interfaces
Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.
Dimensions
- Overall outside diameter (Da)
- 948 mm
- Overall inside diameter (di)
- 734 mm
- Assembly weight (G)
- 52 kg
- Overall height (H)
- 56 mm
- Outer ring inner diameter (Di)
- 845.5 mm
- Inner ring outer diameter (da)
- 842.5 mm
- Outer ring flange diameter a (a)
- 883 mm
- Inner ring flange diameter b (b)
- 799 mm
Mounting
- Outer ring bolt circle (La)
- 920 mm
- Outer ring mounting-hole count (na)
- 14
- Inner ring bolt circle (Li)
- 762 mm
- Inner ring mounting-hole count (ni)
- 18
- Outer ring mounting-hole diameter (Øa)
- 18 mm
- Inner ring mounting-hole diameter (Øi)
- 18 mm
MERYDOM CERTIFIED SPECIFICATION
MERYDOM Factory Verified · Controlled recordIMO 90-20 0841/0-07052 Slewing Bearing Specifications
MERYDOM product identity, certification, materials and dimensional data for the certified replacement.
| Technical parameter | MERYDOM certified product value |
|---|---|
| MERYDOM Certified Product | |
| Product brand | MERYDOM |
| MERYDOM model | 90-20 0841/0-07052 |
| Certified interchangeable with | IMO 90-20 0841/0-07052 |
| Factory verification | Level 3 · Engineering Verified |
| Reviewed by | MERYDOM Engineering Department |
| Verification metadata | Controlled internal record; date and drawing revision are not published. |
| Materials | |
| Configurable ring material options | 42CrMo / 50Mn |
| Seal material | NBR · Nitrile rubber |
| Configurable spacer material options | Engineering nylon / Brass |
| Identification | |
| Reference brand | IMO |
| Series | 920 Series |
| Reference model | 90-20 0841/0-07052 |
| System of measurement | Metric |
| Bearing structure | Ball bearing with flange rings |
| Gear arrangement | Ungeared |
| Dimensions | |
| Overall outside diameter (Da) | 948 mm |
| Overall inside diameter (di) | 734 mm |
| Assembly weight (G) | 52 kg |
| Overall height (H) | 56 mm |
| Outer ring inner diameter (Di) | 845.5 mm |
| Inner ring outer diameter (da) | 842.5 mm |
| Outer ring flange diameter a (a) | 883 mm |
| Inner ring flange diameter b (b) | 799 mm |
| Mounting | |
| Outer ring bolt circle (La) | 920 mm |
| Outer ring mounting-hole count (na) | 14 |
| Inner ring bolt circle (Li) | 762 mm |
| Inner ring mounting-hole count (ni) | 18 |
| Outer ring mounting-hole diameter (Øa) | 18 mm |
| Inner ring mounting-hole diameter (Øi) | 18 mm |
| Ratings | |
| Static radial load rating (Co_rad) | 241 kN |
| Static axial load rating (Co_ax) | 563 kN |
| Dynamic radial load rating (C_rad) | 204 kN |
| Dynamic axial load rating (C_ax) | 205 kN |
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

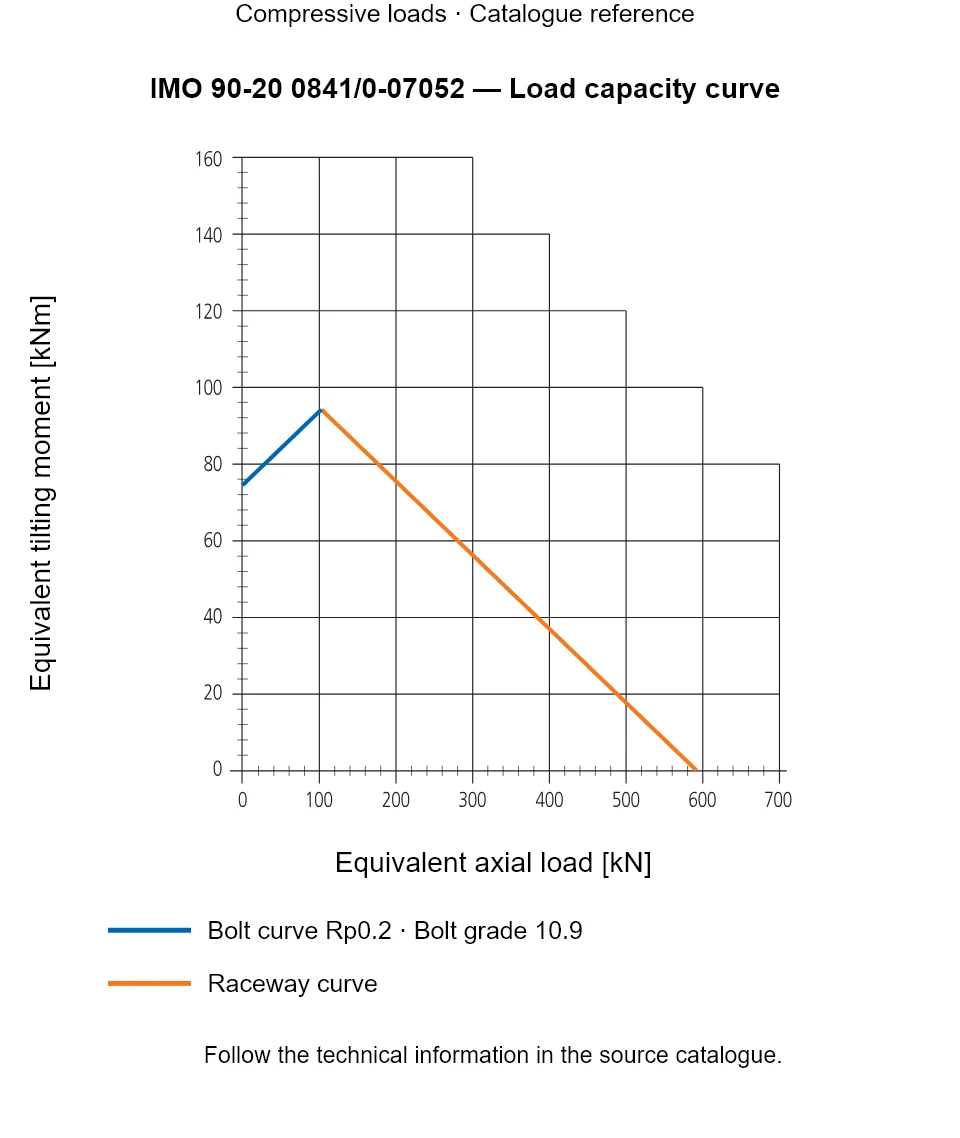

IMO 90-20 0841/0-07052 — Load capacity curve
IMO 90-20 0841/0-07052 — Load capacity curve
IMO 90-20 0841/0-07052 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.
Engineering selection note
This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.
MERYDOM ENGINEERING
MERYDOM Replacement for IMO 90-20 0841/0-07052
This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.
MERYDOM construction
- Configurable 42CrMo or 50Mn ring material options
- NBR nitrile-rubber sealing system
- Configurable engineering nylon or brass spacer options
Factory documentation
- Engineering verification by MERYDOM Engineering Department
- Verification evidence is maintained in the controlled internal record
- Drawing revision and final documentation package are confirmed with the quotation
Application confirmation
- Confirm support flatness, bolt grade and preload
- Verify applied loads, duty cycle and lubrication
- Confirm temperature, environment and installation conditions
