MERYDOM · Factory-certified replacement

IMO 41-32 1160/2-00991 Slewing Bearing Replacement

Level 3 Verified

MERYDOM manufactures an engineering-verified replacement for the IMO 41-32 1160/2-00991 slewing bearing. The replacement is reviewed against the available dimensional, mounting and product-interface data for this reference.

The IMO 41-32 1160/2-00991 reference belongs to the Other Standard Ball Series and uses a four-point contact ball, external gear slewing bearing configuration.

Request price & deliveryBack to replacement catalog
Back to replacement catalog

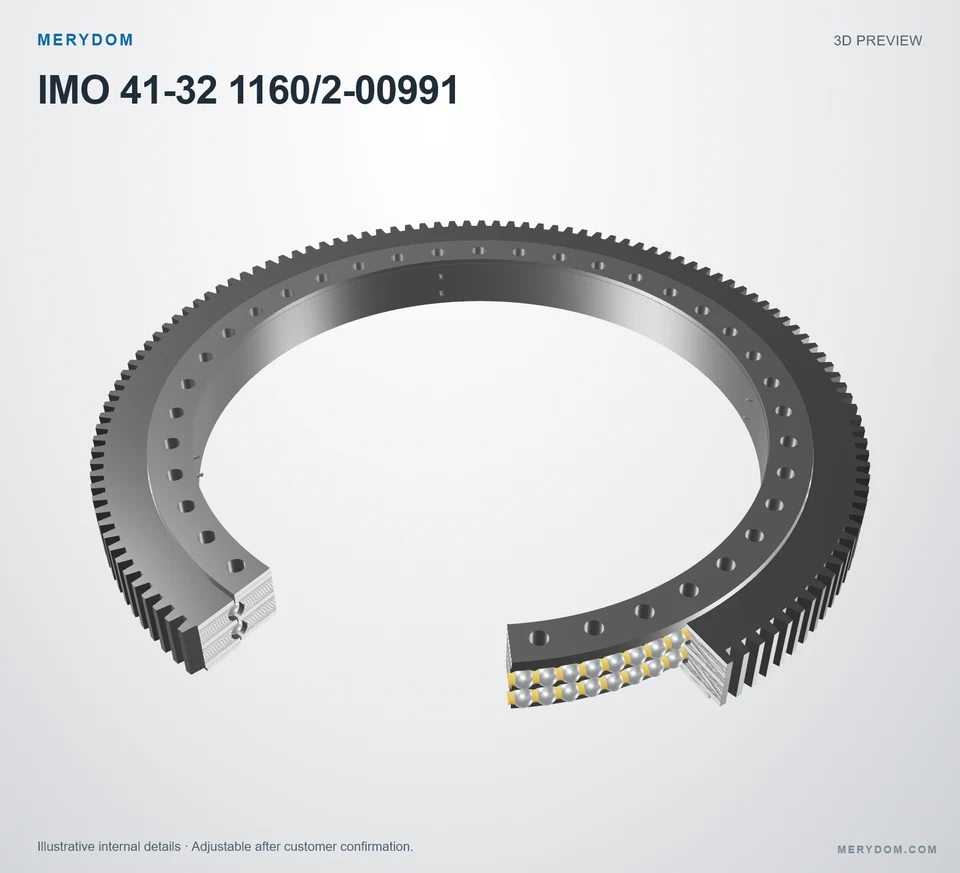

Internal-view preview of the MERYDOM replacement slewing bearing for IMO 41-32 1160/2-00991.
MERYDOM BRAND · CERTIFIED REPLACEMENT

41-32 1160/2-00991

MERYDOM-manufactured slewing bearing certified for interchange with IMO 41-32 1160/2-00991.

Certified product dataView complete specifications ↓
Overall OD (Do)
1350 mm
Overall ID (di)
1008 mm
Overall height
112 mm
Gear arrangement
External gear
Mounting holes
40 / 40 outer / inner
Bearing design
Four-point contact ball
MERYDOM VerifiedLevel 3 · Engineering verification record
Factory assurance
  • Certified dimensional interchange
  • MERYDOM controlled materials
  • Factory documentation available

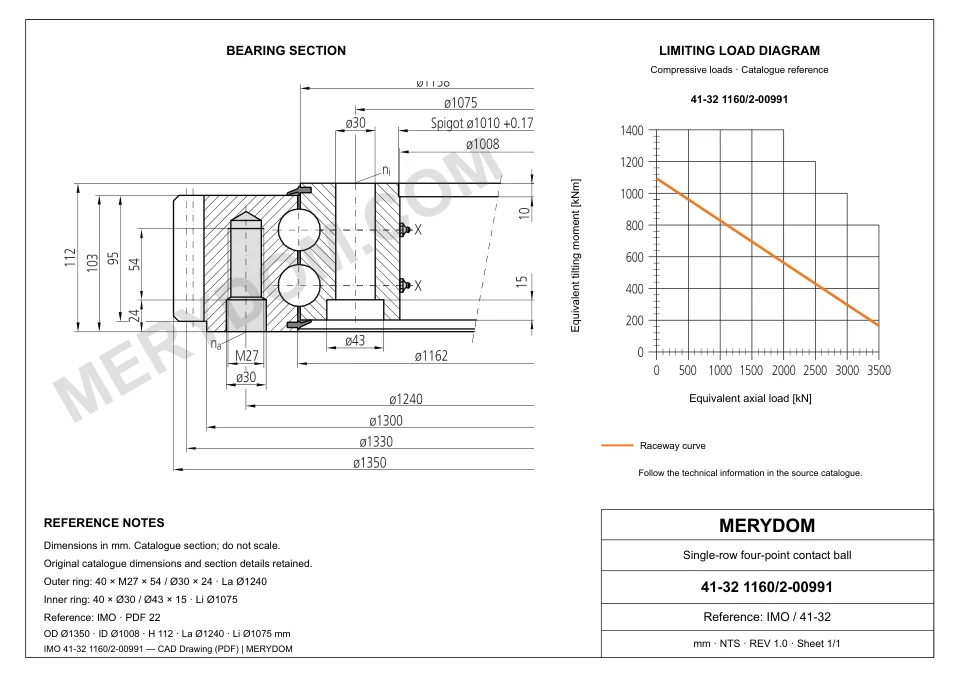

PRODUCT DIMENSIONS

Published dimensions and interfaces

Every available catalog dimension, mounting interface and gear value is shown here in the original published unit.

View complete specifications ↓

Dimensions

Assembly weight (G)
429 kg
Overall height (H)
112 mm
Overall outside diameter (Da)
1,350 mm
Overall inside diameter (di)
1,008 mm

Mounting

Outer ring mounting-hole count (na)
40
Inner ring mounting-hole count (ni)
40
Outer ring bolt circle (La)
1,240 mm
Inner ring bolt circle (Li)
1,075 mm

Gear

Gear module (m)
10 mm
Gear tooth count (z)
132
Addendum modification coefficient (x)
0.5
MERYDOM CERTIFIED SPECIFICATION

IMO 41-32 1160/2-00991 Slewing Bearing Specifications

MERYDOM product identity, certification, materials and dimensional data for the certified replacement.

MERYDOM Factory Verified · Controlled record
Technical parameterMERYDOM certified product value
MERYDOM Certified Product
Product brandMERYDOM
MERYDOM model41-32 1160/2-00991
Certified interchangeable withIMO 41-32 1160/2-00991
Factory verificationLevel 3 · Engineering Verified
Reviewed byMERYDOM Engineering Department
Verification metadataControlled internal record; date and drawing revision are not published.
Materials
Configurable ring material options42CrMo / 50Mn
Seal materialNBR · Nitrile rubber
Configurable spacer material optionsEngineering nylon / Brass
Identification
Reference brandIMO
SeriesOther Standard Ball Series
Reference model41-32 1160/2-00991
System of measurementMetric
Bearing structureFour-point contact ball
Gear arrangementExternal gear
Dimensions
Assembly weight (G)429 kg
Overall height (H)112 mm
Overall outside diameter (Da)1,350 mm
Overall inside diameter (di)1,008 mm
Mounting
Outer ring mounting-hole count (na)40
Inner ring mounting-hole count (ni)40
Outer ring bolt circle (La)1,240 mm
Inner ring bolt circle (Li)1,075 mm
Gear
Gear module (m)10 mm
Gear tooth count (z)132
Addendum modification coefficient (x)0.5
Ratings
Permitted circumferential force, normal (fz_norm)73 kN
Permitted circumferential force, maximum (fz_max)131 kN
Static radial load rating (Co_rad)1,545 kN
Static axial load rating (Co_ax)4,134 kN
Dynamic radial load rating (C_rad)594 kN
Dynamic axial load rating (C_ax)692 kN
Radial clearance (SRad)0 - 0.10 mm
Axial tilting clearance (Skipp)0 - 0.25 mm
Miscellaneous
Reference catalog ring material (inner / outer) (Material)42CrMo4C / 42CrMo4V
Reference catalog transport holes (T)Not applicable
Reference catalog grease nipple specification (X)each 4x AM10x1
Level 3 · MERYDOM Engineering VerifiedReviewed by MERYDOM Engineering Department. Evidence date and drawing revision are not published.

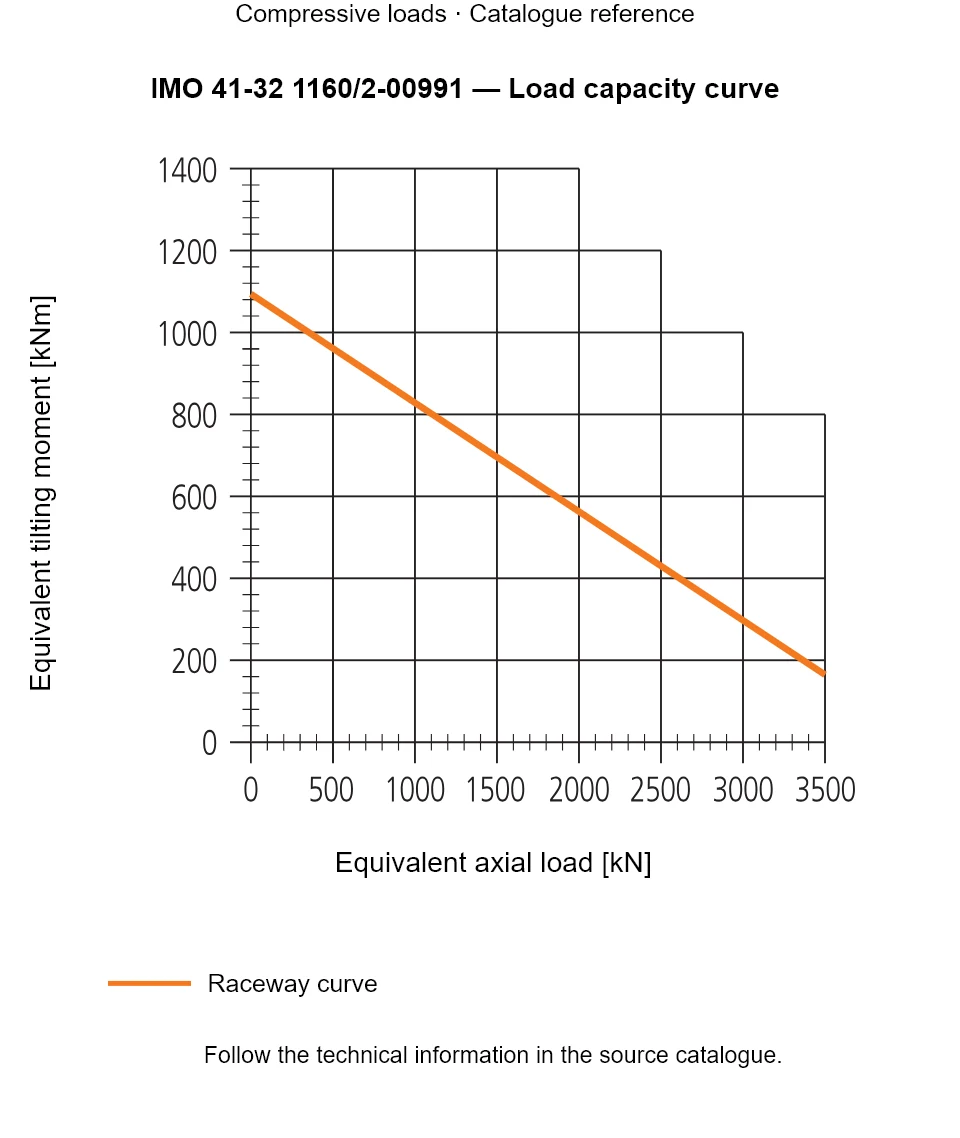

IMO 41-32 1160/2-00991 — Load capacity curve

IMO 41-32 1160/2-00991 — Load capacity curve

IMO 41-32 1160/2-00991 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.

IMO 41-32 1160/2-00991 — Load capacity curve · Compressive loads · Catalogue reference. Follow the technical information in the source catalogue.
Engineering selection note

This catalog chart is a preliminary selection aid. Final MERYDOM application approval must also consider mounting rigidity, bolt capacity, duty cycle, lubrication and operating conditions.

MERYDOM ENGINEERING

MERYDOM Replacement for IMO 41-32 1160/2-00991

This MERYDOM bearing has been reviewed against the published model envelope, mounting interfaces, gear configuration and declared material specification for replacement use.

Certified interchangeability

  • Matching model designation and installation envelope
  • Reviewed mounting-hole and bolt-circle interfaces
  • Gear arrangement matched to the referenced configuration

MERYDOM construction

  • Configurable 42CrMo or 50Mn ring material options
  • NBR nitrile-rubber sealing system
  • Configurable engineering nylon or brass spacer options

Factory documentation

  • Engineering verification by MERYDOM Engineering Department
  • Verification evidence is maintained in the controlled internal record
  • Drawing revision and final documentation package are confirmed with the quotation

Application confirmation

  • Confirm support flatness, bolt grade and preload
  • Verify applied loads, duty cycle and lubrication
  • Confirm temperature, environment and installation conditions
MERYDOM REPLACEMENT SUPPORT

Ready for price, delivery and application confirmation?

Send the required quantity and operating conditions. MERYDOM will confirm the supply configuration, documentation package and delivery schedule for model 41-32 1160/2-00991.
